| Manufacturer | DECKEL |
|---|---|
| Model | S 11 |
| Year | |
| Location | Germany
|

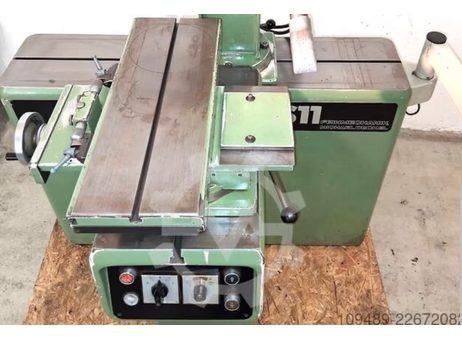

DECKEL S 11 universal tool grinding machine. Manufacturer: DECKEL. Model: S 11. This listing describes a universal/partial-head tool grinder supplied with documentation, additional accessories, and a tool cabinet.
Key machining and adjustment ranges:
- Grinding stroke: 190 mm (standard and swirl grinding)
- Longitudinal adjustment of grinding spindle: approx. 5 mm
- Vertical adjustment of grinding head: approx. 320 mm
- Transverse adjustment of tool slide: approx. 100 mm
- Grinding head carrier travel: approx. 800 mm
- Tool carrier travel: approx. 215 mm
- Universal/partial head travel: approx. 330 mm
- Clamping area on tool slide: approx. 500 x 180 mm
- Maximum workpiece diameter between centers: 130 mm
- Maximum workpiece diameter when using flying (universal/partial) head: 620 mm
Rotational/swivel capabilities:
- Swivel angle: grinding head carrier 360°, grinding head 360°, tool carrier 360°
Controls and measurement:

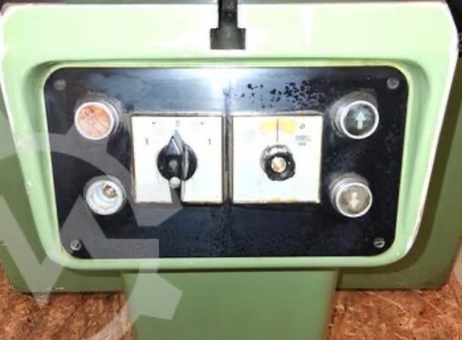

- Digital display
- Measuring optics
Dimensions listed in known fields are limited; table and overall machine dimensions, weights, spindle power and other power/usage specifics are not provided in the available data.
Included items noted in the provided description:

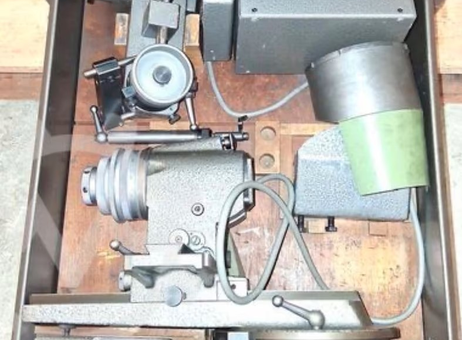

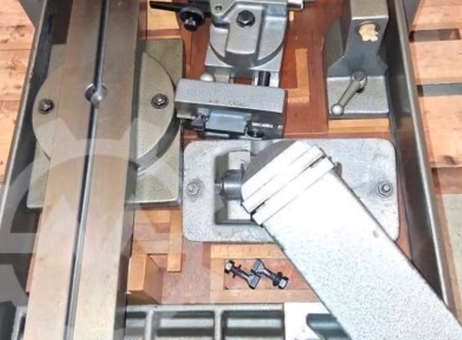

- Additional accessories (unspecified)
- Documentation

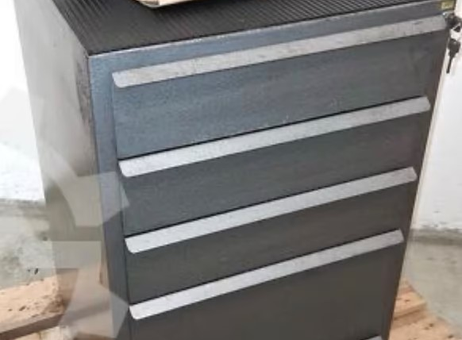

- Tool cabinet
Notes and important disclaimers: All technical values and included items above are taken from the available machine description. No statements are made about operational status, testing, refurbishment, or warranty, as such information is not provided. Potential buyers should request any missing technical specifications (power, electrical requirements, exact dimensions, condition reports, and operational testing) from the seller before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Universal - Tool Grinding Machine DECKEL S 11 with Accessories & Tool Cabinet
-Grinding stroke 190mm
-Grinding stroke during swirl grinding 190mm
-Longitudinal adjustment grinding spindle approx. 5mm
-Vertical adjustment grinding head approx. 320mm
-Transverse adjustment tool slide approx. 100mm
-Adjustment ranges:
-Grinding head carrier approx. 800mm
-Tool carrier approx. 215mm
-Universal / partial head approx. 330mm
-Swivel angle / grinding head carrier 360 degrees / grinding head 360 degrees / tool carrier 360 degrees
-Clamping area tool slide approx. 500x180mm
-Max. workpiece diameter between centers 130mm
-Max. workpiece diameter / flying clamping (universal partial head) 620mm
-Digital display
-Measuring optics
-Additional accessories (SEE PICTURES)
-Documentation
-Tool cabinet
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
