| Manufacturer | DECKEL-MAHO |
|---|---|
| Model | DMU 60 monoBlock |
| Year | 2006 |
| Location | Germany
|
This listing features a DECKEL-MAHO DMU 60 monoBlock vertical machining center, manufactured in 2006 in Germany. The machine is designed for precision machining with a robust construction and advanced capabilities. It offers a travel of 630 mm along the X-axis and 560 mm along both the Y and Z axes, providing substantial workspace. The worktable measures 1000 mm in length and 600 mm in width, capable of handling parts up to 500 kg in weight.

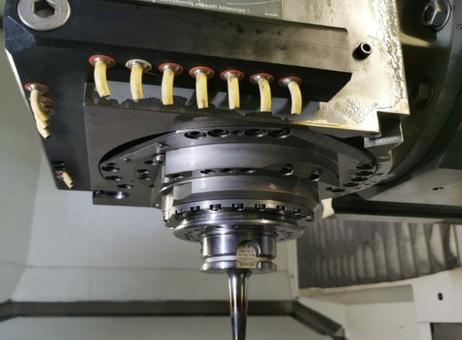

The spindle is equipped with an HSK 63 A mount and can reach speeds up to 18,000 rpm, powered by a 52 kW motor. The machine includes a tool magazine with 24 pockets, arranged as 2 x 12 slots, supporting tool diameters up to 130 mm with a maximum length of 315 mm and a maximum tool weight of 8 kg. Feed rates for the X, Y, and Z axes are infinitely variable up to 30,000 mm/min, with rapid traverse speeds reaching 30 m/min.

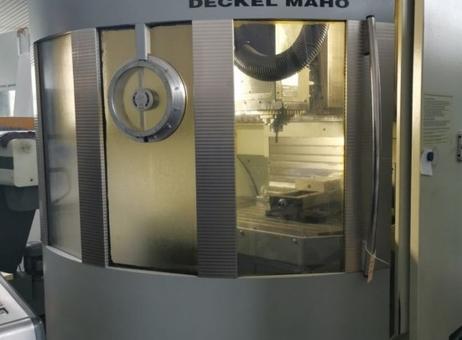

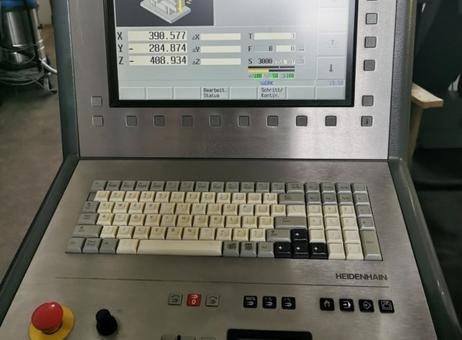

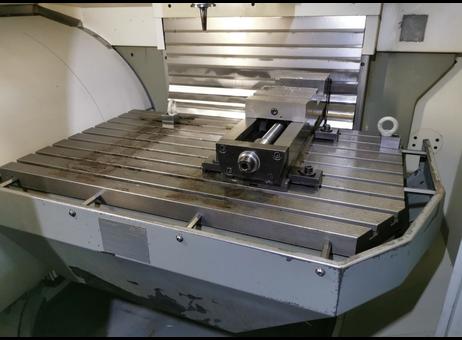

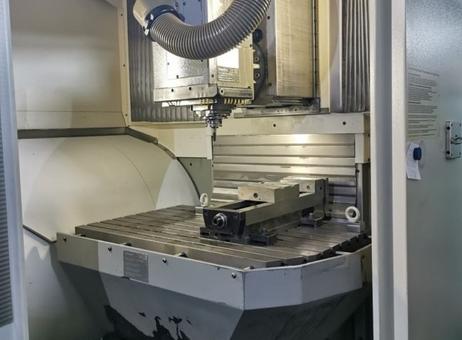

Control is provided by a HEIDENHAIN system featuring the MillPlus iT interface, with a control panel that includes a display and keyboard. The machine’s protective enclosure has transparent windows within a metallic frame, enhancing operator safety and visibility. The interior machining area shows some wear marks on the table but remains clean overall. A mechanical machine vice with a jaw width of 160 mm is mounted on the worktable, which also has lifting eyes on both sides.
Additional accessories include a HEIDENHAIN touch probe (TS 640), an electronic handwheel, a chip conveyor, and a coolant system equipped with a belt filter. The spindle and tool holder are well-maintained and clean. The machine weighs approximately 6.5 tons and measures 3.40 m in length, 1.86 m in width, and 2.42 m in height. Electrical requirements are 52 kVA at 400 V and 50 Hz.
Overall, the machine exterior and control panel appear clean and well-maintained, with all buttons and emergency stop features intact. The DMU 60 monoBlock is suitable for demanding vertical machining tasks requiring precision and reliability.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category Vertical machining centre
Make DECKEL-MAHO
Model DMU 60 monoBlock
Year of manufacture 2006
Control system CNC
Country of origin Germany
Delivery time immediate
Delivery terms ex warehouse, loaded onto lorry
Technical specifications
X-axis travel 630 mm
Y-axis travel 560 mm
Z-axis travel 560 mm
Table clamping area 1000 x 600 mm
Spindle mount HSK 63 A
Spindle speeds – infinitely variable 18,000 rpm
Feed rates x/y/z – infinitely variable 0 – 30,000 mm/min
Rapid traverse 30 m/min
Number of tool magazine slots 2 x 12
Tool diameter with full loading 130 mm
Tool length – max. 315 mm
Tool weight – max. 8 kg
Internal coolant supply 40 bar
Control HEIDENHAIN
Control MillPlus iT
Table load max. 500 kg
Total power requirement 52 kVA
Machine weight approx. 6.5 t
Machine dimensions L x W x H 3.40 x 1.86 x 2.42 m
Accessories
HEIDENHAIN touch probe, TS 640; electronic handwheel, mechanical machine
vice (jaw width 160 mm), chip conveyor, coolant
system with belt filter
