| Manufacturer | DECKEL MAHO |
|---|---|
| Model | DMC-60T |
| Year | 2004 |
| Location | Italy
|
This DECKEL MAHO DMC-60T is a 5-axis machining center designed for complex and precise manufacturing tasks. It features a HEIDENHAIN MILLPLUS IT CNC control system, providing advanced machining capabilities. The machine's axes travel are 780 mm on the X-axis, 560 mm on the Y-axis, and 560 mm on the Z-axis, allowing for substantial working volume. The table measures 630 mm in length and 500 mm in width, with a load capacity of up to 500 kg, suitable for a variety of workpieces.
The spindle has a maximum speed of 18,000 rpm and is powered by a 30 kW motor, enabling high-performance machining. The tool magazine can hold up to 60 tool pockets, facilitating extended machining operations without frequent tool changes. The tool shank type is SK40 according to DIN-69871 and DIN-69872 standards, accommodating a range of tooling options.
The machine supports continuous rotation on the A-axis (head) up to 150° and full 360° rotation on the B-axis (table), allowing for complex 5-axis machining. Rapid feed rates reach up to 50,000 mm/min on the linear axes, with working feed rates ranging from 20 to 15,000 mm/min, supporting both roughing and finishing operations.
Accessories include a workpiece probe, chip conveyor, coolant collection tank with wash pumps, a high-pressure pump for coolant through the spindle line, spindle line conditioner, transformer, and comprehensive documentation such as manuals, electrical schematics, and CE Declaration.

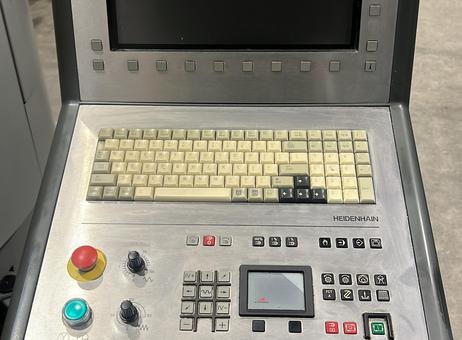

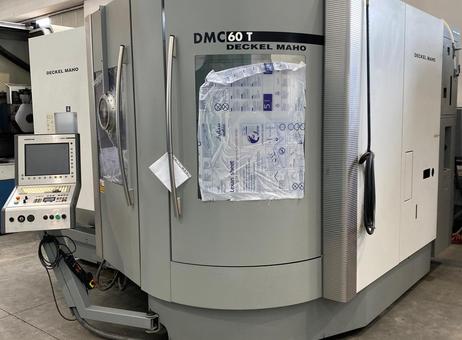

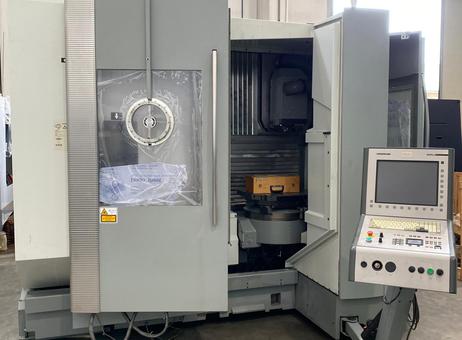

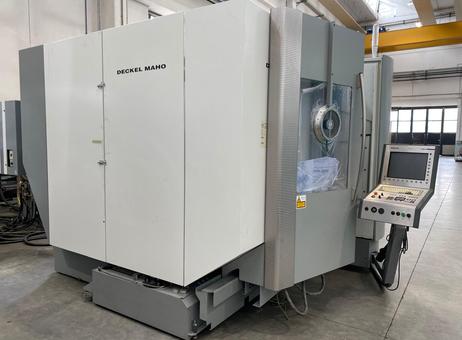

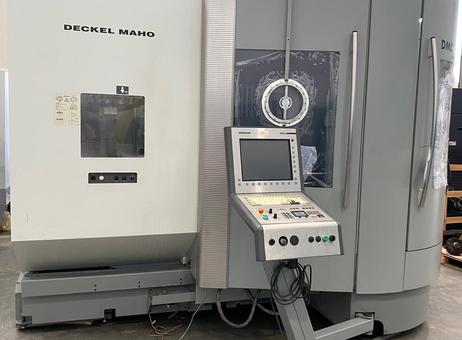

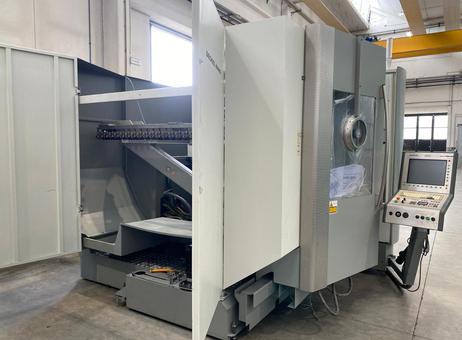

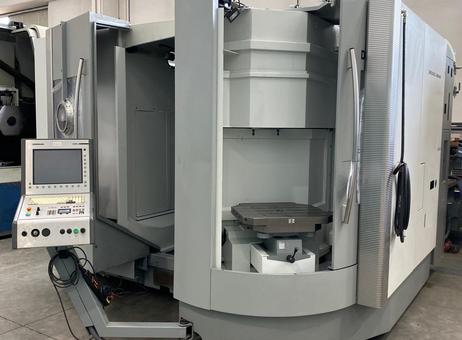

The machine features an enclosed machining area with a window for observation, ensuring safety and visibility during operation. The control panel is equipped with a screen and multiple buttons and switches, facilitating user-friendly operation. The machine appears clean and well-maintained with no visible damage, indicating careful upkeep.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
5-Axis Machining Centers
CNC Control: HEIDENHAIN MILLPLUS IT
Tool Taper Size: ISO-40
Spindle Speed: 18,000 rpm
Spindle Motor Power (30 min): 19/28 kW
X-Axis: 780 mm
Y-Axis: 560 mm
Z-Axis: 560 mm

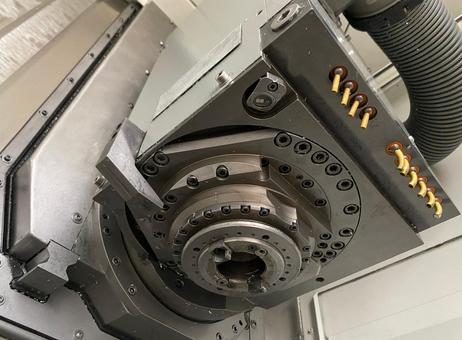

A-Axis (Head) Continuous Rotation: 150° (+30° / -120°) [Min. angle 0.001°]
B-Axis (Table) Continuous Rotation: 360° [Min. angle 0.001°]

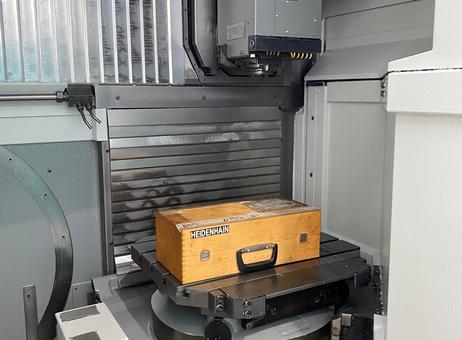

Table Dimensions: 630 x 500 mm
Table Load Capacity: 500 kg
Rapid Feed Rates (X, Y, Z Axes): 50,000 mm/min
Working Feed Rates (X, Y, Z Axes, Max Linear Interpolation): 20 to 15,000 mm/min
Tool Shank Type: SK40 DIN-69871
Tool Shank Type: DIN-69872

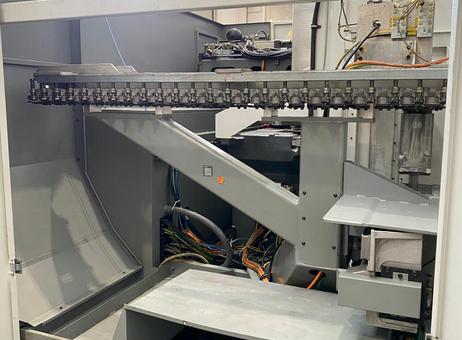

Tool Magazine Capacity: 60 stations
Maximum Tool Diameter: Ø 80 / Ø 160 mm
Maximum Tool Length: 315 mm
Maximum Tool Weight: 8 kg
Accessories: Workpiece probe - Chip conveyor - Coolant collection tank with wash pumps - High-pressure pump for coolant through spindle line - Spindle line conditioner - Transformer - Manuals - Electrical Schematics - CE Declaration
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
