| Manufacturer | DANOBAT |
|---|---|
| Model | HG 91-3000-B8 |
| Year | 2007 |
| Location | Mexico
|
The DANOBAT HG 91-3000-B8 is a robust 4-axis cylindrical grinding machine manufactured in 2007. It is equipped with a CNC control system from SIEMENS, model 840D, ensuring precise and programmable operation. This machine offers a maximum grinding length of 3,000 mm and can accommodate workpieces with a maximum grinding diameter of 850 mm. It supports heavy workpieces weighing up to 5,000 kg when mounted between centers.
The machine features a swivel wheelhead with an angle range from -30° to +180°, allowing versatile grinding positions. The grinding wheel measures Ø760 x 80(100) x Ø304.8 mm and operates at a cutting speed of 45 m/s, powered by a 22 kW spindle motor. The spindle speed range for the workhead is 10 to 120 rpm, with a Morse 6 center cone.
The X-axis (transversal carriage) provides an effective travel of 650 mm, with programmable speeds ranging from 0.01 to 6,000 mm/min and a minimum increment of 0.001 mm in diameter. It has a motor torque of 22 N·m. The Z-axis (longitudinal carriage) offers similar speed programmability and a motor torque of 42 N·m.
Additional features include a hydraulic tailstock with a maximum taper correction of ±0.20 mm and center travel of 100 mm, using an ASA 4 center cone. Dressers are positioned on both the workhead and tailstock for wheel maintenance.

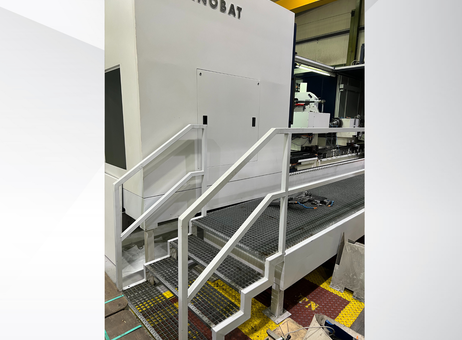

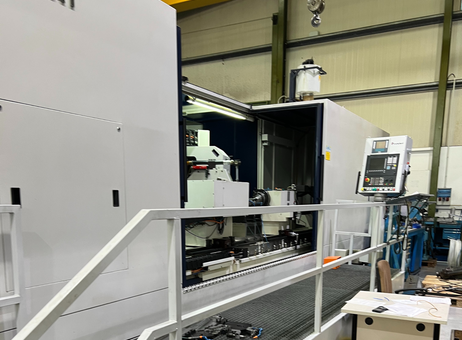

The machine weighs 29,000 kg and has a center height from spindle to table of 1,604 mm. It includes a control panel with multiple buttons and a display screen mounted on the right side for operator convenience. The grinding spindle and workpiece holding area are enclosed within the machine, and a grated platform with safety railing provides safe operator access. The machine appears clean and well-maintained with no visible damage, indicating good preservation of its condition.
This DANOBAT HG 91-3000-B8 is a powerful and versatile grinding machine suitable for heavy-duty cylindrical grinding tasks. Interested buyers are encouraged to contact for further information.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 4-axis DANOBAT HG 91-3000-B8 was manufactured in 2007. It features a CNC control system by SIEMENS 840 D, a maximum grinding length of 3,000 mm, and can handle workpieces up to 5,000 kg. The machine offers a swivel angle from -30º to +180º and a cutting speed of 45 m/s. Consider the opportunity to buy this DANOBAT HG 91-3000-B8 cylindrical grinding machine. Contact us for more information about this machine.Center height over floor: 1,604 mm
Center height: 525 mm
Max grinding length: 3,000 mm
Max grinding diameter: 850 mm
Max workpiece weight (between centers): 5,000 kg
Total machine weight: 29,000 kg
X-axis (transversal carriage)
Effective travel: 650 mm
Max programmable speed: 6,000 mm/min
Min programmable speed: 0.01 mm/min
Min programmable increment (in diameter): 0.001 mm
Motor torque: 22 N·m
Z-axis (longitudinal carriage)
Max programmable speed: 6,000 mm/min
Min programmable speed: 0.01 mm/min
Min programmable increment: 0.001 mm
Motor torque: 42 N·m
B8 wheelhead
Swivel angle: -30° to +180°
Wheel dimensions: Ø760 x 80(100) x Ø304.8 mm
Cutting speed: 45 m/s
Power: 22 kW
Workhead
Spindle speed range: 10–120 rpm
Center cone: Morse 6
Motor torque: 42 N·m
Hydraulic tailstock
Max taper correction: ±0.20 mm
Max center travel: 100 mm
Center cone: ASA 4
Dresser
Location: Positioned on workhead and tailstock
Control Brand: SIEMENS
Control Model: 840D
Machine Weight: 29000 kg
Number of Axes: 4
X-axis Travel: 650 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
