Contact us to receive an offer.
| Manufacturer | Danfoss |
|---|---|
| Model | FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX |
| Year | 2023 |
| Location | Romania
|

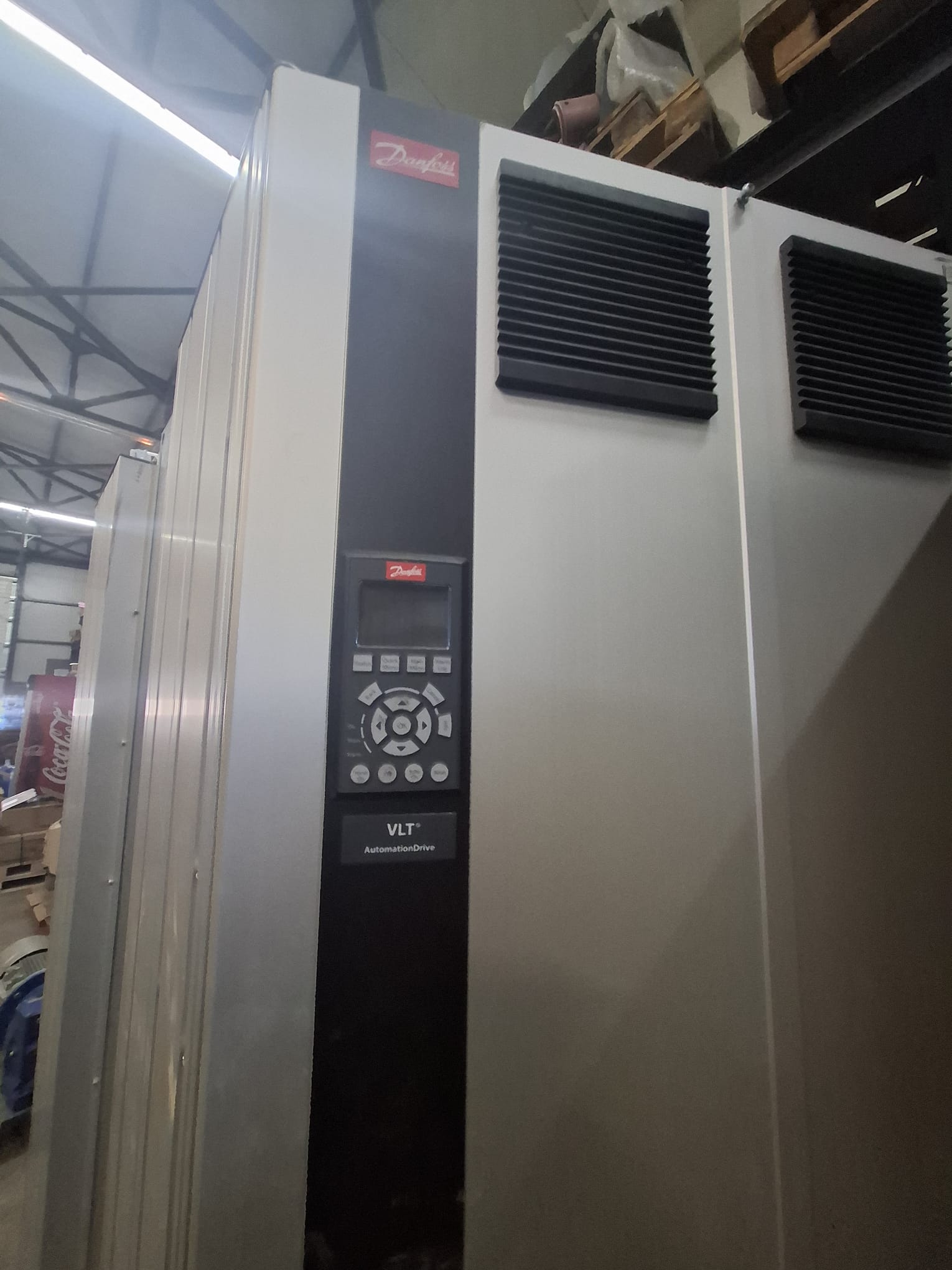

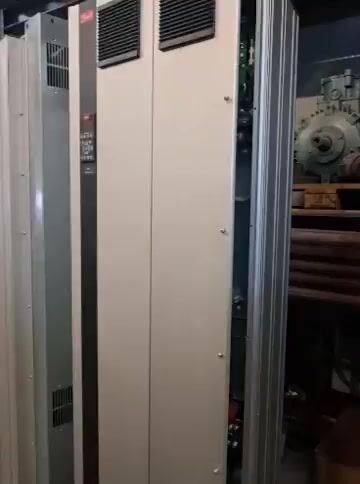

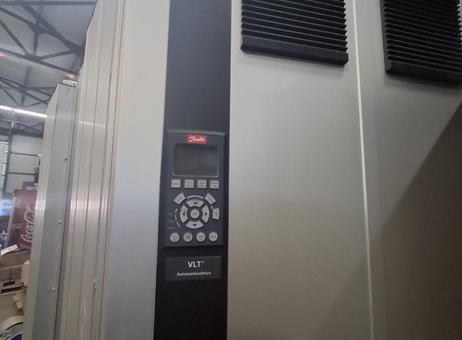

Manufacturer: Danfoss A/S (Denmark)
Model / ID
- Type code: FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX
- Part number: 135X0873
- Frame designation: E1H
Key features
- Enclosure rated to IP54 / NEMA Type 12
- Integrated RFI filter (H4)
- Fitted brake chopper
- Graphical local control panel (LCP)
- Efficiency class: IE2
- Approvals: CE, UL / cUL listed, EAC and RCM
Options fitted (as listed)

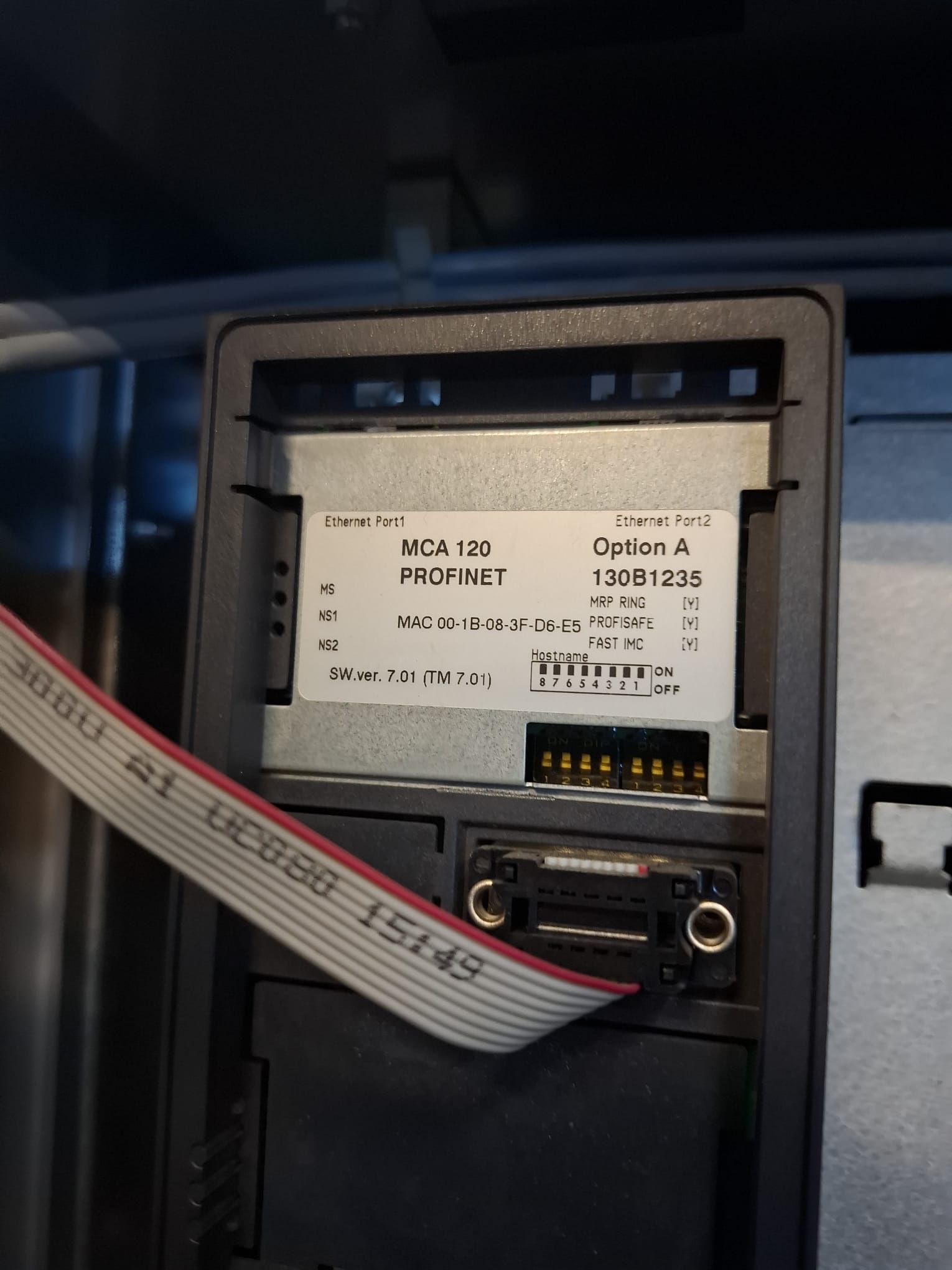

- VLT PROFINET MCA 120 fieldbus card, part no. 130B1235 (coated version), software version 7.01, with MRP Ring, PROFIsafe and Fast IMC

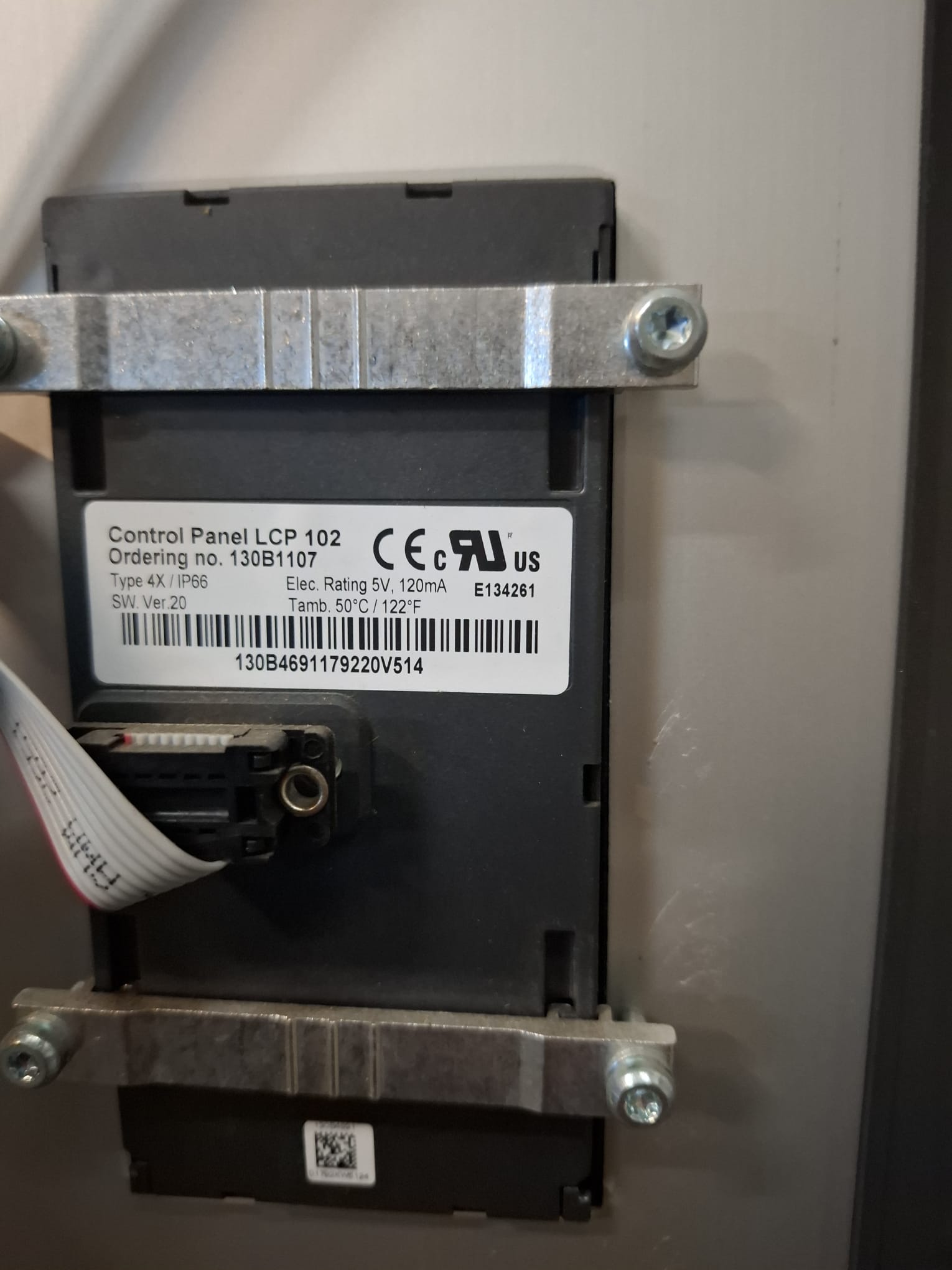

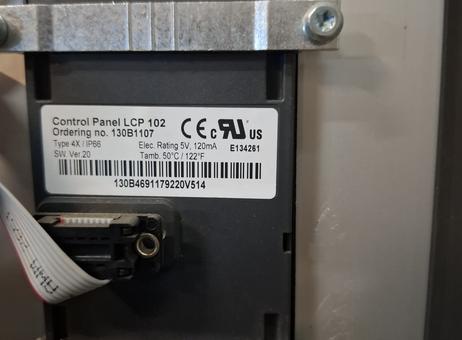

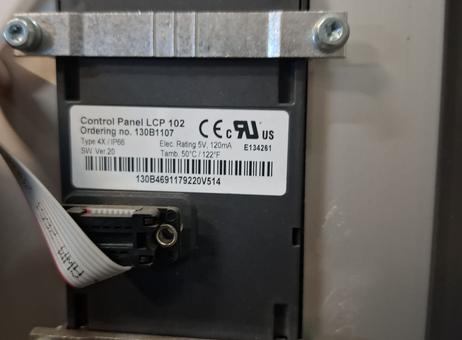

- LCP 102 graphical control panel, part no. 130B1107, Type 4X / IP66
Condition and documentation (seller’s statement)
- The listing states the drive was purchased new and later removed during an installation upgrade; removal was not reported to be due to a fault. The seller indicates the unit has been stored indoors since removal.
- The listing also indicates the drive received service by an authorised Danfoss service centre and that service documentation and the purchase invoice are available on request.
Sales terms (as listed)
- Price stated as ex works; VAT excluded. Transport is at the buyer’s expense. Additional photos and on-site inspection are offered on request.
Notes
- No serial number, location details or seller contact information are included here. No additional visible components or accessories were added beyond the items listed in the product text.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

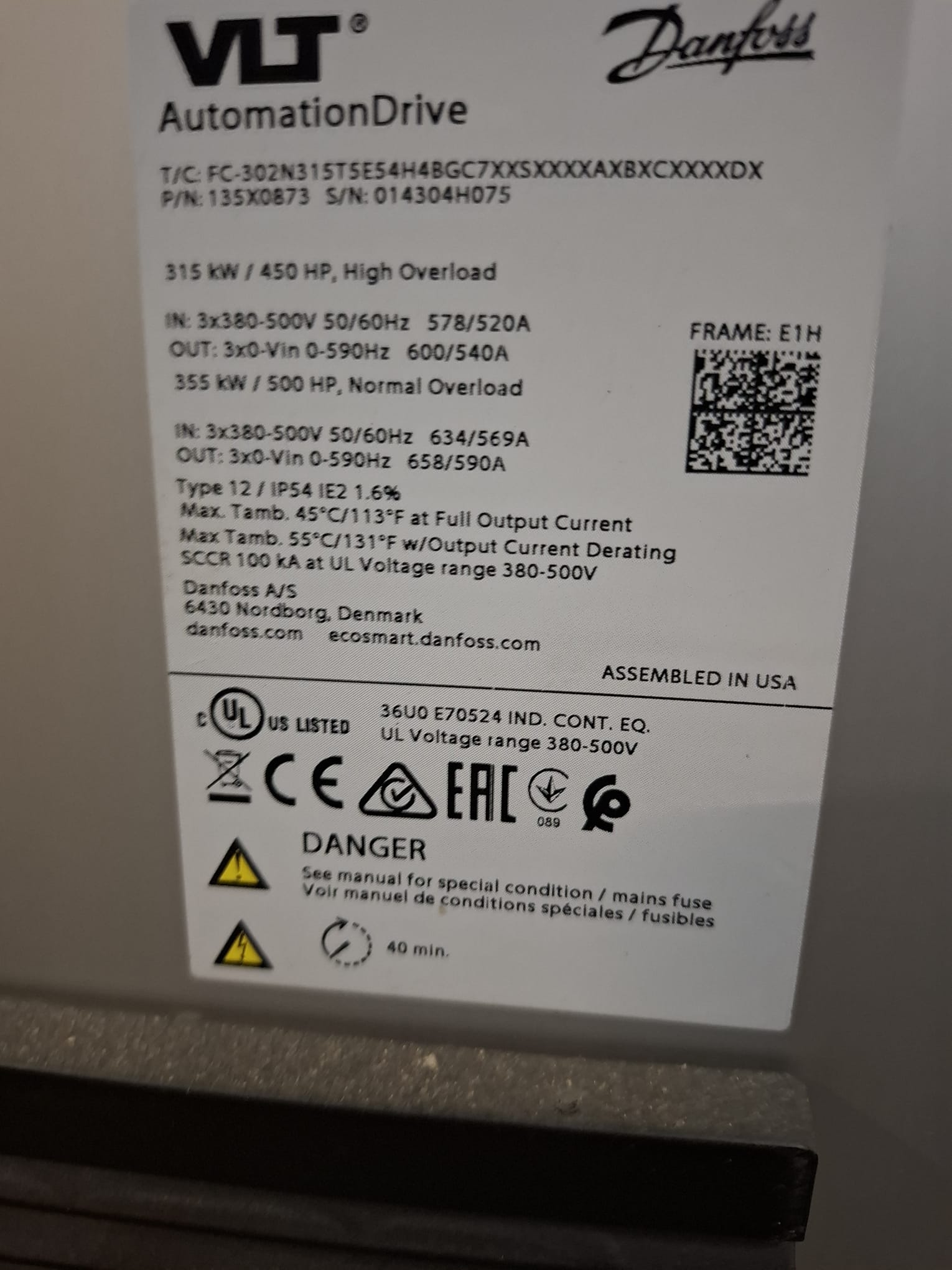

TECHNICAL DATA
Manufacturer: Danfoss A/S, Denmark
Type code: FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX
Part no.: 135X0873
Serial no.: 014304H075
Frame: E1H

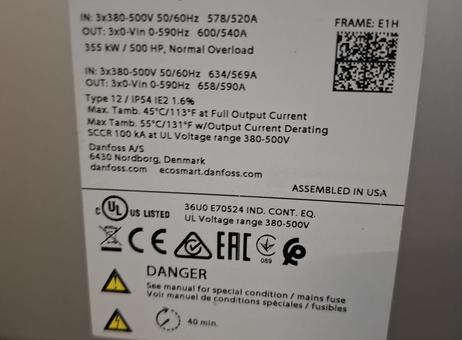

Rating, High Overload: 315 kW / 450 HP
Input: 3x380-500 V, 50/60 Hz, 578/520 A
Output: 3x0-Vin, 0-590 Hz, 600/540 A
Rating, Normal Overload: 355 kW / 500 HP
Input: 3x380-500 V, 50/60 Hz, 634/569 A
Output: 3x0-Vin, 0-590 Hz, 658/590 A
Enclosure: IP54 / NEMA Type 12
RFI filter: integrated (H4)
Brake chopper: fitted

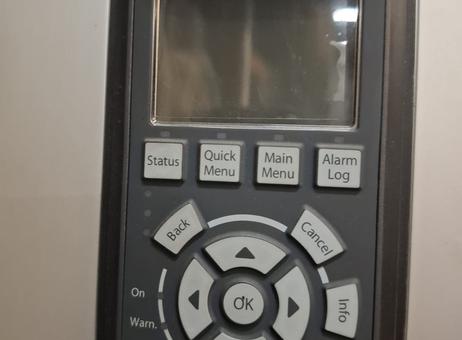

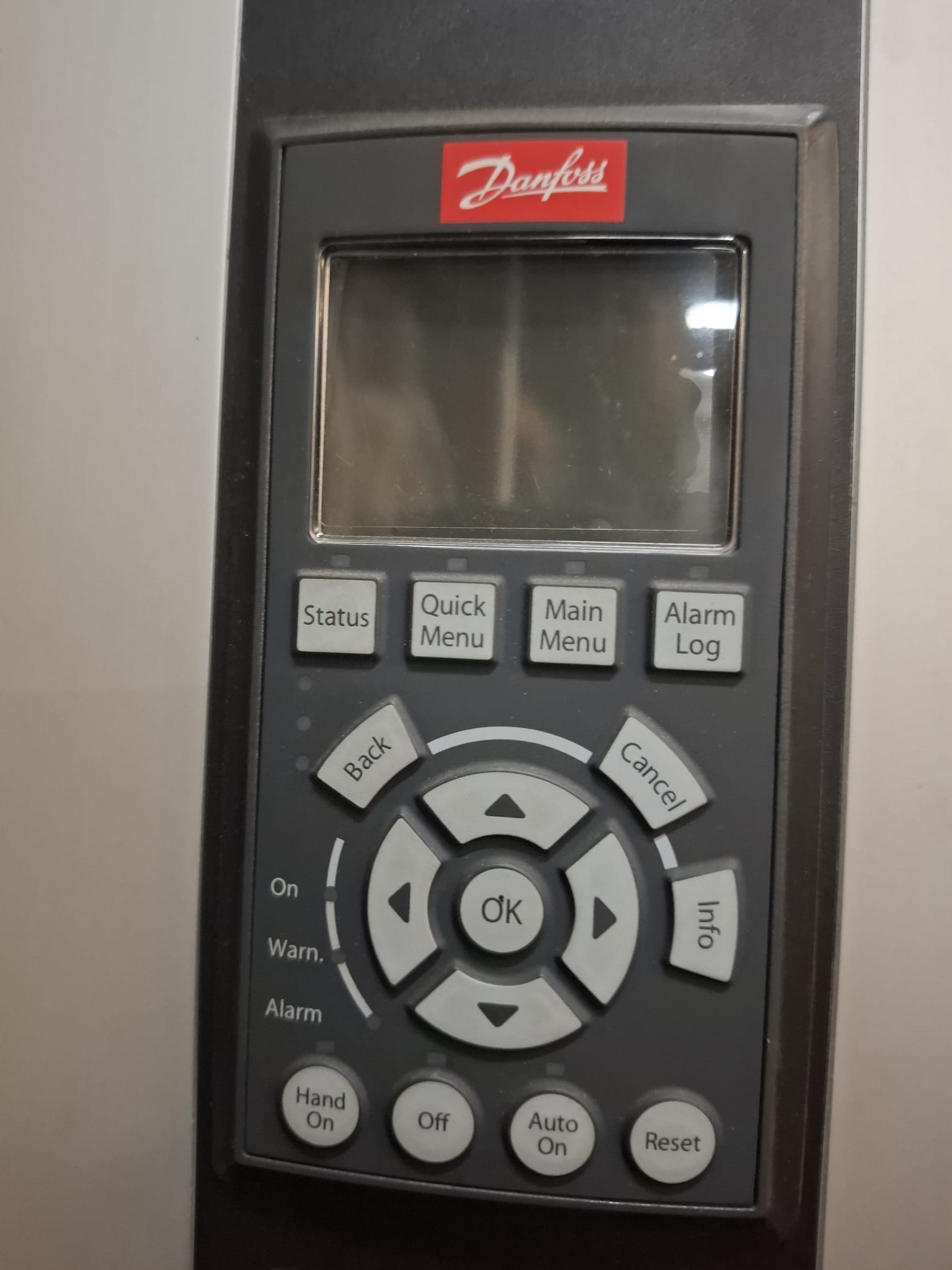

Control panel: graphical LCP
Efficiency class: IE2, losses 1.6%
Max ambient: 45 C at full output current, 55 C with derating
SCCR: 100 kA at 380-500 V
Approvals: CE, UL / cUL listed, EAC, RCM
OPTIONS FITTED

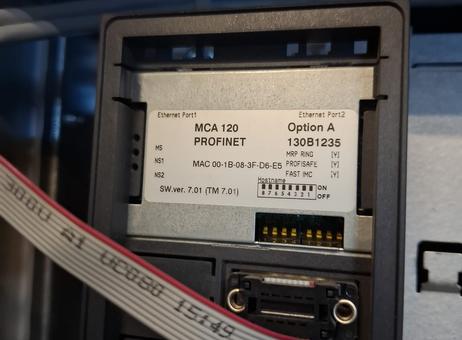

- VLT PROFINET MCA 120 fieldbus card, part no. 130B1235 (coated version),
software 7.01, with MRP Ring, PROFIsafe and Fast IMC

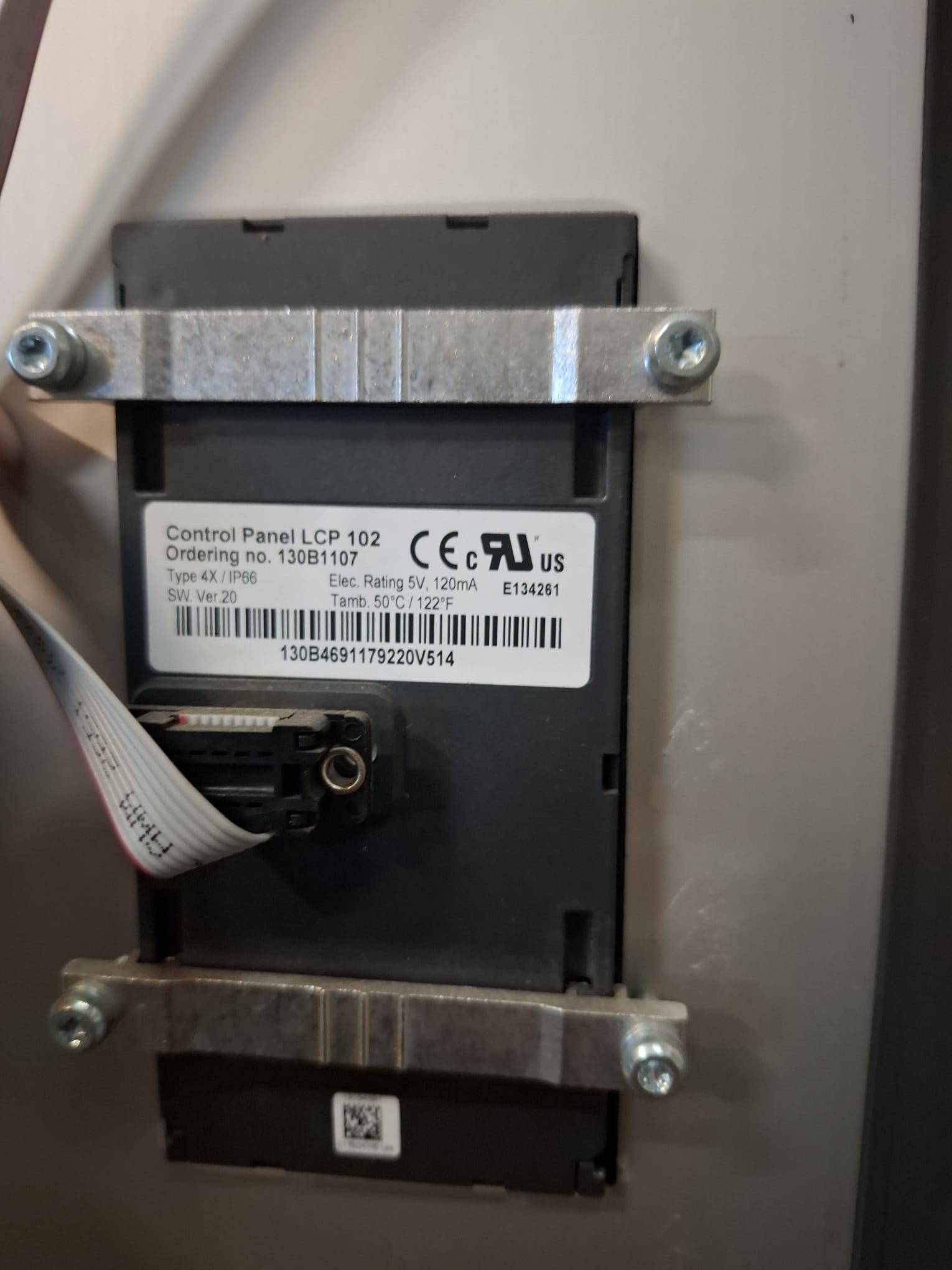

- LCP 102 graphical control panel, part no. 130B1107, Type 4X / IP66
CONDITION
Purchased new in May 2023 and operated until early 2026. The unit was removed in
working condition during an installation upgrade, not due to any fault, and has been
stored indoors since. Purchase invoice available on request.
Fully functional, removed from service six months ago. Stored indoors since removal.
No signs of overheating, corrosion or damage. Can be powered up and demonstrated on site.
The drive was fully serviced by Danfoss Romania (authorised service).
Service documentation available on request.
TERMS
Price ex works, VAT excluded. Location: Arges county, Romania.
Transport at buyer's expense.
Additional photos and inspection on site available on request.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2026 |
| Offers online | 2 |
| Last activity | Oct. 14, 2026 |
TECHNICAL DATA
Manufacturer: Danfoss A/S, Denmark
Type code: FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX
Part no.: 135X0873
Serial no.: 014304H075
Frame: E1H
Rating, High Overload: 315 kW / 450 HP
Input: 3x380-500 V, 50/60 Hz, 578/520 A
Output: 3x0-Vin, 0-590 Hz, 600/540 A
Rating, Normal Overload: 355 kW / 500 HP
Input: 3x380-500 V, 50/60 Hz, 634/569 A
Output: 3x0-Vin, 0-590 Hz, 658/590 A
Enclosure: IP54 / NEMA Type 12
RFI filter: integrated (H4)
Brake chopper: fitted
Control panel: graphical LCP
Efficiency class: IE2, losses 1.6%
Max ambient: 45 C at full output current, 55 C with derating
SCCR: 100 kA at 380-500 V
Approvals: CE, UL / cUL listed, EAC, RCM
OPTIONS FITTED
- VLT PROFINET MCA 120 fieldbus card, part no. 130B1235 (coated version),
software 7.01, with MRP Ring, PROFIsafe and Fast IMC
- LCP 102 graphical control panel, part no. 130B1107, Type 4X / IP66
CONDITION
Purchased new in May 2023 and operated until early 2026. The unit was removed in
working condition during an installation upgrade, not due to any fault, and has been
stored indoors since. Purchase invoice available on request.
Fully functional, removed from service six months ago. Stored indoors since removal.
No signs of overheating, corrosion or damage. Can be powered up and demonstrated on site.
The drive was fully serviced by Danfoss Romania (authorised service).
Service documentation available on request.
TERMS
Price ex works, VAT excluded. Location: Arges county, Romania.
Transport at buyer's expense.
Additional photos and inspection on site available on request.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer: Danfoss A/S (Denmark)
Model / ID
- Type code: FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX
- Part number: 135X0873
- Frame designation: E1H
Key features
- Enclosure rated to IP54 / NEMA Type 12
- Integrated RFI filter (H4)
- Fitted brake chopper
- Graphical local control panel (LCP)
- Efficiency class: IE2
- Approvals: CE, UL / cUL listed, EAC and RCM
Options fitted (as listed)
- VLT PROFINET MCA 120 fieldbus card, part no. 130B1235 (coated version), software version 7.01, with MRP Ring, PROFIsafe and Fast IMC
- LCP 102 graphical control panel, part no. 130B1107, Type 4X / IP66
Condition and documentation (seller’s statement)
- The listing states the drive was purchased new and later removed during an installation upgrade; removal was not reported to be due to a fault. The seller indicates the unit has been stored indoors since removal.
- The listing also indicates the drive received service by an authorised Danfoss service centre and that service documentation and the purchase invoice are available on request.
Sales terms (as listed)
- Price stated as ex works; VAT excluded. Transport is at the buyer’s expense. Additional photos and on-site inspection are offered on request.
Notes
- No serial number, location details or seller contact information are included here. No additional visible components or accessories were added beyond the items listed in the product text.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2026 |
| Offers online | 2 |
| Last activity | Oct. 14, 2026 |
Машина за енергия Danfoss FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX
Stroj na energii Danfoss FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX
Danfoss FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX Maskine til energi
Danfoss FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX Energiemaschine
Μηχανή για ενέργεια Danfoss FC-302N315T5E54H4BGC7XXSXXXXAXBXCXXXDX

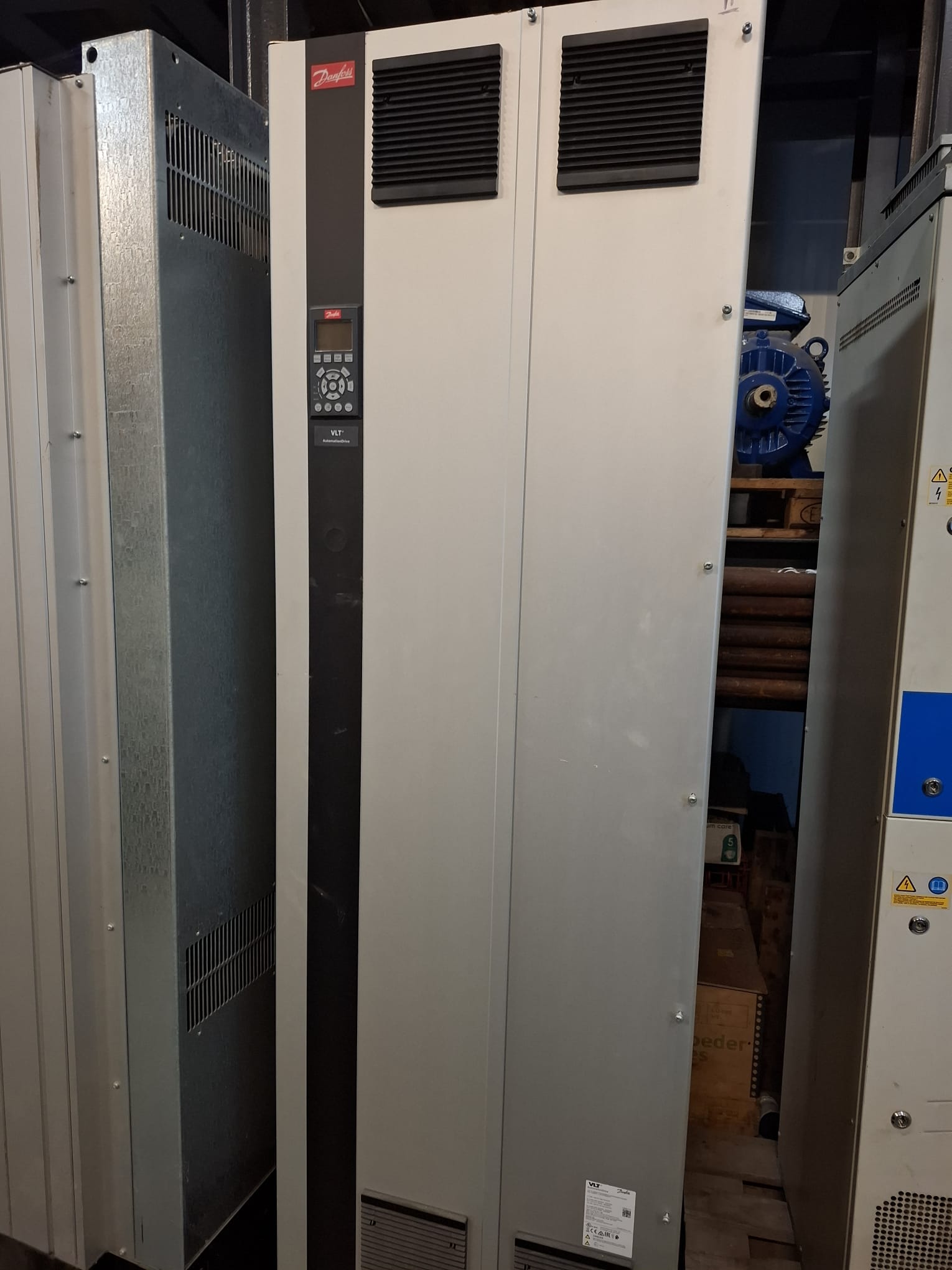

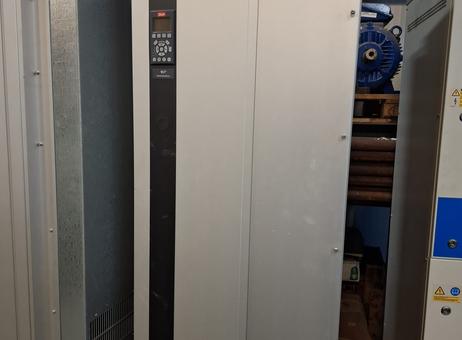

Danfoss VLT AutomationDrive FC-302 315 kW / 355 kW, IP54, fully functional
