Contact us to receive an offer.
| Manufacturer | Dahlih |
|---|---|
| Model | MCH-630 |
| Year | 2019 |
| Location | United Kingdom
|

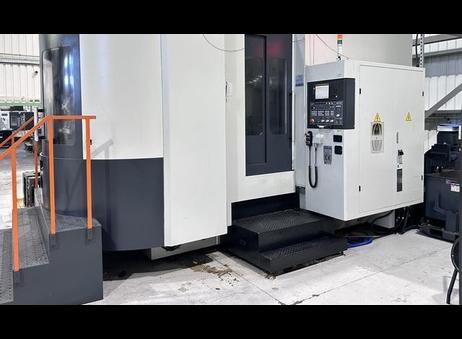

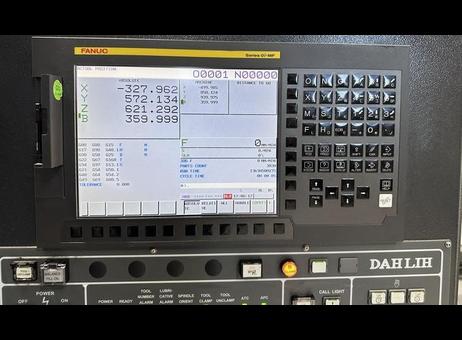

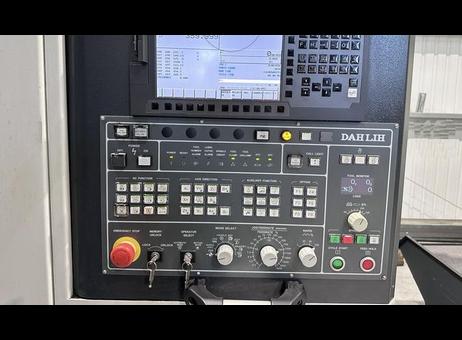

This Dahlih MCH-630 horizontal machining center, manufactured in 2019, is a robust and versatile machine designed for precision machining tasks. It measures 4500 mm in length, 6230 mm in width, and 3380 mm in height, with a substantial weight of 22,000 kg, ensuring stability during operation. The machine features a FANUC 0i-MF CNC control system, known for its reliability and user-friendly interface, with a dedicated control panel equipped with a display screen, multiple buttons, switches, and an emergency stop for efficient operation and safety.
The machining center offers generous travel ranges of 1000 mm along the X-axis, 850 mm along the Y-axis, and 800 mm along the Z-axis, accommodating a wide range of workpieces. The table size is 630 x 630 mm, capable of supporting a maximum workpiece weight of 1200 kg. It is equipped with two pallets, facilitating efficient pallet changes in approximately 15 seconds, which helps to minimize downtime.

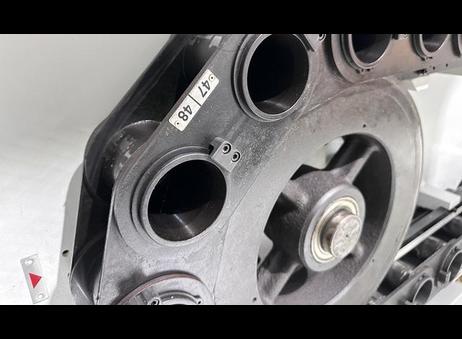

Tool management is handled by a 60-station tool changer compatible with BT50 tool holders. The maximum spindle speed is 6000 rpm, with a maximum tool diameter of 120 mm (extendable to 240 mm with adjacent pockets empty), a maximum tool length of 400 mm, and a maximum tool weight of 20 kg. The machine supports rapid feed rates up to 24 m/min and maximum cutting feed rates up to 8000 mm/min, enabling high productivity.

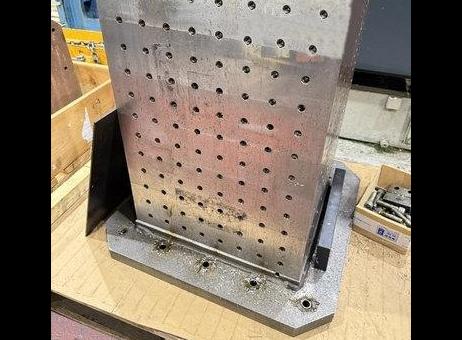

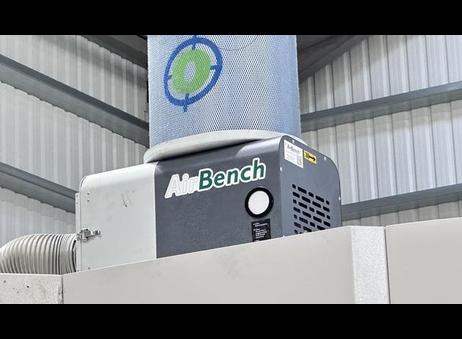

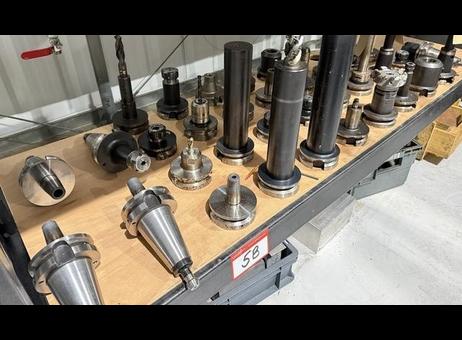

Additional visible features include an AirBench branded air filtration or dust extraction unit mounted on top of the machine, which helps maintain a clean working environment. Access to the machine platform is provided via metal stairs with orange handrails, ensuring operator safety. The machine and its components, including various metal tool holders and machining accessories arranged on the table, appear clean and well-maintained, indicating good overall condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
B Axis
1 degree
Control
FANUC 0i-MF
Distance Between Table Top to Spindle Centre
50 - 900mm
Distance from Spindle Nose to Table Centre
160 - 960mm
Machine Dimensions
4500 x 6230 x 3380mm
Machine Weight
22000kg
Maximum Cutting Feedrate
8000mm/minute
Maximum Tool Diameter
120mm
Maximum Tool Diameter with Empty Adjacent Pockets
240mm
Maximum Tool Length
400mm
Maximum Tool Weight
20kg
Maximum workpiece weight
1200kg
Number of Pallets
2
Pallet Change Time
15 seconds
Pallet Size
630 x 630mm
Rapid Feedrates
24m/minute
Spindle Speed
6000rpm
Tool Change Capacity
60 Station
Tool Size
BT50
Traverses XYZ
1000 x 850 x 800mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 178 |
| Last activity | Oct. 30, 2026 |
B Axis
1 degree
Control
FANUC 0i-MF
Distance Between Table Top to Spindle Centre
50 - 900mm
Distance from Spindle Nose to Table Centre
160 - 960mm
Machine Dimensions
4500 x 6230 x 3380mm
Machine Weight
22000kg
Maximum Cutting Feedrate
8000mm/minute
Maximum Tool Diameter
120mm
Maximum Tool Diameter with Empty Adjacent Pockets
240mm
Maximum Tool Length
400mm
Maximum Tool Weight
20kg
Maximum workpiece weight
1200kg
Number of Pallets
2
Pallet Change Time
15 seconds
Pallet Size
630 x 630mm
Rapid Feedrates
24m/minute
Spindle Speed
6000rpm
Tool Change Capacity
60 Station
Tool Size
BT50
Traverses XYZ
1000 x 850 x 800mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Dahlih MCH-630 horizontal machining center, manufactured in 2019, is a robust and versatile machine designed for precision machining tasks. It measures 4500 mm in length, 6230 mm in width, and 3380 mm in height, with a substantial weight of 22,000 kg, ensuring stability during operation. The machine features a FANUC 0i-MF CNC control system, known for its reliability and user-friendly interface, with a dedicated control panel equipped with a display screen, multiple buttons, switches, and an emergency stop for efficient operation and safety.
The machining center offers generous travel ranges of 1000 mm along the X-axis, 850 mm along the Y-axis, and 800 mm along the Z-axis, accommodating a wide range of workpieces. The table size is 630 x 630 mm, capable of supporting a maximum workpiece weight of 1200 kg. It is equipped with two pallets, facilitating efficient pallet changes in approximately 15 seconds, which helps to minimize downtime.
Tool management is handled by a 60-station tool changer compatible with BT50 tool holders. The maximum spindle speed is 6000 rpm, with a maximum tool diameter of 120 mm (extendable to 240 mm with adjacent pockets empty), a maximum tool length of 400 mm, and a maximum tool weight of 20 kg. The machine supports rapid feed rates up to 24 m/min and maximum cutting feed rates up to 8000 mm/min, enabling high productivity.
Additional visible features include an AirBench branded air filtration or dust extraction unit mounted on top of the machine, which helps maintain a clean working environment. Access to the machine platform is provided via metal stairs with orange handrails, ensuring operator safety. The machine and its components, including various metal tool holders and machining accessories arranged on the table, appear clean and well-maintained, indicating good overall condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
