| Manufacturer | Daewoo |
|---|---|
| Model | Puma 230 MS |
| Year | 2000 |
| Location | USA
|
This listing is for a Daewoo Puma 230 MS horizontal machining center, manufactured in the year 2000. The machine is equipped with a Fanuc 18iT CNC control system and features an A2-8 spindle type. It requires a power supply of 35 kVA at 220 V, 3-phase. The machine weighs approximately 9500 lbs (about 4.75 kg appears to be a typographical error in the known fields).
Key specifications include a maximum spindle speed of 3500 rpm powered by a 25 kW (approximately 25 HP) spindle motor. The machine has a 12-station automatic turret with a turret index time of 0.5 seconds, allowing for efficient tool changes. The X-axis travel is 242.062 mm (9.53 inches), and the Z-axis travel is 579.882 mm (22.83 inches). The maximum turning diameter is 13.78 inches, with a maximum turning length of 21.57 inches and a swing over bed of 21.0 inches. The distance between centers is 26.3 inches, and the spindle bore measures 3.53 inches. The rapid traverse rates are 787 IPM for the X-axis and 1000 IPM for the Z-axis.

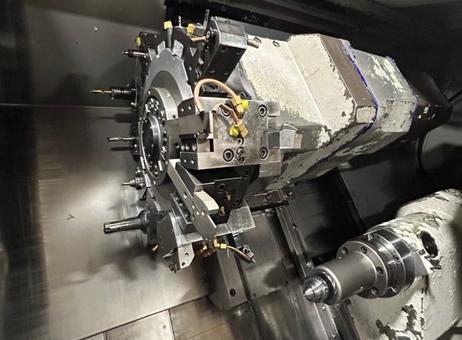

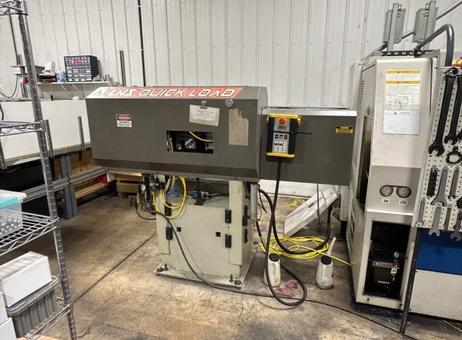

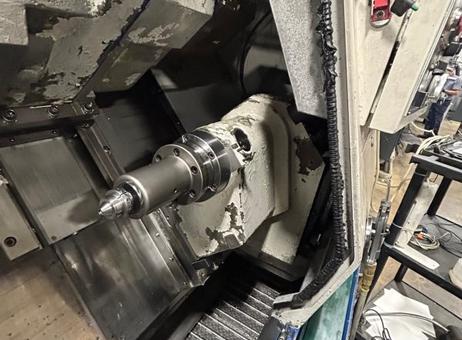

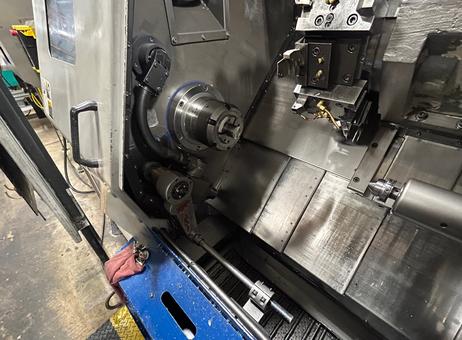

The machine comes equipped with several accessories, including an automatic tool presetter, coolant system, barfeed interface, RS-232 ports, foot switch, and a turbo chip conveyor. A bar feeder labeled "LNS Quick Load" is integrated with the machining center setup, showing typical signs of use. The tool turret contains multiple tool holders and shows signs of paint wear consistent with use but appears functional. The metal surfaces inside the machine, including the spindle and tooling attachments, appear clean and well-maintained with some signs of wear and chipped paint on machine parts.

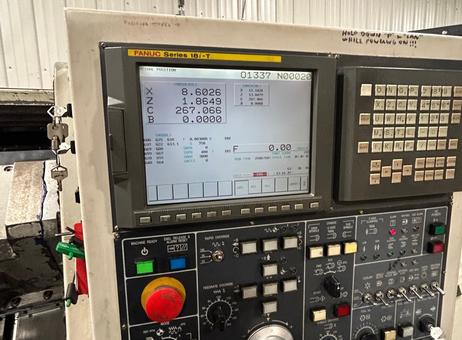

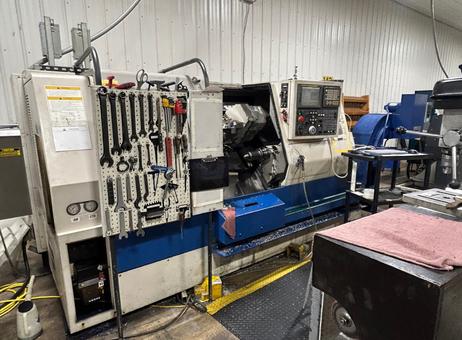

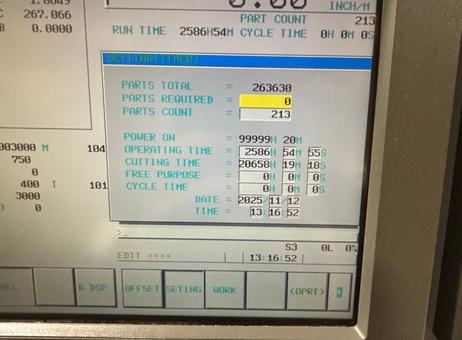

The exterior of the machine shows some signs of wear and dirt but remains structurally intact. It is installed in an industrial setting with safety mats on the floor. The control panel includes various buttons, switches, and a display screen showing machine operating data such as run time, parts total, cutting time, and coordinates.
Technical condition is sold as-is, where-is, with no claims regarding operational status or warranty.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Daewoo
Model: Puma 230 MS
YOM: 2000
CNC Control: Fanuc 18iT
Spindle Type: A2-8
Power Requirement: 35 kva, 220v / 3-Phase
Weight: 9500 lbs
Equipped With:
- Auto Tool Presetter
- Coolant System
- Barfeed Interface
- RS-232 Ports
- 12 Station Automatic Turret
- Foot Switch
- Turbo Chip Conveyor
General Dimensions:
- Overall Dimensions: 117″ x 62″ x 72″ High
- Overall Dimensions with Chip Conveyor: 130″ x 62″ x 72″ High
Specifications:
- Max Turning Diameter: 13.78″
- Max Turning Length: 21.57″
- Max Bar Capacity: 3.0″
- Swing Over Bed: 21.0″
- Distance Between Centers: 26.3″
- X Axis Travel: 9.53″
- Z Axis Travel: 22.83″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 1000 IPM
- Spindle Bore: 3.53″
- Spindle Speed: 35 – 3500 RPM
- Spindle Motor: 25 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
Technical Condition: As-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 11 |
| Last activity | Oct. 18, 2026 |
Manufacturer: Daewoo
Model: Puma 230 MS
YOM: 2000
CNC Control: Fanuc 18iT
Spindle Type: A2-8
Power Requirement: 35 kva, 220v / 3-Phase
Weight: 9500 lbs
Equipped With:
- Auto Tool Presetter
- Coolant System
- Barfeed Interface
- RS-232 Ports
- 12 Station Automatic Turret
- Foot Switch
- Turbo Chip Conveyor
General Dimensions:
- Overall Dimensions: 117″ x 62″ x 72″ High
- Overall Dimensions with Chip Conveyor: 130″ x 62″ x 72″ High
Specifications:
- Max Turning Diameter: 13.78″
- Max Turning Length: 21.57″
- Max Bar Capacity: 3.0″
- Swing Over Bed: 21.0″
- Distance Between Centers: 26.3″
- X Axis Travel: 9.53″
- Z Axis Travel: 22.83″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 1000 IPM
- Spindle Bore: 3.53″
- Spindle Speed: 35 – 3500 RPM
- Spindle Motor: 25 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
Technical Condition: As-is, where-is
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a Daewoo Puma 230 MS horizontal machining center, manufactured in the year 2000. The machine is equipped with a Fanuc 18iT CNC control system and features an A2-8 spindle type. It requires a power supply of 35 kVA at 220 V, 3-phase. The machine weighs approximately 9500 lbs (about 4.75 kg appears to be a typographical error in the known fields).
Key specifications include a maximum spindle speed of 3500 rpm powered by a 25 kW (approximately 25 HP) spindle motor. The machine has a 12-station automatic turret with a turret index time of 0.5 seconds, allowing for efficient tool changes. The X-axis travel is 242.062 mm (9.53 inches), and the Z-axis travel is 579.882 mm (22.83 inches). The maximum turning diameter is 13.78 inches, with a maximum turning length of 21.57 inches and a swing over bed of 21.0 inches. The distance between centers is 26.3 inches, and the spindle bore measures 3.53 inches. The rapid traverse rates are 787 IPM for the X-axis and 1000 IPM for the Z-axis.
The machine comes equipped with several accessories, including an automatic tool presetter, coolant system, barfeed interface, RS-232 ports, foot switch, and a turbo chip conveyor. A bar feeder labeled "LNS Quick Load" is integrated with the machining center setup, showing typical signs of use. The tool turret contains multiple tool holders and shows signs of paint wear consistent with use but appears functional. The metal surfaces inside the machine, including the spindle and tooling attachments, appear clean and well-maintained with some signs of wear and chipped paint on machine parts.
The exterior of the machine shows some signs of wear and dirt but remains structurally intact. It is installed in an industrial setting with safety mats on the floor. The control panel includes various buttons, switches, and a display screen showing machine operating data such as run time, parts total, cutting time, and coordinates.
Technical condition is sold as-is, where-is, with no claims regarding operational status or warranty.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
