Contact us to receive an offer.
| Manufacturer | CURIONI SUN Teramo |
|---|---|
| Model | SUN MASTER 350 + M102 (twisted handle making unit) + MP270-18 (flat handle making unit) |
| Year | 2018 |
| Location | Italy
|
This listing is for a pre-owned CURIONI SUN Teramo SUN MASTER 350 paper bag making machine, manufactured in 2018. The machine is designed for producing reel-fed square bottom (SOS) paper bags with handles and is equipped with two handle making units: the M102 twisted handle making unit and the MP270-18 flat handle making unit.
The SUN MASTER 350 is capable of manufacturing square bottom paper bags in various sizes, suitable for low to medium format production. The bag width ranges from a minimum of 110 mm up to a maximum of 350 mm. When using the twisted handles, the minimum bag width is 200 mm, while for flat handles it is 180 mm. The bag length can be adjusted between 220 mm and 450 mm, with a bottom width from 60 mm to 170 mm. The cut length varies between 270 mm and 560 mm. It is designed to handle paper weights from 80 to 140 gsm, with a maximum reel diameter of 1500 mm and an inner core diameter of 76 mm.
The flat handle making unit MP270-18 produces flat paper handles that are 4-folded, with a minimum distance of 270 mm and a maximum distance of 740 mm between handles. The flat handle height is 18 mm and width is 126 mm. The patch used for the flat handle measures 59 mm in height and 160 mm in length. This unit uses paper reels up to 70 mm wide, with a maximum diameter of 800 mm and an inner core diameter of 76 mm. The paper weight for flat handles and patches ranges from 70 to 100 gsm.
The twisted handle making unit M102 produces twisted paper cord or cotton handles with a twisted paper core, having a diameter between 4 and 5 mm and a handle width of 102 mm. The patch height and length are 50 mm and 170 mm respectively. This unit uses reels with a width of 100 mm and a maximum diameter of 1050 mm, with an inner core diameter of 76 mm. The paper weight for patches is between 110 and 130 gsm. Notably, the twisted handles unit installed is the version typically used for the larger 540/541 model, which results in a minimum producible bag width with twisted handles of 200 mm instead of 180 mm.
The machine operates on a supply voltage of 400 V (±10%) with neutral and ground at 50 Hz (±2%), and an operator command voltage of 24 V (±10%). The total installed electrical power, including the Hot-Melt gluing groups, is 35 kW (±10%), with a maximum power absorption of 25 kW (±10%). It requires dry and clean compressed air at 600/700 kPa, with an average consumption of 100 Nl/min. The average noise level during operation is 84 dBA.

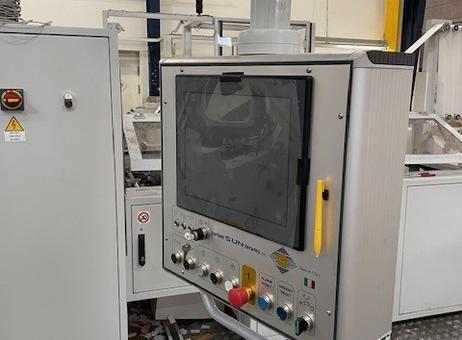

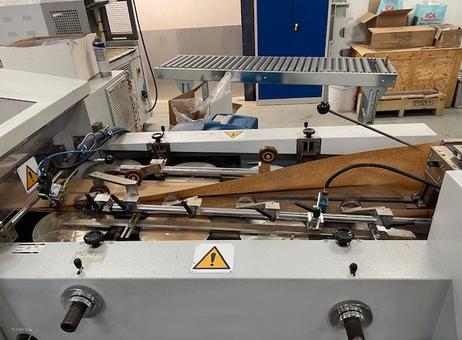

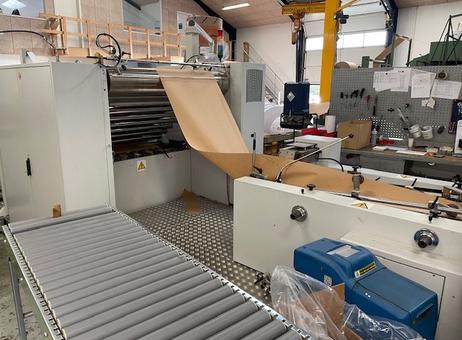

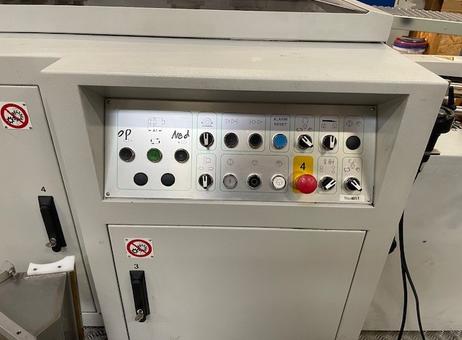

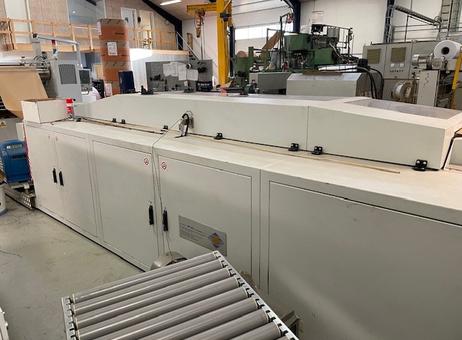

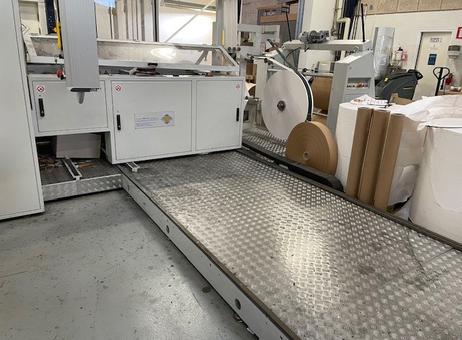

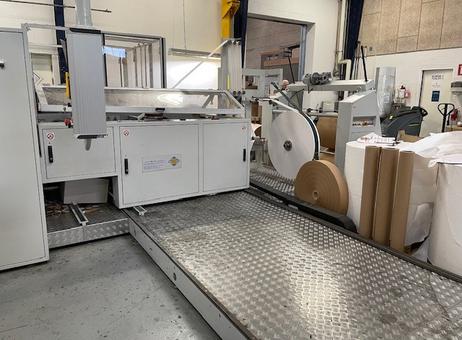

The machine features a large industrial metal casing and includes a control panel with buttons and an emergency stop for operator safety. A conveyor or feed table is attached to facilitate material input. The machine appears clean and in good condition with no visible damage. Multiple warning and caution symbols are displayed on the machine panels for safety compliance.
This CURIONI SUN MASTER 350 machine with dual handle making units provides versatile capabilities for producing high-quality paper bags with either twisted or flat handles, suitable for various packaging needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Reel-fed Square bottom (SOS) paper bag making machines with twisted handles unit
REDUCED PRICE (Great opporunity)
This pre-owned CURIONI Sun Master 350 is equipped with 2 handles unit, one TWISTED HANDLE MAKING UNIT (M102) and one FLAT HANDLE MAKING UNIT (MP270-18).
The reel fed paper bag making machine Sun Master 350 has been designed to manufacture square bottom paper bags with handles, from the lowest up to the medium formats.
Bag Width: Min. 110 - Max. 350 mm
Minimum Bag Width With Twisted Handles: 200 mm
Minimum Bag Width With Flat Handles: 180 mm
Bag Lenght: Min. 220 - Max. 450 mm
Bottom Width: Min. 60 - Max. 170 mm
Cut Lenght: Min. 270 - Max. 560 mm
Paper Weight: Min. 80 - Max. 140 gsm
Max Diameter Of The Reel: 1500 mm
Inner Core Diameter: 76 mm
Flat Handle Making Unit Mp270 18: Type of handle: flat paper handle 4 folded | Min. distance between the handles: mm 270 | Max. distance between the handles: mm 740 | Flat handle height: mm 18 | Flat Handle width: mm 126 | Patch height: mm 59 | Patch length: mm 160 | Reels width for flat handle: mm 70 | Max. diameter of paper reels for flat handle: mm 800 | Inner core reel diameter for flat handle: mm 76 | Weight of paper for flat handle: 70-100 gsm | Reels width for patches: mm 160 | Max. diameter of paper reels for patches: mm 800 | Inner core reel diameter for patches: mm 76 | Weight of paper for patches: 70 -100 gsm
Twisted Handle Making Unit M102: Type of handle: twisted-paper cord or cotton with a twisted paper core | Twisted paper cord diameter: mm 4 - 5 | Handle width: mm 102 | Patch height: mm 50 | Patch length: mm 170 | Reels width mm: 100 | Max. diameter of paper reels for patches: mm 1050 | Inner core diameter: mm 76 | Weight of usable paper for patches: 110 -130 gsm
Additional Information: Supply voltage: 400 V +/- 10% + NEUTRO + GROUND at 50 Hz) +/- 2% | Operator command voltage : 24 Volt +/- 10% | Total electrical power installed (including the gluing groups Hot-Melt): 35 kW +/- 10% | Maximum power absorbed: 25 kW+/- 10% Distribution of dry and clean compressed air: 600/700 kPa | Average compressed air consumption : 100 Nl/min | Noise level or average acoustic pressure level: 84 dBA
Notes: The twisted handles unit installed on this machine is the one generally used for the model 540/541 (bigger version mod. M102). For this reason the min. producible bag width with twisted handles is 20 cm instead of 18 cm as for the normal version.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
