Contact us to receive an offer.
| Manufacturer | CURIONI |
|---|---|
| Model | SUN MASTER 540 |
| Year | 2020 |
| Location | Italy
|
The CURIONI SUN MASTER 540 is a reel-fed industrial machine designed for manufacturing square bottom (SOS) paper bags, with or without handles, accommodating medium to large formats. Manufactured in 2020, this model features a patented twisted handle making unit integrated into the production line, enabling the manufacture and application of twisted-paper cord or cotton handles with a twisted paper core.

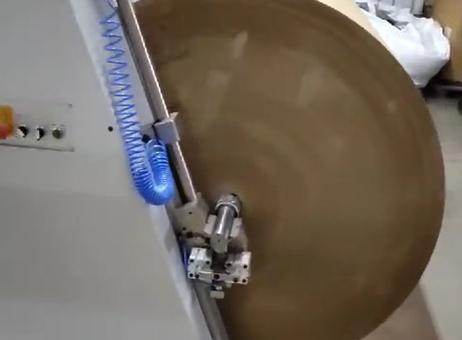

The machine supports bag widths ranging from 220 to 540 mm (240 to 540 mm when handles are included), bag lengths from 320 to 650 mm (320 to 550 mm with handles), cut lengths between 400 and 780 mm, and bottom widths of 80 to 200 mm. It can process reels with widths between 720 and 1430 mm and a maximum diameter of 1500 mm, with an inner core diameter of 76 mm. The paper weight suitable for the main bags ranges from 80 to 130 gsm, while patches for handles use paper weighing 90 to 130 gsm.

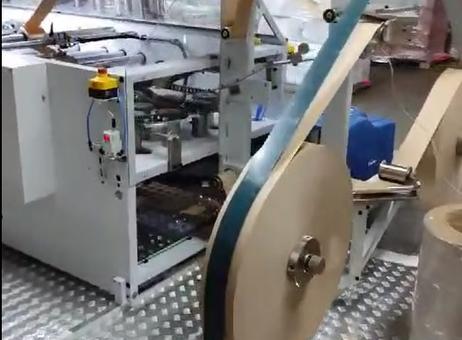

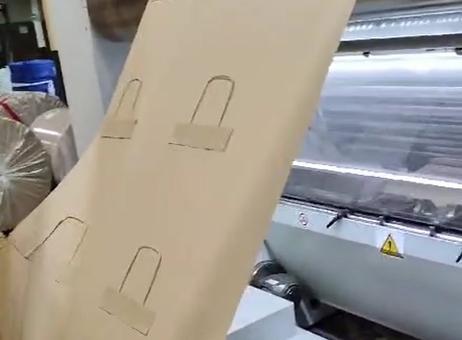

The twisted handle unit accommodates handles with a diameter of 4 to 5 mm, a width of 100 mm, patch dimensions of 50 mm height by 200 mm length, and reels with a maximum diameter of 1050 mm and 76 mm inner core diameter.
This machine operates on three-phase 400 V electrical power with neutral and ground at 50 Hz, and requires a compressed air supply of 600 to 700 kPa (dry and clean), consuming approximately 100 Nl/min.

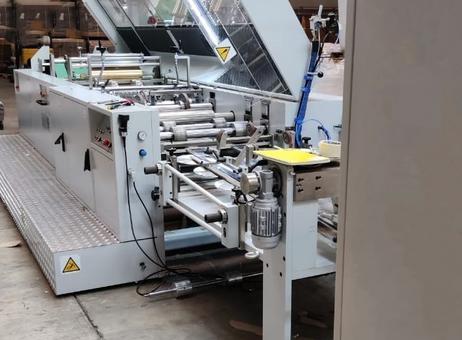

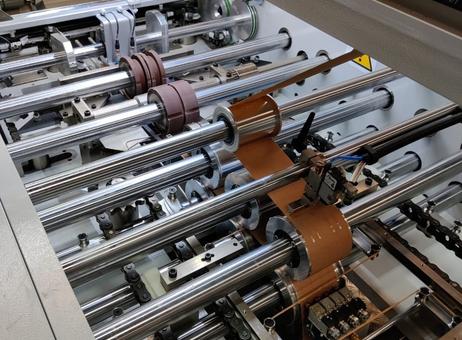

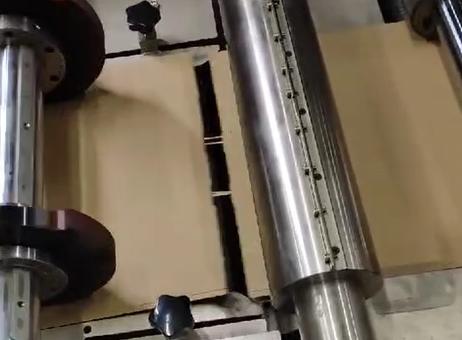

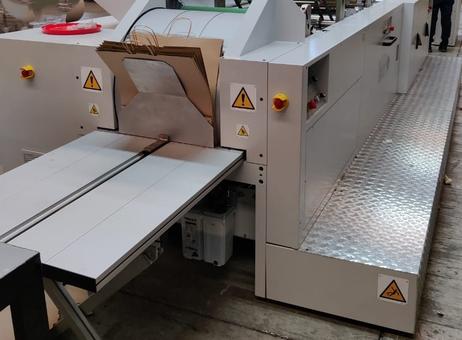

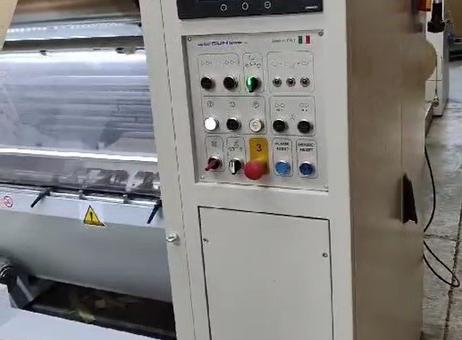

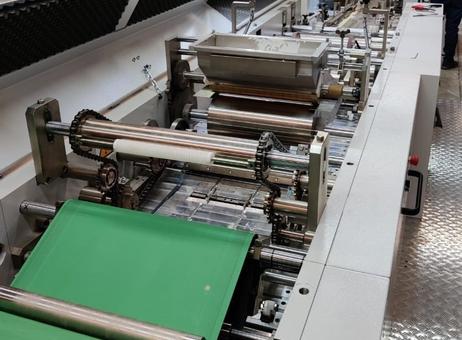

The machine is equipped with multiple metal rollers, chains, and a protective hinged transparent cover, ensuring operator safety and ease of maintenance. It features a control panel with a touchscreen display, buttons, and switches, as well as emergency stop buttons and visible warning labels indicating potential hazards. A metal platform with diamond plate texture provides operator access alongside the machine. The conveyor belt and machine surfaces are clean and intact, and the rollers and chains appear well-lubricated with no visible wear.
This pre-owned SUN MASTER 540 has been used for a limited period and is visible in operation upon prior arrangement. It is offered in excellent condition, reflecting careful maintenance and readiness for production use.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Reel-fed Square bottom (SOS) paper bag making machines with twisted handles unit
The paper bag making machine SUN MASTER 540 is fed by reel and it has been designed to manufacture square bottom paper bags with or without handles, from the medium up to the biggest formats.
This pre-owned CURIONI SUN MASTER 540, for sale from the first owner, has been used only for 6 months.
The line is equipped with twisted handle making unit for the manufacture and application of handles which is in line with the paper bag making machine (international Patent).
Machine in excellent condition, visible in production with prior notice and available if unsold.
Bag Width Min Max: 220 – 540 mm (Bag width with handles: 240 – 540 mm)
Bag Length Min Max: 320 - 650 mm (Bag length with handles: 320 - 550 mm)
Cut Length: 400 - 780 mm
Bottom Width: 80 - 200 mm
Reel Width: 720 - 1430 mm
Max Diameter Of The Reel: 1500 mm
Inner Core Diameter: 76 mm
Weight Of Paper: 80 -130 gsm
Twisted Handle Unit: Type of handle twisted-paper cord or cotton with a twisted paper core | Twisted paper cord diameter: 4 - 5 mm | Handle width: 100 mm | Patch height: 50 mm | Patch length: 200 mm | Reels width: 100 mm | Max. diameter of paper reels for patches: 1050 mm | Inner core diameter:76 mm | Weight of usable paper for patches: 90 -130 gsm
Total Installed Electrical Power: three-phase 400 V + NEUTRE + GROUND at 50 Hz
Compressed Air Supply: 600/700 kPa, dry and clean
Compressed Air Consumption: 100 Nl/min
Visible In Operation: yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
