Contact us to receive an offer.
| Manufacturer | Corundum |
|---|---|
| Model | ZKR 14/350 |
| Year | 2016 |
| Location | Germany
|
Coolant cleaning system for grinding emulsion, comprising a Zyklomat ZKR 14/350 and a double-scraper tank for grinding-sludge discharge. The system is specified as manufactured in 2016.
**Coolant cleaning system**
- Manufacturer: Zyklomat
- Type: ZKR 14/350
- Cleaning capacity: 350 L/min
- Maximum machine supply: 250 L/min, at approximately 3.5 bar water pressure
- Recirculation from clean tank to dirty tank: 100–350 L/min

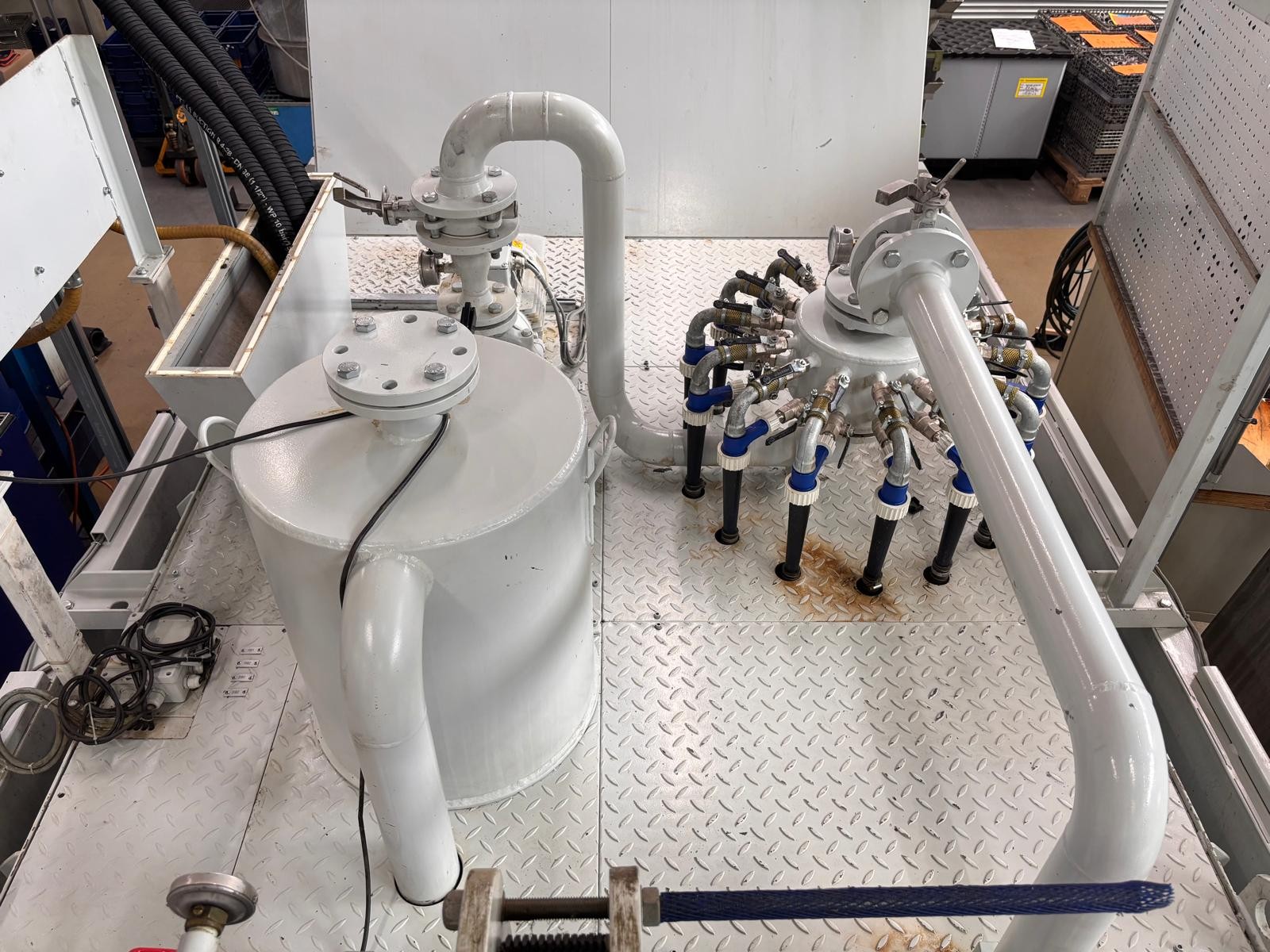

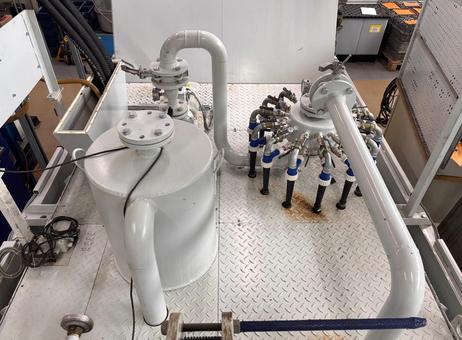

- Filtration: ZYKLOMAT high-performance hydrocyclone Z1B-9/3
- Separation cut-off size: approximately 5 µm
- Medium: 3–6% emulsion
- Maximum temperature: 50°C; operating temperature: ambient
Transfer to the filtration system is to be provided by the customer and must be free of air and foam. Contaminated fluid is supplied via customer-provided lifting stations. The process is fully automatic full-flow filtration. Grinding swarf, scale, corundum and other fine sludge are discharged by a scraper conveyor, where the sludge is pre-dried along the upper section. The sludge is described as having a spadeable consistency. Annual maintenance is specified. Availability: October 2026.
**Double-scraper tank**
- Type: KR 1.75-5.1
- Total volume: approximately 5.14 m³; maximum volume: approximately 4.58 m³; minimum operating volume: approximately 3.60 m³
- Dimensions: approximately 4,000 mm long, 1,890 mm wide and 1,105 mm high, including the stated stiffening and base profile; neck height: approximately 2,300 mm
- Maximum theoretical discharge volume: 15 kg/h
The tank functions as a coolant reservoir with an integrated clean-fluid tank, sedimentation and flotation tank, and automatic sludge discharge. It has one helical gear motor for the scraper drive, specified at 400 V, 50 Hz, IP 54, and three connection nozzles for return lines from three machines. The clean-fluid tank is integrated at the rear of the scraper tank and has a maximum volume of approximately 0.55 m³. Construction is described as oil-tight welded, with an internal peripheral angle-iron frame and bolted, non-walkable cover plates. A ladder, guardrails and internal access rungs are excluded.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Technical details
Coolant Cleaning System
Manufacturer: Zyklomat
Type: ZKR 14/350
Year of Manufacture: 2016
For cleaning grinding emulsion
Supply rate: max. approx. 250 l/min
at approx. 3.5 bar water pressure
Transfer to the filtration system is to be provided by the customer,
free of air and foam.
Max. temperature: 50°C
Cleaning capacity: 350 L/min.
Recirculation from clean tank to dirty tank: 100–350 L/min.
Machine supply (max.): 250 L/min.
Filtration principle: ZYKLOMAT high-performance hydrocyclone Z1B-9/3
Separation cut-off size: approx. 5 µm
Medium: 3–6% emulsion
Operating temperature: Ambient temperature
Solid particles: approx. 5.14 m³
Max. operating volume: approx. 4.58 m³
Min. operating volume: approx. 3.60 m³
Process sequence:
Fully automatic full-flow filtration
Sludge discharge:
Fully automatic; sludge has a spadeable consistency
Contaminated fluid is supplied via customer-provided lifting stations.
Chips and fine sludge (grinding swarf, scale, corundum) generated
during the grinding process are discharged via a scraper conveyor.
The sludge is pre-dried along the upper section of the scraper conveyor.
Filtration is performed using ZYKLOMAT high-performance hydrocyclones.
The system operates fully automatically.
Maintenance: Annual maintenance
Availability: October 2026
Double-Scraper Tank for Grinding Sludge Discharge
Type: KR 1.75-5.1
Total volume: approx. 5.14 m³
Max. volume: approx. 4.58 m³
Length: approx. 4,000 mm, incl. 70 mm stiffening
Width: approx. 1,890 mm, incl. 140 mm stiffening
Height: approx. 1,105 mm, incl. 100 mm base profile
Neck height: approx. 2,300 mm
Max. theoretical discharge volume: 15 kg/h
Function:
Coolant reservoir with integrated clean tank,
sedimentation and flotation tank with
fully automatic sludge discharge.
1 Helical gear motor
Voltage 400 V, 50 Hz, IP 54; serves as scraper drive
3 connection nozzles for return lines from three machines
1 clean-fluid tank, integrated into the rear of the scraper tank.
Oil-tight welded construction with internal peripheral angle-iron frame;
various Cover plates (non-walkable plates bolted to angle-iron frame),
excluding ladder, guardrails, and internal access rungs
Max. volume: approx. 0.55 m³
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
