| Manufacturer | CORREA |
|---|---|
| Model | L 30/32 |
| Year | 1991 |
| Location | France
|

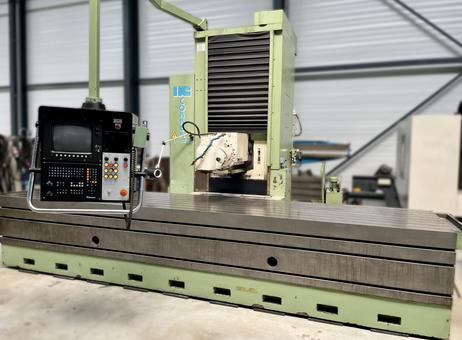

The CORREA L 30/32 is a robust CNC bed-type milling machine designed for versatile and precise machining operations. Manufactured in 1991, this machine features a substantial footprint with dimensions of 7600 mm in length, 3900 mm in width, and 3200 mm in height, and it weighs approximately 25,000 kg. It is equipped with a large worktable measuring 5000 mm by 1000 mm, fitted with multiple T-slots to facilitate secure and flexible mounting of workpieces.
The machine offers generous axis travels, with the X-axis providing 3200 mm, the Y-axis 1200 mm, and the vertical Z-axis 1250 mm. These axes support rapid movement speeds of up to 12,000 mm/min, enabling efficient machining cycles. The spindle motor delivers a powerful 22 kW, with spindle speeds ranging from 2 to 2000 rpm, and it is designed with an ISO 50 taper for compatibility with a wide range of tooling.

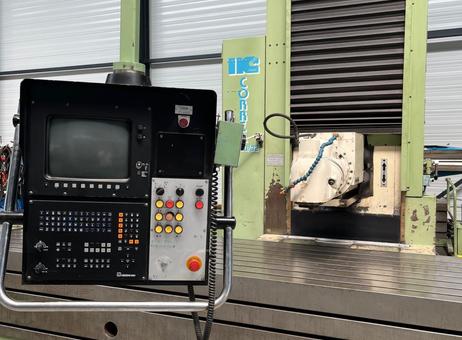

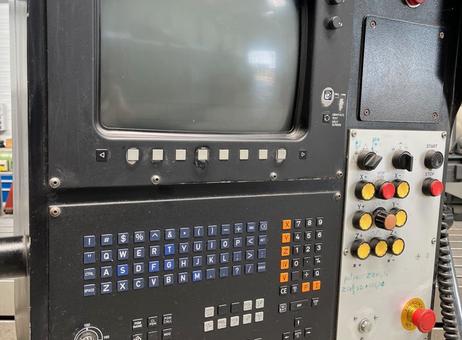

Control is managed via a Heidenhain TNC 415 CNC system, featuring a CRT display, alphanumeric keyboard, rotary knobs, and multiple function keys, all mounted on a movable arm for operator convenience. The control panel includes an emergency stop button to enhance safety during operation.

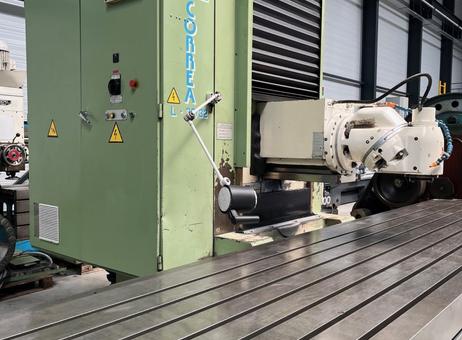

The machine's vertical column is equipped with an accordion-style protective cover for the Z-axis, and the spindle head includes coolant nozzles to support effective cooling during machining. Some signs of wear are visible on the spindle head housing and vertical column, including minor paint chipping, which is typical for equipment of this age. The control panel shows minor dirt and wear but remains fully equipped for operational use.
Overall, the CORREA L 30/32 combines substantial size and power with precise CNC control, making it suitable for demanding milling tasks in an industrial workshop environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Equipped with :
Universal milling head
Specifications :
CNC : Heidenhain TNC 415
X axis stroke 3 200 mm
Y axis stroke 1 200 mm
Z stroke (vertical) 1 250 mm
Table dimensions 5 000 x 1000 mm
Max.table load 15 000 kg
X/Y/Z 12 000 mm/min
Spindle taper ISO 50
Spindle motor power 22 KW
Spindle speeds 2 à 2 000 RPM
Total required power 46 Kva
Machine weight 25T Approx.
Dimensions 7 600 x 3 900 x 3 200 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
