Contact us to receive an offer.
| Manufacturer | CORREA |
|---|---|
| Model | AXIA-70 |
| Year | 2007 |
| Location | Spain
|

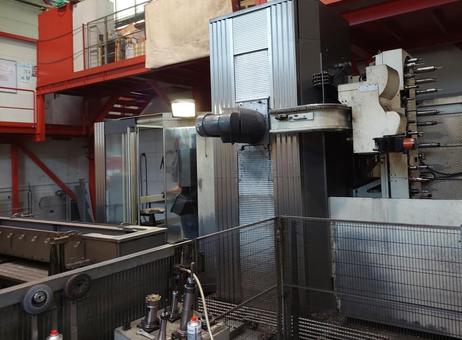

The CORREA AXIA-70 is a travelling column milling machine manufactured in 2007, designed for precision and versatility in milling operations. It features a substantial working envelope with axis travels of 7000 mm on the X-axis, 1250 mm on the Y-axis, and 1500 mm on the Z-axis, accommodating large and complex workpieces. The machine measures 11,900 mm in length, 5,170 mm in width, and 4,225 mm in height, with a total weight of approximately 40,000 kg.

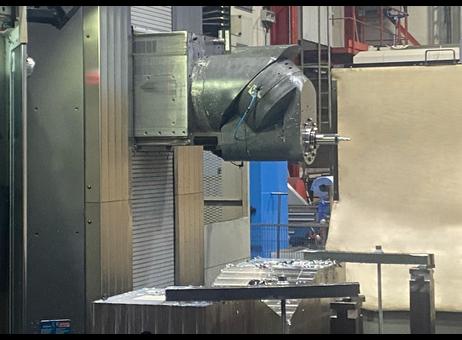

Equipped with an ISO 50 taper spindle, the AXIA-70 offers a maximum spindle speed of 6000 rpm, powered by a 37 kW motor. The spindle incorporates a UAD Automatic system with an accuracy of 0.02º, enhancing machining precision. Tool management is facilitated by a 60-tool magazine, supporting efficient tool changes for varied milling tasks.

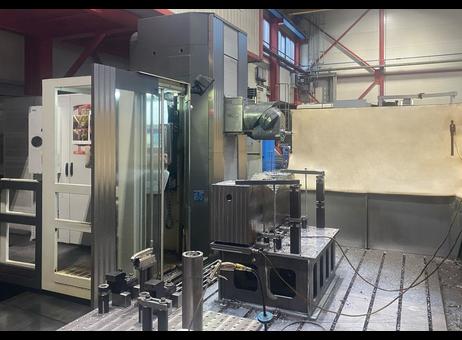

The machine includes two STOLLE tables, each measuring 4000 x 2400 mm, providing ample space for securing workpieces. The worktables are fitted with multiple fixtures and clamps, as observed holding a rectangular metal workpiece, indicating readiness for immediate machining operations.
Control is managed via a HEIDENHAIN 530 system, complemented by an electronic handwheel model HEIDENHAIN HR-410, allowing for intuitive manual adjustments. Cooling is addressed with an internal system delivering 30 bar pressure, and the electric panel is equipped with cooling to ensure operational stability. A chip extractor is also included to maintain a clean working environment.
The machine is housed within a protective enclosure featuring sliding doors on the left side, enhancing safety and accessibility. The overall condition appears clean and well-maintained, with some metal chips visible on the table, suggesting recent use. This robust milling machine is suitable for heavy-duty industrial applications requiring large-scale, precise machining.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
X-axis travel: 7.000 mm
Y-axis travel: 1.250 mm
Z axis travel: 1.500 mm
Taper: ISO 50
Spindle speed: 6.000 r.p.m.
Power: 37 kw
Weight of the machine: 40.000 kgs
Machine dimensions: 11900 x 5170 x 4225 mm
Equipped with:
Control: HEIDENHAIN 530
2 STOLLE tables of 4000x2400 mm each one
Spindle: UAD Automatic 0,02º-0,02º.

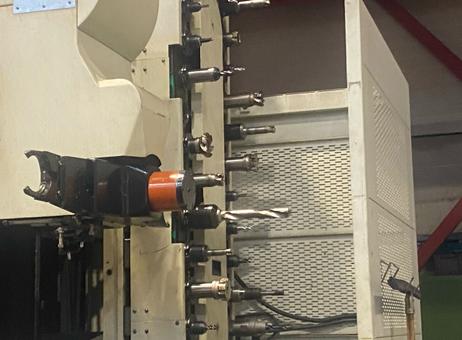

Magazine: 60 tools
Electronic handwheel: HEIDENHAIN HR-410
Internal cooling 30 bar: Yes
Electric panel with cooling: Yes
Chip extractor: Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 64 |
| Last activity | Oct. 26, 2026 |
X-axis travel: 7.000 mm
Y-axis travel: 1.250 mm
Z axis travel: 1.500 mm
Taper: ISO 50
Spindle speed: 6.000 r.p.m.
Power: 37 kw
Weight of the machine: 40.000 kgs
Machine dimensions: 11900 x 5170 x 4225 mm
Equipped with:
Control: HEIDENHAIN 530
2 STOLLE tables of 4000x2400 mm each one
Spindle: UAD Automatic 0,02º-0,02º.
Magazine: 60 tools
Electronic handwheel: HEIDENHAIN HR-410
Internal cooling 30 bar: Yes
Electric panel with cooling: Yes
Chip extractor: Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The CORREA AXIA-70 is a travelling column milling machine manufactured in 2007, designed for precision and versatility in milling operations. It features a substantial working envelope with axis travels of 7000 mm on the X-axis, 1250 mm on the Y-axis, and 1500 mm on the Z-axis, accommodating large and complex workpieces. The machine measures 11,900 mm in length, 5,170 mm in width, and 4,225 mm in height, with a total weight of approximately 40,000 kg.
Equipped with an ISO 50 taper spindle, the AXIA-70 offers a maximum spindle speed of 6000 rpm, powered by a 37 kW motor. The spindle incorporates a UAD Automatic system with an accuracy of 0.02º, enhancing machining precision. Tool management is facilitated by a 60-tool magazine, supporting efficient tool changes for varied milling tasks.
The machine includes two STOLLE tables, each measuring 4000 x 2400 mm, providing ample space for securing workpieces. The worktables are fitted with multiple fixtures and clamps, as observed holding a rectangular metal workpiece, indicating readiness for immediate machining operations.
Control is managed via a HEIDENHAIN 530 system, complemented by an electronic handwheel model HEIDENHAIN HR-410, allowing for intuitive manual adjustments. Cooling is addressed with an internal system delivering 30 bar pressure, and the electric panel is equipped with cooling to ensure operational stability. A chip extractor is also included to maintain a clean working environment.
The machine is housed within a protective enclosure featuring sliding doors on the left side, enhancing safety and accessibility. The overall condition appears clean and well-maintained, with some metal chips visible on the table, suggesting recent use. This robust milling machine is suitable for heavy-duty industrial applications requiring large-scale, precise machining.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2008 |
| Offers online | 64 |
| Last activity | Oct. 26, 2026 |
