| Manufacturer | Correa ANAYAK |
|---|---|
| Model | HVM-65 |
| Year | 2013 |
| Location | Germany
|

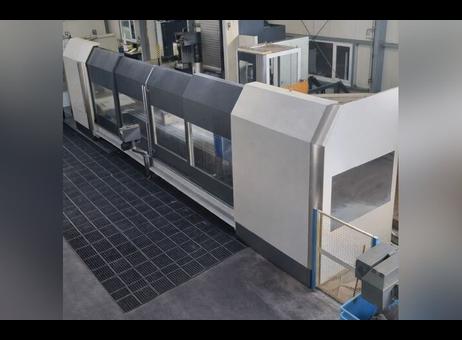

This listing features a Correa Anayak HVM-65 travelling column milling machine, manufactured in 2013. The machine is equipped with a Heidenhain iTNC 530 HSCI control system, known for its precision and user-friendly interface, which is suitable for complex milling operations. The HVM-65 model offers a longitudinal movement (X-axis) travel of 6,500 mm, providing a substantial working range for machining large components. While specific details on the Y and Z axis travels, spindle speed, spindle motor power, table dimensions, and maximum load capacity are not provided, the machine's robust design by Correa, a reputable manufacturer in the milling machine industry, suggests suitability for heavy-duty milling tasks. No additional information about the machine's current condition, accessories, or specific technical specifications is available. Potential buyers should consider this milling machine for applications requiring extensive X-axis travel and the reliability associated with Correa machinery and Heidenhain controls. Further details may be requested from the seller to confirm operational status and additional specifications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Make: CORREA ANAYAK
Type: HVM-65
Built: 2013

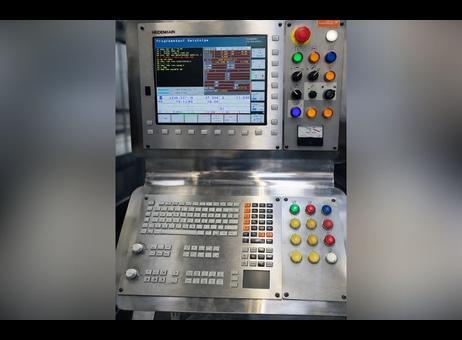

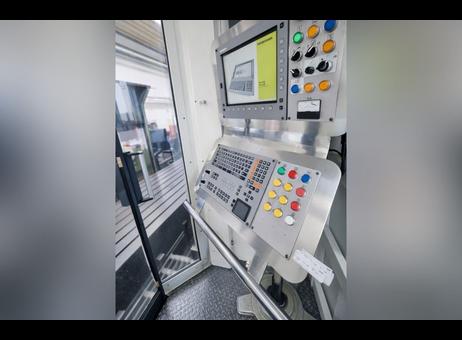

Control: HEIDENHAIN iTNC 530 HSCI
Description:
The ANAYAK HVM-65 traveling column milling machine is designed for high rigidity, precision, and exceptional machining performance. It features a Heidenhain iTNC530 HSCI control, making it ideal for demanding heavy-duty machining applications. The machine's proven traveling column design maintains a fixed distance between the column and spindle axis, ensuring consistent accuracy throughout its working range.
The cross movement is executed by the column, which eliminates the need for a contoured foundation. The orthogonal milling head delivers a power output of 28/42 kW, achieving speeds of up to 6,000 rpm with a precise indexing resolution of 0.02° x 0.02°.
The rigid auxiliary table provides a large clamping surface of 7,300 x 1,200 mm and can support workpieces with a surface load of up to 10,000 kg/m². With a generous X-axis travel of 6,500 mm, driven by rack and pinion with dual preloaded gears, the machine ensures smooth and precise movement.

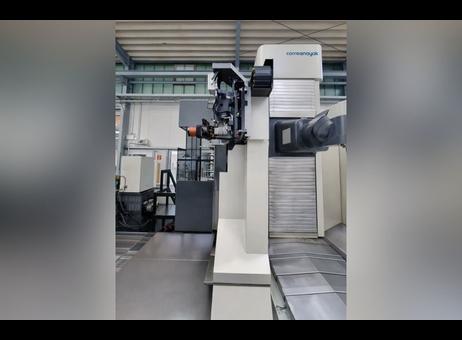

Additional features include a traveling tool magazine with 60 positions, a 3D touch probe, and a separate coolant system with a chip conveyor, making the ANAYAK HVM-65 a comprehensive solution for advanced machining needs.
Travels:
Longitudinal movement (X-Axis): 6,500 mm
Cross movement (Y-Axis): 1,500 mm
Vertical movement (Z-Axis): 2,000 mm

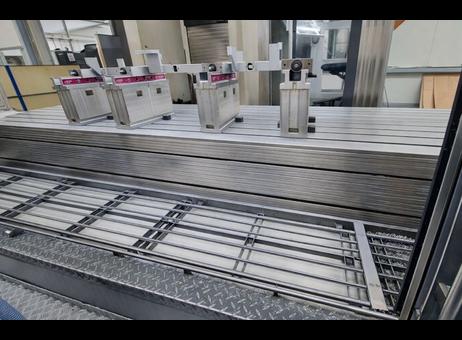

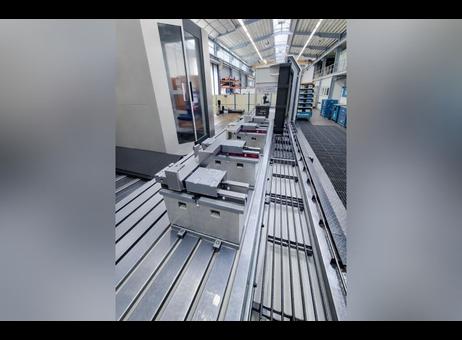

Clamping Table:
Clamping surface: 7,300 x 1,200 mm
Height above floor: 1,500 mm
Max. workpiece weight: 10,000 kg/m²
Number and size of T-slots: 9 x 22 mm
Distance between T-slots: 130 mm
Front T-slots: 2 pieces

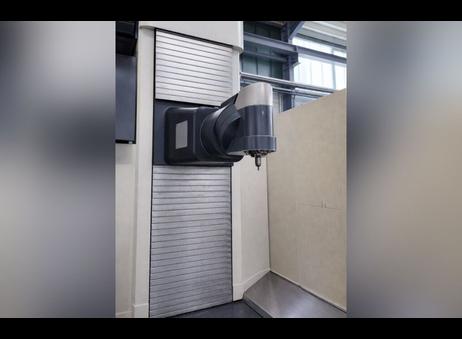

Correa Universal-NC-Milling Head "UAD":
Swivel front/rear plane: Automatically
Indexing: 0.02 x 0.02 °
Clamping force, inner Hirth spline: Approximately 22,000 kgs
Motor power: 28 / 42 kW
Max. torque: 1,375 Nm
Tool Holder:
Type: SK50
Automatic Tool changer: Vertical/Horizontal
Number of pockets: 60 stations
Tool diameter max.: Ø 125/200 mm
Tool length max.: 400 mm
Tool weight max.: 25 kgs
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
