| Manufacturer | CORREA |
|---|---|
| Model | 2500 x 700mm |
| Year | |
| Location | United Kingdom
|

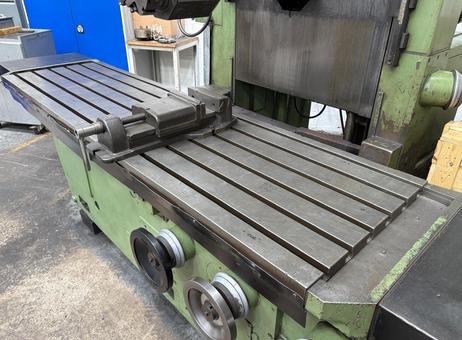

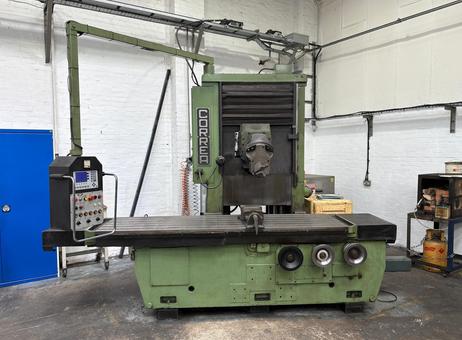

This milling machine features a robust table measuring 2500 x 700 mm, providing ample workspace for a variety of machining tasks. It offers extensive movement capabilities with a longitudinal table travel (X-axis) of 2200 mm, vertical travel (Y-axis) of 1000 mm, and cross ram travel (Z-axis) of 1000 mm. The spindle nose to table distance ranges from 50 to 1050 mm, while the height from the centerline of the spindle to the table ranges from 88 to 1389 mm, allowing for versatile positioning of workpieces.
The spindle speeds are adjustable within two ranges, providing 18 steps from 40 to 2000 rpm, suitable for different materials and cutting requirements. The spindle features a 50 ISO taper, ensuring compatibility with various tooling options. Feed rates are infinitely variable from 5 to 1500 mm/min, with a rapid traverse speed of 3000 mm/min, enabling efficient and precise machining operations.
Powered by a 15 kW spindle motor, this machine supports heavy-duty milling tasks. It weighs approximately 9500 kg, reflecting its solid construction and stability during operation.

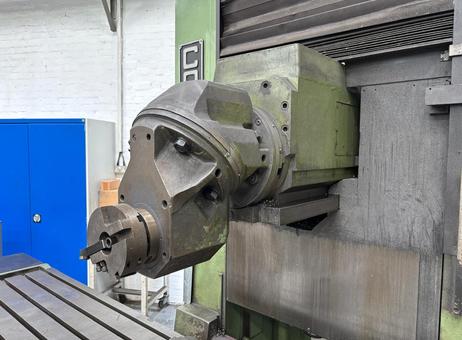

Included with the machine are several features to enhance usability and precision: a pendant control for operator convenience, a Digital Readout (D.R.O.) system for accurate measurement, a universal angular double swivel milling head to accommodate complex machining angles, and hydraulic speed change for smooth adjustments. The machine is equipped with ball screws on the longitudinal, cross, and vertical axes to ensure precise movement. Dual controls allow for manual operation, and the package includes tooling necessary for immediate use.
This milling machine is well-suited for industrial applications requiring versatility, precision, and reliable performance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Milling
Table size 2500 x 700mm, Longitudinal table travel X-axis 2200mm, Vertical travel Y-axis 1000mm, Cross ram travel Z axis 1000mm, Spindle nose to table 50-1050 mm, Height centreline of spindle to table 88-1389 mm, Spindle speeds 2 Range in (18) steps 40-2000 rpm, Taper in spindle nose 50 ISO., Range of feeds Inf. Var. 5– 1500 mm/min, Rapid traverse 3000 mm/min, Spindle motor 15 kW, Machine weight 9500 kg. Machine complete with :- Pendant control, D.R.O., Universal angular double swivel milling head, Hydraulic speed change, Longitudiunal, cross and vertical Ball Screws, Dual controls for manual machine operation, Tooling.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
