Contact us to receive an offer.
| Manufacturer | CORNAC |
|---|---|
| Model | C100 |
| Year | |
| Location | France
|
The CORNAC C100 is a horizontal boring machine designed for precision machining with substantial working dimensions. It features a fixed T-slotted table measuring 1550 mm in length and 980 mm in width, providing a stable and versatile work surface suitable for a range of boring operations. The table is equipped with two cylindrical rods and a top bar holder with a diameter of 50 mm, facilitating secure workpiece clamping.
The machine offers travel capabilities of 1000 mm along both the X and Y axes, and 1260 mm along the Z axis, allowing for extensive machining reach. The spindle is designed with an SA 50 cone and has a spindle passage diameter of 100 mm, accommodating various tooling sizes. The spindle output extends 550 mm, with a maximum spindle speed of 1250 rpm, driven by a 9.5 kW spindle motor. Feed rates for the X, Y, and Z axes are automatic, controlled via a 3-axis HEIDENHAIN visual system.
The machine dimensions are 4500 mm in length, 2100 mm in width, and 2450 mm in height, with an approximate weight of 8000 kg. It is supplied with a set of cones and operates on a 380 V power supply.

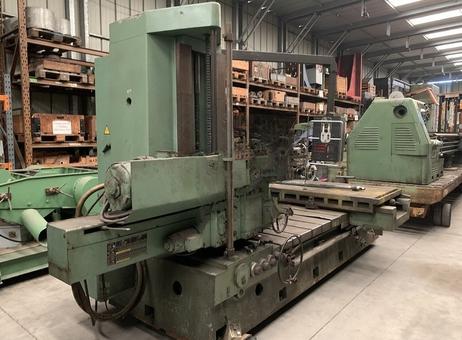

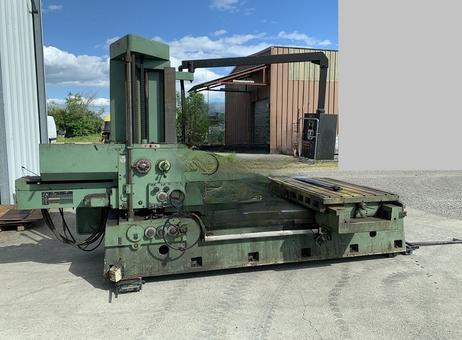

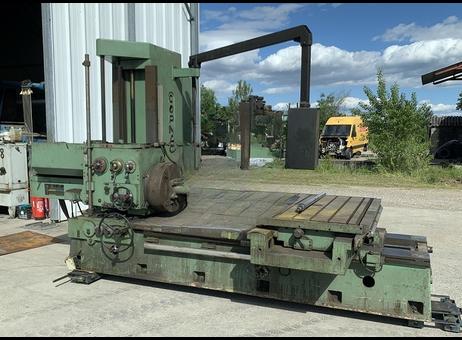

From the visual inspection, the machine is painted green and includes hand wheels and control knobs located on the front and side of the vertical column for manual adjustments. An overhead arm extends over the table, featuring an attached control box, while a control panel with a digital readout is mounted on the right side of the machine, enhancing operational control.
The vertical column incorporates a rack and pinion system for vertical movement. Electrical cables and hoses are visible on the left side. The machine shows signs of use, including surface rust, dirt, and grime on the base, table, and other surfaces, indicating it has been previously operated and stored in various environments, including outdoor storage. These condition aspects should be considered when evaluating the machine for purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Horizontal boring machine
Stroke X
1000 mm
Y stroke
1000 mm
Z stroke
1260 mm
Table
fixed
Cone
SA 50
Spindle passage
Ø 100 mm
Spindle output
550 mm
Spindle speed
10 to 1250 rpm
Table surface
1550 x 980 mm
Faceplate
Ø 520 mm
Table top bar holder
Ø 50 mm
Spindle motor
9.5 kW
Visu
3 HEIDENHAIN axes
Feed rates
automatic X - Y - Z
Various
Supplied with a set of cones
Voltage
380 V
Dimensions (L x W x H)
4500 x 2100 x 2450 mm
Weight
approx. 8 T
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the travel distance in the X, Y, and Z axes?
This CORNAC C100 horizontal boring machine has a travel of 1000 mm in both the X and Y axes and 1260 mm in the Z axis.
What are the dimensions of the fixed table?
This horizontal boring machine features a fixed table with a size of 1550 x 980 mm.
What is the spindle diameter and exit size?
This CORNAC C100 machine has a spindle diameter of Ø 100 mm and a spindle exit of 550 mm.
What is the range of rotation speed for this equipment?
This equipment offers a rotation speed ranging from 10 to 1250 RPM.
What is the power rating of the spindle motor?
This CORNAC C100 horizontal boring machine is powered by a 9.5 kW spindle motor.
What additional equipment is included with this machine?
This machine includes a set of cones as part of the supplied equipment.
What voltage does this machine operate at?
This CORNAC C100 horizontal boring machine operates at a voltage of 380 V.
What are the overall dimensions of this equipment?
This equipment has dimensions of 4500 x 2100 x 2450 mm.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
