| Manufacturer | Componet |
|---|---|
| Model | SPS-1 |
| Year | |
| Location | Poland
|
| Category | Miscellaneous machines |
| Length x width x height | 17000.0 × 1300.0 × 1500.0 |
| Weight | 12000 kg |
| worked hours | |
| hours under power | |
| state | like new |
| At local norms | --------- |
| status | |
| Last availability date | 24/02/2026 |
| Product id | P00526076 |
| Language |
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1 Sonstige Artikel
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
Componet SPS-1
|
The Componet SPS-1 is a specialized industrial machine designed for the automatic production of fiberglass reinforcing composite mesh. This complete production line is capable of manufacturing composite mesh with a fixed mesh width of 50 mm and an adjustable mesh height, producing nets typically 1 meter wide and commonly sized as 1mx2m sheets. The machine allows customers to produce mesh strips of any length, which can be rolled for ease of transport and use without compromising mesh integrity.
The production line includes several key components: a spatula, a thread impregnation tub, an automatic thread feeder, an automatic mesh weaving machine, a winding device, a tunnel furnace, a water cooling tub operating in a closed circuit, a stretching device, a cut-off mechanism, and a guiding table for the cut-off elements. The entire system covers an area of approximately 22.1 square meters, with dimensions of 17 meters in length, 1.3 meters in width, and 1.5 meters in height. The total weight of the machine is 12,000 kg.
The SPS-1 operates with a power supply of 3 x 400 V and consumes between 13 kW to 15 kW of power, with welding current ranging from 160 to 300 A. It is controlled via a PLC system and requires compressed air at 5 bar with an air consumption of 1.5 m³/min.
Composite mesh produced by this line offers several advantages: it is non-conductive, does not generate electric or magnetic fields, is nine times lighter than traditional steel nets, completely corrosion-resistant, and suitable for use in aggressive chemical environments. This makes it ideal for applications in construction, such as reinforcing concrete floors and structural elements, as well as in industrial and agricultural settings. The mesh enhances structural strength, provides anti-shrinkage properties, and can protect underfloor heating systems.

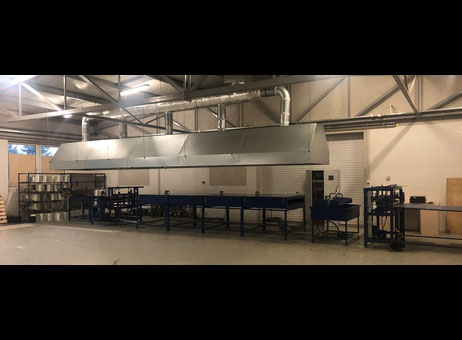

Visually, the machine features a robust blue metal frame with multiple conveyor and processing sections arranged linearly. An overhead exhaust or ventilation duct system is installed above the machine to support operational safety and efficiency. The equipment is housed indoors and appears clean and well-maintained. The control panel is present but not clearly visible in the available images.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine for the production of composite mesh SPS-1 for sale.
It is intended for the automatic production of fiberglass reinforcing mesh. The line enables the production of reinforcing mesh with a fixed mesh width of 50mm and height-adjustable mesh.
The device is a complete line for the production of fiberglass reinforcing mesh consisting of: a spatula, a thread impregnation tub, an automatic thread feeder, an automatic mesh weaving machine, a winding device, a tunnel furnace, a water cooling tub, a stretching device, a cut-off mechanism, and table for guiding cut-off elements in straight sections.
Composite Mesh:
They do not conduct electricity
They do not create an electric and magnetic field
9 times lighter than ordinary steel nets
Completely corrosion resistant
They can be used in aggressive chemical conditions
Easier assembly and transport
They can be used in the construction industry (as a reinforcement of concrete floors and reinforced concrete elements - floors, screeds, floors, as well as for the production of other structural elements), industry or agriculture.
They increase the strength of the structure and substrate, provide anti-shrinkage and possible protection of underfloor heating.
The produced nets have a width of 1m
The most popular size is 1mx2m sheet.
It is possible for the customer to produce any length of mesh. When ordering longer strips of mesh, it is possible to roll it into a roll (the mesh is flexible, after expanding it does not lose its parameters and is suitable for use directly).
Assumed technical parameters of the composite mesh produced:
flexural strength 127 Mpa
modulus of linear deformability when bending 3.3 GPa - notched impact strength 47 kJ / m2
deflection temperature under load (HDT) 99oC
Specification:
The length of the device is 17 m
The width of the device is 1.3 m
The height of the device 1.5 m
Device power 13kW-15kW
Water cooling in a closed circuit
Supply voltage 3 x 400 V
Power consumption during welding 160 - 300 A
Control PLC
Compressed air 5 bar
Air demand 1.5 m3 / min.
The area of the whole set is 22.1 m²
The weight of the whole set is 12,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2020 |
| Offers online | 1 |
| Last activity | Oct. 4, 2020 |
Machine for the production of composite mesh SPS-1 for sale.
It is intended for the automatic production of fiberglass reinforcing mesh. The line enables the production of reinforcing mesh with a fixed mesh width of 50mm and height-adjustable mesh.
The device is a complete line for the production of fiberglass reinforcing mesh consisting of: a spatula, a thread impregnation tub, an automatic thread feeder, an automatic mesh weaving machine, a winding device, a tunnel furnace, a water cooling tub, a stretching device, a cut-off mechanism, and table for guiding cut-off elements in straight sections.
Composite Mesh:
They do not conduct electricity
They do not create an electric and magnetic field
9 times lighter than ordinary steel nets
Completely corrosion resistant
They can be used in aggressive chemical conditions
Easier assembly and transport
They can be used in the construction industry (as a reinforcement of concrete floors and reinforced concrete elements - floors, screeds, floors, as well as for the production of other structural elements), industry or agriculture.
They increase the strength of the structure and substrate, provide anti-shrinkage and possible protection of underfloor heating.
The produced nets have a width of 1m
The most popular size is 1mx2m sheet.
It is possible for the customer to produce any length of mesh. When ordering longer strips of mesh, it is possible to roll it into a roll (the mesh is flexible, after expanding it does not lose its parameters and is suitable for use directly).
Assumed technical parameters of the composite mesh produced:
flexural strength 127 Mpa
modulus of linear deformability when bending 3.3 GPa - notched impact strength 47 kJ / m2
deflection temperature under load (HDT) 99oC
Specification:
The length of the device is 17 m
The width of the device is 1.3 m
The height of the device 1.5 m
Device power 13kW-15kW
Water cooling in a closed circuit
Supply voltage 3 x 400 V
Power consumption during welding 160 - 300 A
Control PLC
Compressed air 5 bar
Air demand 1.5 m3 / min.
The area of the whole set is 22.1 m²
The weight of the whole set is 12,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
