Contact us to receive an offer.
| Manufacturer | COMPART |
|---|---|
| Model | S44.004 |
| Year | 1995 |
| Location | Poland
|
| Category | Miscellaneous machines |
| Weight | 2700 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P240320032 |
| Language |
Машина за рязане на мостове COMPART S44.004
Stroj na řezání mostů COMPART S44.004
COMPART S44.004 broskæremaskine
COMPART S44.004 Brückenschneidemaschine
Μηχάνημα κοπής γέφυρας COMPART S44.004
COMPART S44.004 bridge cutting machine
Cortadora de puentes COMPART S44.004
Machine à couper les ponts COMPART S44.004
COMPART S44.004 stroj za rezanje mostova
COMPART S44.004 hídvágó gép
Fresa a ponte COMPART S44.004
COMPART S44.004 tilto pjovimo mašina
COMPART S44.004 brugsnijmachine
Maszyna do cięcia mostów COMPART S44.004
Máquina de corte de ponte COMPART S44.004
Mașină de tăiat pod COMPART S44.004
Мостовой отрезной станок COMPART S44.004
COMPART S44.004 mašina za sečenje mostova
COMPART S44.004 broskärmaskin
COMPART S44.004 köprü kesme makinası
|
The COMPART S44.004 is a robust bridge cutting machine manufactured in 1995, designed primarily for high-volume production environments. This machine is suitable for fast and precise cutting of various soft, non-metallic materials and can also function as an extruder. It processes materials taken from rolls or sheets using a cutting head that moves horizontally along a beam, applying a maximum cutting force of 25 tons (250 kN). The horizontal beam design extends the cutting plane, allowing operators to easily position the die and manage material insertion and removal.

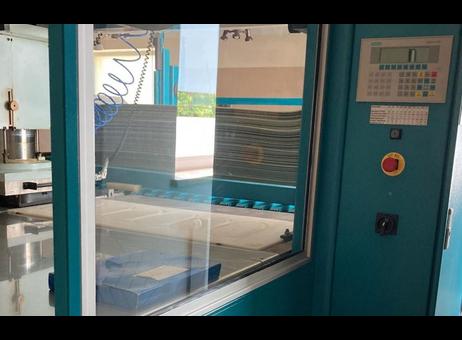

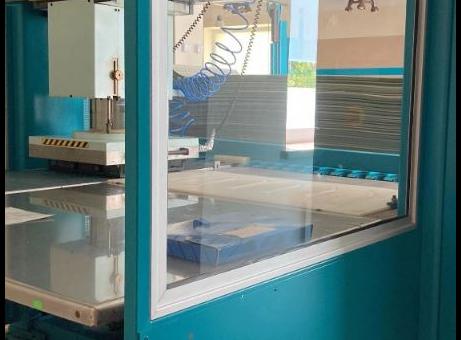

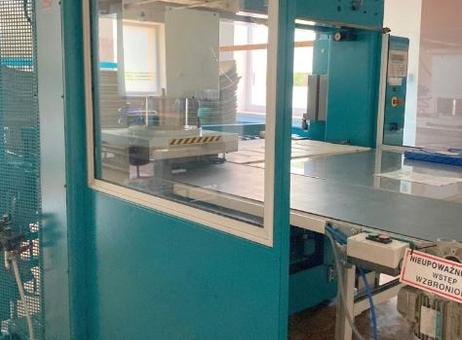

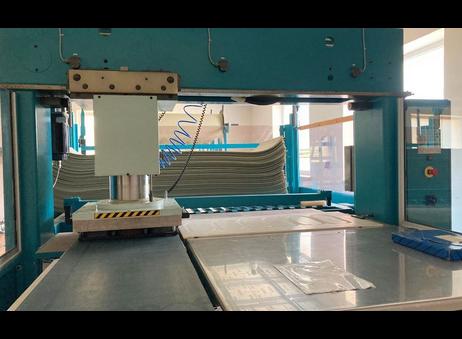

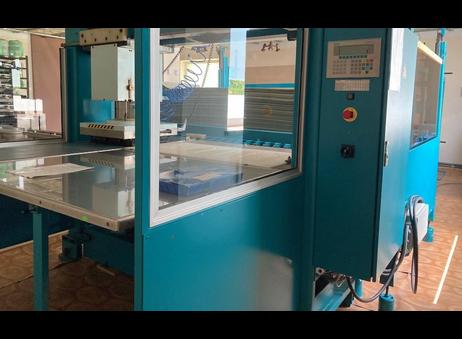

The machine features a flat metal working surface with a pressing component above it, marked with caution stripes for safety. Transparent protective panels surround the frame, enhancing operator safety, and an emergency stop button is conveniently located on the control panel. The control panel includes various buttons for operation and safety control.
This model is equipped with a screw compressor and an air tank with a capacity of 400 liters, supporting pneumatic functions. The cutting machine itself weighs approximately 2700 kg, while the screw compressor weighs around 140 kg.
Key technical specifications include a cutting speed of approximately 85 mm/s, a stroke adjustment range from 15 to 120 mm, and a return feed speed of about 150 mm/s. The machine is powered by a hydraulic motor of 2.2 kW, a trolley motor of 3 kW, and a clamping beam feed motor of 2 kW. It operates on a 3x 380 V, 50 Hz power supply and produces a noise level of roughly 75 dB(A). The overall dimensions are 4000 mm in length and 8300 mm in width.
The machine has been previously used for processing polyethylene-based foams and appears clean and well-maintained with no visible damage. A blue coiled air hose is attached to the pressing unit, indicating readiness for pneumatic operations. Stacks of flat sheets or materials are positioned behind the pressing area, suggesting the machine is set up for immediate use. This industrial cutting press is suitable for manufacturers requiring efficient, precise cutting of soft materials with integrated safety features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The COMPART S44.004 bridge cutting machine was built in 1995 in Germany. The machine, aimed at mass production, is intended mainly for fast and accurate cutting in various types of soft, non-metallic materials, but it can also be used as an extruder . Material taken from rolls or sheets is processed with a maximum force of 25 tons by a cutting head that moves on a horizontal moving beam. This solution allows the cutting plane to be extended to allow the operator to position the die and insert and remove the cut material. The offer also includes a screw compressor with an air tank with a capacity of 400 l. The COMPART bridge press has previously operated on polyethylene-based foams. The total weight of the machine is 2700 kg.
Technical data of the COMPART S44.004 die-cutting press
- cutting force: 25 t (250 kN)
- cutting speed: approx. 85 mm/s
- stroke adjustment range: 15-120 mm
- return feed speed: approx. 150 mm/s
- screw compressor with a 400 l tank
- hydraulic motor power: 2.2 kW
- trolley motor power: 3 kW
- clamping beam feed motor power: 2 kW
- noise level: approx. 75 dB(A)
- power supply: 3x 380 V; 50 Hz
- dimensions (length x width): 4000 x 8300 mm
- weight of the screw compressor: 140 kg
- weight of the S44.004 cutting machine : 2700 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 423 |
| Last activity | Oct. 23, 2026 |
The COMPART S44.004 bridge cutting machine was built in 1995 in Germany. The machine, aimed at mass production, is intended mainly for fast and accurate cutting in various types of soft, non-metallic materials, but it can also be used as an extruder . Material taken from rolls or sheets is processed with a maximum force of 25 tons by a cutting head that moves on a horizontal moving beam. This solution allows the cutting plane to be extended to allow the operator to position the die and insert and remove the cut material. The offer also includes a screw compressor with an air tank with a capacity of 400 l. The COMPART bridge press has previously operated on polyethylene-based foams. The total weight of the machine is 2700 kg.
Technical data of the COMPART S44.004 die-cutting press
- cutting force: 25 t (250 kN)
- cutting speed: approx. 85 mm/s
- stroke adjustment range: 15-120 mm
- return feed speed: approx. 150 mm/s
- screw compressor with a 400 l tank
- hydraulic motor power: 2.2 kW
- trolley motor power: 3 kW
- clamping beam feed motor power: 2 kW
- noise level: approx. 75 dB(A)
- power supply: 3x 380 V; 50 Hz
- dimensions (length x width): 4000 x 8300 mm
- weight of the screw compressor: 140 kg
- weight of the S44.004 cutting machine : 2700 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
