| Manufacturer | CMZ |
|---|---|
| Model | TA 15 MS - 640 |
| Year | 2017 |
| Location | France
|

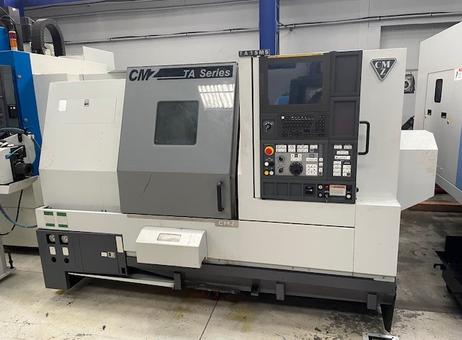

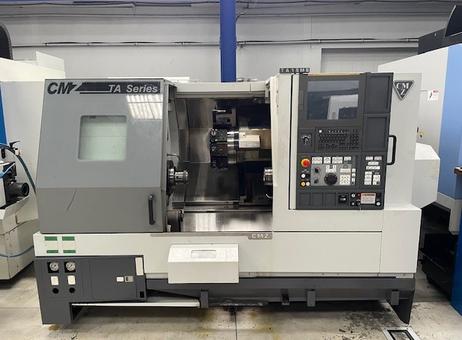

This CMZ TA 15 MS – 640 is a dual-spindle CNC lathe with integrated milling capabilities, designed for versatile and precise machining tasks. Manufactured in 2017, it is equipped with a Fanuc 32iTB CNC control system featuring a 15-inch touchscreen and an updated iHMI interface for enhanced user interaction.
The machine includes a standard hydraulic cylinder on the main spindle (TA 15 Autoblok VNK 130-52), fitted with a DIN 6343 collet chuck (No. 177E) supporting a maximum diameter of 52 mm. The main spindle operates at speeds up to 6,000 rpm and has a spindle bore diameter of 61 mm. The lathe offers a center-to-center distance of 730 mm and a Z-axis travel of 640 mm.
It supports a maximum turning diameter of 460 mm, with a maximum diameter on the bed of 760 mm and on the carriage of 600 mm. The X-axis travel is 310 mm, and both the X and Z axes have rapid traverse rates of 30 m/min, matched by the B-axis rapid traverse speed.

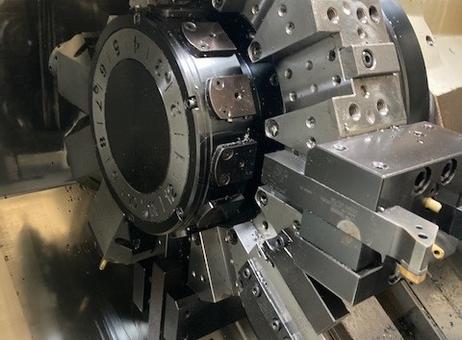

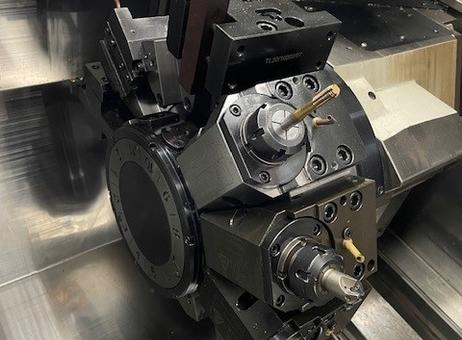

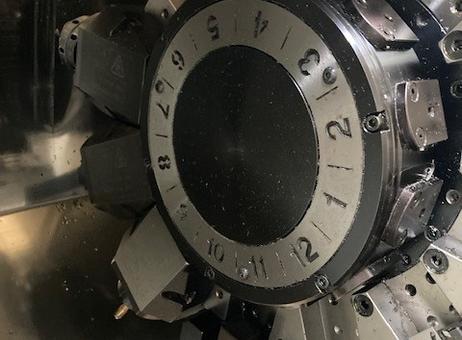

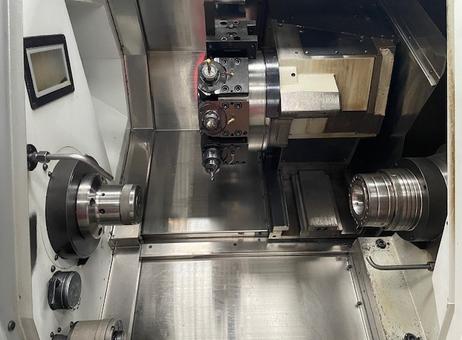

The machine features a 12-station automatic turret equipped with 12 motorized tools capable of rotary speeds up to 12,000 rpm, delivering a maximum power of 11.3 kW (8.1 kW in S1). The secondary spindle reaches speeds up to 4,500 rpm with a maximum power of 14 kW and uses a Hainbuch Spanntop nova AXFIX 52 collet chuck (part no. 2703/0006).

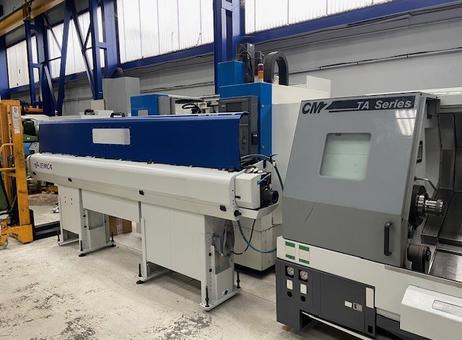

Additional features include a Renishaw HPRA measuring arm for precision probing, spindle center coolant supply with a high-pressure pump rated at 6 bars, and a rear double-chain chip conveyor for efficient chip removal. The lathe is accompanied by an IEMCA Boss 552/32 HD HEAVY DUTY bar feeder with an integrated loading robot, enhancing automation and productivity.
The machine's total operating time is 14,536 hours, with 5,000 hours recorded as machining time. It weighs approximately 6 tonnes, reflecting its robust build suitable for demanding industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CMZ Dual-Spindle CNC Lathe with Milling Capability
Model TA 15 MS – 640
Year 2017
Fanuc 32iTB CNC with 15'' touchscreen and new iHMI interface
Standard hydraulic cylinder on main spindle (TA 15 Autoblok VNK 130-52) with DIN 6343 collet chuck No. 177E, max. diameter 52 mm
Main spindle speed: 6,000 rpm
Spindle bore diameter: 61 mm
Z = 640 mm / center-to-center distance: 730 mm
Max. diameter on bed: 760 mm
Max. diameter on carriage: 600 mm
Max. turning diameter: 460 mm
X-axis travel: 310 mm
Z-axis travel: 640 mm
B-axis travel: 640 mm
Rapid traverse on X and Z = 30 m/min
Rapid traverse on B = 30 m/min
12-station automatic turret with 12 motorized tools
Rotary tool speed: 12,000 rpm
Max. rotary tool power: 11.3 kW / and 8.1 kW in S1
Secondary spindle: max. speed 4,500 rpm, max. power 14 kW, with Hainbuch Spanntop nova AXFIX 52 collet chuck (part no. 2703/0006)
Renishaw HPRA measuring arm (probe)
Machine weight: approximately 6 T
Spindle center coolant supply and high-pressure pump: 6 bars
IEMCA Boss 552/32 HD HEAVY DUTY bar feeder with loading robot.
Rear double-chain chip conveyor
Total operating hours: 14,536
Total machining hours: 5,000
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
