Contact us to receive an offer.
| Manufacturer | CME |
|---|---|
| Model | FCM-G30 |
| Year | |
| Location | Spain
|

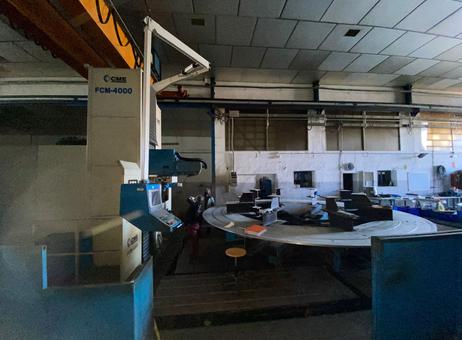

This listing is for a CME FCM-G30 travelling column milling machine, designed for versatile and precise machining operations. It features a CNC Heidenhain TNC-430M control system with 9 axes, providing advanced control capabilities. The machine offers substantial travel distances with an X-axis of 4000 mm, Y-axis of 1500 mm, and Z-axis of 3000 mm, accommodating large workpieces. The spindle operates manually with an orthogonal setup, reaching a maximum speed of 3000 rpm. It includes a worm gear and encoder on both bodies for angle display on the control, and is cooled and coupled for turning support. The spindle clamping follows ISO-50 and DIN-69871 standards, ensuring compatibility with a range of tooling.
The milling machine is equipped with a Heidenhain HR-410 handwheel for manual positioning and features a thermal probe and ram oil cooler to maintain optimal operating temperatures. Chip and swarf removal is managed via chain-type extractors, with a swan neck outlet at 1200 mm height. The electro spindle (mandrel) is a Faemat model with 20 kW power and a maximum speed of 12,000 rpm, positioned at the front of the spindle and supports removable and insertable tools. The automatic tool changer (ATC) is chain-type and accommodates 20 tools.
The machine includes a rotary table with linear displacement measuring 2500 x 2500 mm and two Stolle tables sized 1000 x 3000 x 300 mm. Additional cubes and angle dividers are provided for setup flexibility. Power requirements are 380 V and 50 Hz, with the main spindle motor rated at 22 kW, servomotors totaling 70 kW for the X, Y, and Z axes, and a hydraulic group of 30 kW. The total net weight of the machine is approximately 79,850 kg.

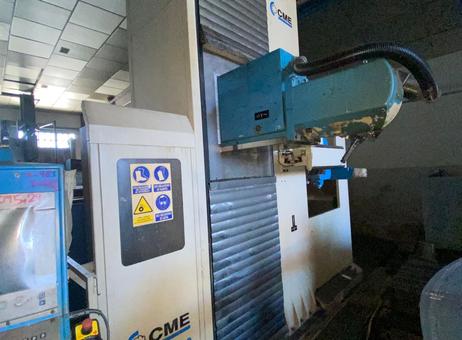

Visible components include a blue milling head attached to the column, which has protective accordion-style covers. A handheld control pendant with an emergency stop button is attached to the machine, enhancing operator safety and control. Safety stickers are present, indicating mandatory use of boots, gloves, and eye protection, underscoring adherence to safety protocols. This machine is suitable for heavy-duty milling tasks requiring large working envelopes and precise control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL FEATURES
CME Mobile Column Milling Machine
Model FCM-G30 4000

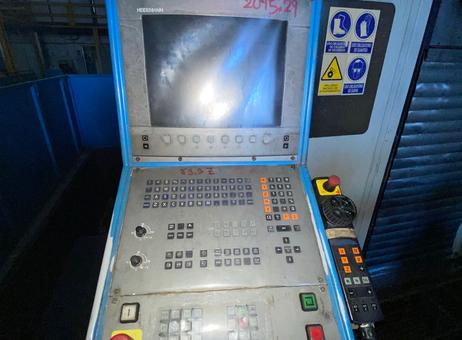

CNC Heindenhain TNC-430M (9 axes)
COURSES : X = 4000, Y= 1500, Z= 3000
Handwheel : Heidenhain HR-410
SPINDLE: Manual orthogonal at 3000 rpm, worm gear and encoder on both bodies for angle display on the control-cooled and coupled for turning support.
Clamping : ISO-50, DIN-69871
Fairing : CE-1
Thermal probe
Ram oil cooler
Chain type chip extractor, without collar
Chain type swarf extractor, with swan neck outlet H=1200 MM.
Electro mandrel Faemat 20 Kw. 12000 rpm, positioned on the front of the spindle with removable and insertable tool.

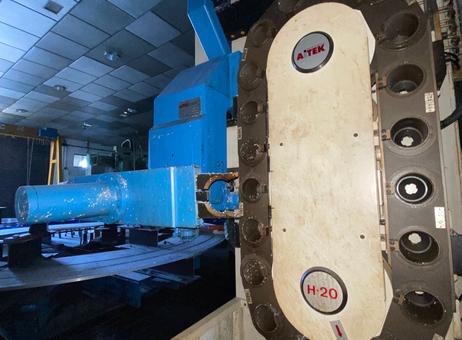

ATC : Chain type, 20 tools

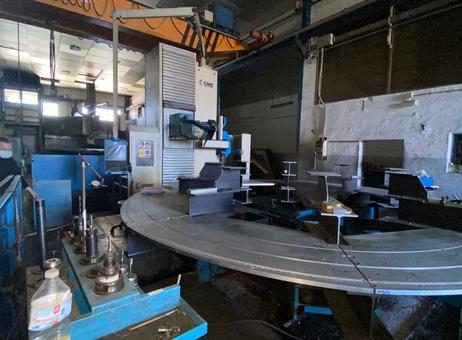

Rotary table with linear displacement : 2500 x 2500 mm.
Measuring probe cable
2 stolle tables : 1000 x 3000 x 300 mm.
2 additional cubes to be placed on top of the A-3500 x 1000 x 1000 x 1000 divider.
Angle 2000 x 1000 x 1000 x 1000
POWER, DIMENSIONS AND WEIGHT
Voltage 380 v.
Frequency 50 Hz.
Main motor power 22 Kw
Servomotor power (X, Y, Z) 70 Kw
Hydraulic group power 30 Kw
Total net weight 79850 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 35 |
| Last activity | Oct. 23, 2026 |
TECHNICAL FEATURES
CME Mobile Column Milling Machine
Model FCM-G30 4000
CNC Heindenhain TNC-430M (9 axes)
COURSES : X = 4000, Y= 1500, Z= 3000
Handwheel : Heidenhain HR-410
SPINDLE: Manual orthogonal at 3000 rpm, worm gear and encoder on both bodies for angle display on the control-cooled and coupled for turning support.
Clamping : ISO-50, DIN-69871
Fairing : CE-1
Thermal probe
Ram oil cooler
Chain type chip extractor, without collar
Chain type swarf extractor, with swan neck outlet H=1200 MM.
Electro mandrel Faemat 20 Kw. 12000 rpm, positioned on the front of the spindle with removable and insertable tool.
ATC : Chain type, 20 tools
Rotary table with linear displacement : 2500 x 2500 mm.
Measuring probe cable
2 stolle tables : 1000 x 3000 x 300 mm.
2 additional cubes to be placed on top of the A-3500 x 1000 x 1000 x 1000 divider.
Angle 2000 x 1000 x 1000 x 1000
POWER, DIMENSIONS AND WEIGHT
Voltage 380 v.
Frequency 50 Hz.
Main motor power 22 Kw
Servomotor power (X, Y, Z) 70 Kw
Hydraulic group power 30 Kw
Total net weight 79850 Kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a CME FCM-G30 travelling column milling machine, designed for versatile and precise machining operations. It features a CNC Heidenhain TNC-430M control system with 9 axes, providing advanced control capabilities. The machine offers substantial travel distances with an X-axis of 4000 mm, Y-axis of 1500 mm, and Z-axis of 3000 mm, accommodating large workpieces. The spindle operates manually with an orthogonal setup, reaching a maximum speed of 3000 rpm. It includes a worm gear and encoder on both bodies for angle display on the control, and is cooled and coupled for turning support. The spindle clamping follows ISO-50 and DIN-69871 standards, ensuring compatibility with a range of tooling.
The milling machine is equipped with a Heidenhain HR-410 handwheel for manual positioning and features a thermal probe and ram oil cooler to maintain optimal operating temperatures. Chip and swarf removal is managed via chain-type extractors, with a swan neck outlet at 1200 mm height. The electro spindle (mandrel) is a Faemat model with 20 kW power and a maximum speed of 12,000 rpm, positioned at the front of the spindle and supports removable and insertable tools. The automatic tool changer (ATC) is chain-type and accommodates 20 tools.
The machine includes a rotary table with linear displacement measuring 2500 x 2500 mm and two Stolle tables sized 1000 x 3000 x 300 mm. Additional cubes and angle dividers are provided for setup flexibility. Power requirements are 380 V and 50 Hz, with the main spindle motor rated at 22 kW, servomotors totaling 70 kW for the X, Y, and Z axes, and a hydraulic group of 30 kW. The total net weight of the machine is approximately 79,850 kg.

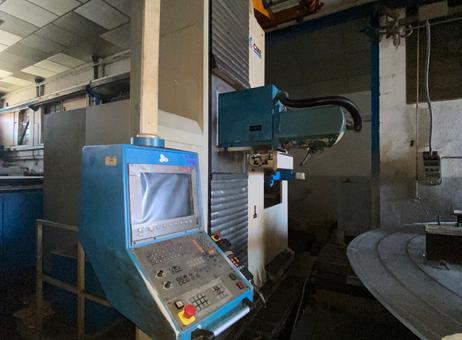

Visible components include a blue milling head attached to the column, which has protective accordion-style covers. A handheld control pendant with an emergency stop button is attached to the machine, enhancing operator safety and control. Safety stickers are present, indicating mandatory use of boots, gloves, and eye protection, underscoring adherence to safety protocols. This machine is suitable for heavy-duty milling tasks requiring large working envelopes and precise control.
