| Manufacturer | cleanLASER |
|---|---|
| Model | clean CELL 3220 |
| Year | 2021 |
| Location | Germany
|
Listing: CLEAN LASER clean CELL 3220 (2021)
Overview

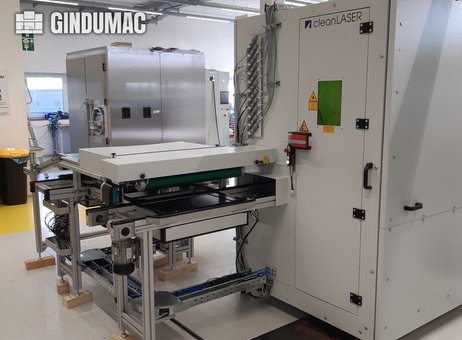

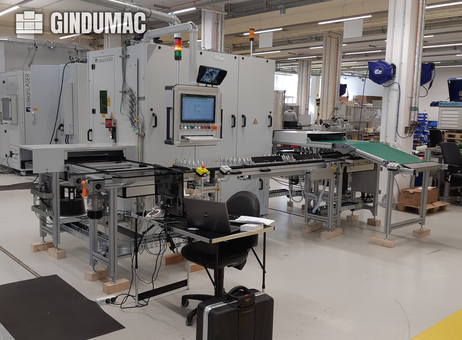

This is a CLEAN LASER clean CELL 3220 three-axis automated robotic laser cleaning cell, listed with a manufacture year of 2021. The system is equipped with a Siemens control unit (SIMATIC S7-1500 PLC) and an ABB robot. The machine is intended for laser cleaning and related surface treatment applications.
Key technical information
- Laser: cleanLASER CL600 mid-power diode-pumped solid-state laser (DPSSL)
- Wavelength: 1064 nm
- Average laser power: 600 W ±5%
- Laser operation mode: Pulsed (ns)
- Alignment laser: 658 nm, 28 mW
- Cooling: Integrated water-to-water cooling system; additional chiller listed as Cooler ONE Plus (air-cooled)
- Fiber: Quartz fiber optic cable, square geometry, 10 m length; protective hose diameter 21 mm
- Optics: STAMP 25 2D optics with 90° connection, focal length 163 mm
Motion, control and software
- Number of axes: 3 (3-axis portal linear axis system)
- Drive system: Siemens 1FK7 servo drives
- Maximum axis payload: approx. 25 kg
- Axis speed (X/Y): >200 mm/s
- Communication: Profinet
- Digital I/O: standard
- Software: cleanSTUDIO and cleanCONTROL

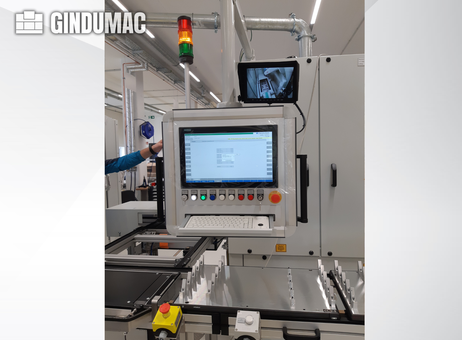

- Industrial PC: 19" rack PC, SSD 256 GB, 8 GB RAM, Intel Core i5 (minimum) or equivalent
Material handling and extraction
- Robot: ABB with a 2-workpiece gripper

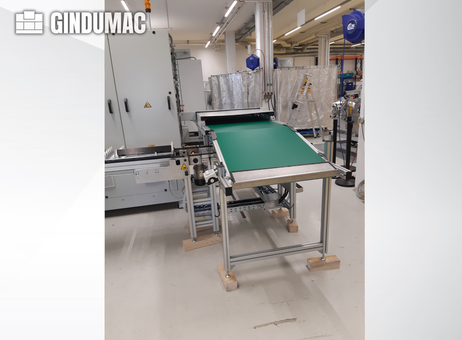

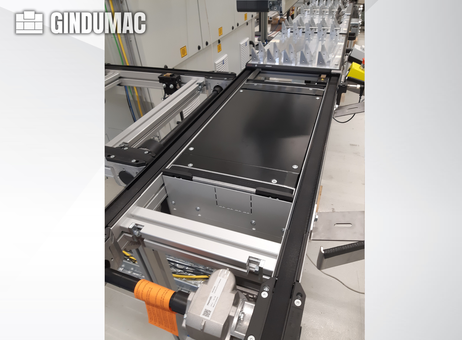

- Conveyor: Bosch TS2 transfer system; loading via manual workpiece carrier; discharge conveyor length approx. 4.8 m

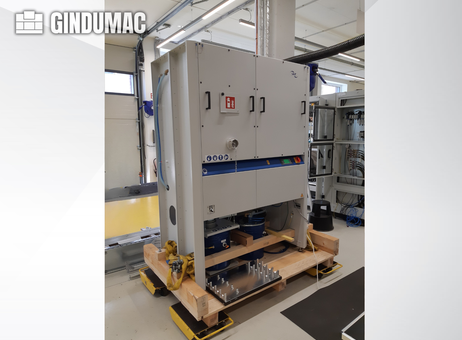

- Extraction: ULT Maxi Plus extraction system
- Fan capacity: up to 4,000 m³/h
- Maximum pressure: 3,300 Pa
- Filter cartridges: 4 × 600 mm
- Dust drum capacity: 200 L
- Extraction power: 5 kW
Electrical
- Power supply: 400 V, 3-phase
Dimensions
- Height: 2,215 mm
- Length: 2,200 mm
- Width: 2,035 mm
Notes and condition
The description above reflects the technical data provided for this unit. No images were included with this listing and no operational condition, service history, or testing information is provided in the available data. Prospective buyers should request additional documentation, testing records, or inspection details if required.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis clean CELL 3220 was manufactured in 2021. It features a powerful 600 W diode-pumped solid-state laser with a wavelength of 1064 nm and an integrated water-to-water cooling system. The machine is equipped with a Siemens control unit and a robust ABB robot for enhanced automation. If you are looking to get high-quality laser cleaning capabilities, consider the Clean Laser clean CELL 3220 machine we have for sale. Contact us for further details.
Overview
brand: CLEAN LASER
year: 2021
MODEL: clean CELL 3220
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool
control unit brand: SIEMENS
Technical Information - CLEAN LASER clean CELL 3220
Control Unit
Control Brand: SIEMENS

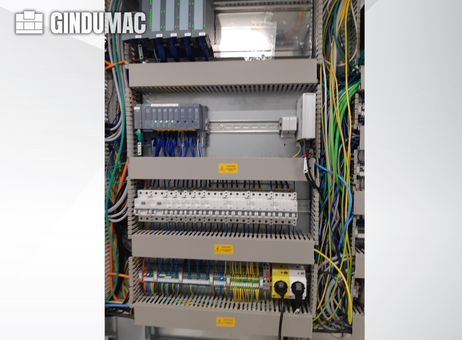

Control Model: SIMATIC S7-1500
Dimensions
Machine Height: 2215 mm
Machine Length: 2200 mm
Machine Width: 2035 mm
Movement
Number of Axes: 3
Additional Information
Machine Type: Automated Robotic Laser Cleaning Cell
Laser Source: cleanLASER CL600 Mid-Power Laser
Laser Type: Diode-Pumped Solid-State Laser (DPSSL)
Laser Wavelength: 1064 nm
Laser Operation Mode: Pulsed (ns)
Average Laser Power: 600 W ±5%
Alignment Laser Wavelength: 658 nm
Alignment Laser Power: 28 mW
Cooling System: Integrated Water-to-Water Cooling System
Additional Chiller: Cooler ONE Plus Air (Air-Cooled)
Fiber Cable Type: Quartz Fiber Optic Cable
Fiber Length: 10 m
Fiber Geometry: Square
Protective Hose Diameter: 21 mm
Optical System: STAMP 25 2D Optics
Optics Connection: 90°
Focal Length: 163 mm
Control Unit Brand: Siemens
Control Unit Model: SIMATIC S7-1500 PLC
Drive System: Siemens 1FK7 Servo Drives
Linear Axis System: 3-Axis Portal System
Maximum Axis Payload: Approx. 25 kg
Axis Speed (X/Y): >200 mm/s
Communication Interface: Profinet
Digital I/O: Standard
Software: cleanSTUDIO / cleanCONTROL
Industrial PC: 19" Rack PC
SSD Capacity: 256 GB
RAM: 8 GB
Processor: Intel Core i5 (minimum) or equivalent
Robot: ABB Robot
Gripper: 2-Workpiece Gripper
Conveyor System: Bosch TS2 Transfer System
Loading System: Manual Workpiece Carrier Loading
Discharge Conveyor Length: Approx. 4.8 m
Extraction System: ULT Maxi Plus
Fan Capacity: Max. 4,000 m³/h
Maximum Pressure: 3,300 Pa
Filter Cartridges: 4 × 600 mm
Dust Drum Capacity: 200 L
Extraction Power: 5 kW
Power Supply: 400 V, 3-Phase
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
