Contact us to receive an offer.
| Manufacturer | CITIZEN CINCOM |
|---|---|
| Model | L 12 VII |
| Year | 2016 |
| Location | Switzerland
|

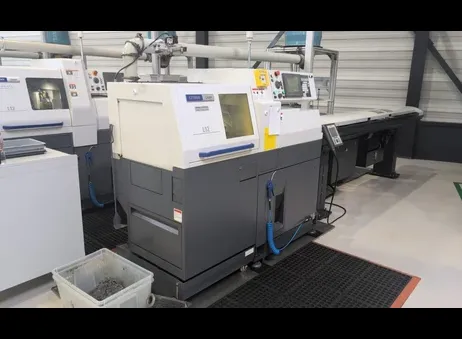

CITIZEN CINCOM L 12 VII CNC automatic lathe, manufactured in 2016. The machine is offered as-is, where-is. Its listed configuration has seven axes and a maximum turning diameter of 12 mm, with a maximum turning length of 135 mm. The internal spindle diameter is 20 mm. The main spindle speed is listed as up to 15,000 rpm, with a C-axis resolution of 0.001°.
Listed axis travels are X1: 32 mm, X2: 30 mm, Y1: 40 mm, Z1: 135 mm and Z2: 30 mm. The machine has 27 tool positions and eight driven tools. Driven-tool spindle speeds are listed as 10,000 / 9,000 rpm, and driven-tool power is 0.75 kW. The back spindle speed is listed as up to 10,000 rpm, with a C-axis resolution of 0.001°. Rapid traverse is 35 m/min.
Electrical requirements are listed as 3 × 400 V at 50 Hz, with a total power requirement of 6.1 kVA. The machine weighs approximately 1,700 kg. Its listed overall dimensions are 1,760 mm long, 820 mm wide and 1,610 mm high.

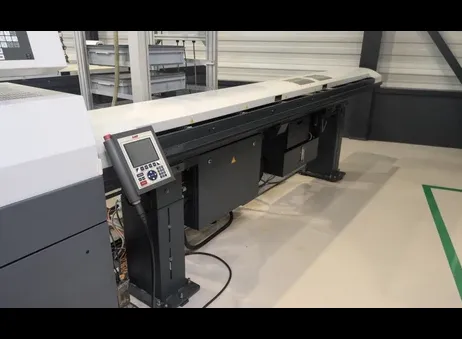

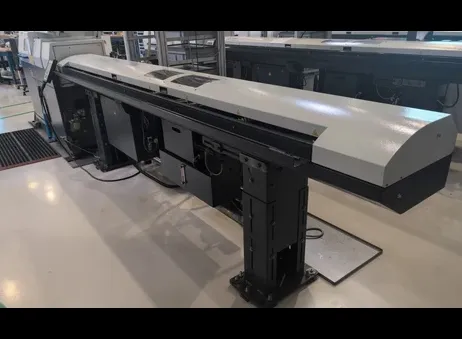

Included accessories and equipment listed for this machine are an LNS EXPRESS 112 bar feeder, a coolant system and a KRAFT & BAUER fire extinguishing system. The description provides the machine's stated specifications and equipment; no further condition details are provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: CITIZEN CINCOM
Model: L 12 VII
Year of manufacture: 2016
Machine type: CNC automatic lathe
Technical condition: As-is, where-is
Number of axes: 7
Maximum turning diameter: 12 mm
Maximum turning length: 135 mm
Internal spindle diameter: 20 mm
Main spindle speed: Up to 15,000 rpm
Main spindle C-axis resolution: 0.001°
X1-axis travel: 32 mm
X2-axis travel: 30 mm
Y1-axis travel: 40 mm
Z1-axis travel: 135 mm
Z2-axis travel: 30 mm
Number of tool positions: 27
Number of driven tools: 8
Driven-tool spindle speeds: 10,000 / 9,000 rpm
Driven-tool power: 0.75 kW
Back spindle speed: Up to 10,000 rpm
Back spindle C-axis resolution: 0.001°
Rapid traverse: 35 m/min
Power supply: 3 × 400 V, 50 Hz
Total power requirement: 6.1 kVA
Machine weight: Approximately 1,700 kg
Machine dimensions (L × W × H): 1,760 × 820 × 1,610 mm
Bar feeder: LNS EXPRESS 112
Additional equipment: Coolant system
Additional equipment: KRAFT & BAUER fire extinguishing system
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
