Contact us to receive an offer.
| Manufacturer | CINCINNATI |
|---|---|
| Model | - |
| Year | |
| Location | Poland
|
This universal milling machine is manufactured by Cincinnati and is designed for a wide range of milling and drilling operations suitable for both unit and serial production. It features a vertically, transversely, and longitudinally sliding table, allowing for versatile machining capabilities including face milling, groove milling, cavity milling, drilling, reaming, and channel milling. The machine also supports mounting the cutter in the horizontal plane after removing the milling head.

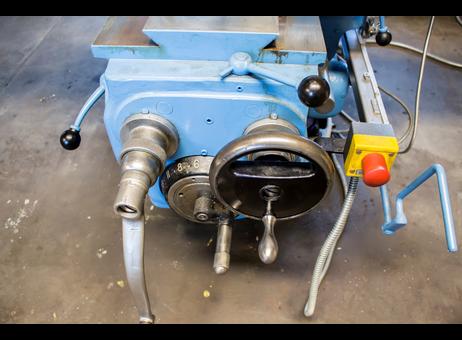

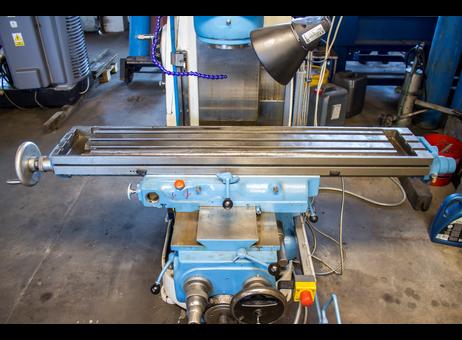

The working table measures 1120 mm in length and 165 mm in width, equipped with three T-slots each 18 mm wide and spaced 60 mm apart, facilitating secure workpiece mounting. The table offers a transverse travel (X axis) of 720 mm, longitudinal travel (Y axis) of 235 mm, and vertical travel (Z axis) of 360 mm. It includes handwheels and levers for manual control of the milling table and spindle head, complemented by a graduated dial for precise adjustments.
The spindle features a taper ISO 5 and operates at speeds ranging from 25 to 1500 rpm, with the ability to rotate both right and left. It can tilt within an angle of ±45°, and the spindle distance from the table is 360 mm. The machine is powered by a 400 V supply.

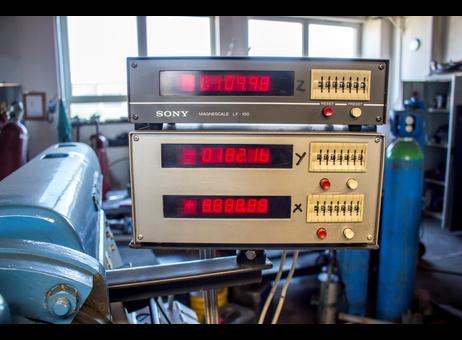

Standard equipment includes a control panel, a SONY MAGNESCALE LF-100 digital readout system for the X, Y, and Z axes with an accuracy of 0.01 mm, a cooling system, lighting, and central lubrication. A flexible lamp is attached for work illumination, and an emergency stop button is located near the handwheels to ensure operator safety.
The machine measures 2000 mm in width, 1800 mm in depth, and 1730 mm in height. It is painted blue and white with Cincinnati branding on the head. Observations indicate the machine is clean, well-maintained, and shows minor signs of use without visible damage, suggesting it is intact and functional. This milling machine is suitable for precise and versatile machining tasks in various industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Milling is a type of machining in which a rotary motion is performed by a tool and the workpiece is advanced longitudinally or transversely. On milling machines we can perform such operations as face milling, groove milling, cavity milling, drilling, reaming, channel milling.
Universal milling machine CINCINNATI with vertically, transversely and longitudinally sliding table designed for a wide range of milling and drilling operations on materials for unit and serial production.
The milling machine, after removing the milling head, has the possibility of mounting the cutter in the horizontal plane.
Standard equipment: control panel, digital readout for 3 axes, cooling system, lighting, central lubrication.
It is possible to obtain a certificate of approval (declaration of conformity).
TECHNICAL DATA
Manufacturer CINCINNATI
SONY MAGNESCALE LF-100 controller
Digital readout X, Y, Z
Accuracy 0.01 mm
Dimension of working table 1120 x 165 mm
Number, width and distance of T-slots in the table 3 x 18 x 60 mm
Transverse travel of the table (X) 720 mm
Longitudinal travel of the table (Y) 235 mm
Vertical travel of the table (Z) 360 mm
Range of table feed speed in X, Y, Z axes 6 - 760 mm/min
Accelerated feed for X, Y, Z axes yes
Spindle taper ISO 5
Spindle speed 25 - 1500 rpm
Spindle rotation right / left
Spindle distance from the table 360 mm
Spindle axis distance from column 320 mm
Spindle rotation angle +/- 45°
Power supply 400 V
Machine width 2000 mm
Machine depth 1800 mm
Machine height 1730 mm
Very good condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 14 |
| Last activity | Oct. 21, 2026 |
Milling is a type of machining in which a rotary motion is performed by a tool and the workpiece is advanced longitudinally or transversely. On milling machines we can perform such operations as face milling, groove milling, cavity milling, drilling, reaming, channel milling.
Universal milling machine CINCINNATI with vertically, transversely and longitudinally sliding table designed for a wide range of milling and drilling operations on materials for unit and serial production.
The milling machine, after removing the milling head, has the possibility of mounting the cutter in the horizontal plane.
Standard equipment: control panel, digital readout for 3 axes, cooling system, lighting, central lubrication.
It is possible to obtain a certificate of approval (declaration of conformity).
TECHNICAL DATA
Manufacturer CINCINNATI
SONY MAGNESCALE LF-100 controller
Digital readout X, Y, Z
Accuracy 0.01 mm
Dimension of working table 1120 x 165 mm
Number, width and distance of T-slots in the table 3 x 18 x 60 mm
Transverse travel of the table (X) 720 mm
Longitudinal travel of the table (Y) 235 mm
Vertical travel of the table (Z) 360 mm
Range of table feed speed in X, Y, Z axes 6 - 760 mm/min
Accelerated feed for X, Y, Z axes yes
Spindle taper ISO 5
Spindle speed 25 - 1500 rpm
Spindle rotation right / left
Spindle distance from the table 360 mm
Spindle axis distance from column 320 mm
Spindle rotation angle +/- 45°
Power supply 400 V
Machine width 2000 mm
Machine depth 1800 mm
Machine height 1730 mm
Very good condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This universal milling machine is manufactured by Cincinnati and is designed for a wide range of milling and drilling operations suitable for both unit and serial production. It features a vertically, transversely, and longitudinally sliding table, allowing for versatile machining capabilities including face milling, groove milling, cavity milling, drilling, reaming, and channel milling. The machine also supports mounting the cutter in the horizontal plane after removing the milling head.
The working table measures 1120 mm in length and 165 mm in width, equipped with three T-slots each 18 mm wide and spaced 60 mm apart, facilitating secure workpiece mounting. The table offers a transverse travel (X axis) of 720 mm, longitudinal travel (Y axis) of 235 mm, and vertical travel (Z axis) of 360 mm. It includes handwheels and levers for manual control of the milling table and spindle head, complemented by a graduated dial for precise adjustments.
The spindle features a taper ISO 5 and operates at speeds ranging from 25 to 1500 rpm, with the ability to rotate both right and left. It can tilt within an angle of ±45°, and the spindle distance from the table is 360 mm. The machine is powered by a 400 V supply.
Standard equipment includes a control panel, a SONY MAGNESCALE LF-100 digital readout system for the X, Y, and Z axes with an accuracy of 0.01 mm, a cooling system, lighting, and central lubrication. A flexible lamp is attached for work illumination, and an emergency stop button is located near the handwheels to ensure operator safety.
The machine measures 2000 mm in width, 1800 mm in depth, and 1730 mm in height. It is painted blue and white with Cincinnati branding on the head. Observations indicate the machine is clean, well-maintained, and shows minor signs of use without visible damage, suggesting it is intact and functional. This milling machine is suitable for precise and versatile machining tasks in various industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
