Contact us to receive an offer.
| Manufacturer | CINCINATI MILACRON |
|---|---|
| Model | 10HC 3500 |
| Year | |
| Location | Poland
|

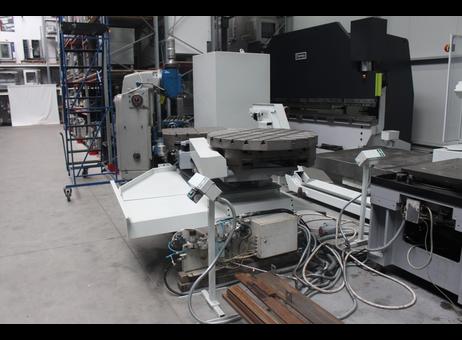

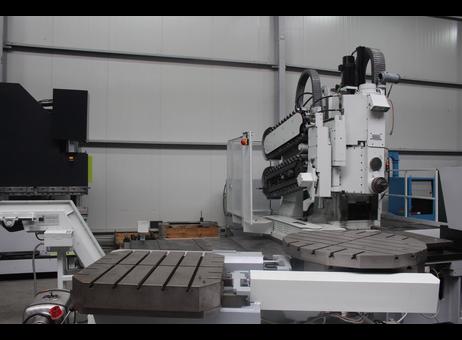

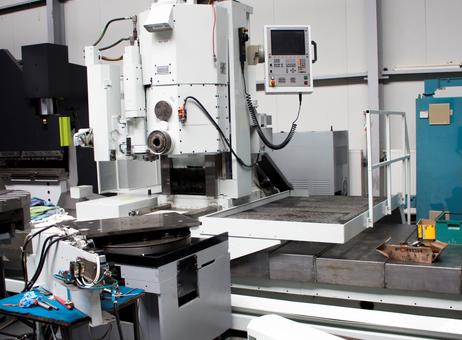

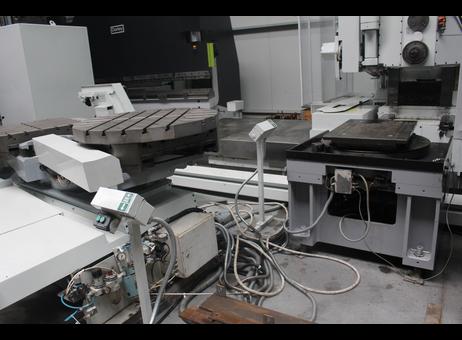

The CINCINATI MILACRON 10HC 3500 is a horizontal machining center designed for precise and efficient machining of metal parts and machine components, suitable for both automated batch production and continuous manufacturing. This robust machine features a large circular rotary table with T-slots, enabling secure mounting of various workpieces and enhancing versatility in machining operations. The machine is equipped with a horizontal spindle axis and a high-speed spindle capable of reaching up to 6000 rpm, with an ISO 50 taper and a spindle motor power of 45 kW, providing strong and reliable performance.

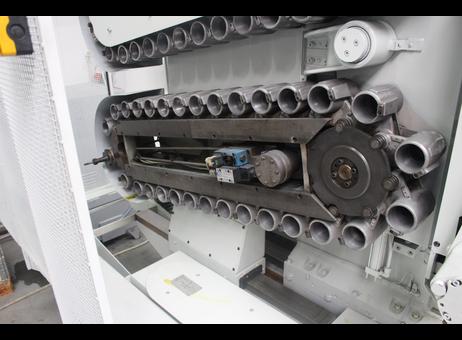

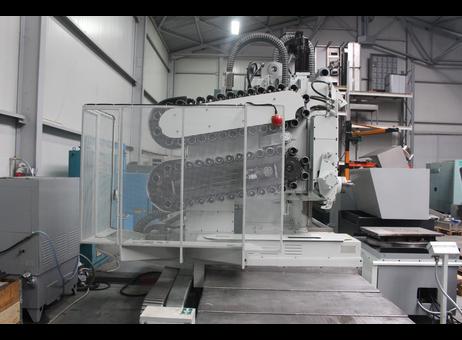

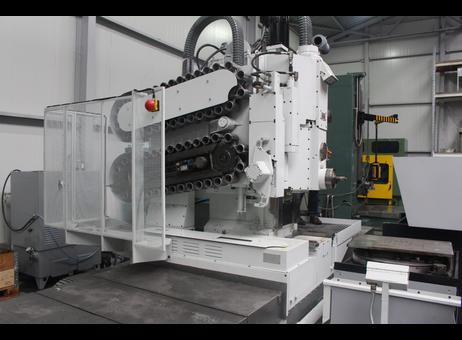

The machining center offers a substantial working range with travel distances of 3500 mm along the X axis, 1350 mm along the Y axis, and 810 mm along the Z axis. It includes a 30-position automatic tool magazine allowing quick tool changes, with a maximum tool length of 430 mm, diameter of 100 mm, and weight up to 23 kg. The tool change time is approximately 6 seconds, contributing to efficient production cycles.

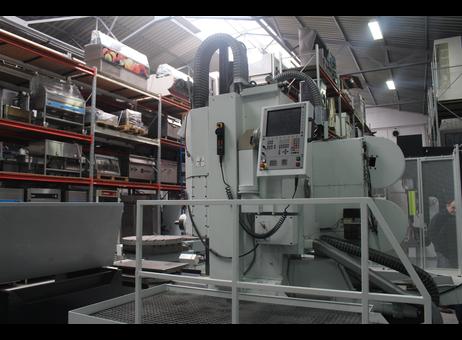

Operation is facilitated by the HEIDENHAIN TNC320 control system, which enhances user comfort and precision. Additional standard equipment includes a cooling system with a 500-liter coolant tank, an operator platform, a 4-axis rotary table, an infeed table, and a control cabinet. The machine has a footprint of 8300 mm in width, 7300 mm in depth, and 3500 mm in height, with a total weight of 13,000 kg.

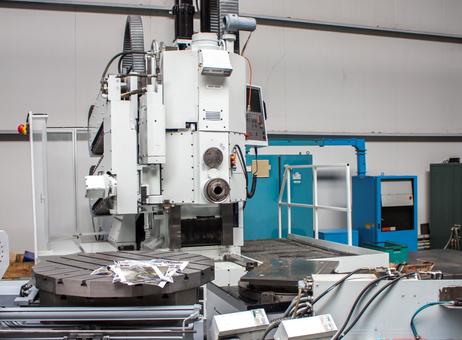

The machine appears clean and well-maintained with no visible damage, indicating careful upkeep. Cable carriers and hydraulic/pneumatic lines are connected to the spindle head, supporting smooth operation. Comprehensive technical documentation is provided with the machine. This CINCINATI MILACRON 10HC 3500 machining center is suitable for demanding users requiring high precision, reliability, and efficiency in metalworking.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The CINCINATI MILACRON machining center equipped with a horizontal spindle axis provides the possibility of precise and fast machining of various workpieces both in automated batch production and continuous production of metal parts and machine components. These machines were created with the most demanding users in mind. The high quality of the components used ensures reliability and long service life, while guaranteeing greater precision and efficiency in machining with multiple tools. The machine offers a large working range, as well as a high-speed spindle with an ISO 50 chuck. It is equipped with automatic tool changing from the magazine.

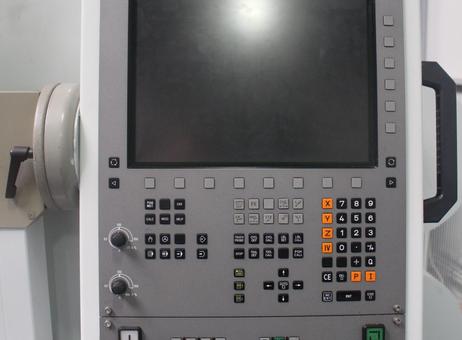

The comfort of operating and working with the machine is enhanced by the HEIDENHAIN TNC320 control system, which was replaced in 2008.
Standard equipment: HEIDENHAIN TNC320 control system, cooling system, 500 l coolant tank, operator platform, 4 axis rotary table, infeed table, control cabinet, various tools and bushings.
Complete technical documentation included.
TECHNICAL DATA
Manufacturer CINCINATI MILACRON
Model 10HC 3500
Control HEIDENHAIN TNC320
Accuracy 0.013 mm
Number of axes 4
Feed rate in X axis 3500 mm
Feed rate in Y axis 1350 mm
Feed in Z axis 810 mm
Spindle taper ISO 50
Spindle advance 210 mm
Spindle speed 30 - 6000 rpm
Number of positions in the magazine 30
Max. tool length 430 mm
Max. tool diameter 100 mm
Max. tool weight 23 kg
Tool change time 6 seconds
Total power 45 kW
Power supply 400 V
Working air pressure 4 bar (max. 7 bar)
Machine width 8300 mm
Depth of the machine 7300 mm
Height of the machine 3500 mm
Weight 13000 kg
Very good condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 14 |
| Last activity | Oct. 29, 2026 |
The CINCINATI MILACRON machining center equipped with a horizontal spindle axis provides the possibility of precise and fast machining of various workpieces both in automated batch production and continuous production of metal parts and machine components. These machines were created with the most demanding users in mind. The high quality of the components used ensures reliability and long service life, while guaranteeing greater precision and efficiency in machining with multiple tools. The machine offers a large working range, as well as a high-speed spindle with an ISO 50 chuck. It is equipped with automatic tool changing from the magazine.
The comfort of operating and working with the machine is enhanced by the HEIDENHAIN TNC320 control system, which was replaced in 2008.
Standard equipment: HEIDENHAIN TNC320 control system, cooling system, 500 l coolant tank, operator platform, 4 axis rotary table, infeed table, control cabinet, various tools and bushings.
Complete technical documentation included.
TECHNICAL DATA
Manufacturer CINCINATI MILACRON
Model 10HC 3500
Control HEIDENHAIN TNC320
Accuracy 0.013 mm
Number of axes 4
Feed rate in X axis 3500 mm
Feed rate in Y axis 1350 mm
Feed in Z axis 810 mm
Spindle taper ISO 50
Spindle advance 210 mm
Spindle speed 30 - 6000 rpm
Number of positions in the magazine 30
Max. tool length 430 mm
Max. tool diameter 100 mm
Max. tool weight 23 kg
Tool change time 6 seconds
Total power 45 kW
Power supply 400 V
Working air pressure 4 bar (max. 7 bar)
Machine width 8300 mm
Depth of the machine 7300 mm
Height of the machine 3500 mm
Weight 13000 kg
Very good condition
