| Manufacturer | Chun Tien Machinery CO.,LTD |
|---|---|
| Model | CT-185S |
| Year | 2024 |
| Location | Philippines
|
Manufacturer: Chun Tien Machinery CO., LTD — Model CT-185S (year manufactured: 2024).
Overview

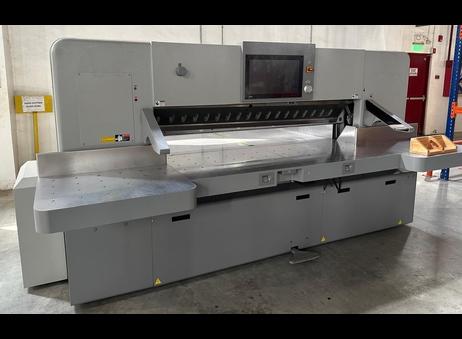

This is a large-format bindery cutting machine configured for up to 185 cm paper width and 185 cm paper length. The machine dimensions are 3380 mm (length) x 3580 mm (width) x 1780 mm (height) with a net weight of 6900 kg. The unit is specified with an air table and photo cells.
Key specifications
- Cutting width / maximum paper width: 185.0 cm
- Maximum paper length: 185.0 cm
- Opening / maximum paper length (listed): 185.0 cm
- Cutting height: 16.5 cm (as listed)
- Smallest cut: with clamp 12 cm; without clamp 4 cm
- Cutting cycle rate: 36 cycles per minute (as listed)
- Clamp pressure: 150–7000 daN
- Front table length / machine front length: listed front table length 75 cm; machine front length 89 cm
- Table height: 90 cm
- Net weight: 6900 kg
- Motors and power (listed): Main motor 11.25 kW (15 HP); backgauge motor 2 kW; air blower for table 0.75 kW × 2; total power requirement 14.75 kW
Included components and safety items
- Touchscreen control panel mounted above the cutting area
- Row of clamps/knife guards along the front edge of the cutting bed
- Photo cells (listed)
- Air table (listed)
- Yellow safety/warning labels on lower cabinet panels
- A left extension work table with a perforated surface and a front foot pedal is shown among the machine components
Note on side table listing
The provided specification fields indicate "Side table left: No" and "Side table right: No," while a left extension work table is documented among the machine components. This is a potential discrepancy; please verify side-table configuration and included accessories prior to purchase.
No statements are made here about operational testing, condition beyond listed items, or warranty. Buyers should confirm operational status, detailed condition, and any additional accessories with the seller.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Taiwan Datien Cutting Machine CT-185S
Cutting Width : 185 cm
Cutting Height : 16.5 cm
Cutting Length : 185 cm
Front Table Length : 75 cm
Table Height : 90 cm
Machine Width : 358 cm
Machine Height : 178 cm
Machine Length : 338 cm
Machine Front Length : 89 cm
Smallest Cut-with Clamp : 12 cm
— without Clamp : 4 cm
Cutting Cycle Per Minute : 36
Clamp Pressure : 150-7000daN
Net Weight : 6900 kg
Main Motor : 11.25kW 15 HP
Backgauge Motor : 2kW 2.67 HP
Air Blower for Table : 0.75kW(1HP) x 2 set
Power Requirement : 14.75kW / 19.67HP
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
