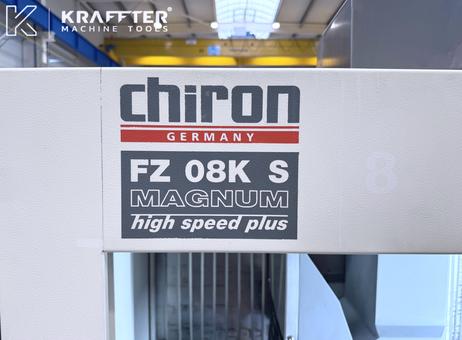

| Manufacturer | CHIRON |
|---|---|
| Model | FZ 08K S Magnum |
| Year | 2006 |
| Location | France
|
The CHIRON FZ 08K S Magnum is a vertical high-speed machining center designed for precision and efficiency in complex manufacturing tasks. Manufactured in 2006, this model features a CNC FANUC 18i-MB5 control system and operates on seven axes, allowing for versatile and intricate machining operations. The machine's travel dimensions include 450 mm on the X-axis, 270 mm on the Y-axis, and 310 mm on the Z-axis, providing ample workspace for a variety of components.

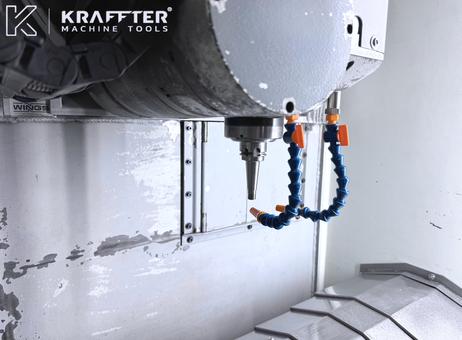

Equipped with a maximum spindle speed of 30,000 rpm, the FZ 08K S Magnum ensures high-speed performance suitable for demanding applications. It includes a 40-station tool magazine, facilitating extended machining without frequent tool changes. The spindle attachment uses HSK40 tooling, compatible with a wide range of cutting tools.

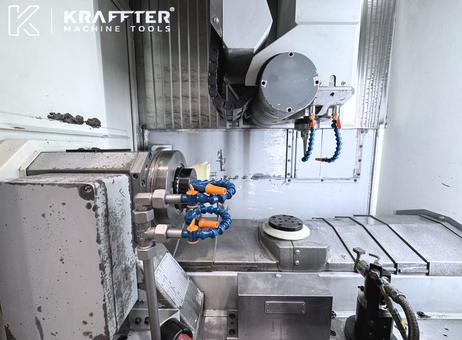

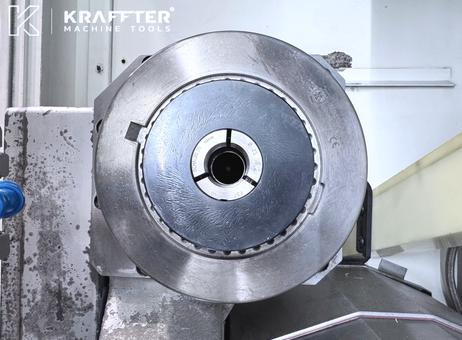

This machining center also supports advanced turning capabilities, featuring a turning spindle speed up to 8,000 rpm and power of 12 kW, with a maximum bar diameter of 32 mm. The A-axis offers 360° angular travel with high indexing accuracy, while the B-axis provides angular movement from -20° to +115°, enhancing the machine's flexibility.
The machine measures 1500 mm in length, 2600 mm in width, and 2300 mm in height, with a weight of approximately 3400 kg. It operates on a 400 V supply voltage with an installed power of 17 kVA.
Included equipment enhances functionality and convenience: a RENISHAW TS27R tool probe, spindle cooling unit, parts collector, coolant tank, and a unit for 6th side machining (note that the gripping system is not included). Additionally, the package contains 29 HSK40 BIG KAISER tool holders, 10 F37 SCHAUBLIN clamps, a washing gun, a 3-color status lamp, and comprehensive manuals covering maintenance, electrical diagrams, operation, and programming.

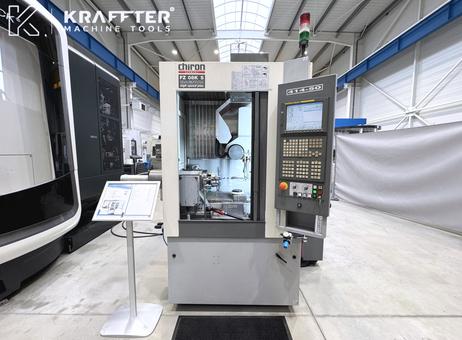

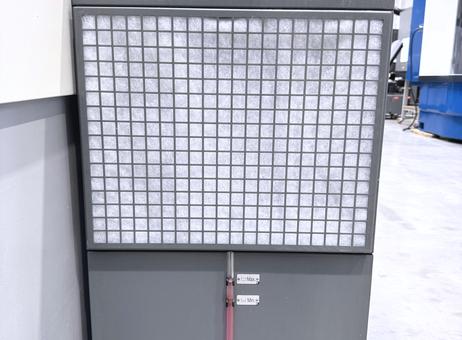

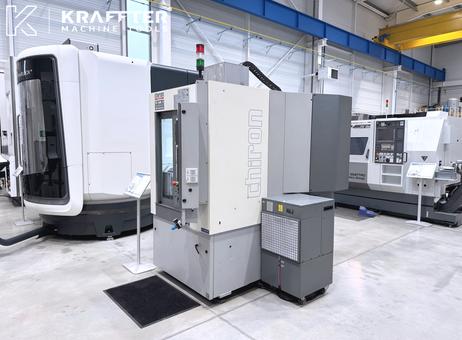

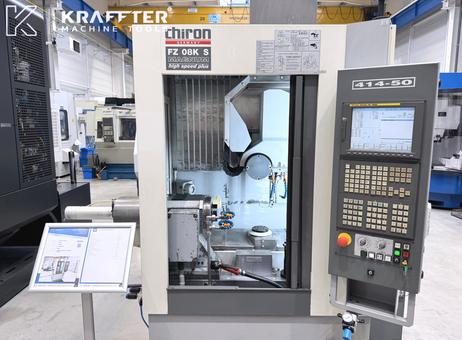

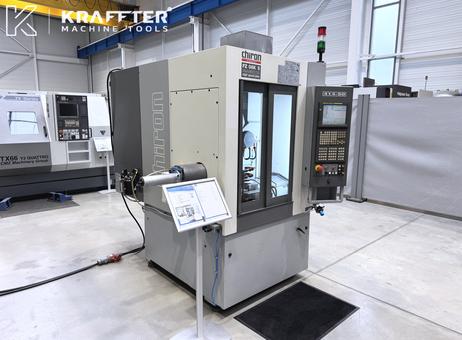

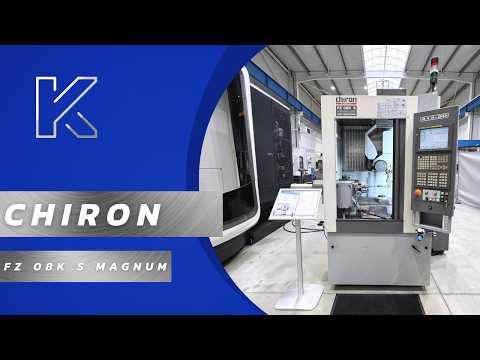

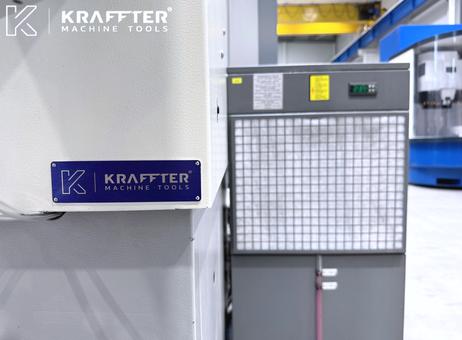

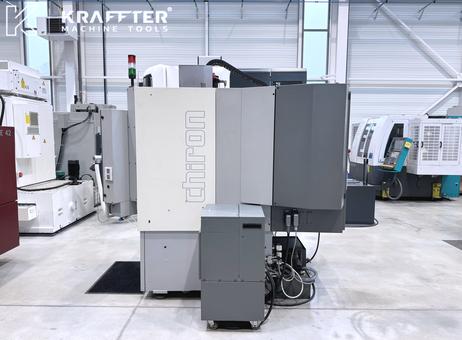

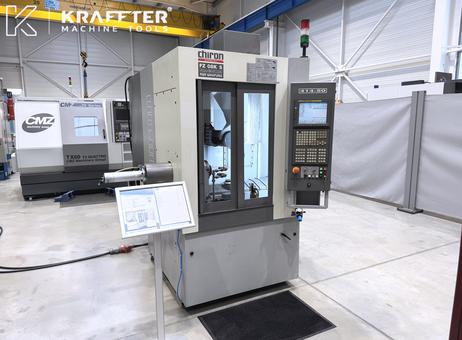

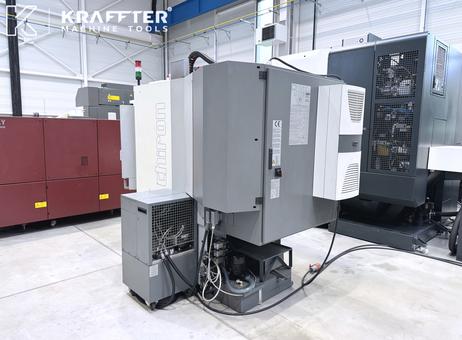

The machine features a closed enclosure with dual glass doors and a control panel with screen and keypad positioned on the right side, offering user-friendly operation and safety. A cooling or filtration unit on wheels is attached to the right side of the machine base, facilitating maintenance and thermal management. Power and control cables are visible at the base.
The overall condition of the machine is clean and well-maintained, situated in a spacious and organized industrial environment. It is suitable for shipment within France and internationally, with truck loading included in the price (excluding tax).
This technical description is provided for informational purposes without obligation. For further details or additional photographs, please inquire directly.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CHIRON FZ08 KS Magnum High Speed Plus (HSP) high-speed machining center (HSM)
TECHNICAL SPECIFICATIONS:
Year: 2006

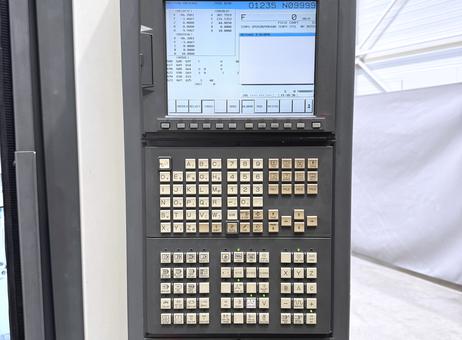

CNC type: FANUC 18i-MB5
Number of axes: 7
X-axis travel: 450 [mm]
Y-axis travel: 270 [mm]
Z-axis travel: 310 [mm]
Rapid traverse speed X, Y, and Z: 75,000 [mm/min]
Max. bar diameter turning spindle: 32 [mm]
Max. turning spindle speed: 8,000 [rpm]
Max. turning spindle power: 12 [kW]
A-axis angular travel: 360 [°]
A-axis indexing accuracy: 0.001 [°]
B-axis angular travel: -20° / +115 [°]
B-axis indexing accuracy: 0.001 [°]
Spindle attachment: HSK40
Max. spindle speed: 30000 [rpm]
Number of tool magazine stations: 40
Workpiece turning by robot (6th side machining): Yes
RS232 port: Yes
Installed power: 17 [kVA]
Supply voltage: 400 [V]
Number of operating hours: 9911 [h]
Dimensions: 1500 x 2600 x 2300 [mm]
Weight: 3400 [kg]
EQUIPMENT INCLUDED:

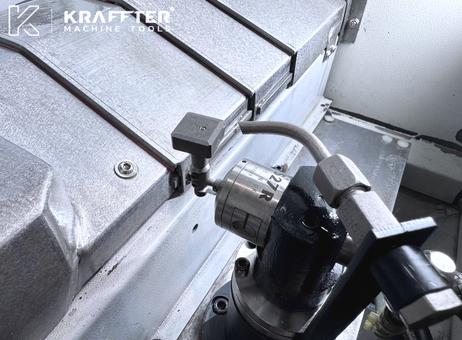

x1 RENISHAW TS27R tool probe

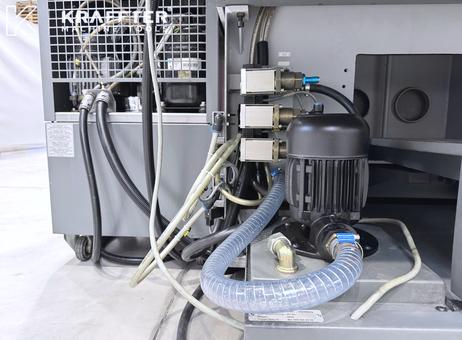

x1 spindle cooling unit
x1 parts collector
x1 coolant tank

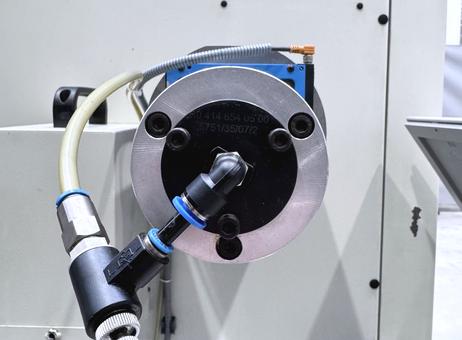

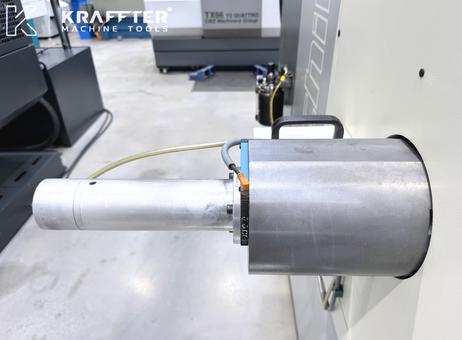

x1 unit for 6th side machining (gripping system not included)

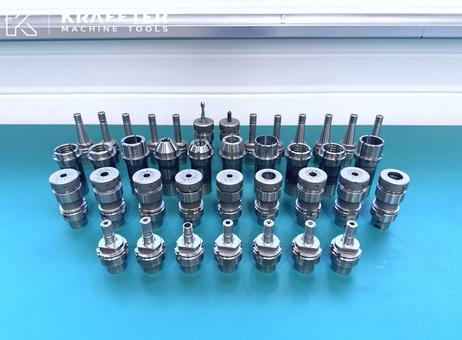

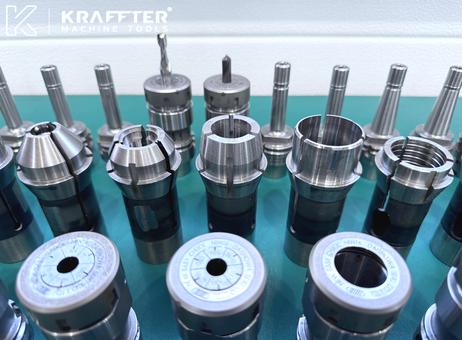

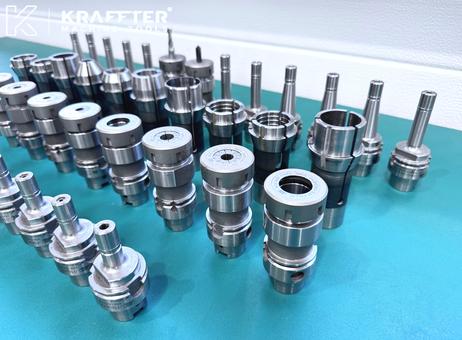

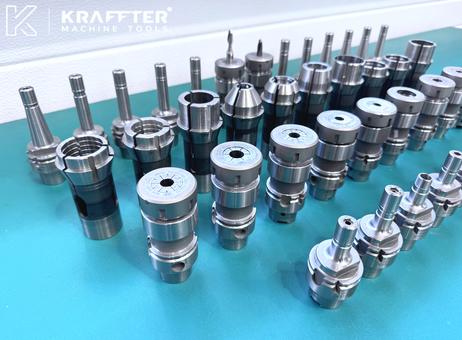

x29 HSK40 BIG KAISER tool holders
x10 F37 SCHAUBLIN clamps
x1 washing gun
x1 3-color status lamp

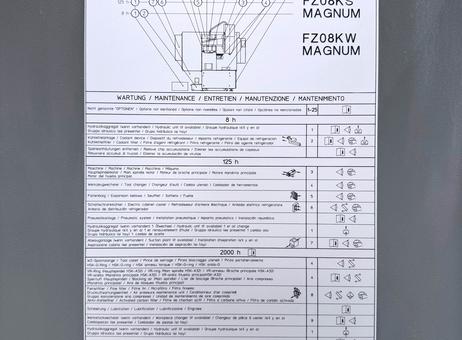

x1 maintenance manual
x1 electrical diagram manual
x1 operator manual
x1 programming manual
Price excluding tax on request, truck loading included.
Can be shipped throughout France and internationally.
More photos and details available on request.
Technical description for information purposes only, without obligation on our part.
