Specifications

Metal length 4000 mm
Power 1500 W
Metal width 2500 mm
Option to cut tubes no
Max thickness 16 mm
CNC no
CNC type
-------------------
Worked hours
Hours under power
State new
At local norms ---------
Status

Description

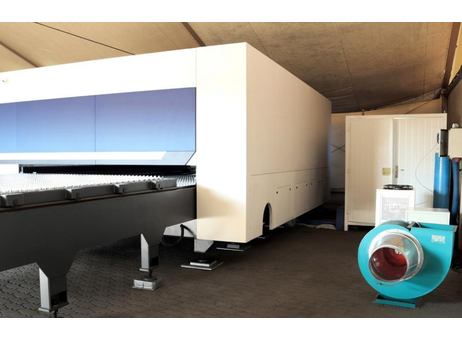

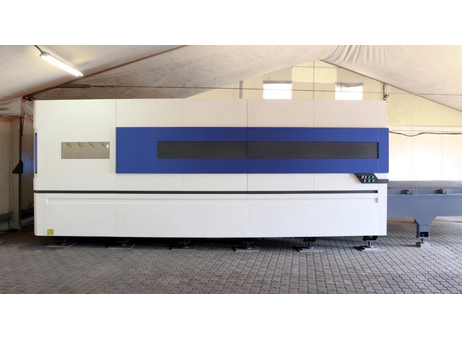

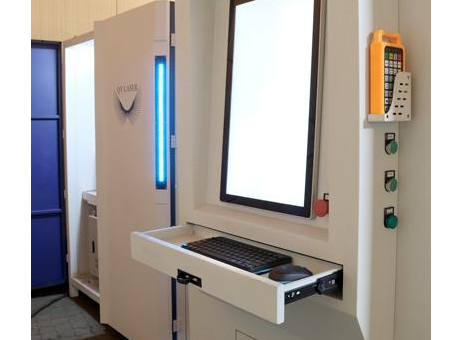

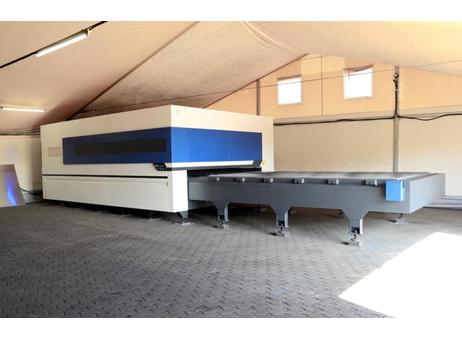

The WUXI CHEERON QY-LC1500-2540 FIBER laser was produced in 2020 by the brand Wuxi Cheeron Qingyuan Laser Technology Co. The machine is new, it was only included in the zero check after purchase. The machine uses an IPG Photonics (Germany) laser source. The 3-axis fiber optic laser cutter has a power of 1500 W and a large working area of ​​4000 x 2500 mm. The modern design of the laser guarantees many processing possibilities, thanks to the fact that it is equipped with two automatic sheet metal loading tables, a cutting chamber, a large LCD screen, and extensive equipment.

Technical parameters of the laser WUXI CHEERON FIBER QY-LC1500-2540

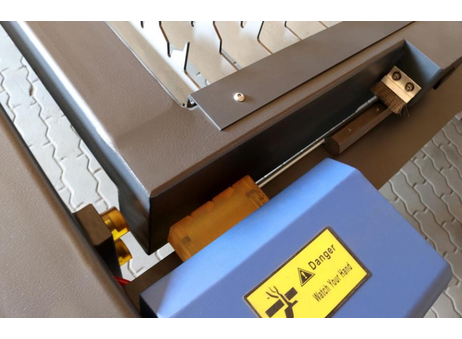

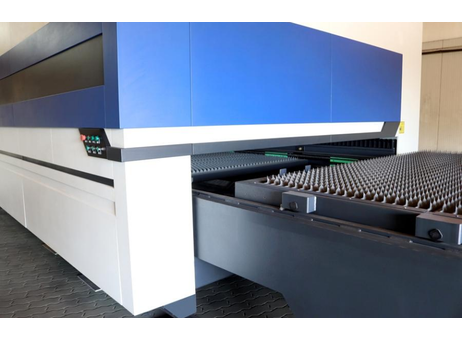

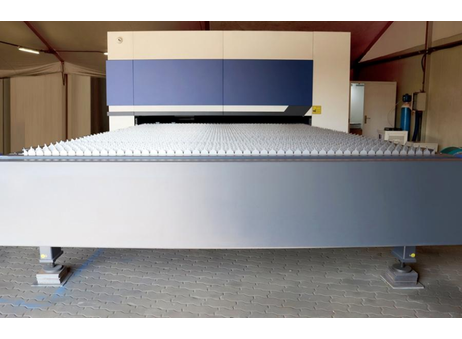

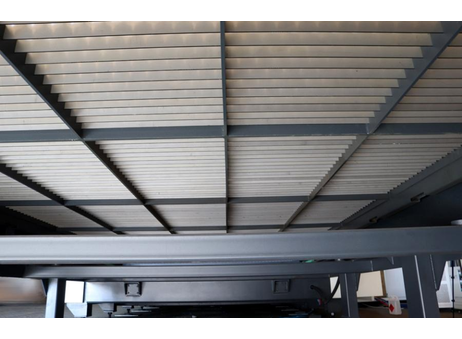

- two automatic feeding tables: 4000 x 2500 mm
- cutting working surface: 4000 x 2500 mm

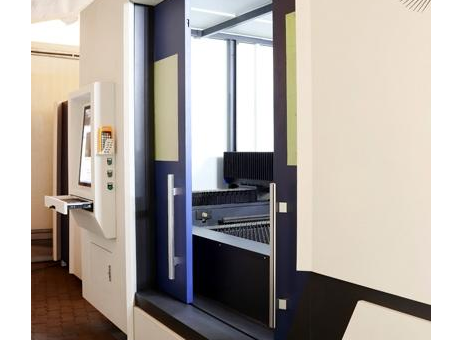

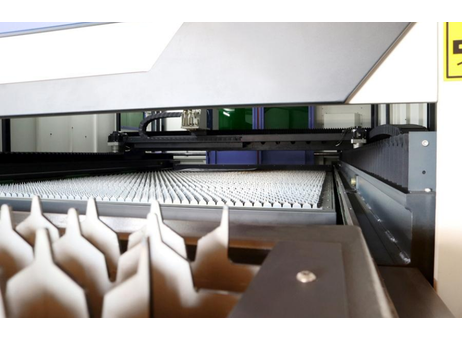

- closed, illuminated cutting chamber, with strong gas extraction

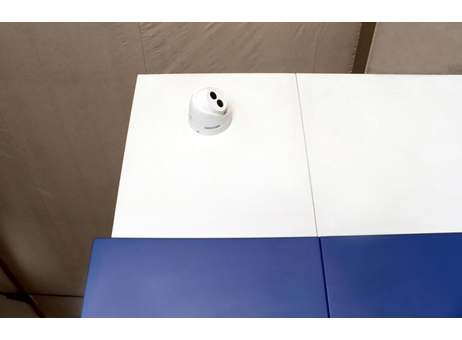

- HD cameras for viewing in the cutting chamber and external viewing of loading tables

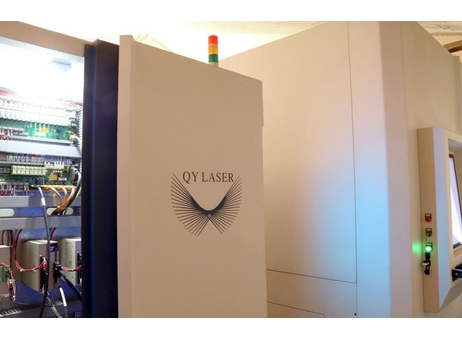

- a closed container with a control cabinet, cooperating devices and various types of attachments
- laser power: 1500 W
- laser wavelength: 1070 nm
- acceleration: 1.0 G
- energy consumption: 15 kW
- power supply: 5-wire, 3-phase 400 V (+ -5%), 50 Hz (+ -1%)
- maximum speed: 90 m / min
- minimum width of the cutting line: 0.15 mm (for materials with a maximum thickness of 0.4 mm), depending on the thickness
- mechanical precision of the table: + -0.05 mm
- precision of X, Y, Z axis positioning repeatability: + -0.02 mm
- cutting thickness, black steel: maximum 16 mm, for mass production 12 mm
- cutting thickness, stainless steel: maximum 8 mm, for mass production 6 mm
- aluminum cutting thickness: 3 mm

The most important components of the fiber optic cutter:

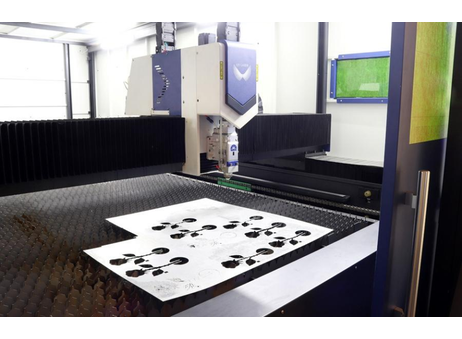

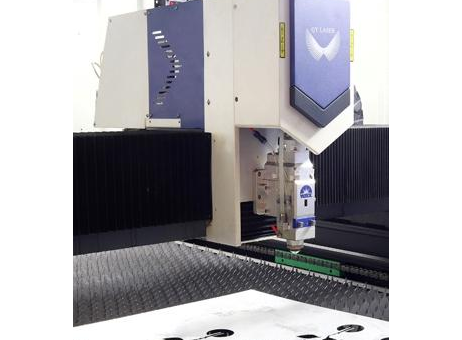

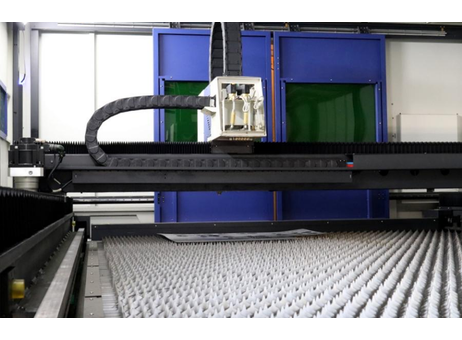

- laser autofocus head: WSX Laser Head

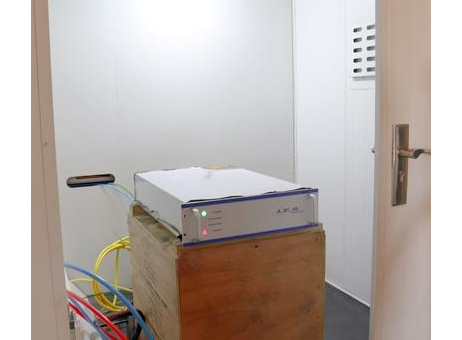

- laser source: IPG (Germany) declared lifetime of the laser source by the manufacturer is 100,000 ~ 70,000 h, depending on the load
- optical system (Great Britain)
- single servo X axis drive: 1000 W (Fuji, Japan)
- single servo Y axis drive: 2000 W (Fuji, Japan)
- single servo Z axis drive: 750 W (Fuji, Japan)
- solenoid valve: Airtec (Taiwan)
- AC contactor: Schneider (Germany)
- button module: Schneider (Germany)
- reducer: Shimpo (Japan)

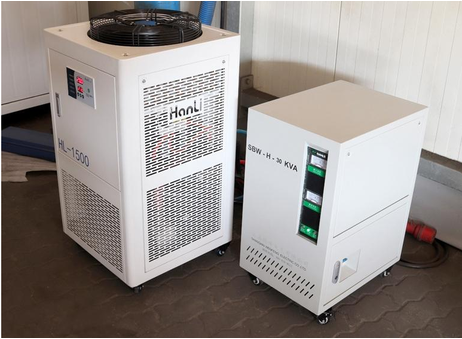

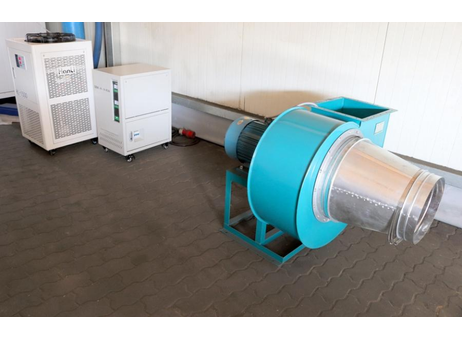

- cooling: Chiller, Hanli HL-1500
- voltage stabilizer / regulator: SBW-H-30kVA

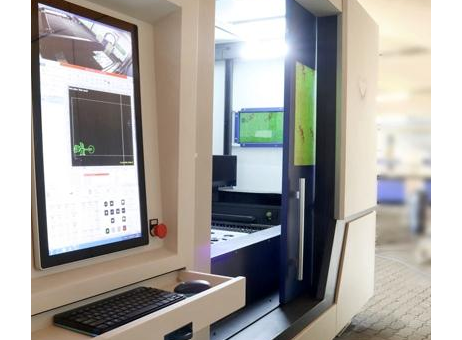

- software: CypCut / by Friendess Inc .: English; supported file formats: .dxf, PLT, Gerber, AI. and many more) on Windows

The CHEERON QY-LC1500-2540 FIBER laser is new, the windows are still protected with foil, it is level. Service and assembly of the machine is available in Poland.

Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. Exapro recommends to check the details with the seller before a purchase
