CDA B-HOP Complete beverage line

Verified seller
CDA B-HOP P261027175
CDA B-HOP P261027175
CDA B-HOP P261027175
CDA B-HOP P261027175
CDA B-HOP P261027175
CDA B-HOP P261027175
CDA B-HOP P261027175
CDA B-HOP P261027175

Price on request

View price
Manufacturer CDA
Model B-HOP
Year 2020
Location France FR

Specifications

Category Complete lines - Beverage production
Length x width x height 4118.0 × 2427.0 × 2450.0
worked hours
hours under power
state as-is, where-is
At local norms ---------
status
Last availability date 28/10/2026
Product id P261027175
Language
bg Пълна линия за напитки CDA B-HOP
cs Kompletní nápojová linka CDA B-HOP
da CDA B-HOP Komplet drikkevarelinje
de CDA B-HOP Komplette Getränkelinie
el Πλήρης γραμμή παραγωγής ποτών CDA B-HOP
en CDA B-HOP Complete beverage line
es Línea completa de bebidas CDA B-HOP
fr Ligne complète de boissons CDA B-HOP
hr Kompletna linija za pića CDA B-HOP
hu CDA B-HOP Teljes italgyártó sor
it Linea completa per bevande CDA B-HOP
lt CDA B-HOP Pilna gėrimų linija
nl CDA B-HOP Complete drankenlijn
pl Kompletna linia do produkcji napojów CDA B-HOP
pt Linha completa de bebidas CDA B-HOP
ro Linie completă de băuturi CDA B-HOP
ru CDA B-HOP Полная линия по производству напитков
sr Kompletna linija za pića CDA B-HOP
sv CDA B-HOP Komplett dryckeslinje
tr Tam içecek hattı CDA B-HOP

Automatic description (AI-Generated)

## Overview

CDA (Chabot Delrieu Associés) B-HOP compact bottling line, manufactured in 2020 for craft beer production. The monobloc combines bottle labelling, filling and crown capping in a stainless-steel frame. The line includes a rotary infeed table and an outfeed table, with conveyor sections and adjustable side guides. The machine has transparent safety panels around the working area, a touchscreen control panel and an adjacent emergency-stop button. The control screen displays a French-language menu.

The line is specified for glass bottles in 75 cl and 33 cl long-neck formats. It is supplied with 75 cl format parts and additional tooling for 33 cl long-neck bottles, including a fixed-plate roller. Both formats use 26 mm crown caps. Stated output is up to 700 bottles per hour.

## Technical data

- Manufacturer: CDA
- Model: B-HOP
- Year of manufacture: 2020
- Functions: labelling, filling and capping
- Product: beer
- Containers: glass bottles, 75 cl and 33 cl long neck
- Capping: 26 mm crown caps
- Electrical supply: 220 V / 16 A, 2 kW
- Compressed air: maximum 28 m³/h at constant 6 bar; compressor tank 200 L
- Product inlet: DN40 Macon male connection at the pump inlet
- Footprint: approx. 4,118 x 2,427 mm, with additional door and cabinet clearance (approx. 3,254 mm deep)
- Height: approx. 2,450 mm; conveyor height approx. 925 mm
- Control: touchscreen HMI

## Scope of delivery

B-HOP labelling, filling and capping monobloc; rotary infeed table (1,000 mm diameter); outfeed table; 75 cl format parts; and additional 33 cl long-neck tooling, including fixed-plate roller.

## Condition and availability

The line has been dismantled and is stored ready for transport. Inspection by appointment. Available immediately.

The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

Seller's description

Overview

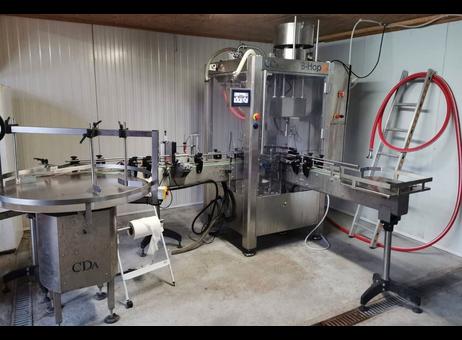

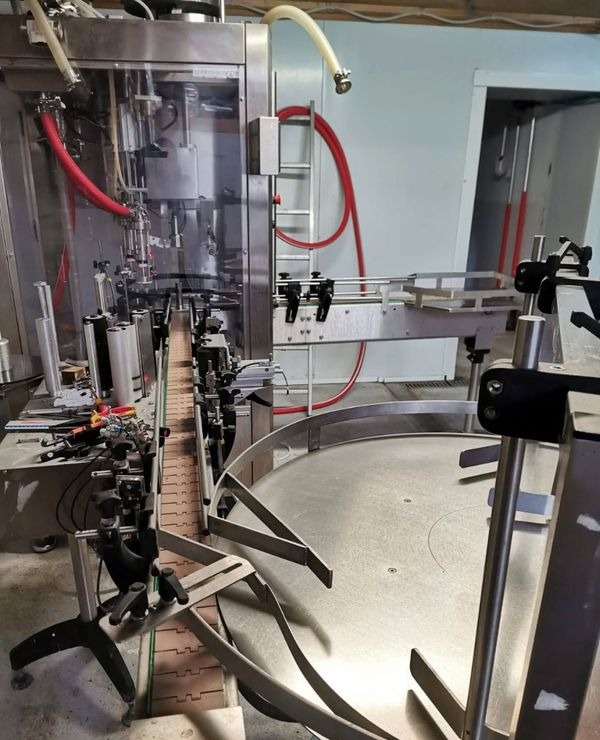

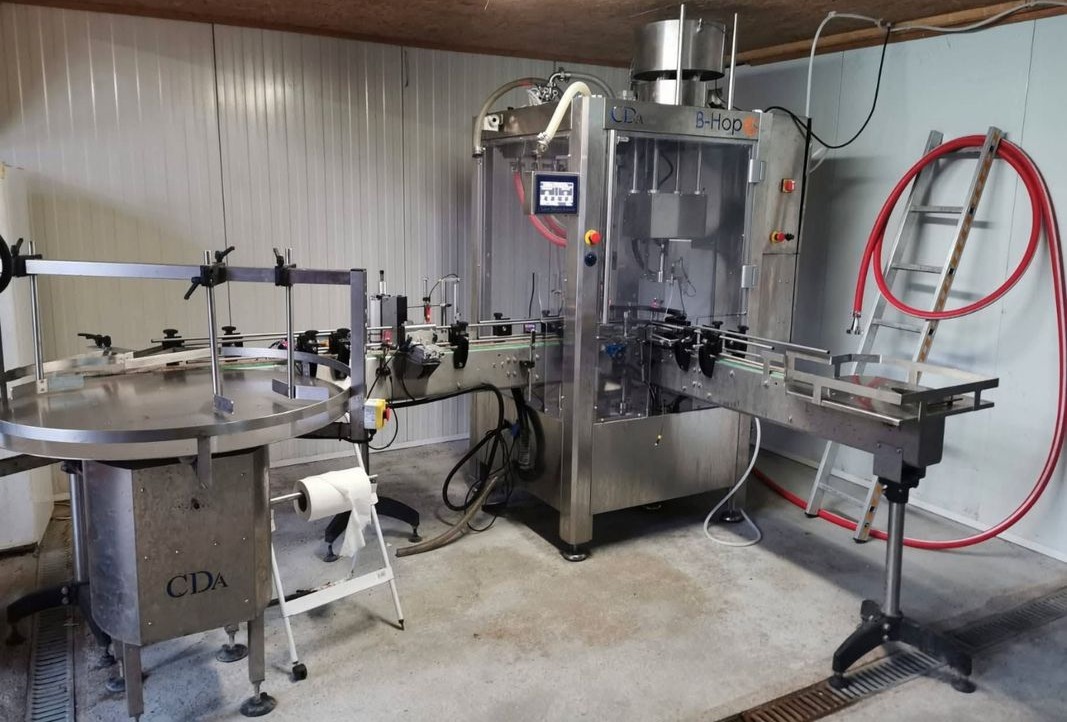

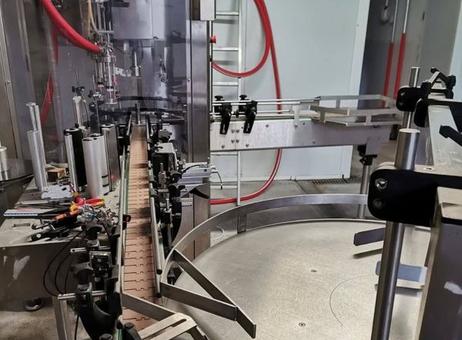

Compact bottling line for craft beer, built in 2020 by CDA (Chabot Delrieu Associés, France). The B-HOP monobloc labels, fills and caps glass bottles in one stainless-steel frame, fed by a rotary infeed table and discharging onto an outfeed table. Delivered with format parts for 75 cl bottles and additional tooling for 33 cl long-neck bottles; both formats are capped with 26 mm crown caps. Output up to 700 bottles/h. The line has been dismantled and is stored ready for transport.

Technical data

Year of manufacture: 2020
Output: up to 700 bottles/h
Product: beer
Containers: glass bottles, 75 cl and 33 cl long neck
Functions: labelling, filling, capping
Capping: crown cap 26 mm, for both the 75 cl and the 33 cl format
Electrical supply: 220 V / 16 A, 2 kW
Compressed air: max. 28 m³/h at constant 6 bar, compressor tank 200 L
Product inlet: DN40 Macon male connection at the pump inlet

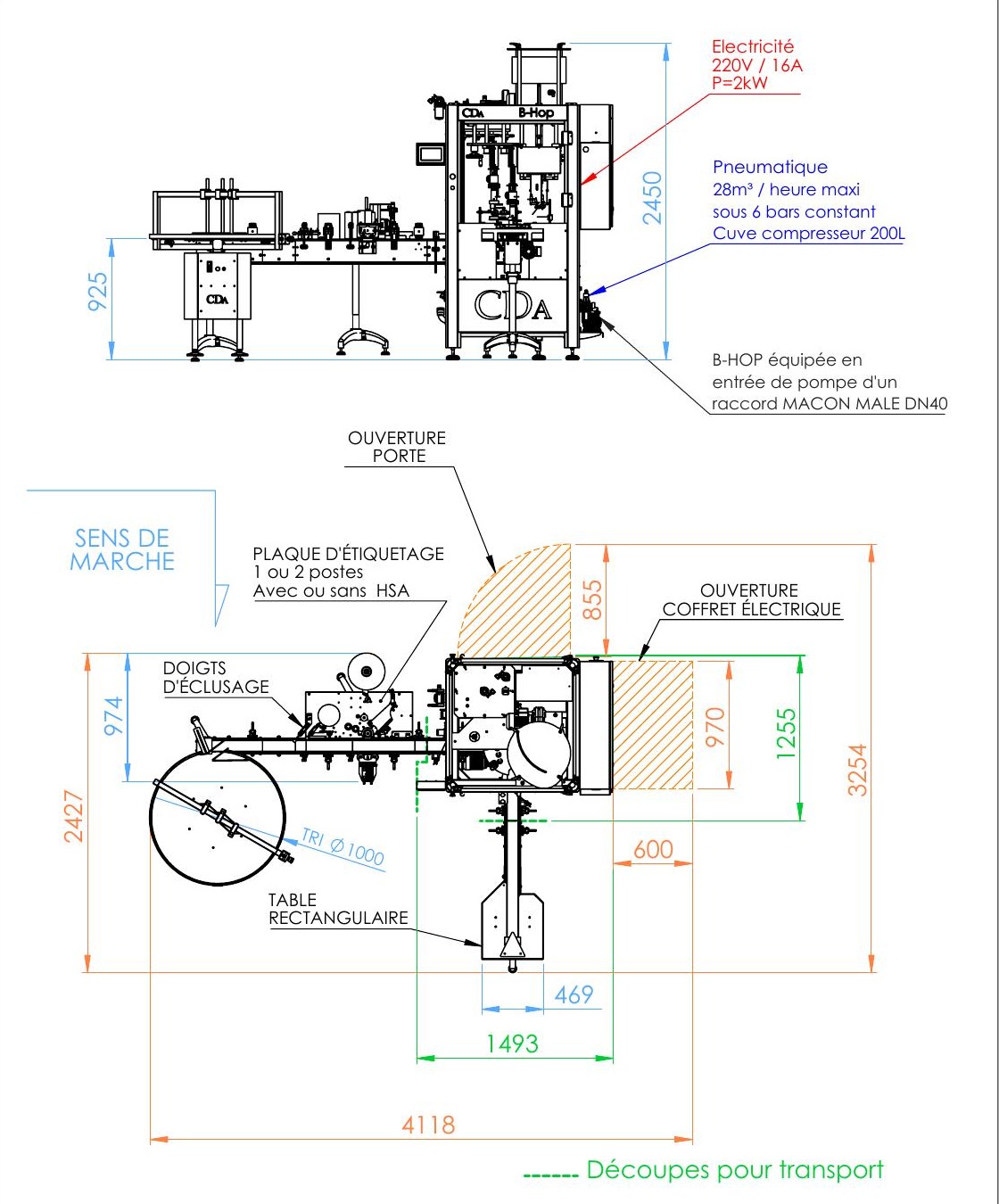

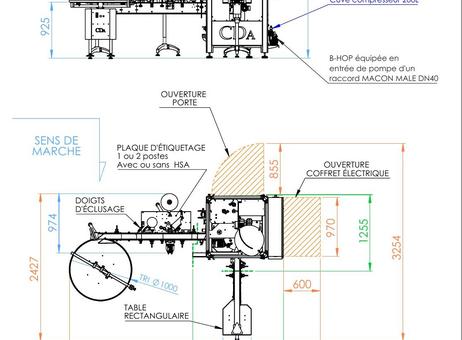

Footprint: approx. 4,118 x 2,427 mm, plus door and cabinet clearance (approx. 3,254 mm deep)
Height: approx. 2,450 mm; conveyor height approx. 925 mm

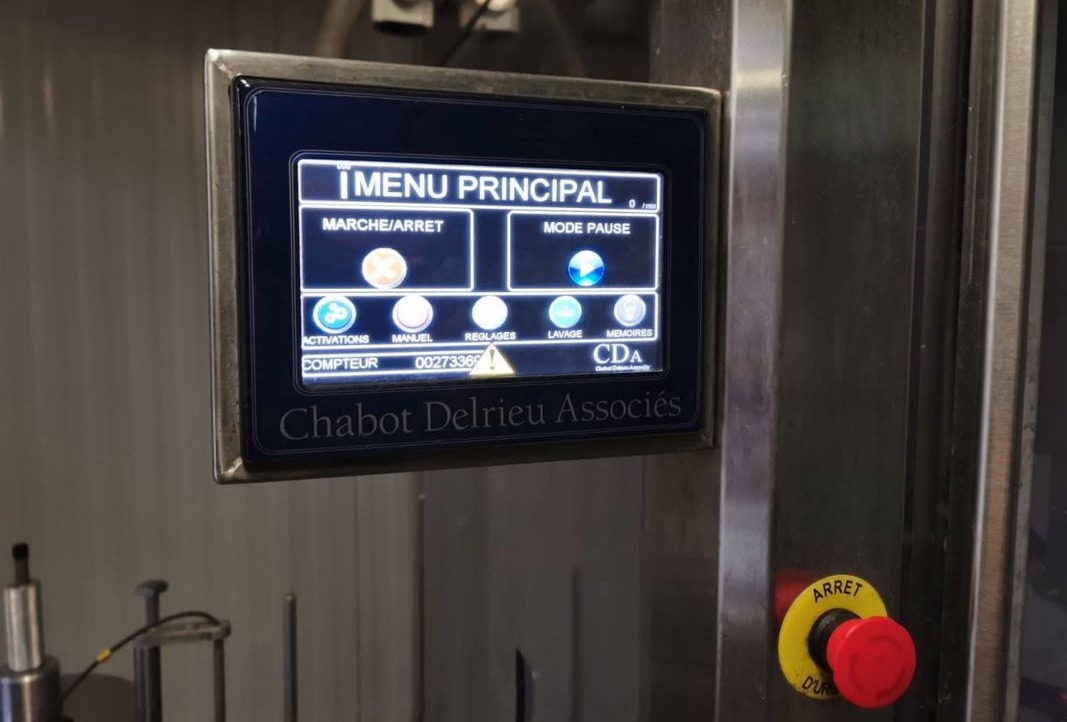

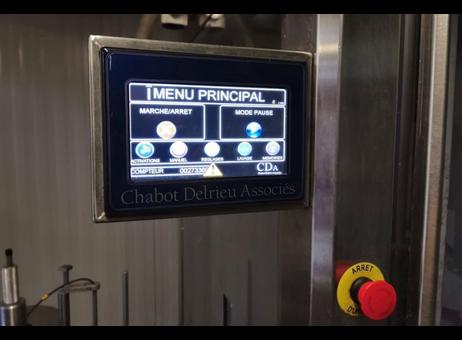

Control: touchscreen HMI

Scope of Delivery

Labelling, filling and capping monobloc | CDA | B-HOP | 2020
Rotary infeed table | CDA | diameter 1,000 mm, standalone | 2020
Outfeed table | CDA | 2020
Format parts for 75 cl bottles
Additional tooling for 33 cl long-neck bottles, including fixed-plate roller

Condition

Dismantled and stored. Inspection by appointment.

Availability

Available immediately. Location: France.

Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
