Contact us to receive an offer.
| Manufacturer | CAVENAGHI |
|---|---|
| Model | CRH12 000KNKM |
| Year | 1994 |
| Location | Sweden
|

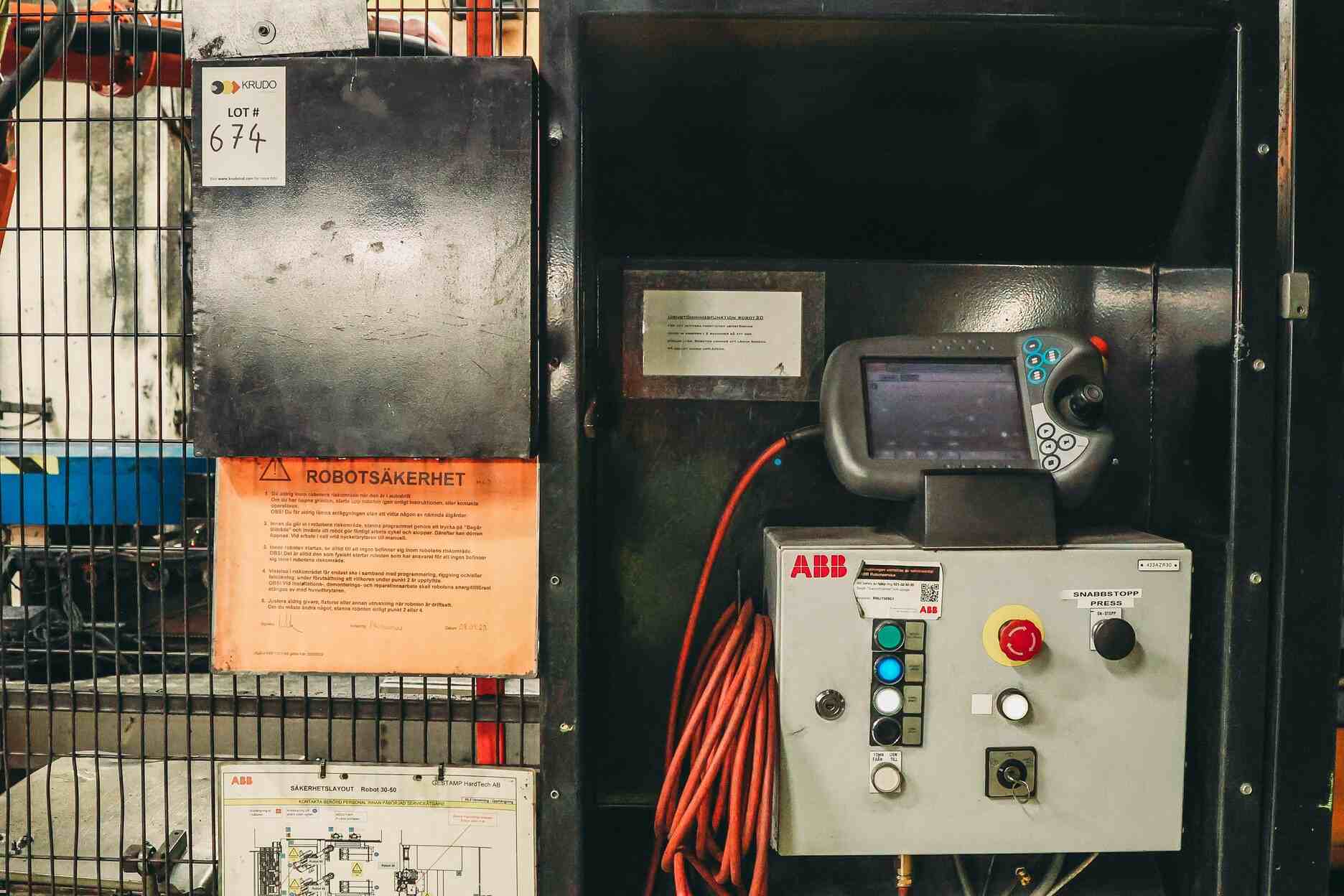

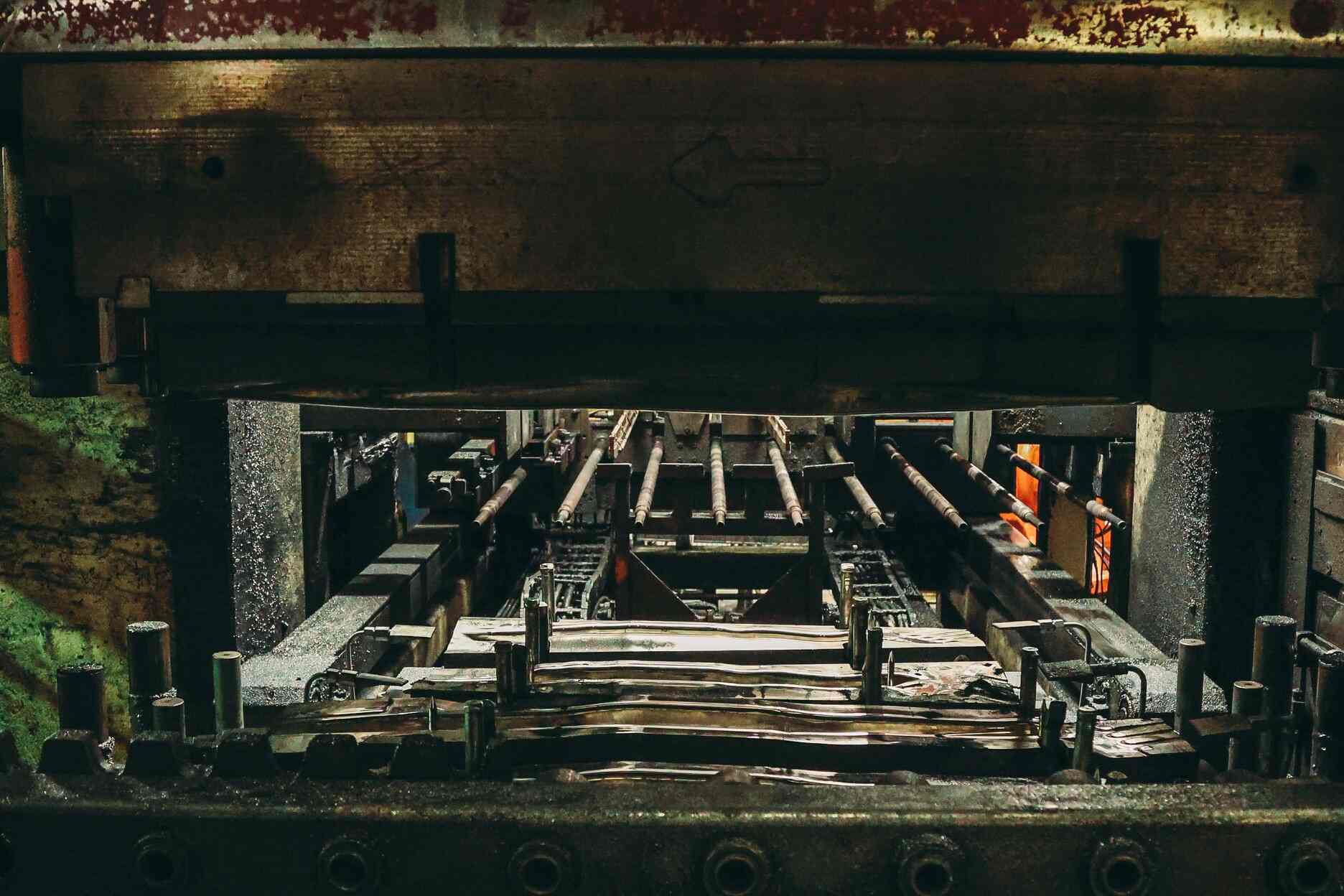

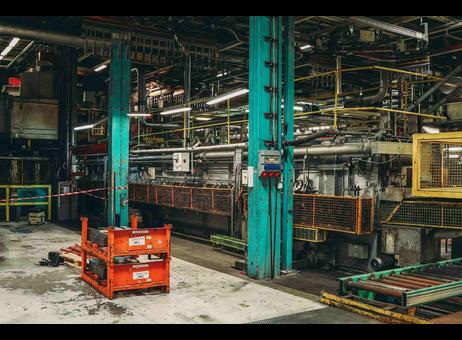

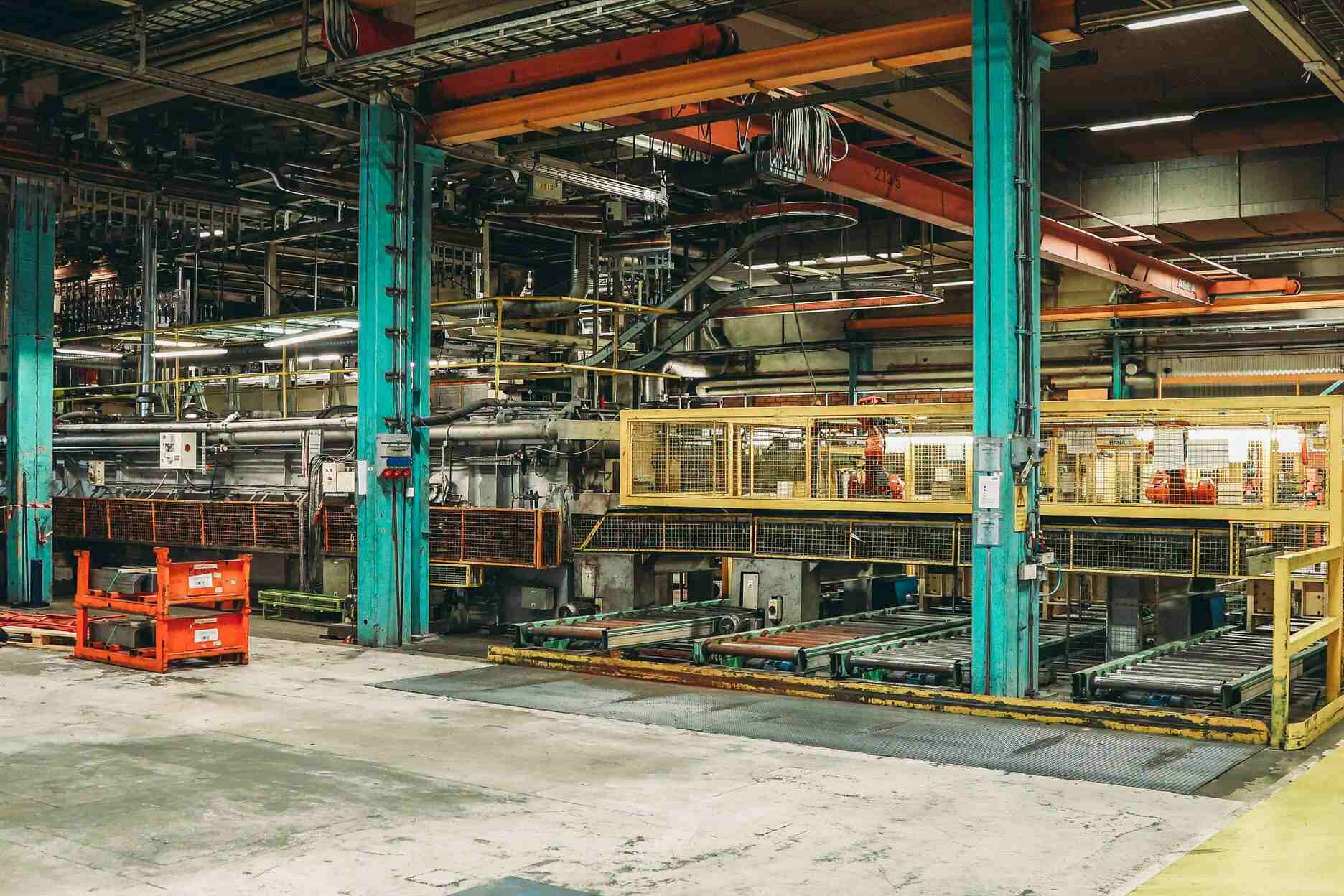

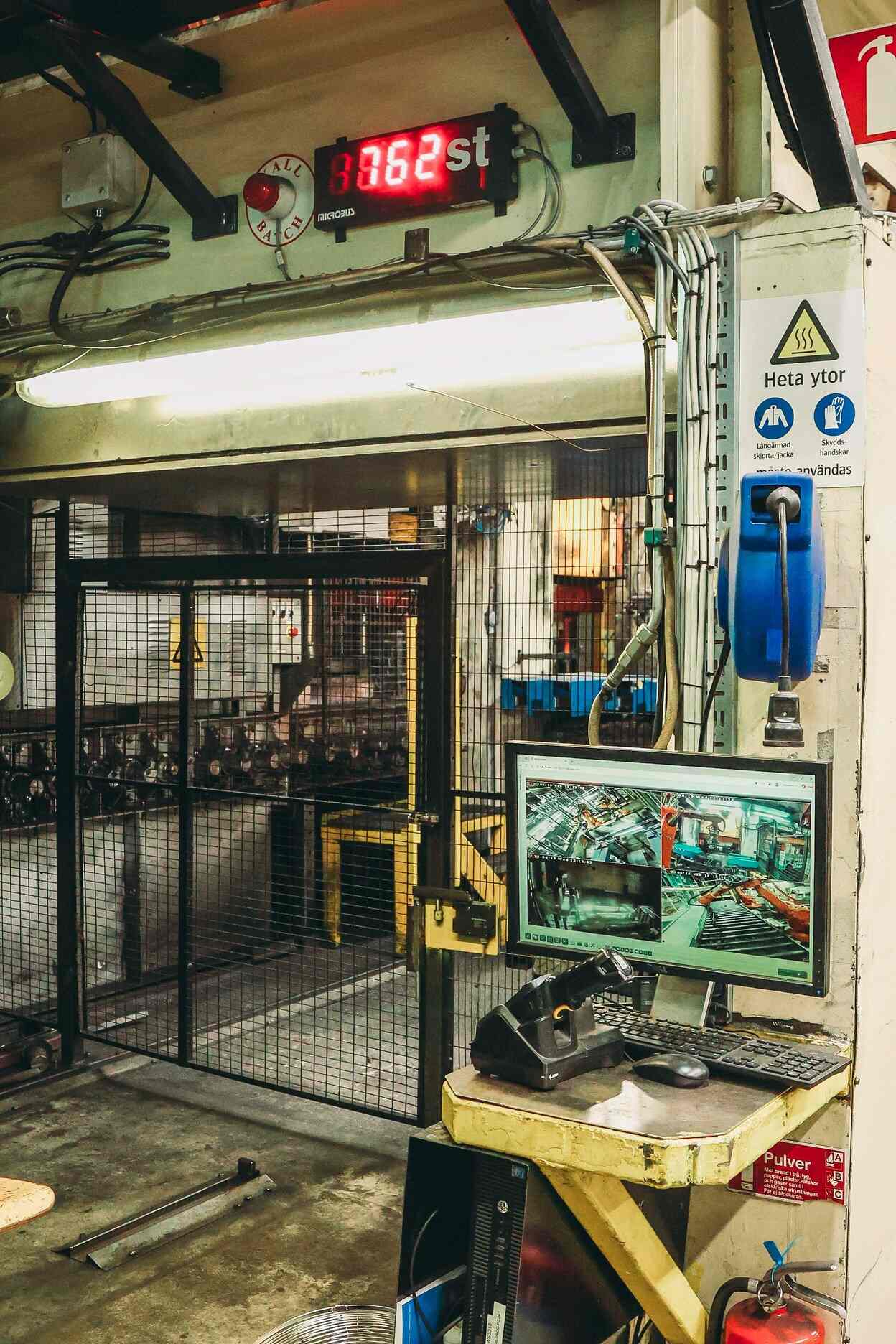

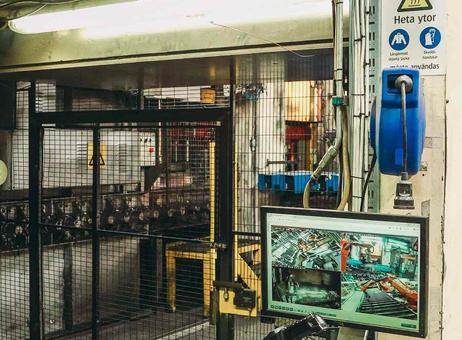

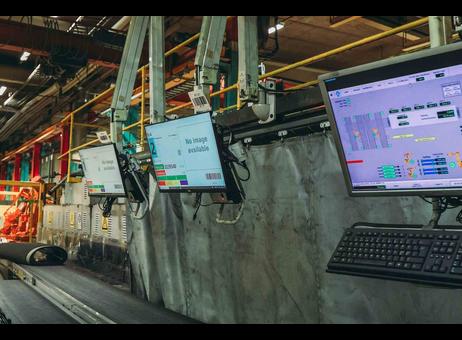

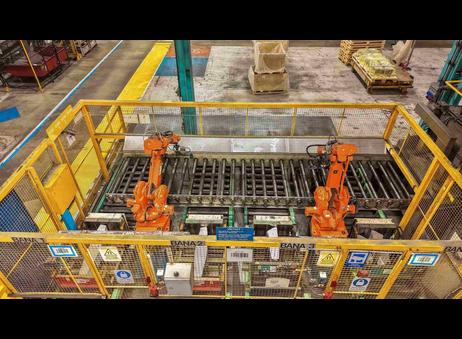

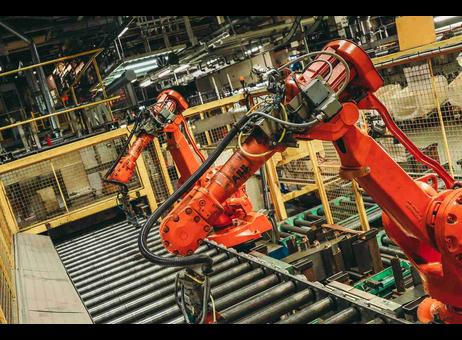

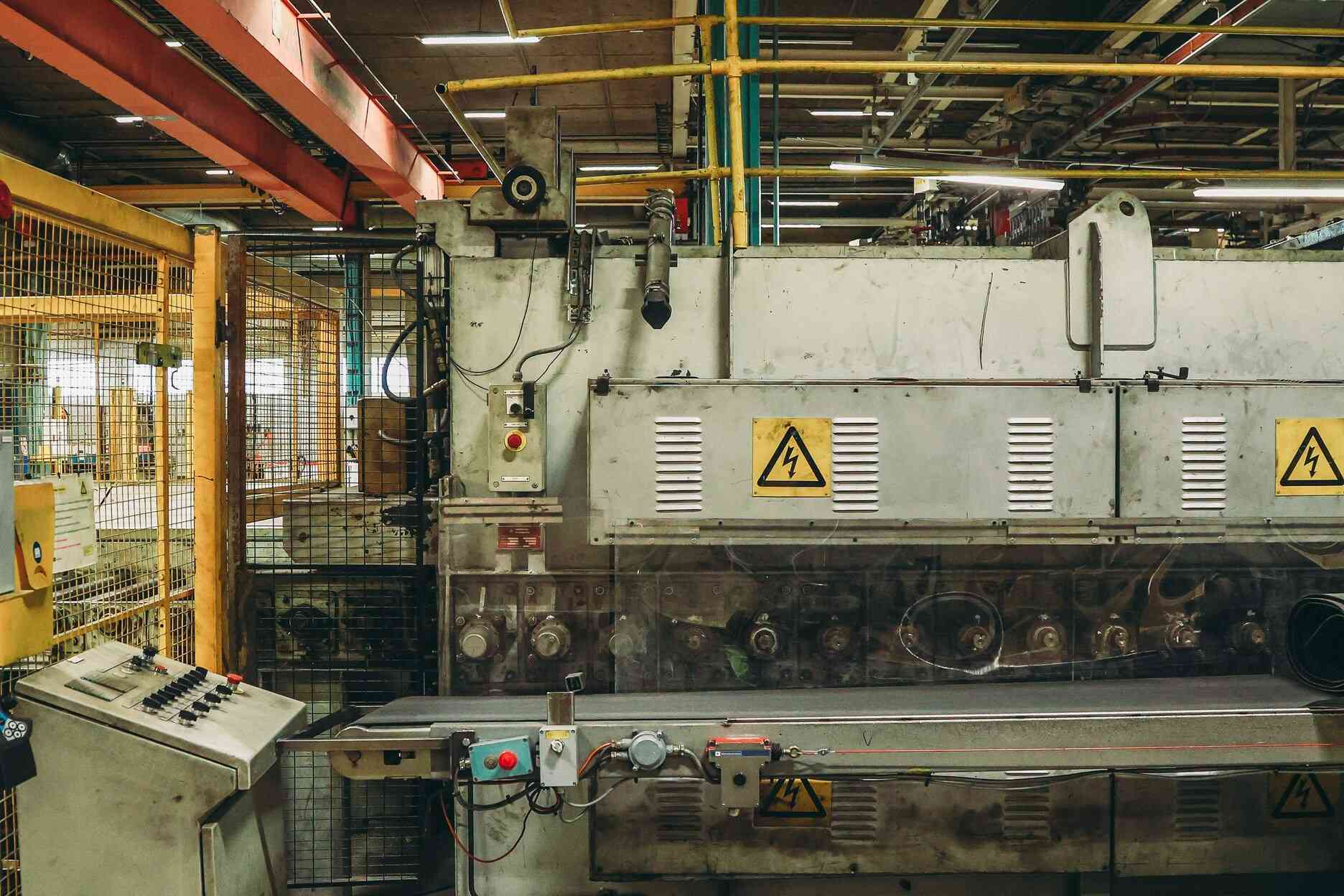

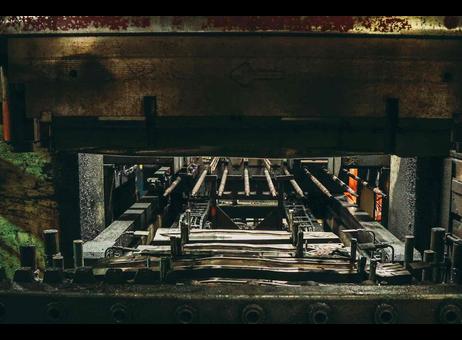

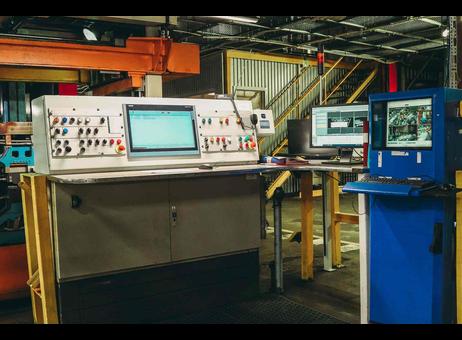

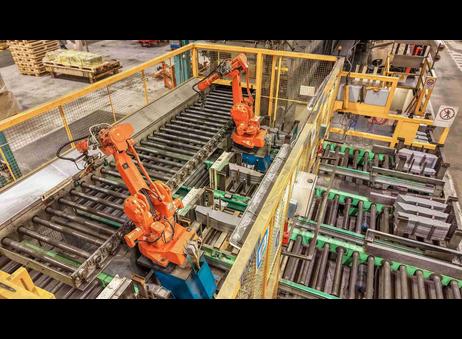

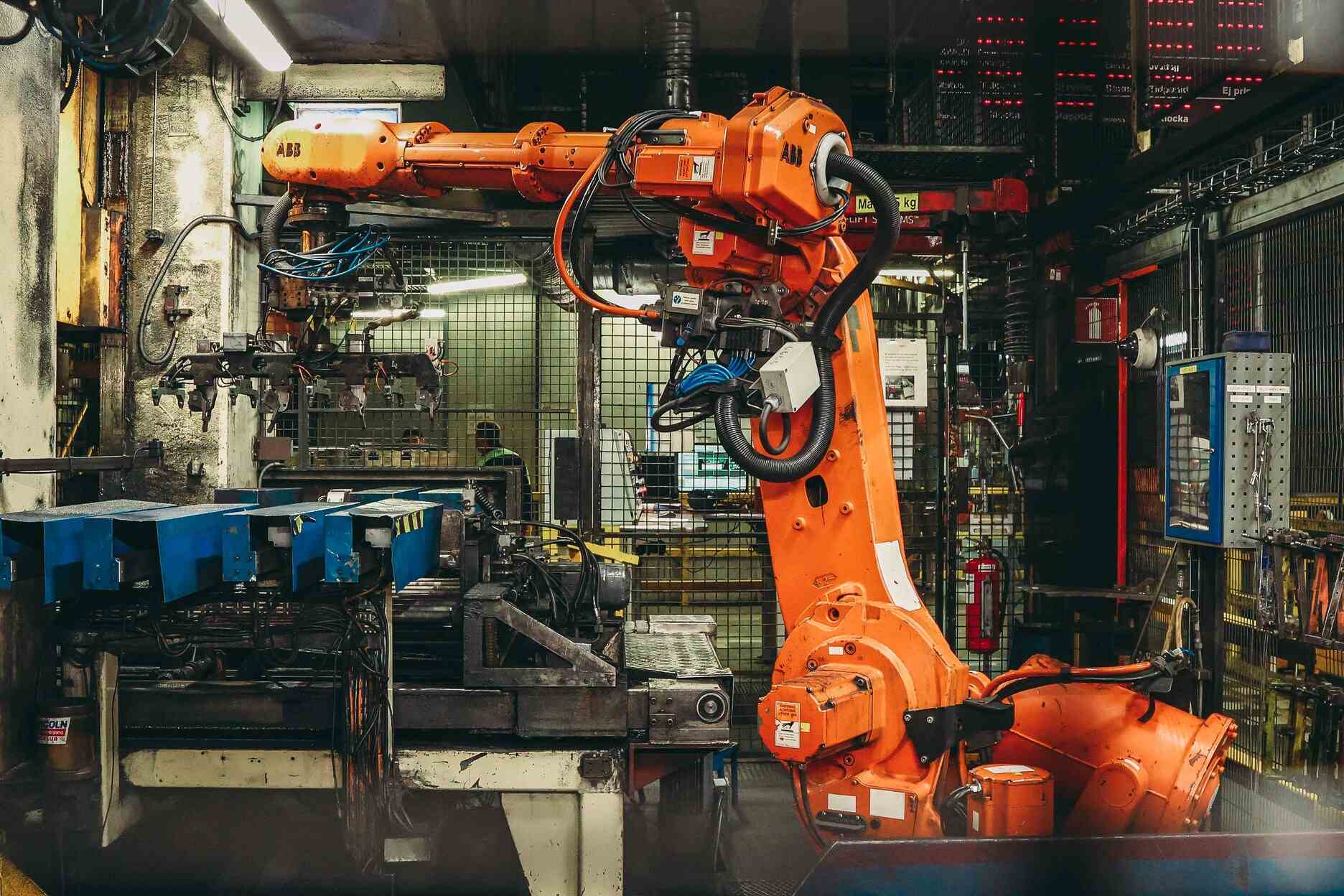

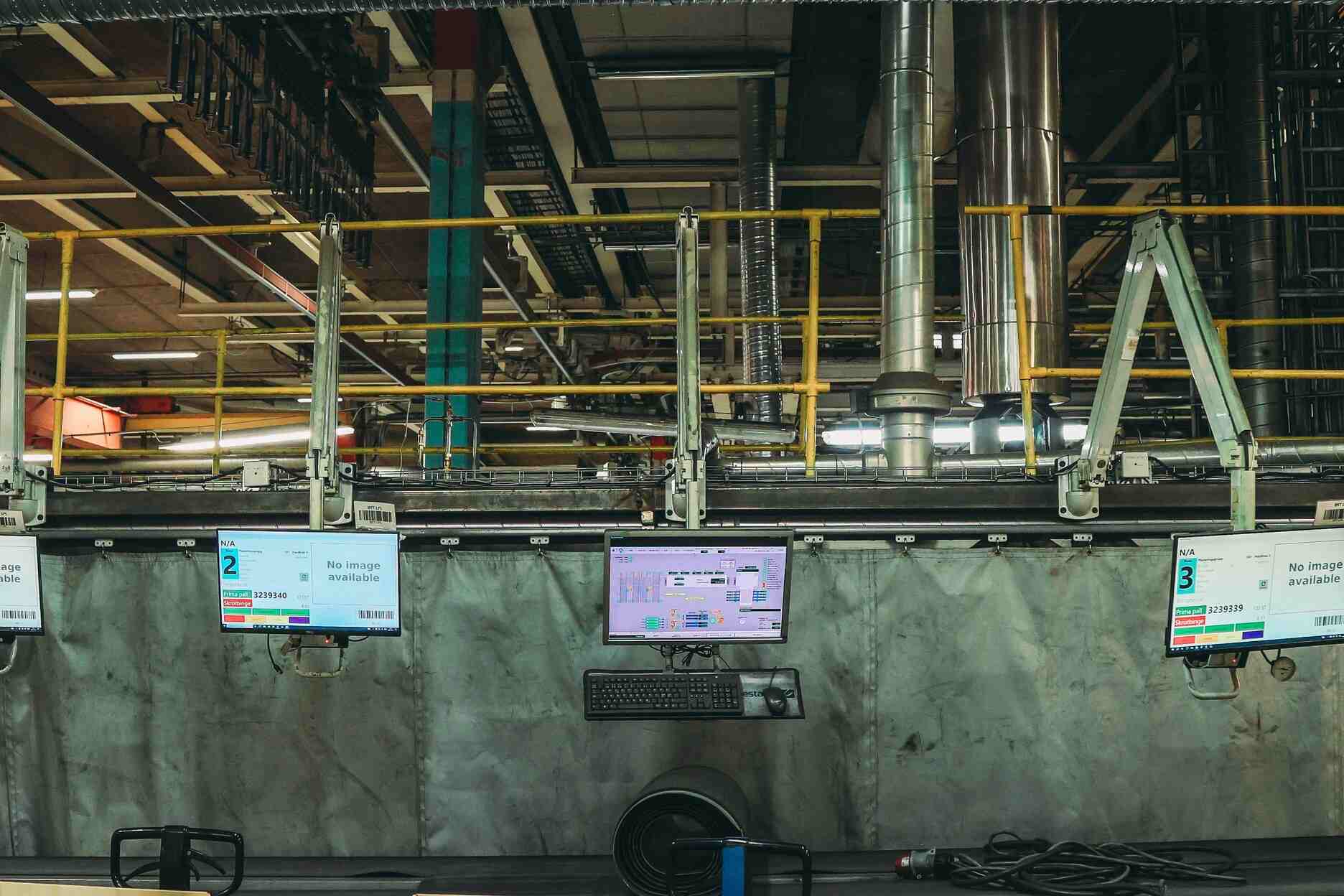

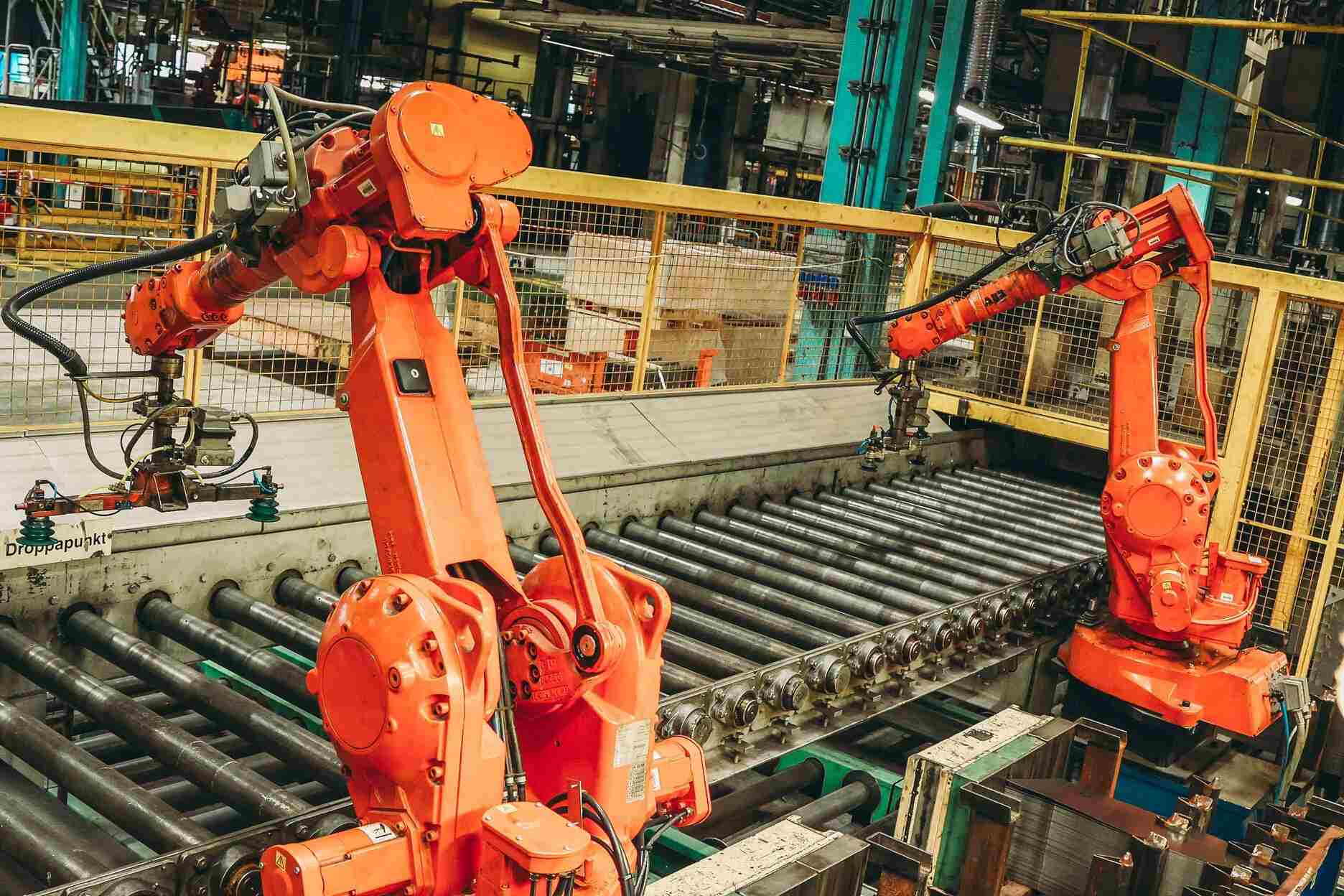

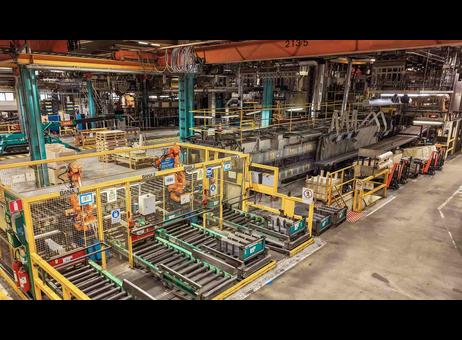

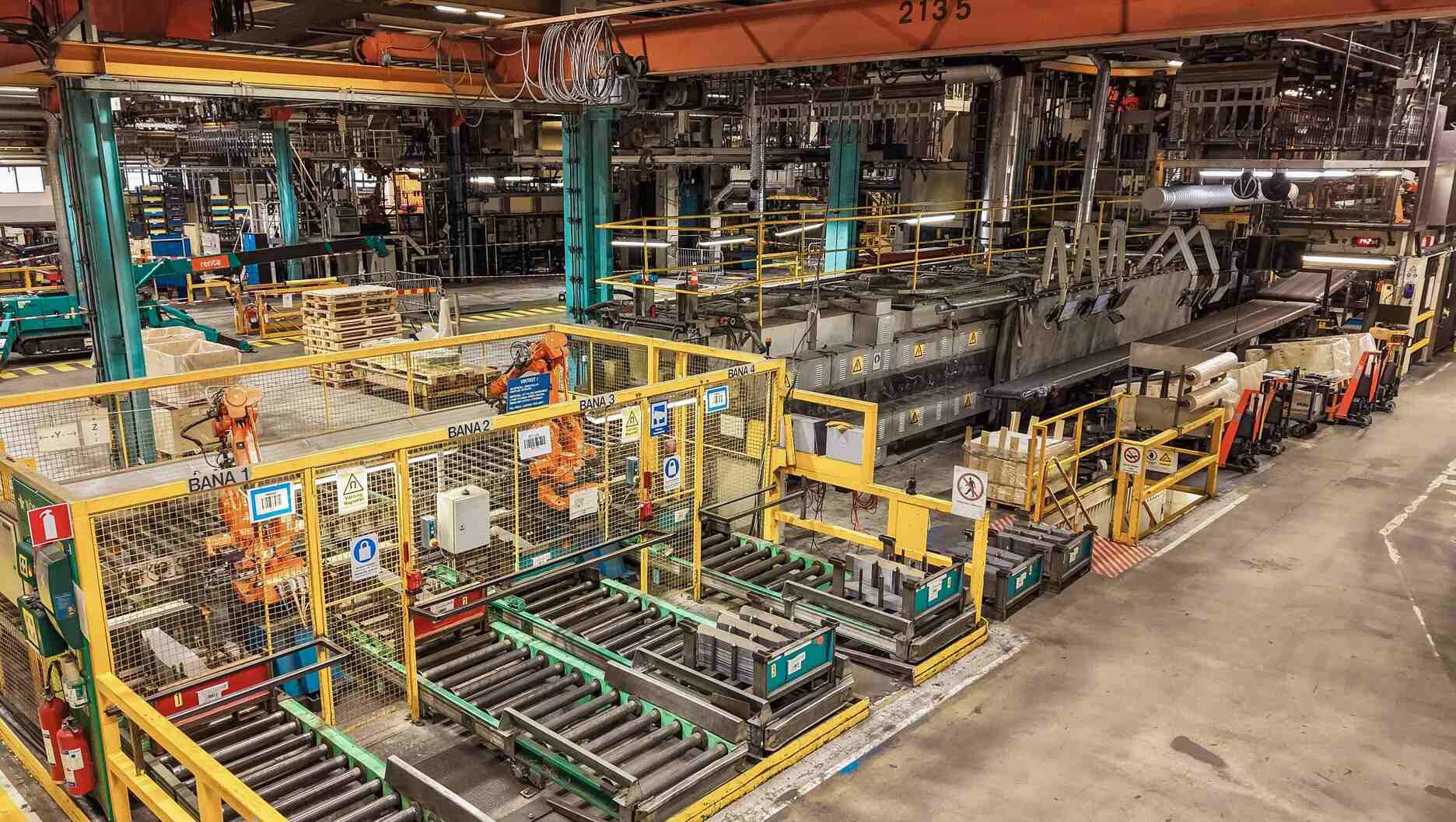

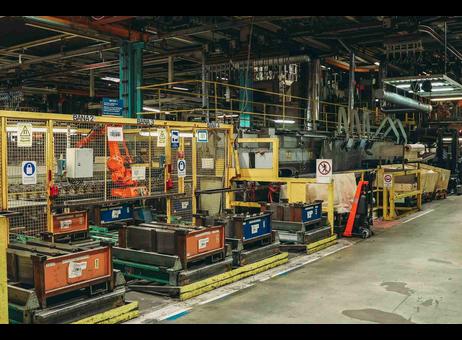

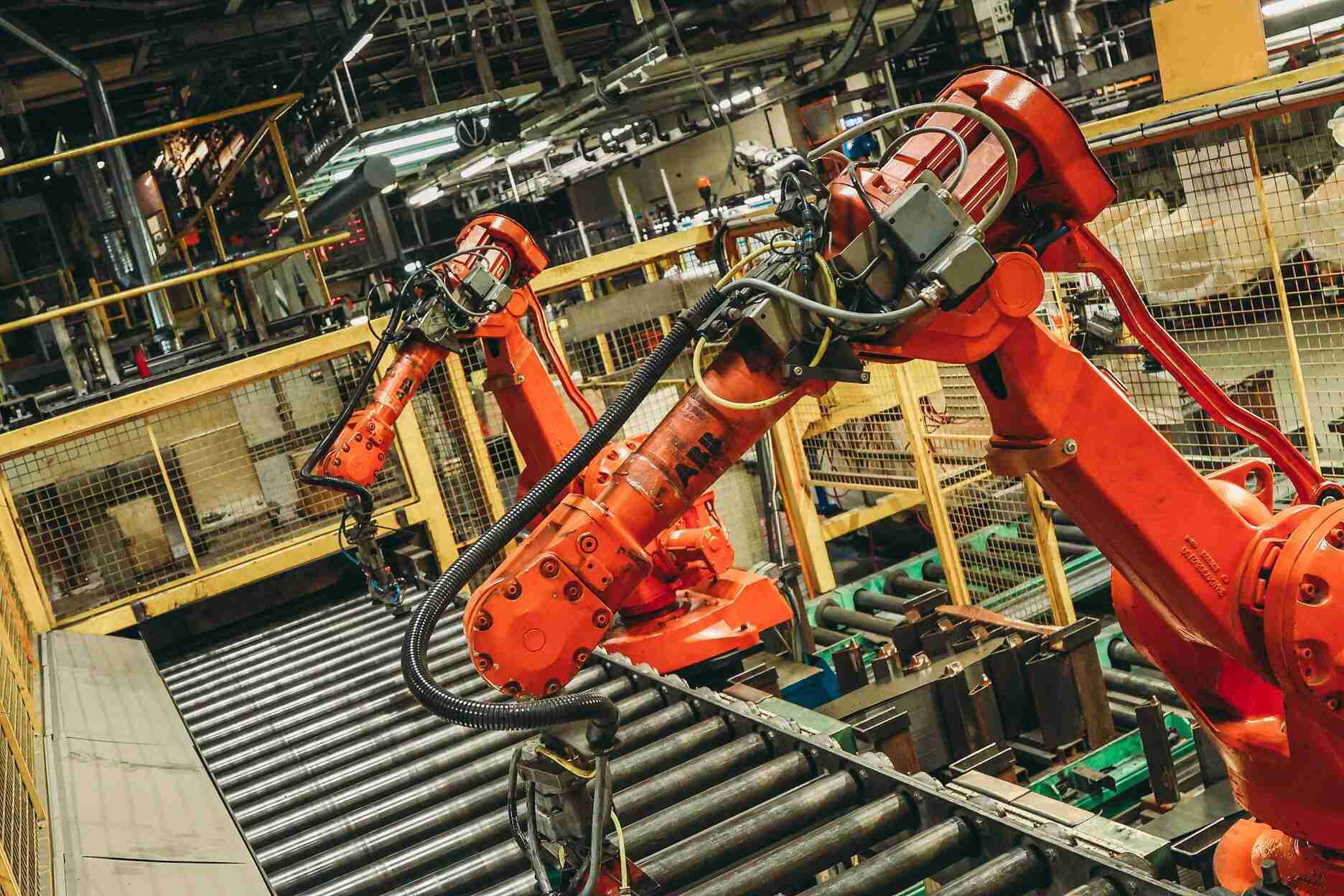

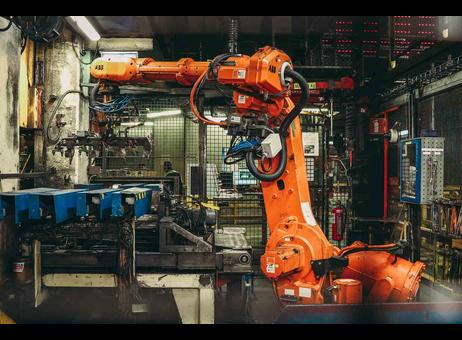

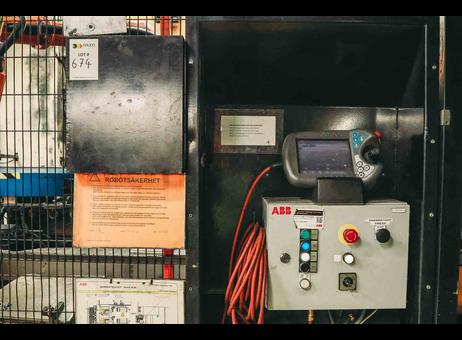

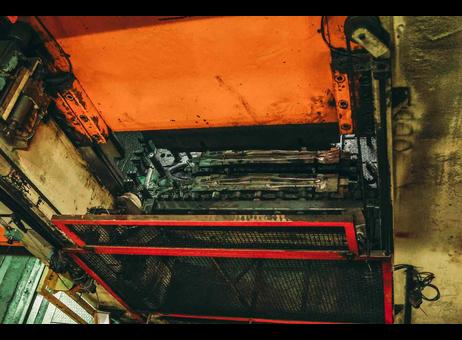

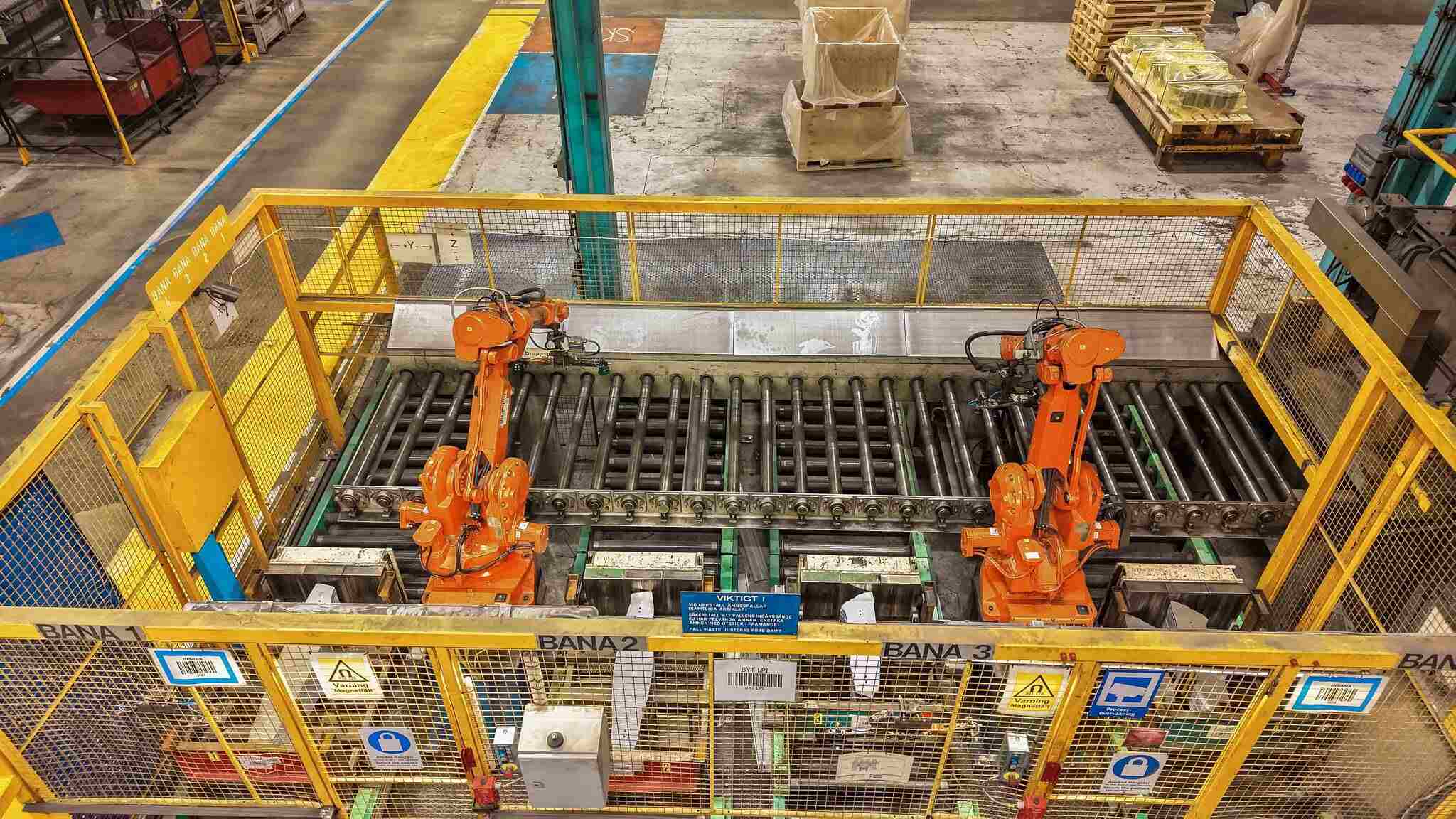

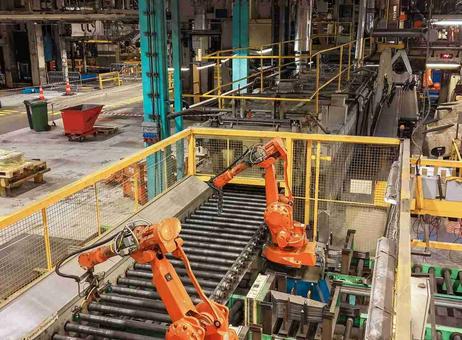

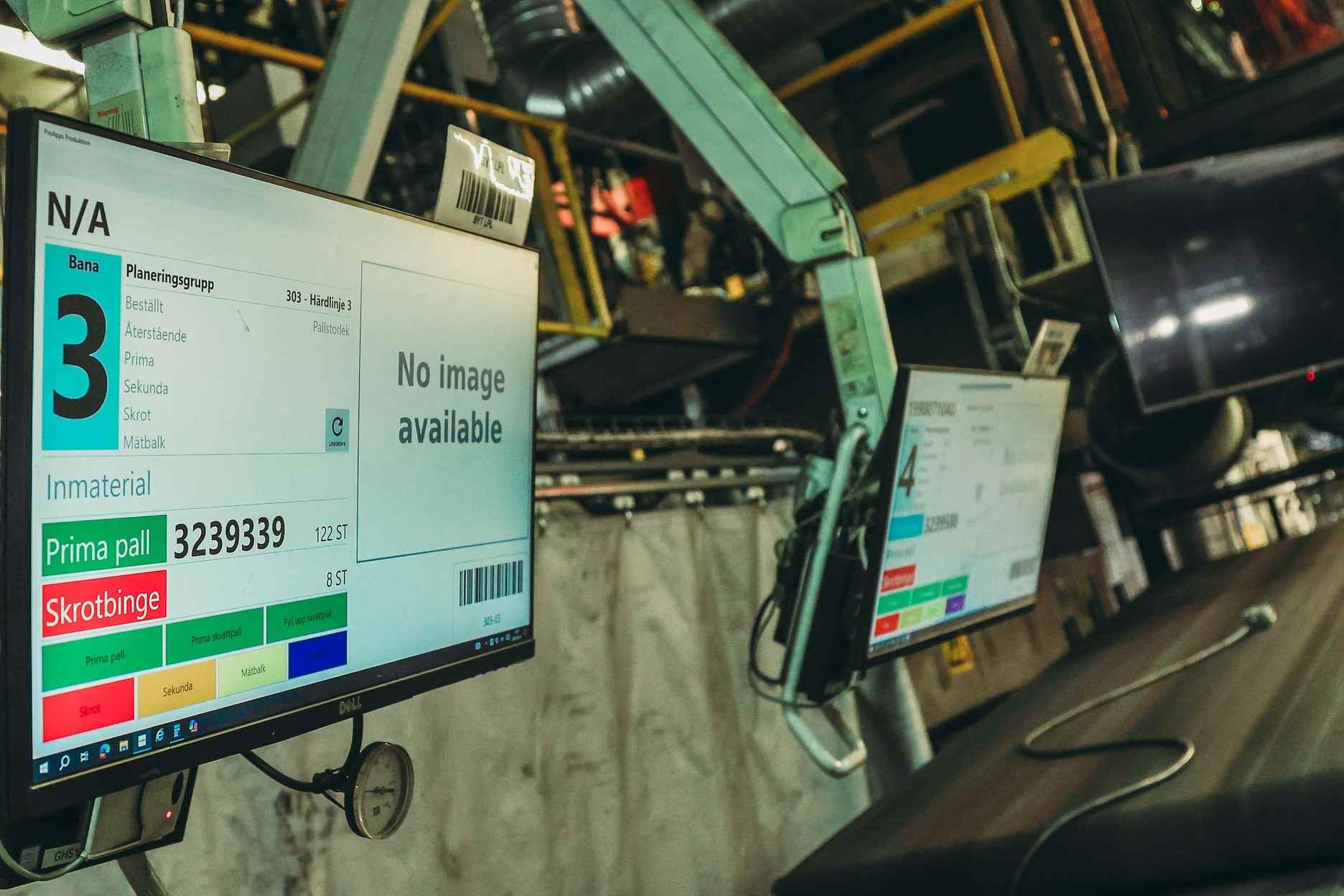

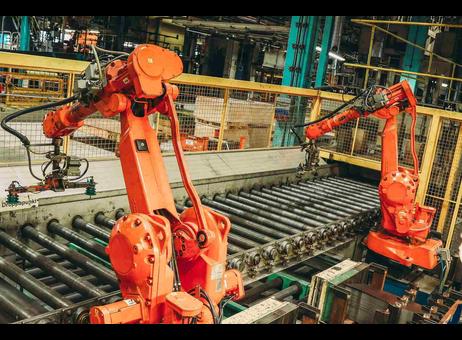

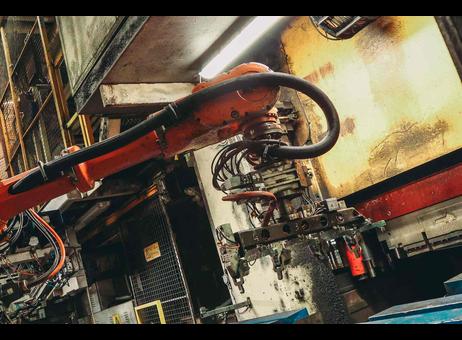

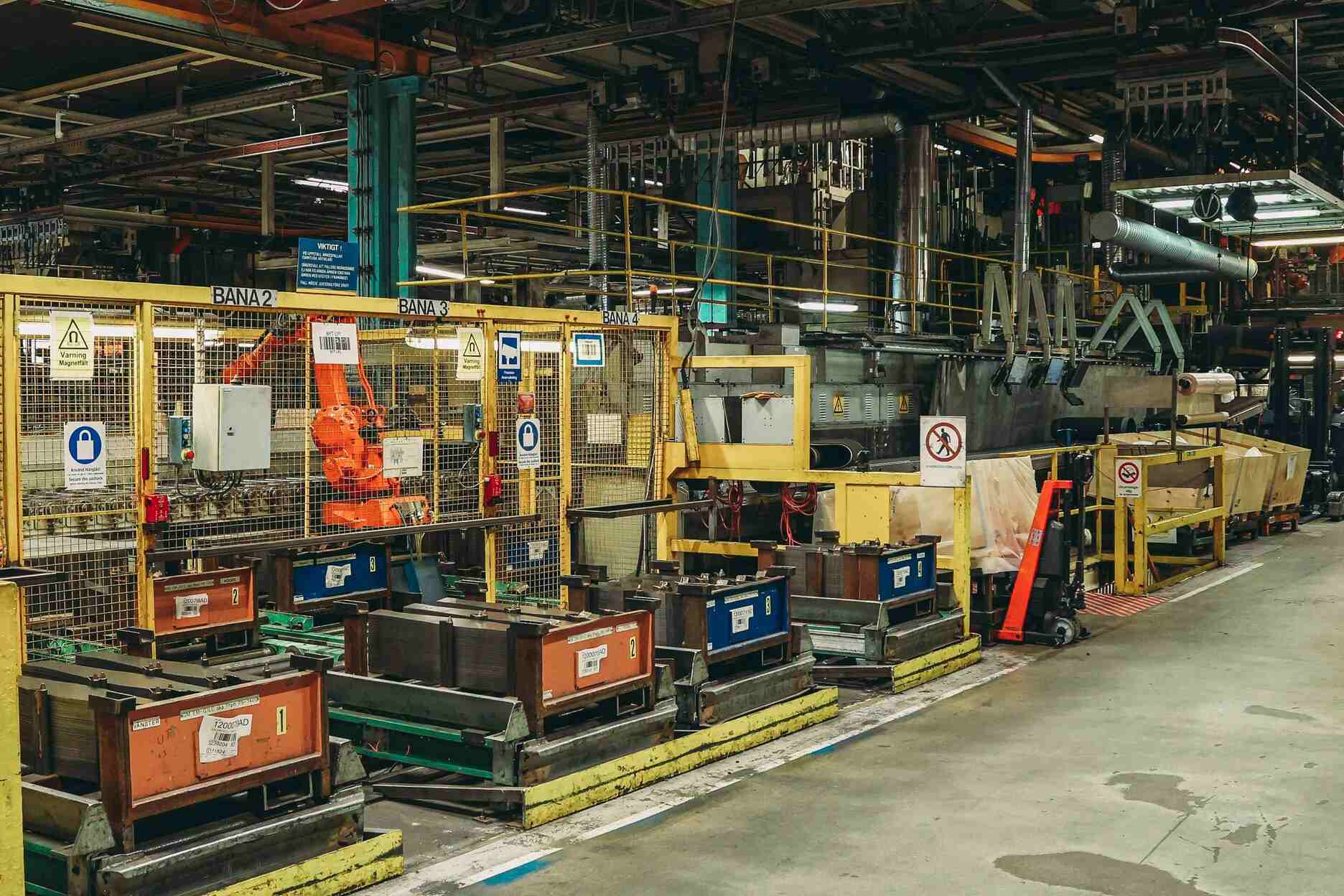

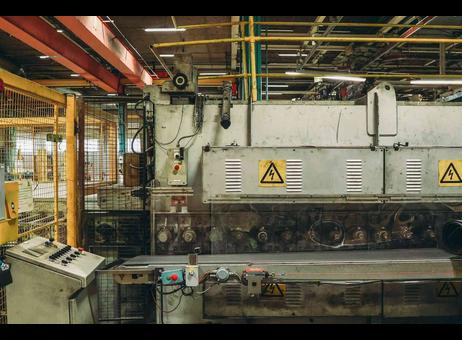

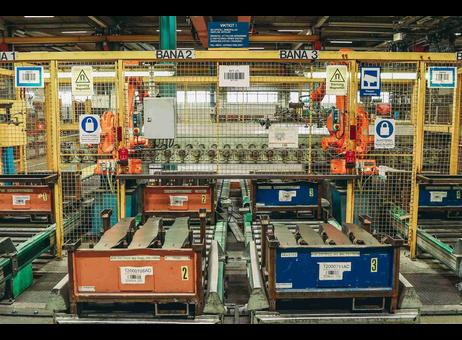

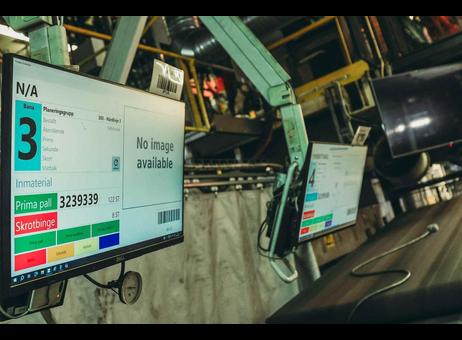

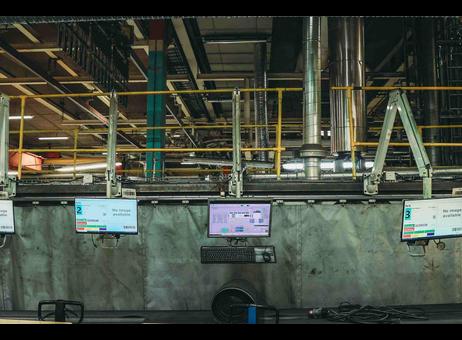

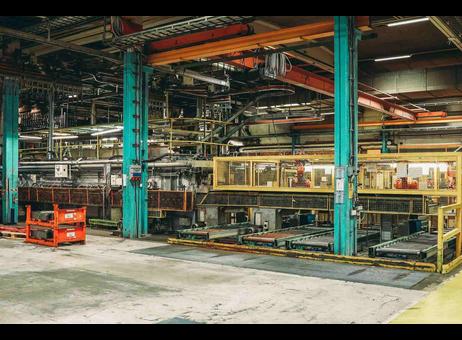

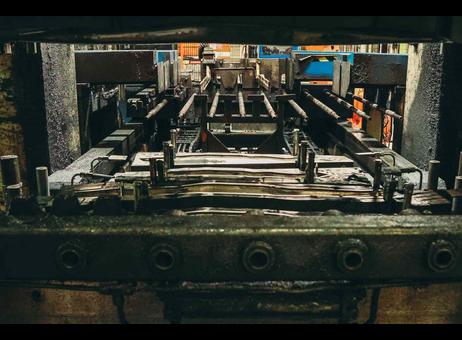

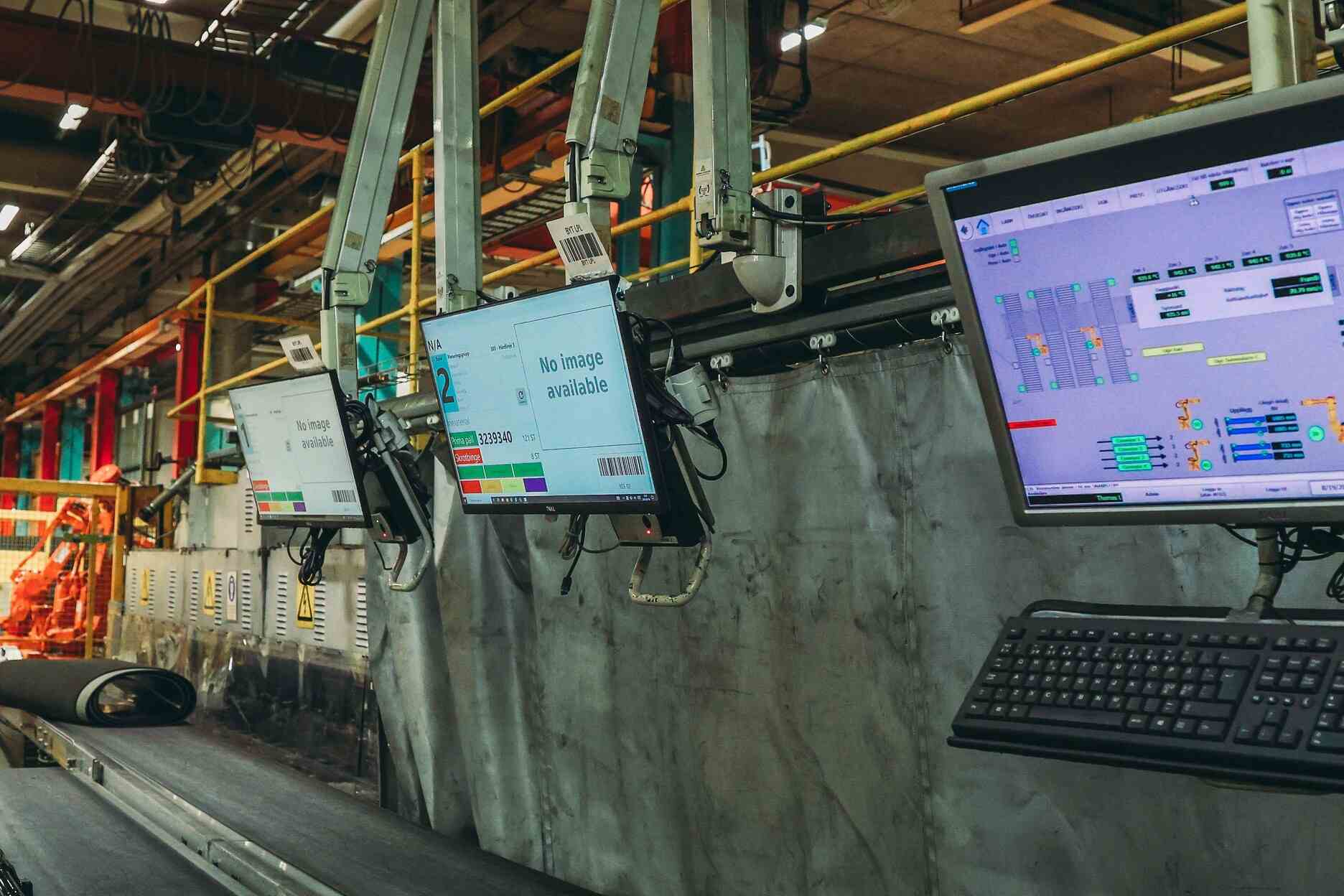

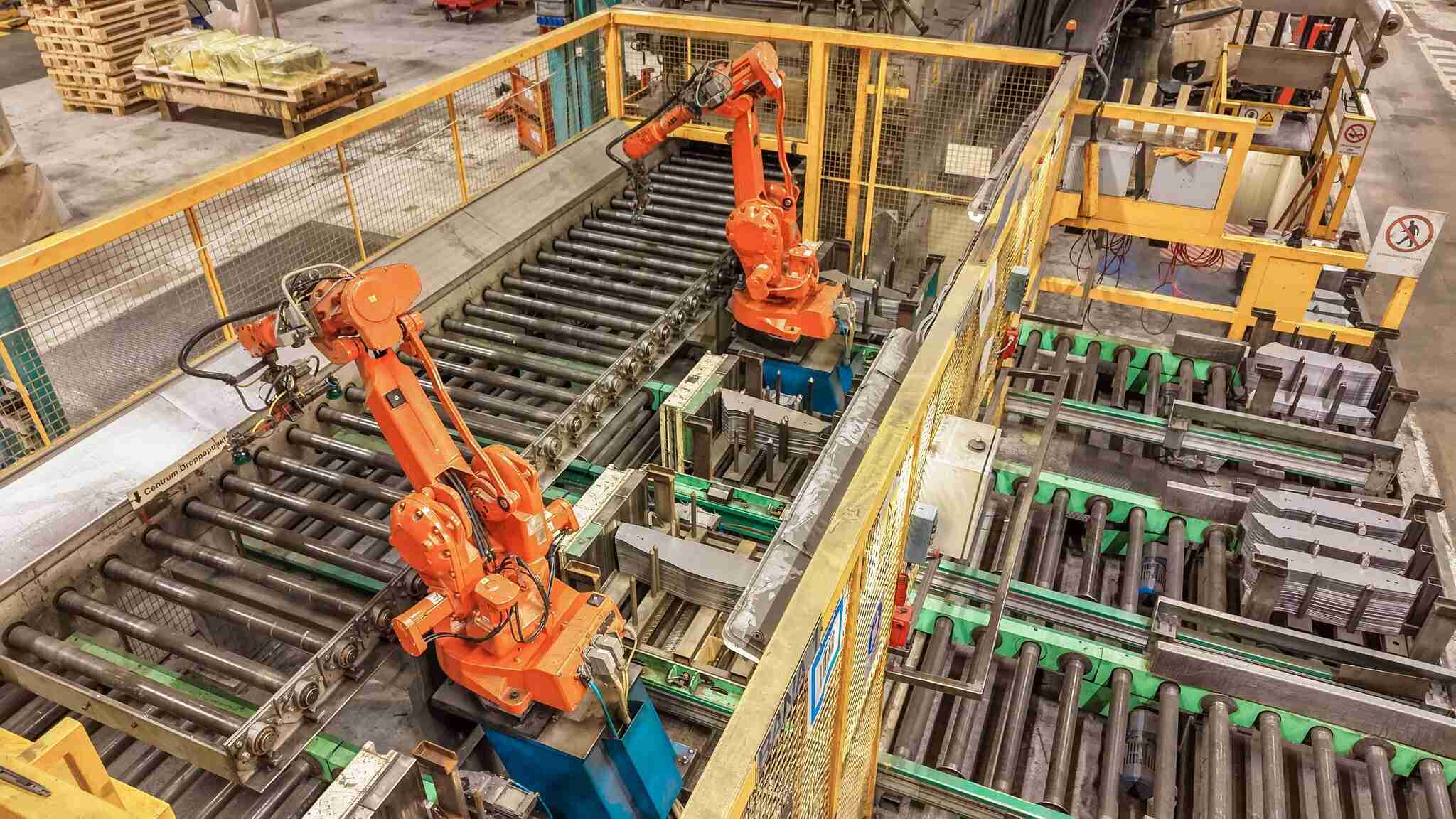

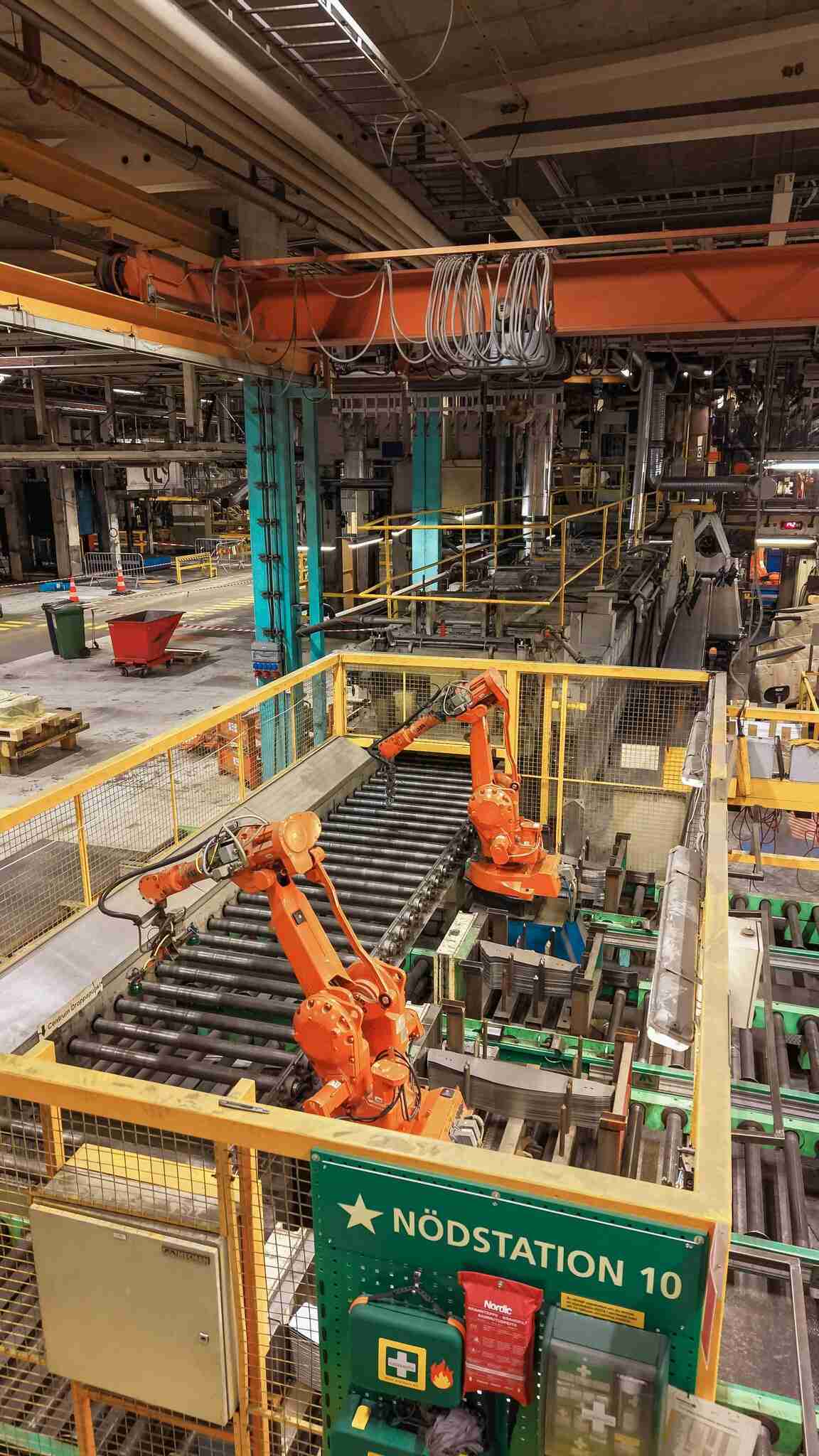

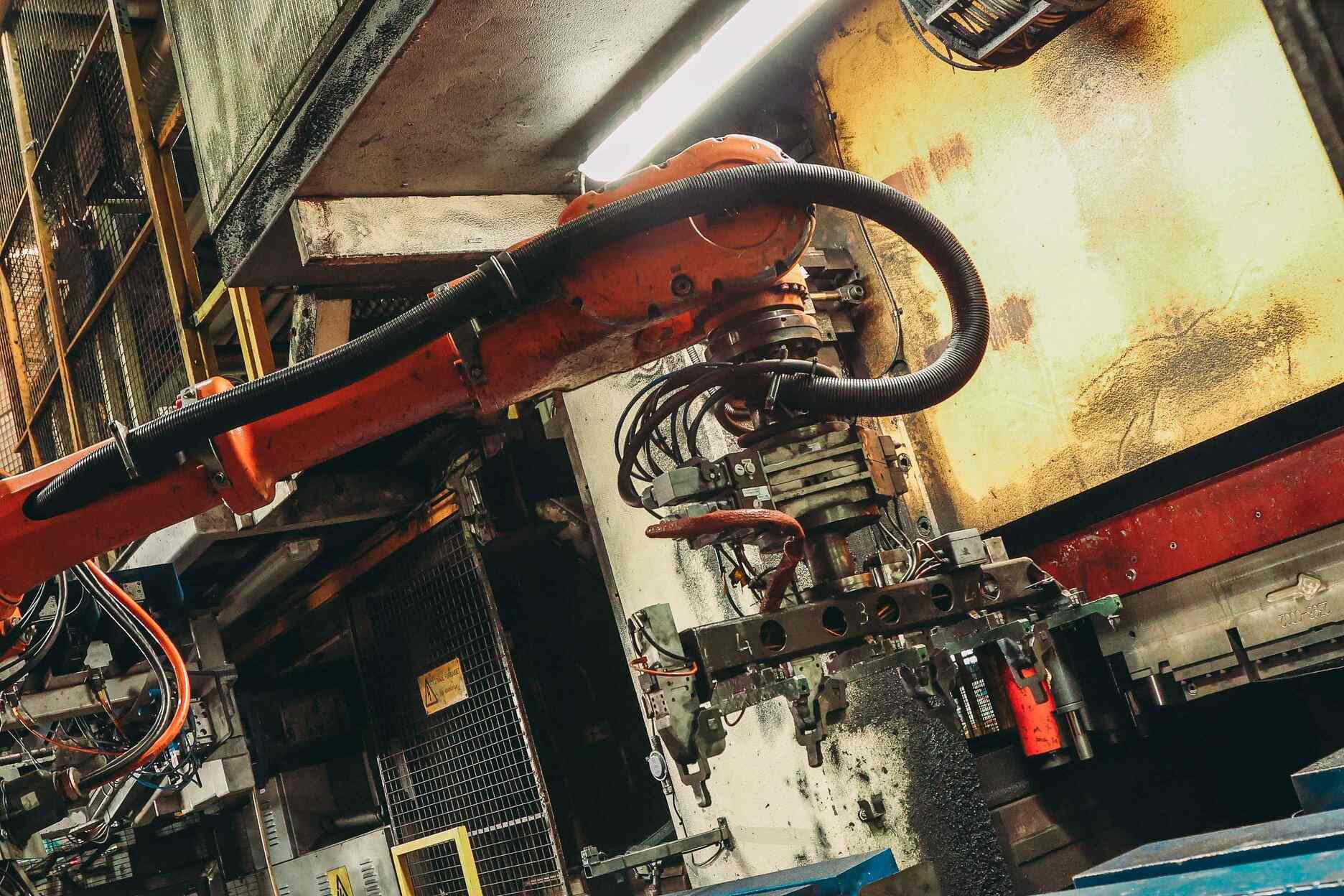

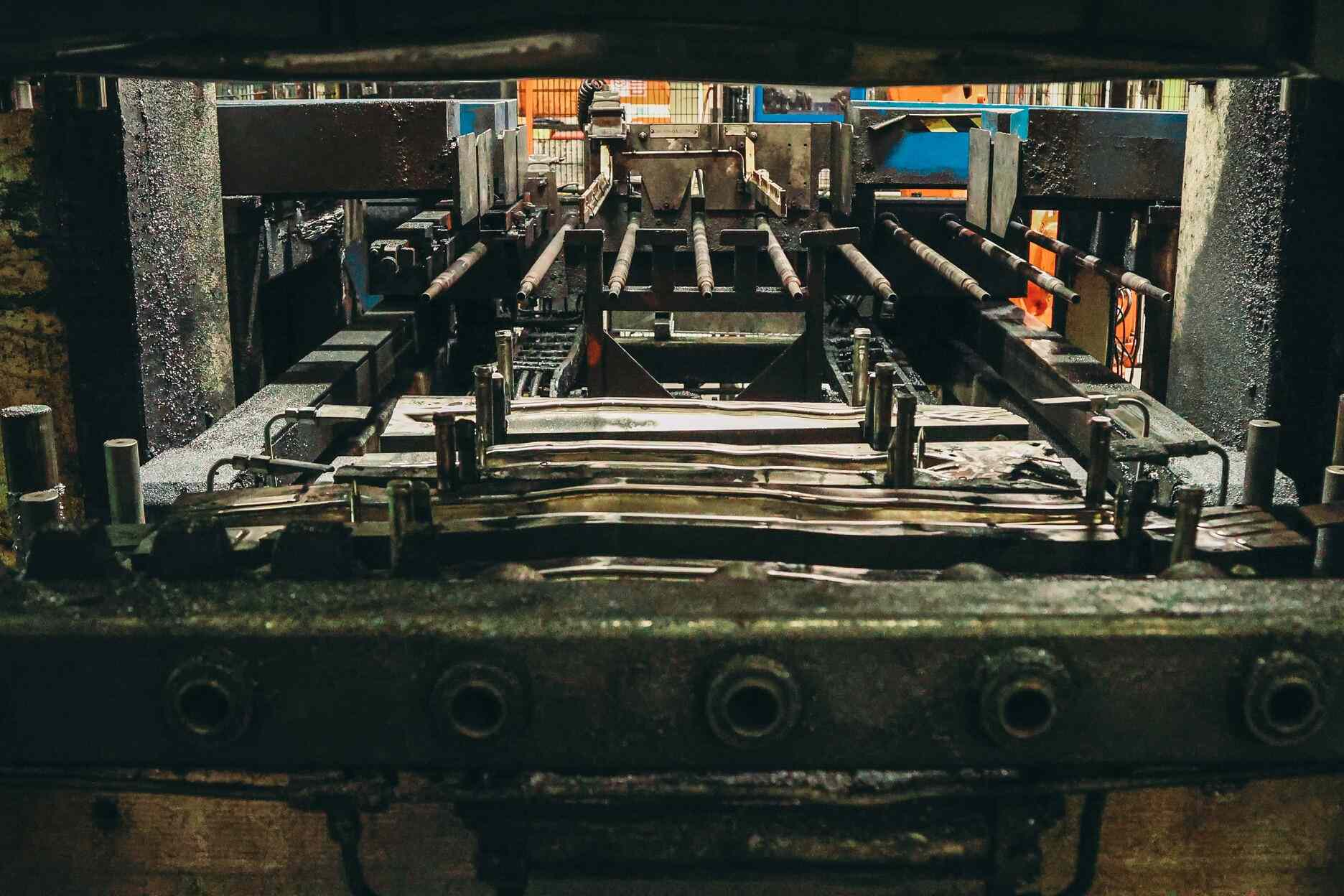

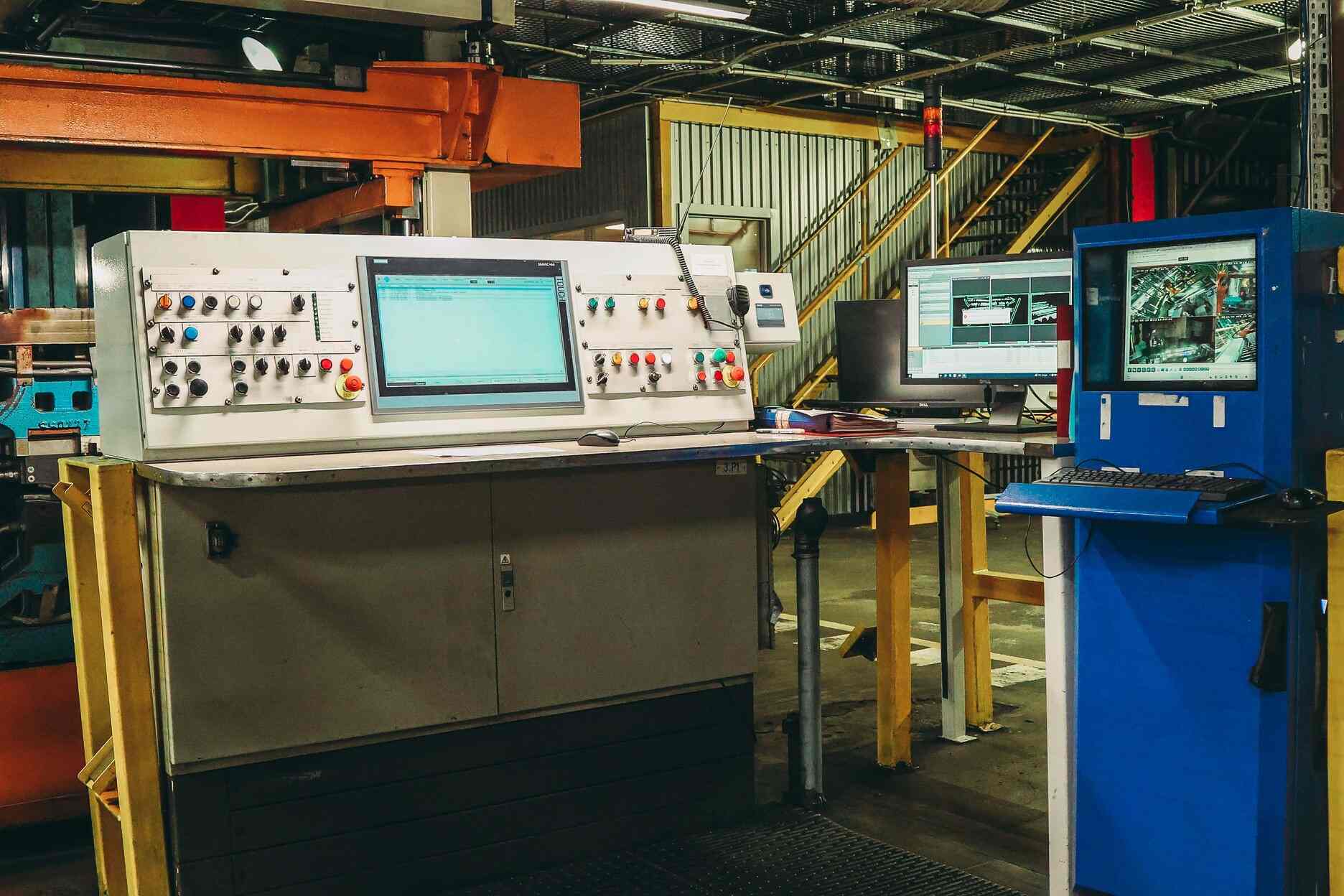

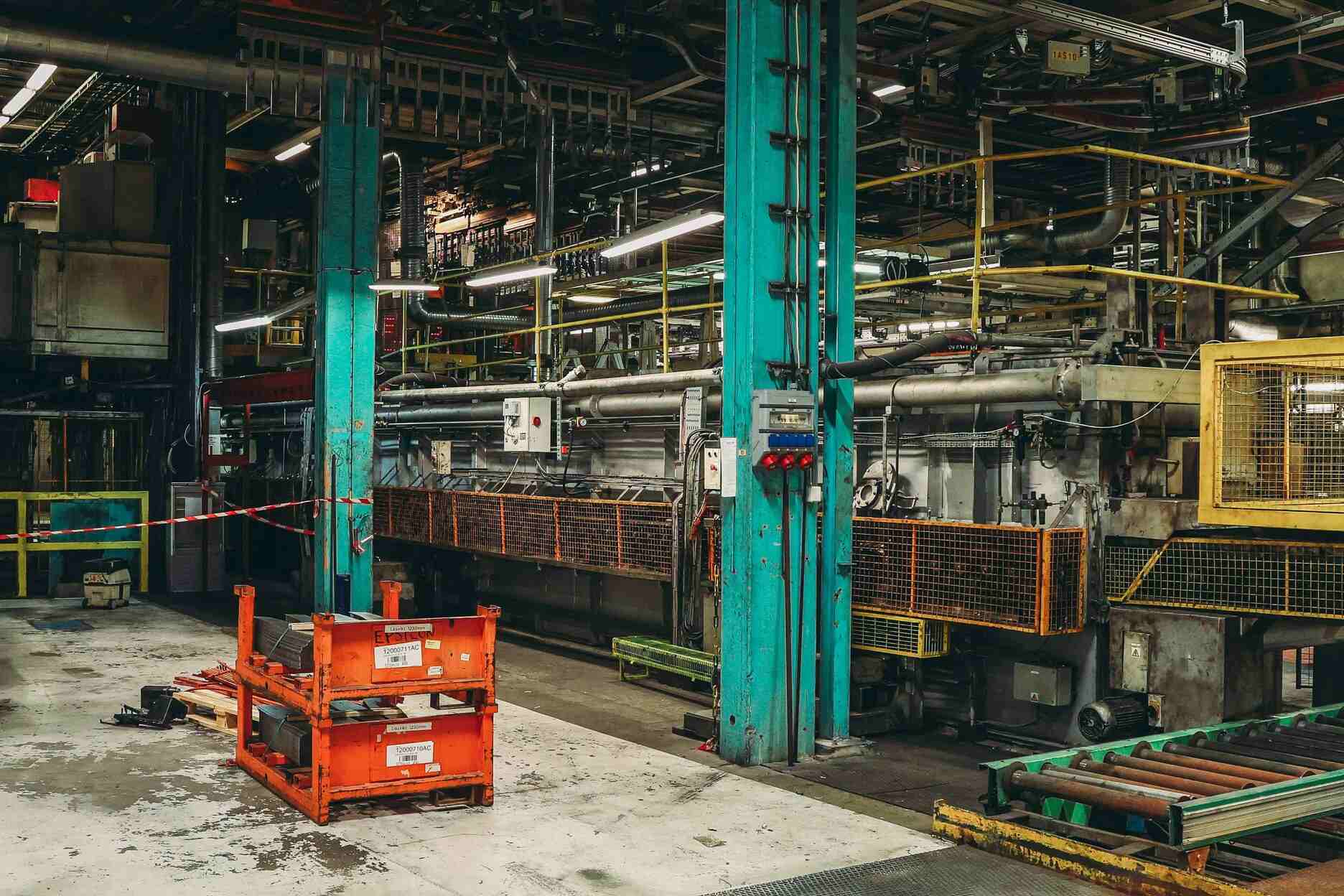

CAVENAGHI CRH12 000KNKM hardening line, manufactured in 1994, combining a 1,200 t hydraulic press with a Wellmann continuous heating furnace. The line includes roller conveyors and material-handling sections, enclosed machinery, guarded work areas and orange robotic equipment. Yellow mesh safety fencing and railings surround sections of the line. Control monitors and a keyboard are mounted along the front of the machinery, and an angled operator console is also present. A roller transfer section with parallel rollers and guide posts is visible inside the equipment.
The press is specified with a force of 12,000 kN, a weight of 194,000 kg, a 720 mm stroke and 1,400 mm daylight. It has four lanes and a table measuring 1,050 × 1,900 mm. The upper and lower cushions are each specified at 25 tonnes, with six pins per lane and a 100 mm stroke. Maximum fast approach speed is 550 mm/s and maximum working speed is 120 mm/s.
The Wellmann furnace is specified with an output temperature of up to 940 °C, a charge table length of 6,185 mm, a width of 1,000 mm and a length of 17,098 mm. Listed throughput is 1,206 kg/h, with 475 kW electrical heating power. Media connections are specified for nitrogen at 2.5 bar and liquid methanol at 4 bar.

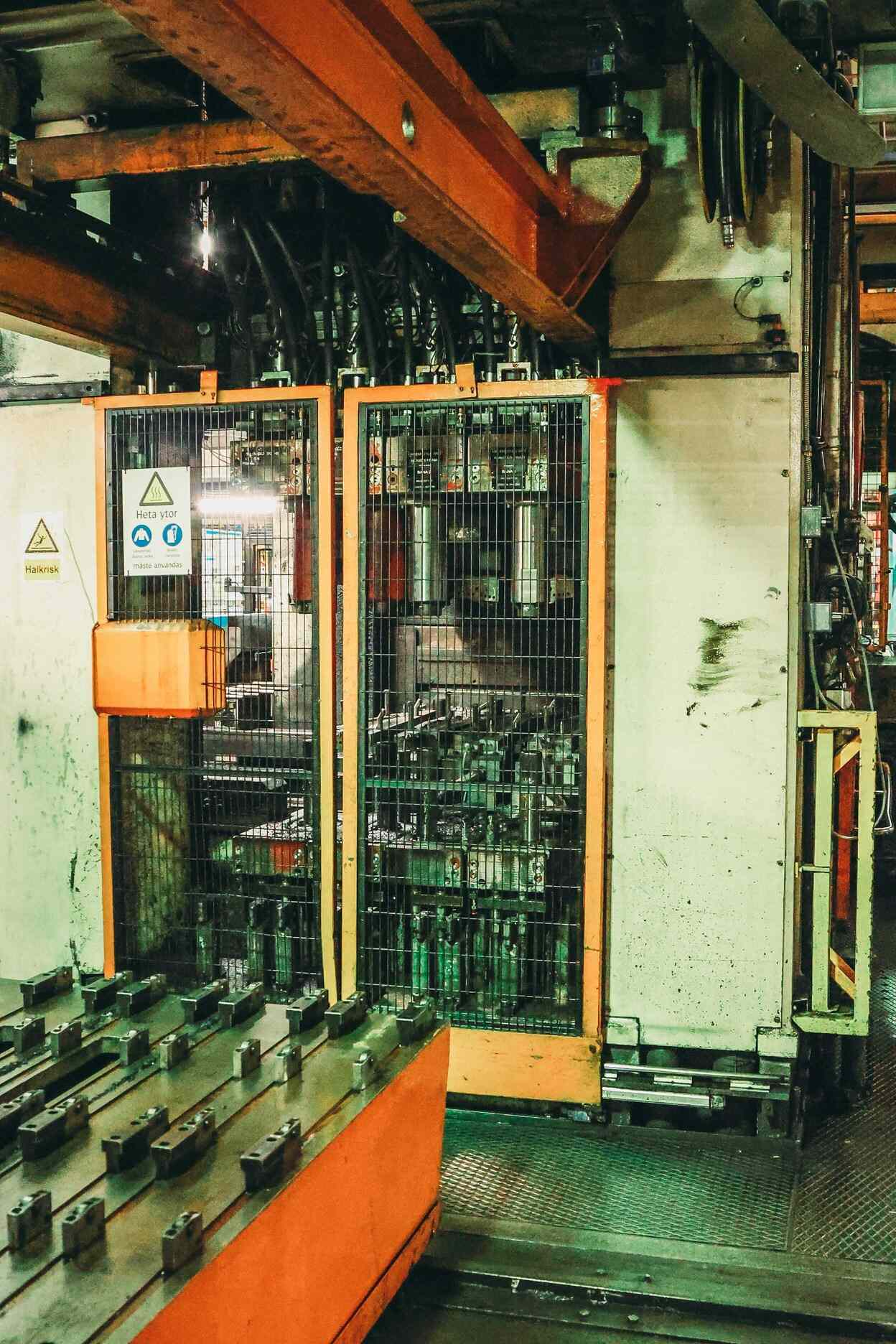

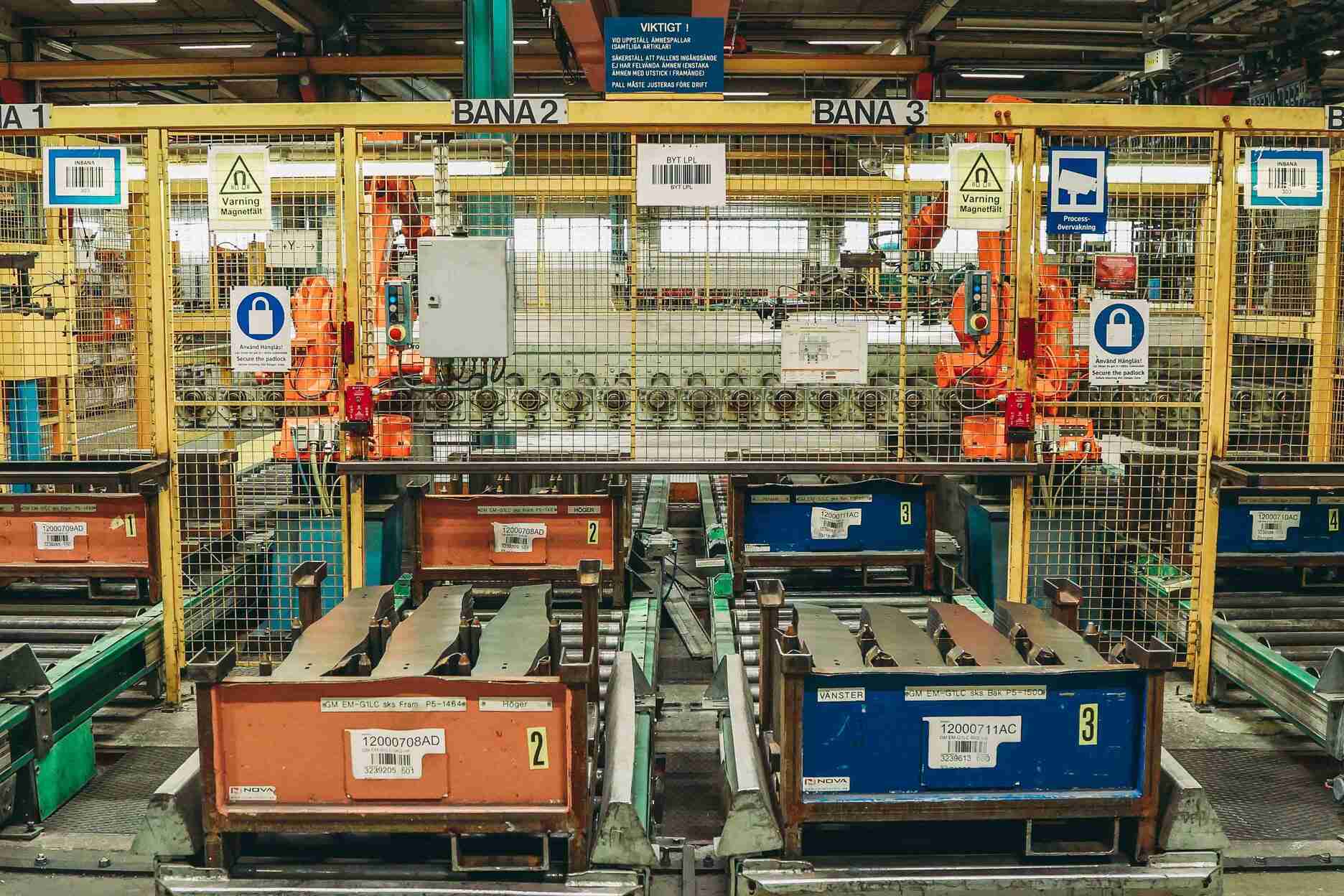

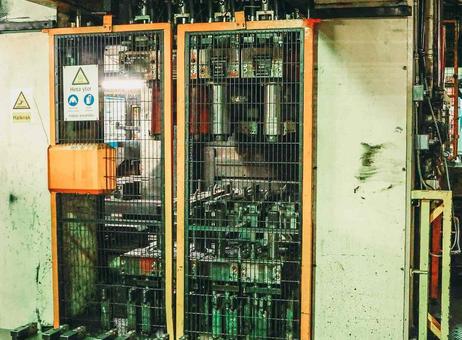

Visible surfaces, conveyor areas and the surrounding floor show dirt, scuffs, staining and signs of use. Safety fencing, warning labels and guards are present around the machinery.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
1200t Hardening Line with Wellmann Furnace
This hardening line combines a massive 194,000 kg, 4-lane hydraulic press with a high-capacity continuous heating system. The press delivers 12,000 kN of force over a 1,050 × 1,900 mm table, featuring independent 25-tonne upper and lower cushion pins per lane for precise forming control. It is integrated with a 17-meter, 475 kW Wellmann electrical furnace capable of processing 1,206 kg/h at output temperatures up to 940 °C, complete with precise nitrogen (2.5 bar) and liquid methanol (4 bar) atmosphere controls for demanding, heavy-duty industrial heat treatment.
Technical Details
Lot No. 674
Manufacturer: Cavenaghi
Year of Manufacture: 1994
Type: CRH12 000KNKM
Press Weight: 194,000 kg
Press Force: 1200t / 12,000 kN
Stroke: 720 mm
Daylight: 1,400 mm
Number of Lanes: 4
Table Dimensions: 1,050 × 1,900 mm
Upper Cushion: 25 tonnes × 6 pins per lane
Upper Cushion Stroke: 100 mm
Lower Cushion: 25 tonnes × 6 pins per lane
Lower Cushion Stroke: 100 mm
Max. Fast Approach Speed: 550 mm/s
Max. Working Speed: 120 mm/s
Furnace – Wellmann
Manufacturer: Wellmann
Output Temperature: 940 °C
Charge Table Length: 6,185 mm
Furnace Width: 1,000 mm
Furnace Length: 17,098 mm
Capacity / Throughput: 1,206 kg/h
Electrical Heating Power: 475 kW
Media Connection – Nitrogen: 2.5 bar
Media Connection – Liquid Methanol: 4 bar
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2024 |
| Offers online | 92 |
| Last activity | Oct. 28, 2026 |
1200t Hardening Line with Wellmann Furnace
This hardening line combines a massive 194,000 kg, 4-lane hydraulic press with a high-capacity continuous heating system. The press delivers 12,000 kN of force over a 1,050 × 1,900 mm table, featuring independent 25-tonne upper and lower cushion pins per lane for precise forming control. It is integrated with a 17-meter, 475 kW Wellmann electrical furnace capable of processing 1,206 kg/h at output temperatures up to 940 °C, complete with precise nitrogen (2.5 bar) and liquid methanol (4 bar) atmosphere controls for demanding, heavy-duty industrial heat treatment.
Technical Details
Lot No. 674
Manufacturer: Cavenaghi
Year of Manufacture: 1994
Type: CRH12 000KNKM
Press Weight: 194,000 kg
Press Force: 1200t / 12,000 kN
Stroke: 720 mm
Daylight: 1,400 mm
Number of Lanes: 4
Table Dimensions: 1,050 × 1,900 mm
Upper Cushion: 25 tonnes × 6 pins per lane
Upper Cushion Stroke: 100 mm
Lower Cushion: 25 tonnes × 6 pins per lane
Lower Cushion Stroke: 100 mm
Max. Fast Approach Speed: 550 mm/s
Max. Working Speed: 120 mm/s
Furnace – Wellmann
Manufacturer: Wellmann
Output Temperature: 940 °C
Charge Table Length: 6,185 mm
Furnace Width: 1,000 mm
Furnace Length: 17,098 mm
Capacity / Throughput: 1,206 kg/h
Electrical Heating Power: 475 kW
Media Connection – Nitrogen: 2.5 bar
Media Connection – Liquid Methanol: 4 bar
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
CAVENAGHI CRH12 000KNKM hardening line, manufactured in 1994, combining a 1,200 t hydraulic press with a Wellmann continuous heating furnace. The line includes roller conveyors and material-handling sections, enclosed machinery, guarded work areas and orange robotic equipment. Yellow mesh safety fencing and railings surround sections of the line. Control monitors and a keyboard are mounted along the front of the machinery, and an angled operator console is also present. A roller transfer section with parallel rollers and guide posts is visible inside the equipment.
The press is specified with a force of 12,000 kN, a weight of 194,000 kg, a 720 mm stroke and 1,400 mm daylight. It has four lanes and a table measuring 1,050 × 1,900 mm. The upper and lower cushions are each specified at 25 tonnes, with six pins per lane and a 100 mm stroke. Maximum fast approach speed is 550 mm/s and maximum working speed is 120 mm/s.
The Wellmann furnace is specified with an output temperature of up to 940 °C, a charge table length of 6,185 mm, a width of 1,000 mm and a length of 17,098 mm. Listed throughput is 1,206 kg/h, with 475 kW electrical heating power. Media connections are specified for nitrogen at 2.5 bar and liquid methanol at 4 bar.
Visible surfaces, conveyor areas and the surrounding floor show dirt, scuffs, staining and signs of use. Safety fencing, warning labels and guards are present around the machinery.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
