| Manufacturer | CAST COEX (Италия) |
|---|---|
| Model | TD3000 |
| Year | 2011 |
| Location | Belarus
|
| Category | Complete lines - Plastic extrusion |
| Screw diameter | 70 mm |
| Output | 600 kg/h |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | in production |
| Last availability date | 17/04/2026 |
| Product id | P231123072 |
| Language |
Линия за екструдиране CAST COEX TD3000
Vytlačovací linka CAST COEX TD3000
Ekstrudering linje CAST COEX TD3000
CAST COEX TD3000 Extrusionsanlage
Γραμμή εξώθησης CAST COEX TD3000
CAST COEX TD3000 Extrusion line
Línea de extrusión CAST COEX TD3000
Ligne d'extrusion CAST COEX TD3000
Linija za ekstruziju CAST COEX TD3000
CAST COEX TD3000 Extrudáló vonal
Linea di estrusione CAST COEX TD3000
Ekstruzijos linija CAST COEX TD3000
CAST COEX TD3000 Extrusie lijn
Linia do wytłaczania CAST COEX TD3000
Linha de extrusão CAST COEX TD3000
Linie de extrudare CAST COEX TD3000
CAST COEX TD3000 Экструзионная линия
Linija za ekstruziju CAST COEX TD3000
CAST COEX TD3000 Extruderingslinje
Ekstrüzyon hattı CAST COEX TD3000
|

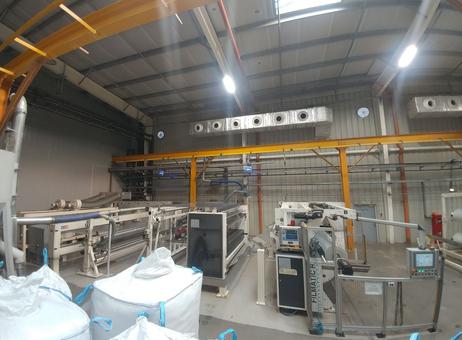

This listing features a CAST COEX TD3000 extrusion line, manufactured in 2011 in Italy, designed for producing heat-shrinkable oriented polystyrene (OPS) film with an A/B/A product structure. The line is capable of processing recyclable mixed materials such as SBC and GPPS, producing film thicknesses between 40 and 60 microns with a shrinkage rate of 70-72%. The net film width at the TDO exit is 2780 mm, expandable up to 3200 mm. The main extruder is a ZSK Mc70 plus, complemented by a 50 mm coextruder equipped with static mixers in both extruder lines. The die system is a Nordson Autoflex VI-R H40 with a width of 750 mm secured by 28 bolts. The roll stack consists of two chrome mirror-surfaced shafts. The machine includes a six-shaft MDO unit with specific shafts dedicated to preheating, stretching (1:1.2), and annealing processes. Thickness control is managed by two NDC sensors from the USA and UK, featuring automatic thickness control; the control equipment was updated in 2018, and the sensors were overhauled between 2019 and 2020. The TDO stretch capability reaches up to 1:5. The line is equipped with a Filmatic winder by W&H (Germany), supporting maximum roll diameters of 580 mm, expandable to 800 mm, and can operate at mechanical line speeds up to 50 m/min. Electrical requirements include 400V-50Hz voltage, with installed power at 480 kW and power consumption of 280 kW. The setup also includes a warehouse area for finished base rolls and a Dahua A-3000 slitting machine. Visual inspection confirms the presence of large industrial machinery components, including multiple pipes and ducts, a control cabin with glass windows, and a blue MORETTO-labeled machine with three large hoppers. Several bags of raw materials or finished products are stored around the equipment. The overall setup is situated in a factory environment with overhead lighting and ventilation ducts.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Extrusion line for the production of heat-shrinkable OPS (oriented polystyrene) film
Product structure A/B/A

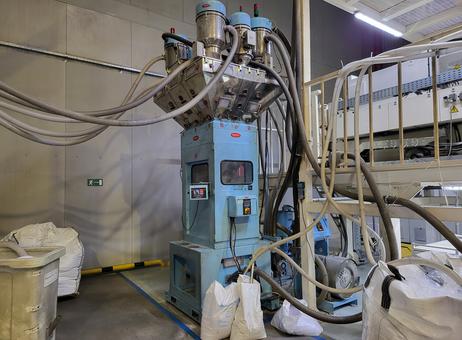

Recyclable materials (mixed) SBC, GPPS
Thickness 40-60 microns
% shrinkage 70-72%
Net width / when leaving TDO 2780 / 3200

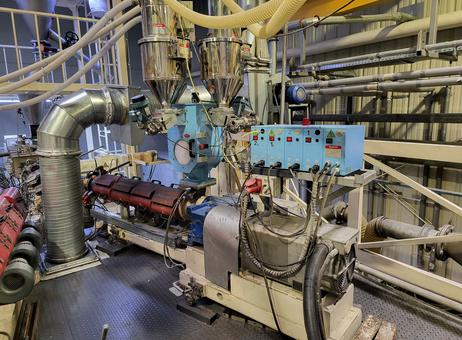

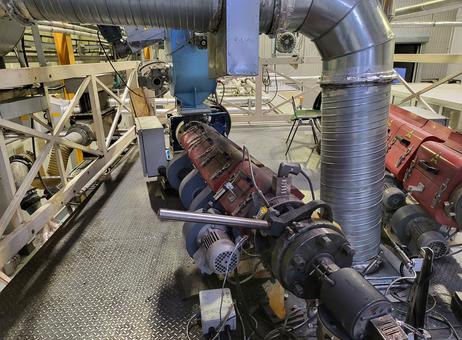

Main extruder ZSK Mc70 plus
Coextruder 50 mm
Static mixers - in the main extruder and co-extruder lines.

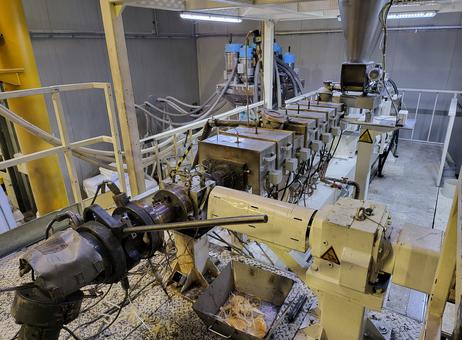

Die - Nordson Autoflex VI-R H40 Die 750 mm (28 bolts)

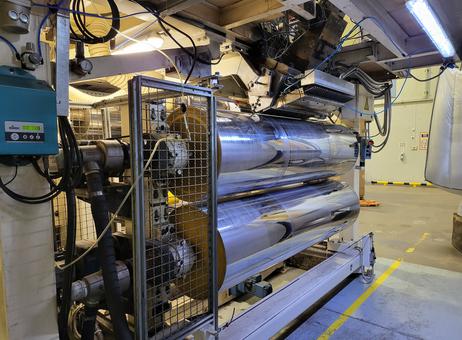

Roll stack - 2 shafts (with mirror surface - chrome)
MDO 6 shafts (1, 2 - preheating; 3-4 stretching 1:1.2; 5.6 - annealing)

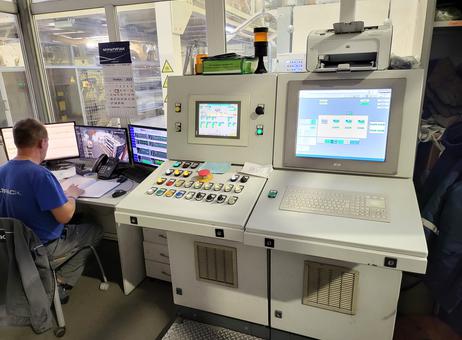

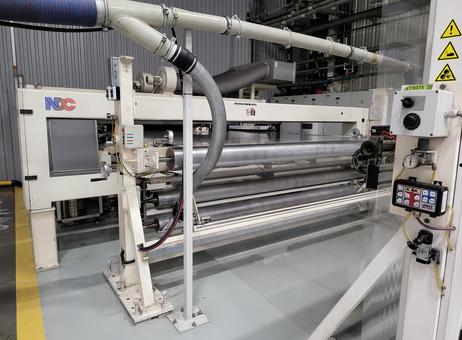

2 thickness measurement sensors from NDC (USA, UK) with automatic thickness control, new control equipment installed in 2018. (computer and software), sensors - overhaul in the UK from the manufacturer (NDC) - 2019-2020

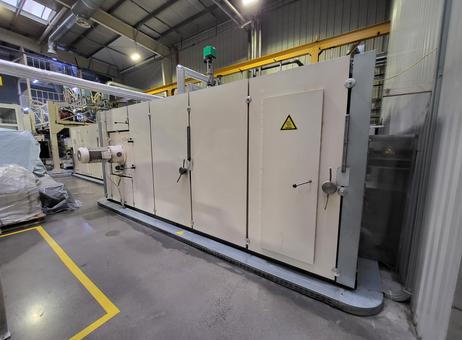

TDO stretch up to 1:5
Filmatic winder from W&H (Germany),
Max. roll diameter 580mm, expandable to 800mm
line speed (mechanical) up to 50 m/min
Voltage 400V-50Hz
- installed power 480kW
- power consumption 280kW
Warehouse of finished base rolls

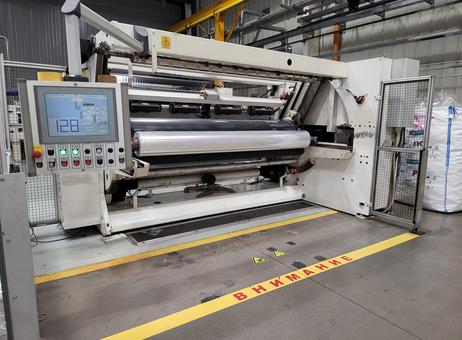

Slitting machine A-3000 (Dahua)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – large company |
| Active since | 2017 |
| Offers online | 1 |
| Last activity | May 30, 2026 |
Extrusion line for the production of heat-shrinkable OPS (oriented polystyrene) film
Product structure A/B/A
Recyclable materials (mixed) SBC, GPPS
Thickness 40-60 microns
% shrinkage 70-72%
Net width / when leaving TDO 2780 / 3200
Main extruder ZSK Mc70 plus
Coextruder 50 mm
Static mixers - in the main extruder and co-extruder lines.
Die - Nordson Autoflex VI-R H40 Die 750 mm (28 bolts)
Roll stack - 2 shafts (with mirror surface - chrome)
MDO 6 shafts (1, 2 - preheating; 3-4 stretching 1:1.2; 5.6 - annealing)
2 thickness measurement sensors from NDC (USA, UK) with automatic thickness control, new control equipment installed in 2018. (computer and software), sensors - overhaul in the UK from the manufacturer (NDC) - 2019-2020
TDO stretch up to 1:5
Filmatic winder from W&H (Germany),
Max. roll diameter 580mm, expandable to 800mm
line speed (mechanical) up to 50 m/min
Voltage 400V-50Hz
- installed power 480kW
- power consumption 280kW
Warehouse of finished base rolls
Slitting machine A-3000 (Dahua)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
