| Manufacturer | Carle & Montanari |
|---|---|
| Model | 4 Pot |
| Year | |
| Location | Germany
|
Carle & Montanari 4 Pot Cocoa Butter Press designed for extracting cocoa butter efficiently. This machine features four horizontally aligned cylindrical chambers for pressing, capable of handling a loading capacity of approximately 30 kg. It delivers a performance output of around 90 kg per hour, with a butter residue remaining in the cocoa cake estimated between 10 to 12%. The pistons have a diameter of 420 mm, and the press operates at a maximum working pressure of 420 bar, applying a specific pressure on the product of 800 kg/cm².

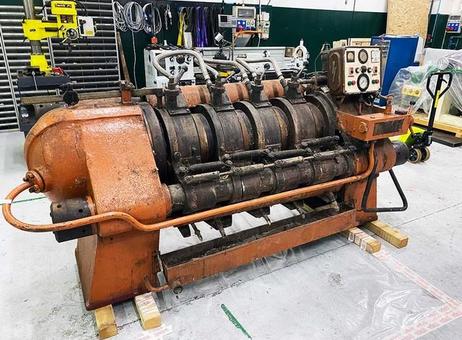

The press has substantial dimensions measuring 2,700 mm in length, 1,200 mm in width, and 1,200 mm in height, with a total weight of 6,000 kg. The machine is equipped with a control panel featuring multiple gauges and switches located on the right side, facilitating operational management. For safety, there is an orange protective guard rail surrounding the front lower part of the machine.

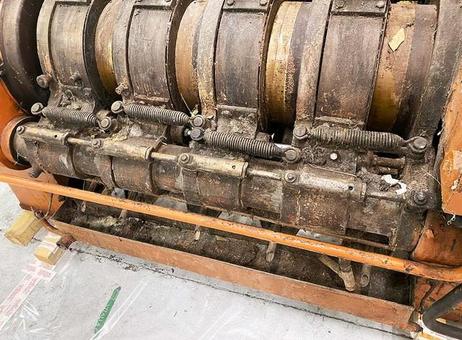

Visible signs of heavy rust and wear are present on the metal surfaces, including dirt accumulation and grime buildup, particularly on the lower parts and around the cylindrical chambers. The machine is currently mounted on wooden blocks for support. Springs and bolted clamps are part of the cylindrical sections, contributing to the assembly and functionality of the press.

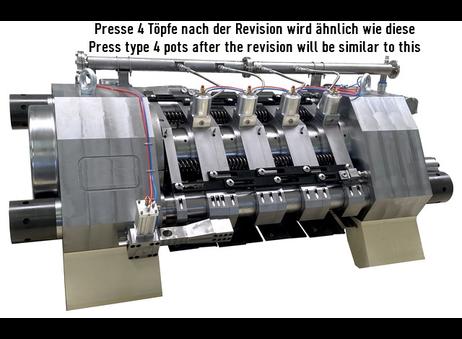

This equipment is offered refurbished by the owner, with refurbishment commencing after order placement. Refurbishment includes installation of a new electric-hydraulic safety interlock, updated drive and control system with PLC and 7" touchscreen, a new hydraulic unit, feed pump, and hydraulic/electric assembly materials. Spare parts and tools for maintenance and cleaning are included.
Optional accessories available include a homogenizer for cocoa mass, additional feed pump, heating unit with thermal oil, cocoa cake breaker, butter scale, filter press for butter, butter tank for clarified butter, and support legs. The machine is sold ex works.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Cocoa Butter Press
with 4 x chambers for pressing
Loading capacity 30 kg
Performance 90 kg/h (butter residue in cocoa cake 10/12%)
Diameter of pistons 420 mm
maximum working pressure 420 bar
specific pressure on the product 800 kg/cm2
Weight: 6,000 kg
Dimensions 2,700 x 1,200 x 1,200 mm
Offered only refurbished by the owner, refurbishment takes place after order placement, the following work is carried out:
with new electric-hydraulic safety interlock
new drive and control system with PLC and 7" touchscreen
new hydraulic unit
new feed pump
new hydraulic/electric assembly material included
Spare parts and tools for maintenance and cleaning included
optional new accessories:
Homogenizer for cocoa mass
additional feed pump
Heating unit with thermal oil
Cocoa cake breaker
Butter scale
Filter press for butter
Butter tank for clarified butter
Support legs
ex works
