Contact us to receive an offer.
| Manufacturer | CARIBA |
|---|---|
| Model | AV 30 /13 1 |
| Year | |
| Location | Italy
|
| Category | Cartoning machines - Horizontal cartoners |
| Capacity units | 40 u/mn |
| Min length (C) | 50 mm |
| Max length (C) | 140 mm |
| Min width (B) | 15 mm |
| Max width (B) | 70 mm |
| Min height (A) | 70 mm |
| Max height (A) | 300 mm |
| Weight | 600 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 26/05/2026 |
| Product id | P230424047 |
| Language |
CARIBA AV 30 /13 1
Kartonážní stroj CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
CARIBA AV 30 /13 1 Kartoniermaschine
CARIBA AV 30 /13 1
CARIBA AV 30 /13 1 Cartoning machine
Estuchadora horizontal CARIBA AV 30 /13 1
Etuyeuse CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
Astucciatrice CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
Kartoniarka CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
CARIBA AV 30 /13 1 Машина для расфасовки в картонные коробки
CARIBA AV 30 /13 1
CARIBA AV 30 /13 1
Kartonlama makinesi CARIBA AV 30 /13 1
|
The CARIBA AV 30 /13 1 is a horizontal cartoning machine designed to efficiently pack a variety of products into cartons with precision. This model features alternating mechanical movements and electropneumatic controls, providing a reliable and consistent packaging process. It operates with a maximum mechanical speed of 55 strokes per minute, achieving a productivity range of 10,000 to 20,000 cartons in an eight-hour shift, depending on the product type.
The machine handles cartons with dimensions ranging from 50 to 140 mm in length (C), 15 to 70 mm in width (B), and 70 to 300 mm in height (A). It weighs approximately 600 kg and is powered by a 2 kW installed motor, requiring a supply voltage of 220/380V at 50 Hz. The air consumption is 175 NL per cycle.

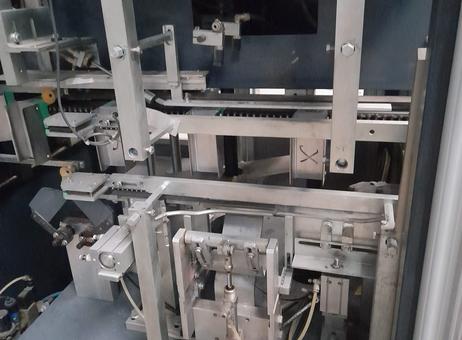

During operation, die-cuts are picked from the magazine using suction cups, transferred from the mould, and placed into corresponding drawers. The machine sequentially unfolds and glues the bottom flaps of the carton. The product is then fed into the carton via a feeding system that adapts according to the product type. The upper flaps of the carton are opened to facilitate insertion, and a pusher ensures the product is fully inserted. The carton is closed by folding the side flaps followed by the closing flap in two steps, with a final pusher evacuating the finished carton.
The AV 30 /13 1 is designed for minimal maintenance and requires only one operator to feed the product. It features a reduced footprint and total separation of the work table from the mechanical parts. The machine also allows automatic coupling to CARIBA display case packers, enhancing production flexibility.

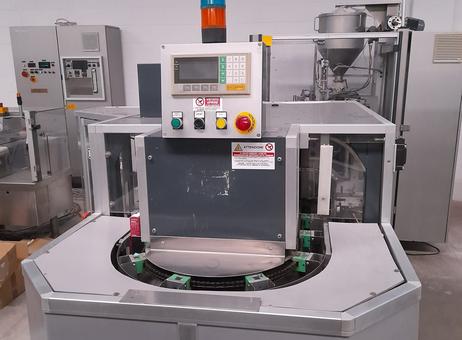

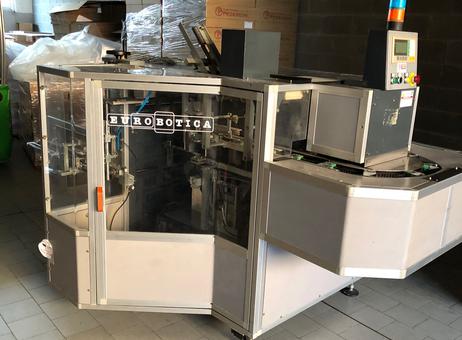

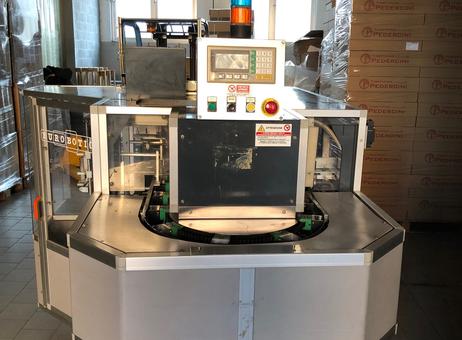

Visually, the machine includes a control panel with buttons and a screen, indicator lights on top, and protective transparent panels surrounding the working area. It has a rotary conveyor or turntable section at the front to assist in product handling. The machine appears clean with minor visible wear on the front panel and no obvious damage. Safety enclosures with transparent panels and metal frames are present, and an electrical panel with emergency stop and control buttons is located at the rear. Some cables are visible on top but show no signs of damage.
Please note that the detailed technical specifications and machine condition should be verified during an on-site visit to ensure suitability for your specific packaging needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

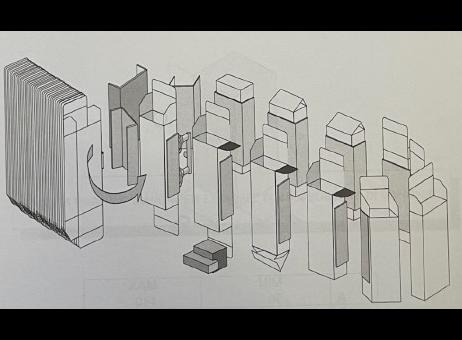

The die-cuts are taken from the magazine by means of suction cups, then removed from the mould during transfer and placed in the corresponding drawer. In sequence, the side (bottom) flaps are unrolled and closed, then, after gluing, the remaining (bottom) flaps are glued together. The product is fed into the carton via a feeding system that varies according to the type of product in the carton. The feeding system positions the product in the carton; the upper flaps of the carton are opened to facilitate insertion and a pusher pushes the product completely into the carton. The carton is closed by successively folding the side flaps and then the closing flap in two steps, i.e. first folding and then inserting the flap and closing the carton. the carton. The closed carton is then evacuated by means of a pusher.
The AV 30 case packer is designed for packing typically difficult products:
- Machine with alternating mechanical movements, equipped with electropneumatic controls.
- Reduced footprint.
- Total separation of the work table from the mechanical parts.
- Only one operator is required to feed the product.
- Minimum maintenance
- Automatic coupling to our display case packers.
MACHINE TECHNICAL DATA
Supply voltage: 220/380V. - 50 Hz
Installed power: 2 KW
Air consumption: 175 NL/cycle
Maximum mechanical speed: 55 strokes per minute
Productivity: 10,000/20,000 in eight hours, depending on product type.
Changeover time: Max. 15 minutes

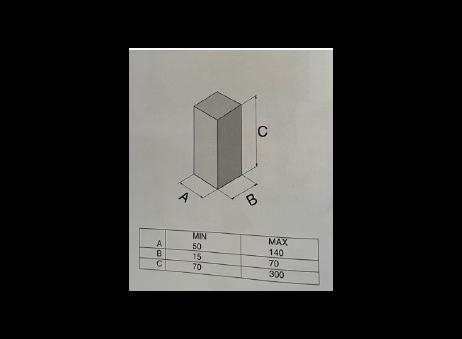

Case characteristics :
A min 50 max 140
B min 15 max 70
C min 70 max 300
this extra information is standard for this model. Please always double-check the details during a visit
The CARIBA AV 30/13 1 Cartoning Machine stands as a pinnacle of precision and efficiency in the packaging machinery landscape. Engineered by CARIBA, a respected industry leader, this model redefines cartoning through its advanced features and robust design.
The AV 30/13 1 Cartoning Machine is meticulously crafted to efficiently package a diverse range of products into cartons with exceptional accuracy. Its high-speed operation, coupled with intelligent sensors and advanced carton handling mechanisms, ensures precise carton loading and sealing, minimizing errors and enhancing overall efficiency. This model's technological sophistication exemplifies CARIBA's commitment to innovation.
The machine's user-friendly interface empowers operators to effortlessly configure cartoning parameters and monitor the process in real-time, streamlining production workflows. The AV 30/13 1's adaptable design accommodates varying carton sizes and formats, enhancing production flexibility.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 383 |
| Last activity | Oct. 30, 2026 |
The die-cuts are taken from the magazine by means of suction cups, then removed from the mould during transfer and placed in the corresponding drawer. In sequence, the side (bottom) flaps are unrolled and closed, then, after gluing, the remaining (bottom) flaps are glued together. The product is fed into the carton via a feeding system that varies according to the type of product in the carton. The feeding system positions the product in the carton; the upper flaps of the carton are opened to facilitate insertion and a pusher pushes the product completely into the carton. The carton is closed by successively folding the side flaps and then the closing flap in two steps, i.e. first folding and then inserting the flap and closing the carton. the carton. The closed carton is then evacuated by means of a pusher.
The AV 30 case packer is designed for packing typically difficult products:
- Machine with alternating mechanical movements, equipped with electropneumatic controls.
- Reduced footprint.
- Total separation of the work table from the mechanical parts.
- Only one operator is required to feed the product.
- Minimum maintenance
- Automatic coupling to our display case packers.
MACHINE TECHNICAL DATA
Supply voltage: 220/380V. - 50 Hz
Installed power: 2 KW
Air consumption: 175 NL/cycle
Maximum mechanical speed: 55 strokes per minute
Productivity: 10,000/20,000 in eight hours, depending on product type.
Changeover time: Max. 15 minutes
Case characteristics :
A min 50 max 140
B min 15 max 70
C min 70 max 300
this extra information is standard for this model. Please always double-check the details during a visit
The CARIBA AV 30/13 1 Cartoning Machine stands as a pinnacle of precision and efficiency in the packaging machinery landscape. Engineered by CARIBA, a respected industry leader, this model redefines cartoning through its advanced features and robust design.
The AV 30/13 1 Cartoning Machine is meticulously crafted to efficiently package a diverse range of products into cartons with exceptional accuracy. Its high-speed operation, coupled with intelligent sensors and advanced carton handling mechanisms, ensures precise carton loading and sealing, minimizing errors and enhancing overall efficiency. This model's technological sophistication exemplifies CARIBA's commitment to innovation.
The machine's user-friendly interface empowers operators to effortlessly configure cartoning parameters and monitor the process in real-time, streamlining production workflows. The AV 30/13 1's adaptable design accommodates varying carton sizes and formats, enhancing production flexibility.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
