Contact us to receive an offer.
| Manufacturer | Cam Partena |
|---|---|
| Model | MX |
| Year | 1993 |
| Location | Italy
|
| Category | Blister machines |
| Moulding width | 256 mm |
| Forming depth | 12 mm |
| Max foil width | 256 mm |
| Cycle/min | 50 |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 26/05/2026 |
| Product id | P70504008 |
| Language |
Cam Partena MX
Blistrovací stroj Cam Partena MX
Cam Partena MX
Cam Partena MX Blistermaschine
Cam Partena MX
Cam Partena MX Used Blister machine
Máquina blister Cam Partena MX
Blistéreuse Cam Partena MX
Cam Partena MX
Cam Partena MX
Blisteratrice usata Cam Partena MX
Cam Partena MX
Cam Partena MX
Blistrownica Cam Partena MX
Cam Partena MX
Cam Partena MX
Cam Partena MX Блистеровочная машина
Cam Partena MX
Cam Partena MX
Blister ambalaj makinesi Cam Partena MX
|
The Cam Partena MX is a blister packaging machine manufactured in 1993, designed for forming, filling, and sealing blister packs in materials such as PVC/ALU and PVDC/ALU. It features a mechanical transfer system using clips for intermittent, complete movement of the forming material foil, with a maximum foil width of 256 mm and a forming depth of 12 mm. The machine operates at a cycle speed of up to 50 cycles per minute, with a mechanical speed adjustable from 25 to 50 cycles per minute.
This model includes several key stations: a preheating station equipped with easily replaceable, non-stick treated plates; a formation station with rotary movement; and a welding station also utilizing rotary movement. The machine is equipped with digital thermoregulators for precise temperature control within set limits. It also has safety features including a plexiglass protective enclosure with safety microswitches.
Additional functional components include a vacuum pump, dry air pressure and air control systems, and a transfer system from the blister cutting die to the blister magazine. The machine is powered by a self-locking three-phase motor with variable speed controlled via an inverter. It requires a power supply of 380 V at 50 Hz and has a maximum installed power of 11 kVA.
Cooling water consumption is approximately 0.7 liters per hour at 1-2 bar pressure, and compressed air consumption is about 500 liters per minute at 6-7 bar pressure. The machine also features controls for minimum foil sealing and forming material levels, with pre-alarm signals on the control panel.

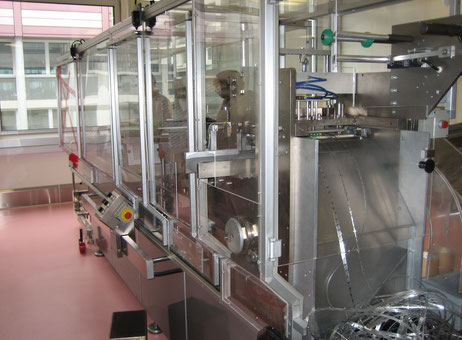

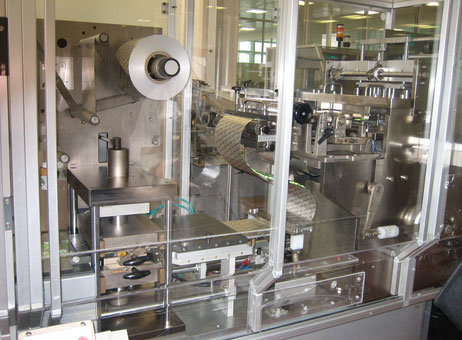

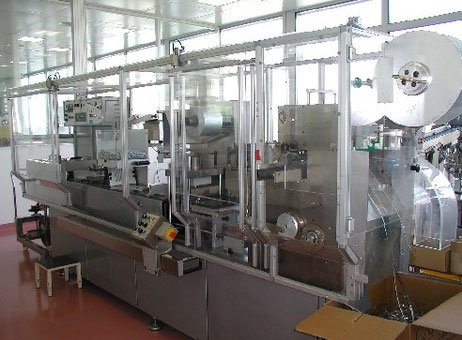

Visually, the machine has a stainless steel frame with transparent protective panels and includes a control panel with buttons and an emergency stop switch. A large film roll is mounted on the right side for blister forming, and a conveyor system facilitates the movement of blister packs through the machine. The machine appears clean and well-maintained in a bright industrial environment.
This Cam Partena MX blister machine is suitable for pharmaceutical, medical device, and consumer goods packaging applications. Prospective buyers should verify all details during an on-site visit to confirm specifications and condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Blister machine for the blister pack in PVC / ALU and PVDC / ALU with mechanical transfer of the forming material by means of clips of intermittent complete movement of: Support for the foil of the forming material. Digital thermoregulators at controlled limits. Preheating station with easily replaceable plates treated non-stick. Formation station with "rotary" movement Welding station with "rotary" movement Limiter of the cooling water circuit when the machine is stopped. Sealing material foil holder Internal diameter 70-76 mm External diameter maximum 300 mm. Transfer system from the blister of the cutting die to the blister magazine. Motorization with self-locking three-phase motor with variable speed through inverter. Vacuum pump dry air pressure and air control Protection in plexiglas with safety microswitches. Controls of minimum level foils sealing and formation materials, with a pre - alarm signal on the panel Power supply: Voltage and frequency 50 Hz - 380 V Display status machine Remote control push button Maximum width of forming material: 256 mm Maximum depth of forming: 12 mm Mechanical speed: from 25 to 50 cycles / minute Maximum index: 156 mm Consumption: Maximum power installed: 11 KvA Water for cooling: 0.7 / h at a pressure of 1-2 Bar Compressed air: 500 L / mn with a pressure of 6-7 bar Automatic Feeding for the capsules
this extra information is standard for this model. Please always double-check the details during a visit
The Cam Partena MX Blister Machine, a trusted workhorse in the packaging industry, was originally manufactured in 1993. Despite its age, this machine continues to deliver efficient and precise blister packaging capabilities.
The Partena MX is designed for the primary purpose of forming, filling, and sealing blister packs, making it particularly valuable in pharmaceutical, medical device, and consumer goods packaging. Its versatility allows it to handle various blister formats, accommodating an array of product sizes and shapes.
One of its standout features is its advanced blistering technology. The machine incorporates precise dosing and sealing systems, ensuring consistent and secure blister packs. This level of precision is paramount for maintaining product integrity and compliance with packaging regulations.
Investing in a used Cam Partena MX Blister Machine from 1993 can be a cost-effective choice for companies seeking to optimize their blister packaging processes while managing expenses. Proper refurbishment and maintenance can extend its operational life, making it a reliable and budget-friendly option for businesses seeking proven blister packaging solutions with a history of performance and reliability.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 384 |
| Last activity | Oct. 27, 2026 |
Blister machine for the blister pack in PVC / ALU and PVDC / ALU with mechanical transfer of the forming material by means of clips of intermittent complete movement of: Support for the foil of the forming material. Digital thermoregulators at controlled limits. Preheating station with easily replaceable plates treated non-stick. Formation station with "rotary" movement Welding station with "rotary" movement Limiter of the cooling water circuit when the machine is stopped. Sealing material foil holder Internal diameter 70-76 mm External diameter maximum 300 mm. Transfer system from the blister of the cutting die to the blister magazine. Motorization with self-locking three-phase motor with variable speed through inverter. Vacuum pump dry air pressure and air control Protection in plexiglas with safety microswitches. Controls of minimum level foils sealing and formation materials, with a pre - alarm signal on the panel Power supply: Voltage and frequency 50 Hz - 380 V Display status machine Remote control push button Maximum width of forming material: 256 mm Maximum depth of forming: 12 mm Mechanical speed: from 25 to 50 cycles / minute Maximum index: 156 mm Consumption: Maximum power installed: 11 KvA Water for cooling: 0.7 / h at a pressure of 1-2 Bar Compressed air: 500 L / mn with a pressure of 6-7 bar Automatic Feeding for the capsules
this extra information is standard for this model. Please always double-check the details during a visit
The Cam Partena MX Blister Machine, a trusted workhorse in the packaging industry, was originally manufactured in 1993. Despite its age, this machine continues to deliver efficient and precise blister packaging capabilities.
The Partena MX is designed for the primary purpose of forming, filling, and sealing blister packs, making it particularly valuable in pharmaceutical, medical device, and consumer goods packaging. Its versatility allows it to handle various blister formats, accommodating an array of product sizes and shapes.
One of its standout features is its advanced blistering technology. The machine incorporates precise dosing and sealing systems, ensuring consistent and secure blister packs. This level of precision is paramount for maintaining product integrity and compliance with packaging regulations.
Investing in a used Cam Partena MX Blister Machine from 1993 can be a cost-effective choice for companies seeking to optimize their blister packaging processes while managing expenses. Proper refurbishment and maintenance can extend its operational life, making it a reliable and budget-friendly option for businesses seeking proven blister packaging solutions with a history of performance and reliability.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
