Contact us to receive an offer.
| Manufacturer | Cam |
|---|---|
| Model | M92F + PG |
| Year | 2006 |
| Location | Italy
|
| Category | Blister machines |
| Moulding length | 200 mm |
| Moulding width | 120 mm |
| Forming depth | 300 mm |
| Engine Power | 13 kW |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 31/03/2026 |
| Product id | P220222072 |
| Language |
Cam M92F + PG
Blistrovací stroj Cam M92F + PG
Cam M92F + PG
Cam M92F + PG Blistermaschine
Cam M92F + PG
Cam M92F + PG Blister machine
Máquina blister Cam M92F + PG
Blistéreuse Cam M92F + PG
Cam M92F + PG
Cam M92F + PG
Blisteratrice Cam M92F + PG
Cam M92F + PG
Cam M92F + PG
Blistrownica Cam M92F + PG
Cam M92F + PG
Cam M92F + PG
Cam M92F + PG Блистерная машина
Cam M92F + PG
Cam M92F + PG
Blister ambalaj makinesi Cam M92F + PG
|
The Cam M92F + PG is a robust blister packaging machine manufactured by Cam in 2006, designed for pharmaceutical applications. This model integrates the M92F blister machine with the PG cartoning unit, providing a streamlined packaging solution that combines blister packing and automatic horizontal intermittent motion cartoning. The cartoner is capable of mechanical speeds ranging from 15 to 70 cartons per minute, with actual speeds depending on the nature of the product.
The machine supports a wide range of carton sizes, accommodating carton dimensions from a minimum of 50 mm to a maximum of 200 mm in length (A dimension), 25 mm to 120 mm in width (B dimension), and 105 mm to 300 mm in height (C dimension), with a combined A+B dimension up to 290 mm. It is set up for glue closure and is equipped with a GUK leaflet folder.
Key packaging parameters include a maximum output of 40 units, a maximum forward draw of 204 mm, and a maximum draw depth of 28 mm. The foil width can be up to 256 mm, and the maximum reel diameter for deep-draw foil is 400 mm. The machine requires compressed air at 6.0 to 8.0 bar with a minimum air consumption of 500 NL/min and cooling water consumption of approximately 0.7 m³/hr. The power consumption is 13 kW.

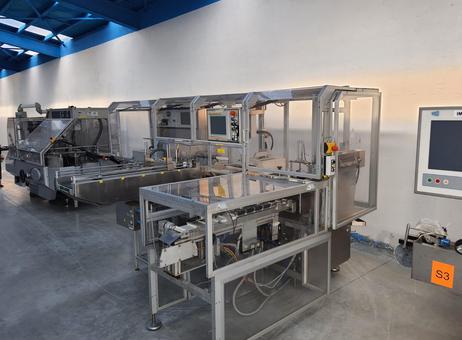

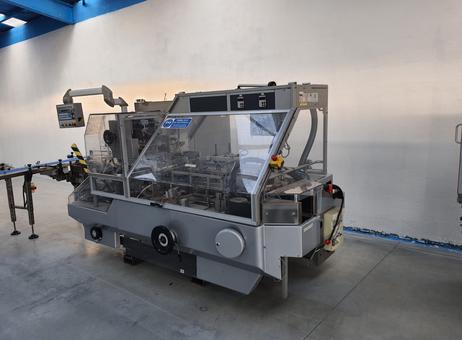

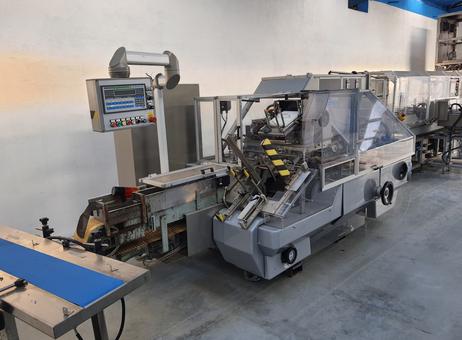

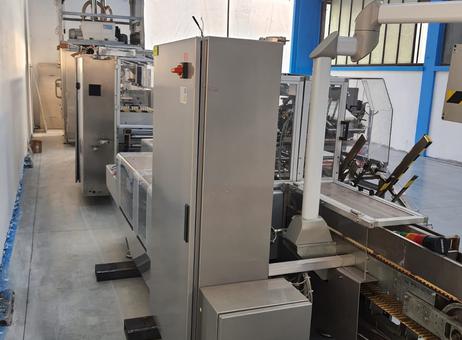

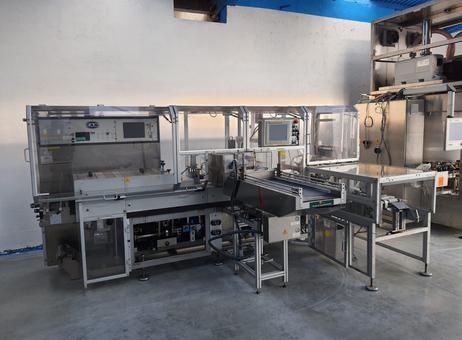

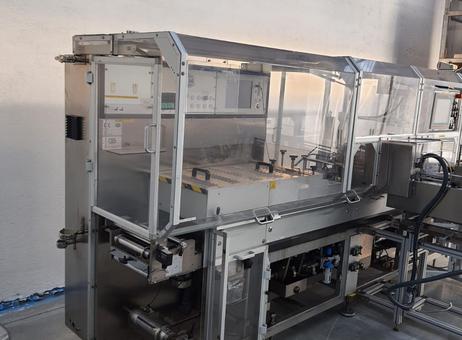

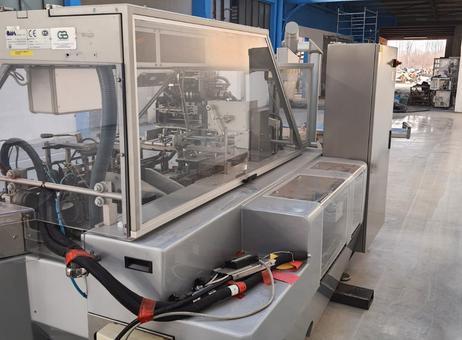

From the images, the machine appears to be a large industrial unit featuring transparent safety covers and a control panel with a screen, along with multiple control buttons and dials on the front panel. A conveyor belt system is attached for product transfer. The overall condition looks clean and well-maintained with no visible damage.
This machine offers flexibility for different product sizes and shapes, making it suitable for packaging tablets, capsules, and medical devices. The integrated cartoning unit enhances efficiency by reducing manual handling. The user-friendly interface facilitates easy setup and monitoring, while features for batch coding and serialization support pharmaceutical traceability and regulatory compliance.
Please note that the provided additional information is standard for this model; it is recommended to verify all details during an on-site visit.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Max. output: 40 Max. forward draw:204 mm Max. draw depth: 28 mm Foil width: 256 Max. reel diameter Deep-draw foil: 400 mm Compressed air: 6,0 - 8,0 bar Air consumption: min. 500 NL/min Cooling water required: approx. 0,7 m3/hr Power consumption: 13kW This Blisterpacker is currently fitted with the following format parts: 1-2 ml CARTONER: CAM PG Automatic horizontal intermittent motion cartoner Cartoner for large size products. Capable of mechanical speeds from 15 to 70 cartons per minute. (Actual speeds dependent upon nature of product.) Carton Size range : A Dimension Min 50mm Max 200mm B Dimension Min 25mm Max 120mm C Dimension Min 105mm Max 300mm A + B Max 290 mm Machine is set up for Glue closure Manufacturer: CAM Model: PG Machine equipped with:GUK LEAFLET FOLDER
this extra information is standard for this model. Please always double-check the details during a visit
The Cam M92F + PG Blister Machine, introduced in 2006, is a versatile and highly efficient packaging solution designed for the pharmaceutical industry. This machine combines the Cam M92F Blister Machine with the PG Cartoning Unit, offering a seamless packaging process for a range of pharmaceutical products. Here are some key features and benefits:
Flexibility: The Cam M92F + PG can accommodate different product sizes and shapes, making it ideal for a variety of pharmaceutical products, including tablets, capsules, and medical devices.
Integrated Cartoning: With the PG Cartoning Unit, the machine seamlessly integrates blister packing and cartoning, streamlining the packaging process and reducing manual handling.
User-Friendly Interface: The system features an intuitive control panel for easy setup and monitoring, reducing the risk of errors and ensuring efficient operation.
Quality Assurance: It includes features for precise batch coding and serialization, essential for pharmaceutical traceability and compliance with regulatory requirements.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the maximum production speed of this IMA C70?
This IMA C70 blister machine has a maximum production speed of 210 blisters per minute.
What blister dimensions can this IMA C70 handle?
This IMA C70 blister machine can handle blister dimensions of width 30-80 mm, length 60-130 mm, and depth 3-12 mm.
What features are included with this IMA C70?
This IMA C70 blister machine includes an automatic feeder and an inspection camera with rejection.
What is the cartoning speed of this IMA C70?
This IMA C70 blister machine is capable of cartoning at a speed of 120 cartons per minute.
What are the box dimensions for this IMA C70?
This IMA C70 blister machine has box dimensions of 20-85 x 12-60 x 55-140 mm.
What is the forming depth of this IMA C260?
This IMA C260 blister machine has a forming depth of 3-40 mm.
What is the production speed of this IMA C260?
This IMA C260 blister machine has a production speed of up to 800 1-2 ml DIN ampoules per minute and up to 400 1 ml syringes per minute.
What are the chiller dimensions for this IMA C260?
This IMA C260 blister machine has chiller dimensions of 480 x 470 x 960 mm.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 384 |
| Last activity | Oct. 26, 2026 |
Max. output: 40 Max. forward draw:204 mm Max. draw depth: 28 mm Foil width: 256 Max. reel diameter Deep-draw foil: 400 mm Compressed air: 6,0 - 8,0 bar Air consumption: min. 500 NL/min Cooling water required: approx. 0,7 m3/hr Power consumption: 13kW This Blisterpacker is currently fitted with the following format parts: 1-2 ml CARTONER: CAM PG Automatic horizontal intermittent motion cartoner Cartoner for large size products. Capable of mechanical speeds from 15 to 70 cartons per minute. (Actual speeds dependent upon nature of product.) Carton Size range : A Dimension Min 50mm Max 200mm B Dimension Min 25mm Max 120mm C Dimension Min 105mm Max 300mm A + B Max 290 mm Machine is set up for Glue closure Manufacturer: CAM Model: PG Machine equipped with:GUK LEAFLET FOLDER
this extra information is standard for this model. Please always double-check the details during a visit
The Cam M92F + PG Blister Machine, introduced in 2006, is a versatile and highly efficient packaging solution designed for the pharmaceutical industry. This machine combines the Cam M92F Blister Machine with the PG Cartoning Unit, offering a seamless packaging process for a range of pharmaceutical products. Here are some key features and benefits:
Flexibility: The Cam M92F + PG can accommodate different product sizes and shapes, making it ideal for a variety of pharmaceutical products, including tablets, capsules, and medical devices.
Integrated Cartoning: With the PG Cartoning Unit, the machine seamlessly integrates blister packing and cartoning, streamlining the packaging process and reducing manual handling.
User-Friendly Interface: The system features an intuitive control panel for easy setup and monitoring, reducing the risk of errors and ensuring efficient operation.
Quality Assurance: It includes features for precise batch coding and serialization, essential for pharmaceutical traceability and compliance with regulatory requirements.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the maximum production speed of this IMA C70?
This IMA C70 blister machine has a maximum production speed of 210 blisters per minute.
What blister dimensions can this IMA C70 handle?
This IMA C70 blister machine can handle blister dimensions of width 30-80 mm, length 60-130 mm, and depth 3-12 mm.
What features are included with this IMA C70?
This IMA C70 blister machine includes an automatic feeder and an inspection camera with rejection.
What is the cartoning speed of this IMA C70?
This IMA C70 blister machine is capable of cartoning at a speed of 120 cartons per minute.
What are the box dimensions for this IMA C70?
This IMA C70 blister machine has box dimensions of 20-85 x 12-60 x 55-140 mm.
What is the forming depth of this IMA C260?
This IMA C260 blister machine has a forming depth of 3-40 mm.
What is the production speed of this IMA C260?
This IMA C260 blister machine has a production speed of up to 800 1-2 ml DIN ampoules per minute and up to 400 1 ml syringes per minute.
What are the chiller dimensions for this IMA C260?
This IMA C260 blister machine has chiller dimensions of 480 x 470 x 960 mm.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Category | Blister machines |
| Moulding length | 200 mm |
| Moulding width | 120 mm |
| Forming depth | 300 mm |
| Engine Power | 13 kW |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 31/03/2026 |
| Product id | P220222072 |
| Language |
Cam M92F + PG
Blistrovací stroj Cam M92F + PG
Cam M92F + PG
Cam M92F + PG Blistermaschine
Cam M92F + PG
Cam M92F + PG Blister machine
Máquina blister Cam M92F + PG
Blistéreuse Cam M92F + PG
Cam M92F + PG
Cam M92F + PG
Blisteratrice Cam M92F + PG
Cam M92F + PG
Cam M92F + PG
Blistrownica Cam M92F + PG
Cam M92F + PG
Cam M92F + PG
Cam M92F + PG Блистерная машина
Cam M92F + PG
Cam M92F + PG
Blister ambalaj makinesi Cam M92F + PG
|
The Cam M92F + PG is a robust blister packaging machine manufactured by Cam in 2006, designed for pharmaceutical applications. This model integrates the M92F blister machine with the PG cartoning unit, providing a streamlined packaging solution that combines blister packing and automatic horizontal intermittent motion cartoning. The cartoner is capable of mechanical speeds ranging from 15 to 70 cartons per minute, with actual speeds depending on the nature of the product.
The machine supports a wide range of carton sizes, accommodating carton dimensions from a minimum of 50 mm to a maximum of 200 mm in length (A dimension), 25 mm to 120 mm in width (B dimension), and 105 mm to 300 mm in height (C dimension), with a combined A+B dimension up to 290 mm. It is set up for glue closure and is equipped with a GUK leaflet folder.
Key packaging parameters include a maximum output of 40 units, a maximum forward draw of 204 mm, and a maximum draw depth of 28 mm. The foil width can be up to 256 mm, and the maximum reel diameter for deep-draw foil is 400 mm. The machine requires compressed air at 6.0 to 8.0 bar with a minimum air consumption of 500 NL/min and cooling water consumption of approximately 0.7 m³/hr. The power consumption is 13 kW.
From the images, the machine appears to be a large industrial unit featuring transparent safety covers and a control panel with a screen, along with multiple control buttons and dials on the front panel. A conveyor belt system is attached for product transfer. The overall condition looks clean and well-maintained with no visible damage.
This machine offers flexibility for different product sizes and shapes, making it suitable for packaging tablets, capsules, and medical devices. The integrated cartoning unit enhances efficiency by reducing manual handling. The user-friendly interface facilitates easy setup and monitoring, while features for batch coding and serialization support pharmaceutical traceability and regulatory compliance.
Please note that the provided additional information is standard for this model; it is recommended to verify all details during an on-site visit.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 384 |
| Last activity | Oct. 26, 2026 |
