| Manufacturer | Cam |
|---|---|
| Model | M92F |
| Year | 2006 |
| Location | Italy
|
| Category | Blister machines |
| Forming depth | 28 mm |
| Max foil width | 256 mm |
| Engine Power | 13 kW |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 31/03/2026 |
| Product id | P241211413 |
| Language |
Блистер машина Cam M92F
Blistrovací stroj Cam M92F
Cam M92F Blister maskine
Cam M92F Blistermaschine
Μηχάνημα blister Cam M92F
Cam M92F Blister machine
Máquina blister Cam M92F
Blistéreuse Cam M92F
Blister stroj Cam M92F
Cam M92F Buborékfólia gép
Blisteratrice Cam M92F
Lizdinės plokštelės mašina Cam M92F
Cam M92F Blistermachine
Blistrownica Cam M92F
Máquina de blister Cam M92F
Aparat blister Cam M92F
Cam M92F Блистерная машина
Blister mašina Cam M92F
Cam M92F Blistermaskin
Blister ambalaj makinesi Cam M92F
|
This Cam M92F blister packaging machine, manufactured in 2006, is designed for intermittent operation to produce deep-drawn and sealed blister strips. It features a forming depth of 28.0 mm and accommodates a maximum foil width of 256.0 mm. The machine is powered by a 13.0 kW engine and operates with a variable speed, reaching up to 40 strokes per minute.
The production process begins with deep-draw foil fed from a reel on a separate holder located on the left side. The foil is heated and formed into blister pockets with the assistance of compressed air at the deep-draw station. After forming, the product is filled into the blister pockets at the filling station. This machine includes an automatic product infeed assembly that extracts products from magazines (not included), aligns them, and places them into the pockets.
Following filling, the web of blisters advances to a guillotine station where the blisters are cut out. The finished blisters are then placed onto an integrated conveyor system for transfer to subsequent packaging stages such as cartooning.

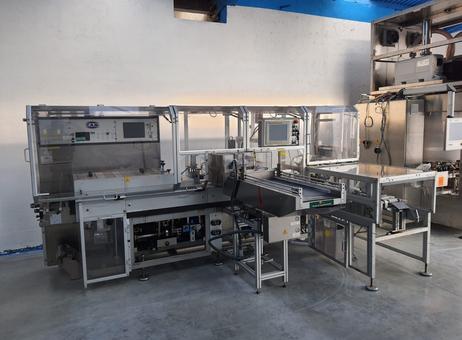

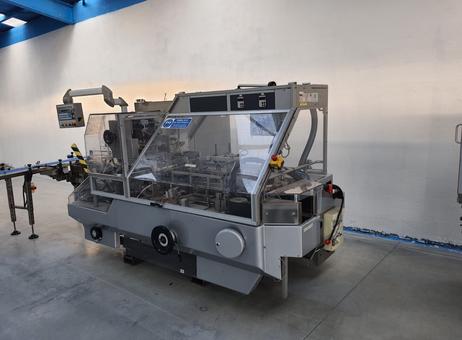

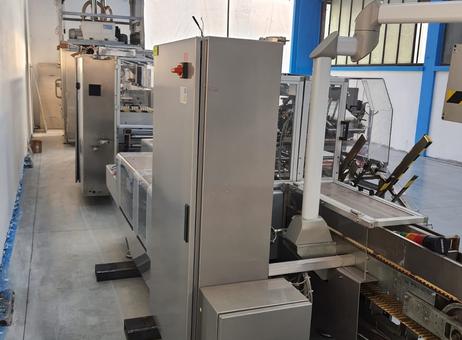

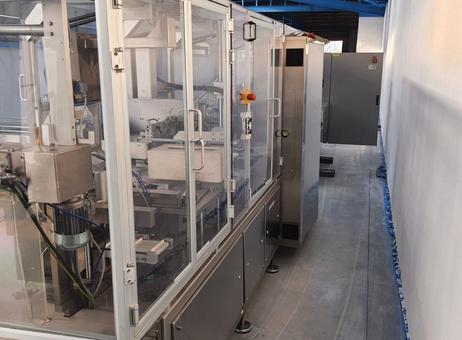

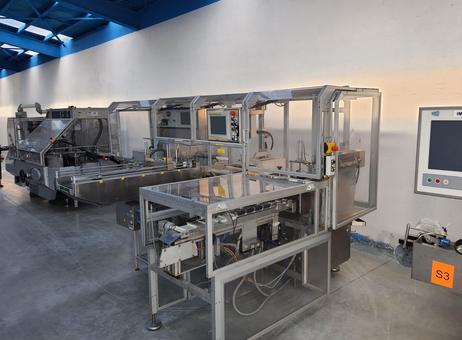

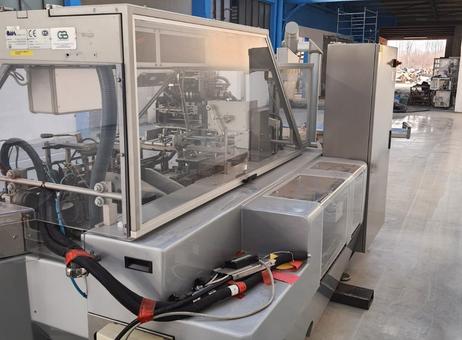

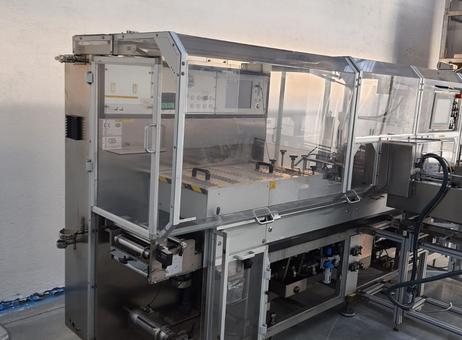

The machine is enclosed with transparent protective covers mounted on a sturdy metal frame, allowing visibility of the working parts while ensuring safety. Multiple access doors with handles provide convenient access for maintenance and operation. A control panel equipped with a screen and multiple buttons is located on the front left side for machine control and monitoring. Pneumatic and electrical components are visible beneath the conveyor system. The overall condition of the machine is clean and well-maintained, with no visible signs of damage or wear on the outer panels and doors.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This intermittently operating Blister packer is designed for the production of deep-drawn and sealed blister strips. The machine operates left to right and is arranged for variable speed operation with a maximum capacity of 40 strokes per minute.
After the blister is filled with ampoules. At the next station the web of blisters passes into a guillotine where the blisters are cut out. The blisters are placed onto a conveyor and are transferred to the Cartooning Machine.
Deep-draw foil is drawn from a reel on a separate reel-holder at the left and is fed to the heating- and deep-draw station where the blister pockets are formed with the assistance of compressed air.
At the filling station, product is fed into the formed blister pockets.
This machine is fitted with an automatic product infeed assembly where product is extracted from magazines (not included) and is then aligned and placed into the pockets.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
