Contact us to receive an offer.
| Manufacturer | Cam |
|---|---|
| Model | M92 |
| Year | |
| Location | Italy
|
| Category | Blister machines |
| Moulding length | 204 mm |
| Moulding width | 256 mm |
| Forming depth | 28 mm |
| Max foil width | 256 mm |
| Cycle/min | 40 |
| Engine Power | 13 kW |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 31/03/2026 |
| Product id | P250105167 |
| Language |
Блистер машина Cam M92
Blistrovací stroj Cam M92
Cam M92 Blister maskine
Cam M92 Blistermaschine
Μηχάνημα blister Cam M92
Cam M92 Blister machine
Máquina blister Cam M92
Blistéreuse Cam M92
Blister stroj Cam M92
Cam M92 Buborékfólia gép
Blisteratrice Cam M92
Lizdinės plokštelės mašina Cam M92
Cam M92 Blistermachine
Blistrownica Cam M92
Máquina de blister Cam M92
Aparat blister Cam M92
Cam M92 Блистерная машина
Blister mašina Cam M92
Cam M92 Blistermaskin
Blister ambalaj makinesi Cam M92
|

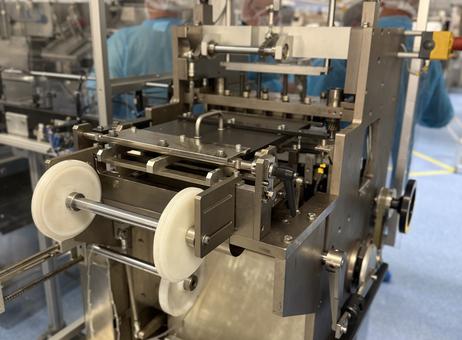

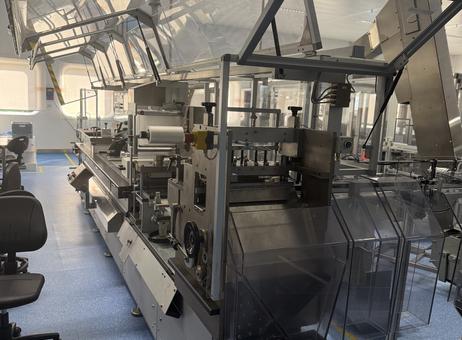

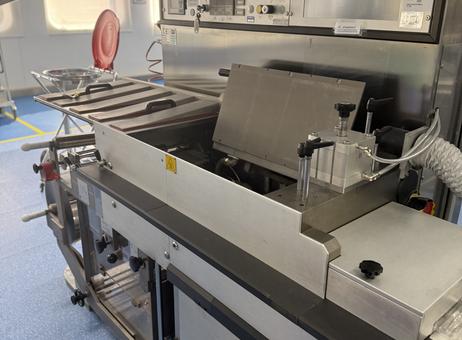

The Cam M92 is an intermittently operating blister packaging machine designed for the production of deep-drawn and sealed blister strips. It operates with a left-to-right motion and offers variable speed control, reaching a maximum cycle rate of 40 strokes per minute. The machine is capable of forming blister pockets with a maximum moulding length of 204 mm, a moulding width of 256 mm, and a forming depth of 28 mm, accommodating foil widths up to 256 mm.
Deep-draw foil is fed from a reel mounted on a separate reel holder on the left side of the machine. The foil passes through a heating and deep-draw station where blister pockets are formed using compressed air. After forming, the pockets are filled with product at the filling station. This machine includes an automatic product infeed assembly that extracts items from magazines (not included), aligns them, and places them into the blister pockets.
Following filling, the blister web moves to a guillotine station where individual blisters are cut out. The finished blisters are then transferred onto a conveyor belt for onward processing, such as carton packing.

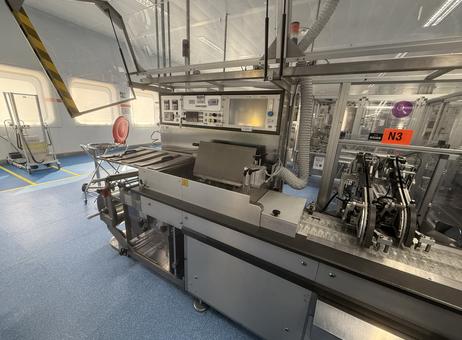

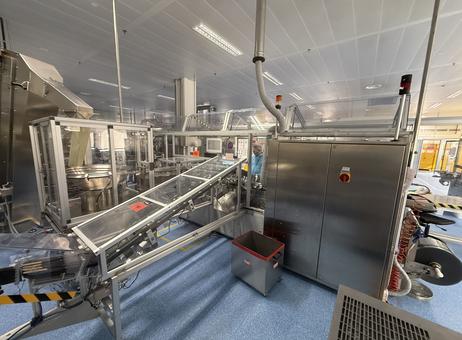

Constructed with stainless steel panels and equipped with transparent safety covers, the machine features a conveyor belt with protective glass covers extending from the unit. The control panel, located on the side, includes various buttons, switches, a screen, and an emergency stop button for operational safety. Multiple adjustment knobs and levers are present for fine-tuning machine settings. The machine is housed in a clean factory environment and appears well-maintained, with all visible components intact and free from damage.
Technical specifications include an engine power of 13 kW, compressed air requirement of 6.0 to 8.0 bar with a minimum air consumption of 500 NL/min, and cooling water consumption of approximately 0.7 m3/hr. The maximum reel diameter for the deep-draw foil is 400 mm. This robust design supports efficient and precise blister packaging operations suitable for pharmaceutical and related industries.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This intermittently operating Blister packer PARTENA CAM M92 is designed for the production of deep-drawn and sealed blister strips. The machine operates left to right and is arranged for variable speed operation with a maximum capacity of 40 strokes per minute.
After the blister is filled with ampoules. At the next station the web of blisters passes into a guillotine where the blisters are cut out. The blisters are placed onto a conveyor and are transferred to the Cartooning Machine.
Deep-draw foil is drawn from a reel on a separate reel-holder at the left and is fed to the heating- and deep-draw station where the blister pockets are formed with the assistance of compressed air.
At the filling station, product is fed into the formed blister pockets.
This machine is fitted with an automatic product infeed assembly where product is extracted from magazines (not included) and is then aligned and placed into the pockets.
Technical Specification:
Max. output: 40
Max. forward draw:204 mm
Max. draw depth: 28 mm
Foil width: 256
Max. reel diameter Deep-draw foil: 400 mm
Compressed air: 6,0 - 8,0 bar
Air consumption: min. 500 NL/min
Cooling water required: approx. 0,7 m3/hr
Power consumption: 13kW
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
