Contact us to receive an offer.
| Manufacturer | Bullmer |
|---|---|
| Model | premium Cut ELC 2200X2000CV |
| Year | 2016 |
| Location | France
|
The Bullmer Premium Cut ELC 2200X2000CV is an automated cutting machine designed for precision and efficiency in industrial applications. Manufactured in 2016, this machine features a robust metal structure treated for enhanced rigidity and durability. It has a cutting area with a useful length of 2000 mm and a width of 2200 mm, supported by a conveyor table that facilitates automatic feeding and evacuation of materials.
The cutting deck is powered by two brushless motors and equipped with pneumatic presses that firmly hold the material on the belt during feeding operations. Pneumatic clamps ensure synchronization of the belt drive with the presses for consistent cutting quality. The cutting head includes a modular tool holder compatible with two types of tools: an oscillating pneumatic knife and a straight mechanical knife, both featuring tangential control and pressure compensation for accurate cuts.
Material handling is enhanced by an unwinder for feeding rolls of material loaded on cones at the front of the table. The belt feed is controlled by two horizontal sequences with a long-lasting porous coating, and a pneumatically-operated pressure roller presses and drives the material onto the cutting belt.
The machine integrates a high-performance 7.5 kW turbine with sound insulation and a noise absorber for air evacuation, maintaining a maximum noise level of 72 dB. It includes a network card for CAD/CUT link, an internal modem, and comprehensive Windows-based software for settings, configuration, automatic compensation, optimization, and cutting file management in DXF/ISO-GBR formats.
With a maximum acceleration of 2g and a top speed of 120 m/min, the Bullmer Premium Cut delivers cutting accuracy within ±0.1 mm. The machine operates on 220/380 volts, 3-phase power with neutral and earth, and weighs approximately 1500 kg.

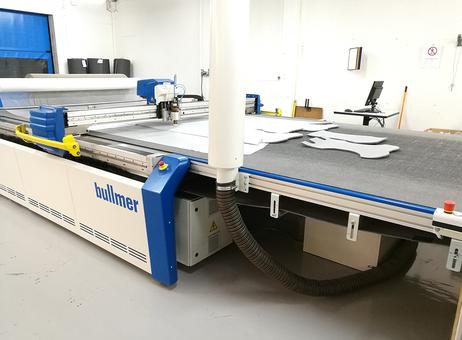

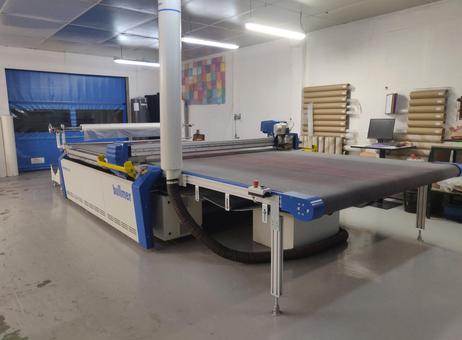

The machine appears well-maintained and clean, featuring a blue and white color scheme with visible Bullmer branding. A vertical white cylindrical exhaust or dust extraction pipe is attached for efficient air evacuation. Additionally, a roll of material is mounted on a holder at the back of the machine, indicating readiness for continuous operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Automated cutting machine BULLMER
Bullmer premium Cut ELC 2200X2000CV automated cutting machine
Date of manufacture March 2016
Dimensions of the automatic cutting machine with conveyor table
- Useful length of the cutting area = 2000mm
- Length of infeed area = 800mm
- Length of discharge area = 2000mm
- Total length of the unit with housings = 5200mm
- Useful width of cutting area = 2200mm

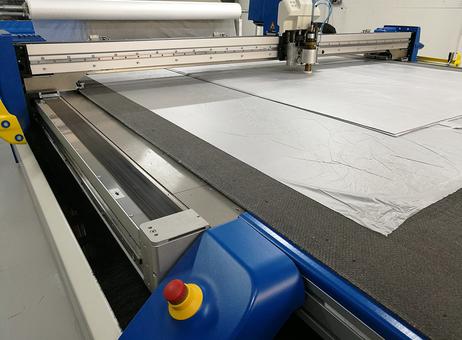

Cutting deck
- Deck moved by 2 brushless motors
- Metal structure lightened and reinforced by specific treatment to ensure extreme rigidity
- Pneumatic presses ensure that the material is held firmly on the belt during feed operations
- Pneumatic clamps maintain the belt drive synchronised with the presses

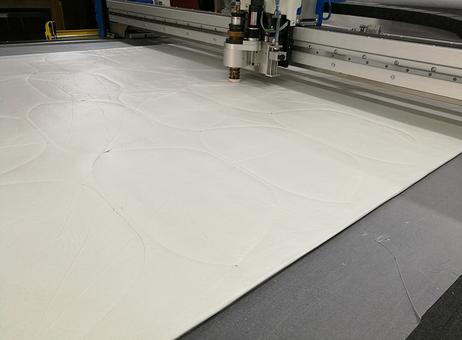

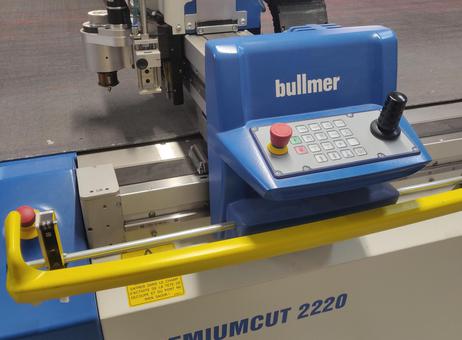

Cutting head
- Equipped with 1 modular and versatile tool holder with a choice of two tools
- 1 oscillating pneumatic knife with tangential control and pressure compensation
- 1 straight mechanical knife with tangential control and pressure compensation
Cutting table with automatic feed
- Belt feed controlled by 2 horizontal sequences
- Specific long-lasting porous belt coating
- Pneumatically-operated pressure roller located in front of the cutting belt for presing and drive the material
Unwinder for material feed by loading with cones at the front of the table
Evacuation table with automatic feed
Suction
- 1 integrated high performance turbine of only 7.5KW with sound insulation and noise absorber for air evacuation
Equipment
- Network card for CAD/CUT link
- Internal modem
- Complete software for Windows driver including the various modules for settings, configurations automatic compensation for alignment deviations, suppression of common lines, optimisation of head optimisation of head movements, automatic feed, plausibility checks, re-adjustments, etc.
plausibility checks, automatic repositioning of one or more parts selected in the placement for recutting at the beginning of the placement and a detailed log of cutting time reports.
- Cutting file accounting interface in DXF/ISO-GBR format
Features
- Max acceleration: 2g
- Max speed: 120m/mm
- Accuracy: +/-0.1mm
- Total power: 10KV
- Voltage: 220/380 volts, 3ph, Neutral + Earth 50Hz
- Weight : 1500kg
- Maximum noise level : 72 db
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this Bullmer premium Cut ELC 2200X2000CV manufactured?
This Bullmer premium Cut ELC 2200X2000CV automated cutting machine was manufactured in 2016.
Is this Bullmer premium Cut ELC 2200X2000CV in working condition?
This Bullmer premium Cut ELC 2200X2000CV cutting machine is currently in working condition.
Can this equipment be tested for cutting trials?
This equipment is available for testing and cutting trials.
How long has this Bullmer premium Cut ELC 2200X2000CV been listed for sale?
This Bullmer premium Cut ELC 2200X2000CV cutting machine has been listed for sale for an extended period.
Who is currently offering this Bullmer premium Cut ELC 2200X2000CV for sale?
This Bullmer premium Cut ELC 2200X2000CV cutting machine is currently being offered for sale by a reseller.
When did this Bullmer premium Cut ELC 2200X2000CV start operating?
This Bullmer premium Cut ELC 2200X2000CV has been in operation since September 2016.
How often is this equipment operated each month?
This equipment is currently operated approximately one week per month.
What is the maximum annual capacity usage of the machine?
The machine has been used at a maximum of approximately 20% capacity per year.
What is the operational area of the machine?
The machine has an operational area of 2200x2000 mm.
What applications is the machine designed for?
The unit is designed for cutting applications.
What year was this CadCam Technology FB1800 manufactured?
This CadCam Technology FB1800 laser cutting machine is from the year 2019.
Is this equipment available for immediate sale?
This equipment is available for immediate sale.
What is the intended use of this CadCam Technology FB1800?
This CadCam Technology FB1800 laser cutting machine is designed for sublimation processing.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
