24,000 €
Make an offerContact us to receive an offer.
| Nbr of rolls | 10 |
| Shaft diameter | 70 mm |
| Type | Horizontal |
| CNC | yes |
| CNC type | XF-touch screen Transducer brand: EURA |
| Bending speed | 10 m/min |
| ------------------- | |
| Length x width x height | 5000.0 × 1510.0 × 1500.0 |
| Weight | 5000 kg |
| worked hours | 1000 hours |
| hours under power | 1000 hours |
| state | in working conditions |
| At local norms | --------- |
| status | in production |
| Last availability date | 17/12/2025 |
The Botou Xianfa XF12-110.9-1109 is a horizontal profile bending machine designed for the production of trapezoidal roofing and facade profiles. This machine features 10 rolls with a shaft diameter of 70 mm, allowing it to shape metal sheets into profiles with a height of 12 mm. It is suitable for processing various materials including colored steel plates, galvanized boards, and aluminum plates, with a raw material width of up to 1250 mm and thickness ranging from 0.3 to 0.6 mm.
Powered by a total of 8 kW (4+4 kW), the machine operates at a bending speed of 10 meters per minute. The control system utilizes an industrial computer with a touch screen interface, offering adjustable target piece lengths and two modes of operation: automatic and manual. This makes the system user-friendly and adaptable to different production requirements.
The rollers are made from high-grade 45# steel with chrome plating on the surface to ensure durability. The machine's dimensions are approximately 5000 mm in length, 1510 mm in width, and 1500 mm in height, with a total weight of around 5000 kg.

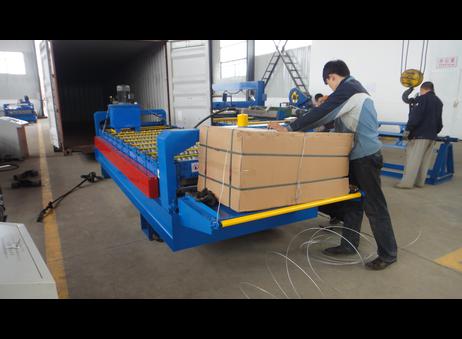

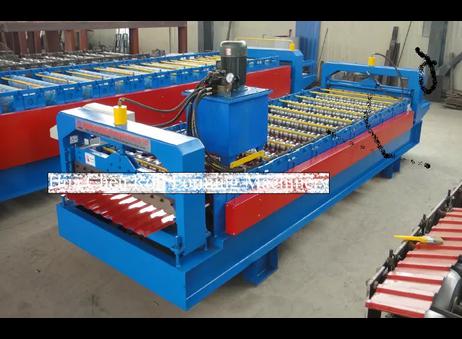

Visually, the machine is painted in blue and red and includes visible hydraulic motor and pump components mounted on top. It incorporates a roller conveyor system for shaping metal sheets. The machine appears to be in clean and good condition, housed indoors on a concrete floor alongside other similar equipment.

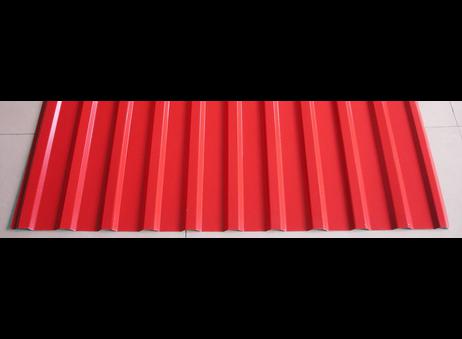

Additionally, a sample red corrugated metal sheet produced by the machine shows a uniform and consistent corrugation pattern, indicating the machine's capability to produce quality profiles. This equipment is suitable for users looking for a compact, mobile line to manufacture trapezoidal roofing profiles efficiently.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Rib Type Roofing Machine. Short, mobile line for the production of trapezoidal profiles for roofs and facades. Profile height 12 mm. Used line. Touch control. Works properly. Repair is not required.
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 1250mm
Rows of rollers 10 rows
Material of roller high grade 45# steel(plated chrome on surface)
Total power 4+4kw
Thickness of raw material 0.3-0.6mm
diameter of shaft ￠70mm
Voltage 380V 50Hz 3phases
The operation of touching screen
It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 3 |
| Last activity | Jan. 30, 2026 |
Rib Type Roofing Machine. Short, mobile line for the production of trapezoidal profiles for roofs and facades. Profile height 12 mm. Used line. Touch control. Works properly. Repair is not required.
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 1250mm
Rows of rollers 10 rows
Material of roller high grade 45# steel(plated chrome on surface)
Total power 4+4kw
Thickness of raw material 0.3-0.6mm
diameter of shaft ￠70mm
Voltage 380V 50Hz 3phases
The operation of touching screen
It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
