Contact us to receive an offer.
| Manufacturer | Bosch |
|---|---|
| Model | VSR F01 |
| Year | 1988 |
| Location | Germany
|

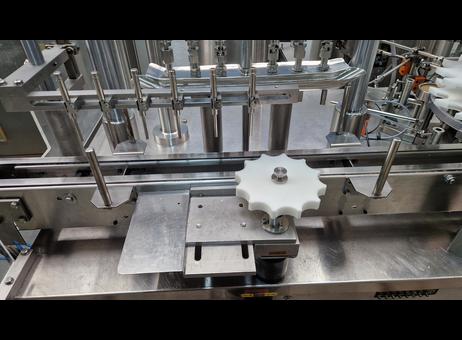

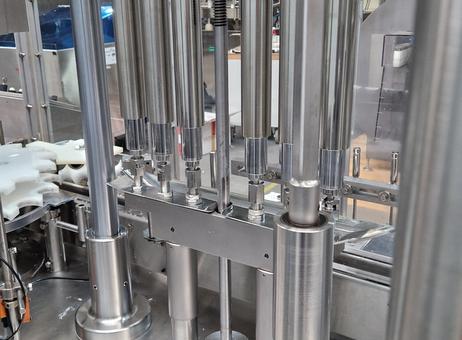

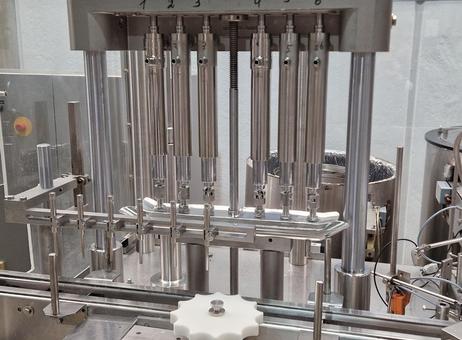

This Bosch VSR F01 vial filling machine, manufactured in 1988, is designed for filling, inserting dropper inserts, and sealing vials and bottles with screw caps. It has a maximum output capacity of 4800 units per hour, equivalent to 80 objects per minute. The machine features six filling stations equipped with rotary vane pumps that cover a filling range of 20-100 ml, with the possibility to extend the filling range by acquiring additional pumps. Included is one new replacement pump for the 20-100 ml filling range. The system incorporates anti-drip protection via suction back to ensure precise filling.

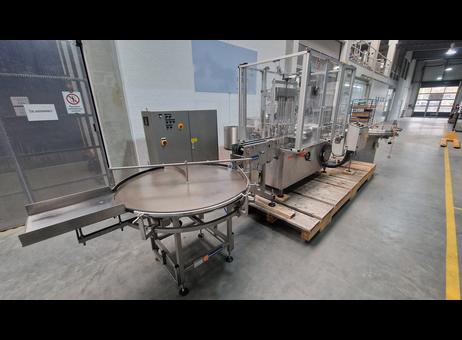

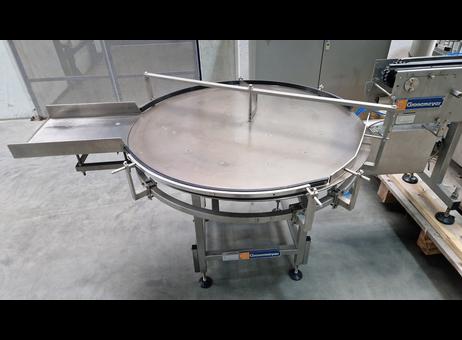

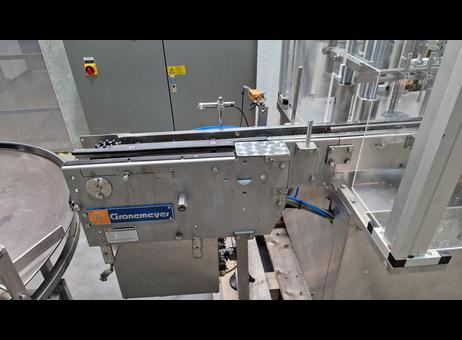

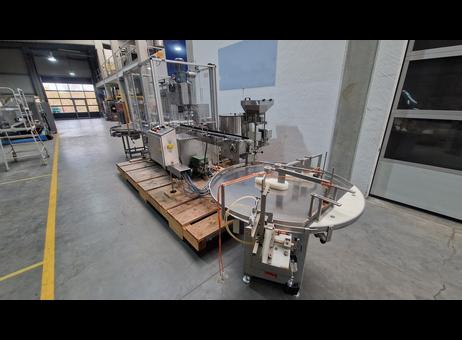

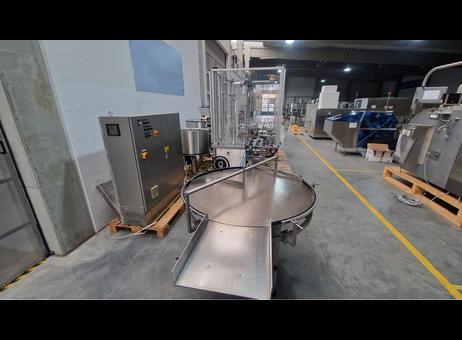

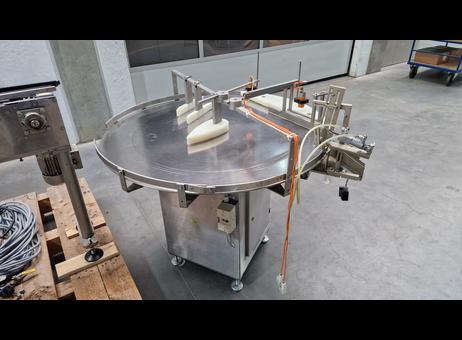

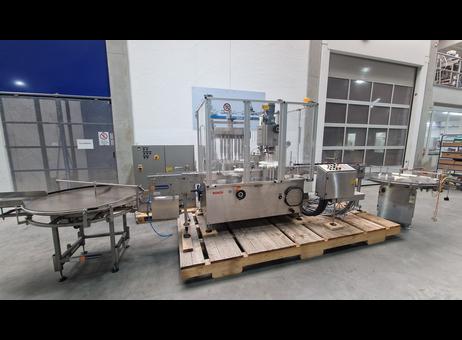

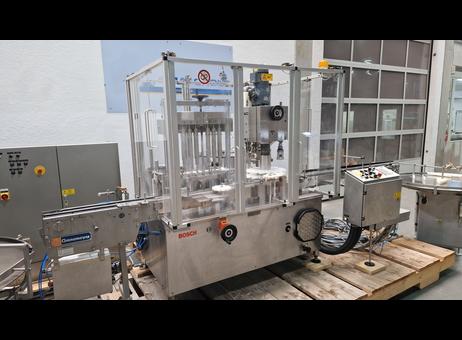

The machine is built with a stainless steel frame and includes a transparent safety enclosure for operational safety. Vial handling is managed through a rotary table for vial accumulation and feeding, positioned on the left side of the machine, and conveyor belts on both sides facilitate vial transport. The rotary table is large, made of stainless steel, and mounted on adjustable legs to allow height alignment. A metal chute feeds vials onto the rotary table.

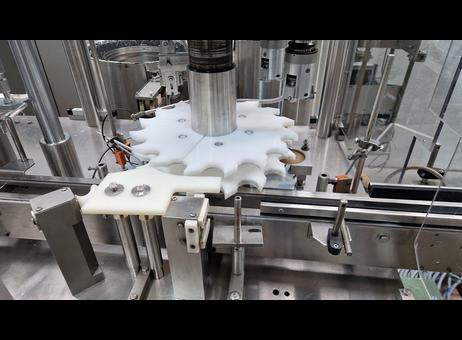

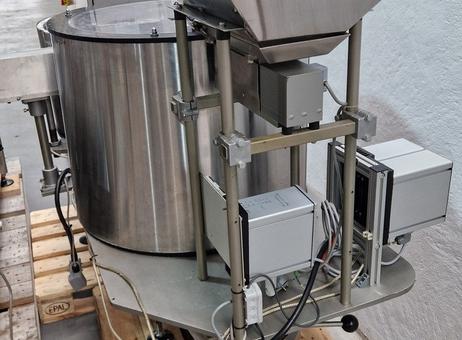

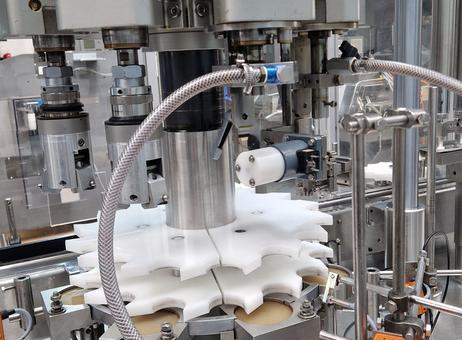

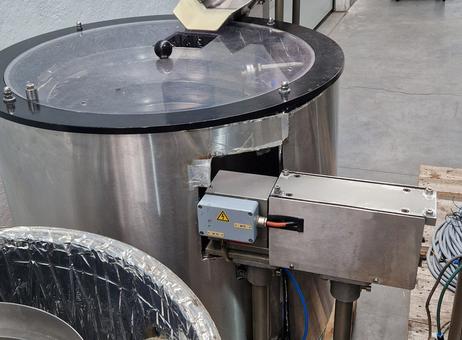

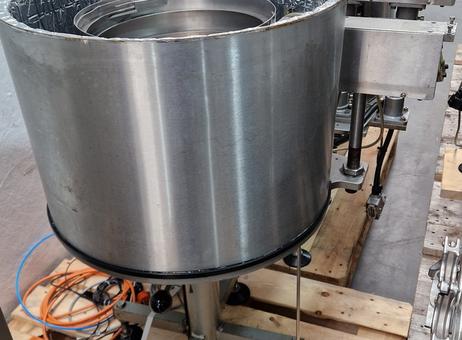

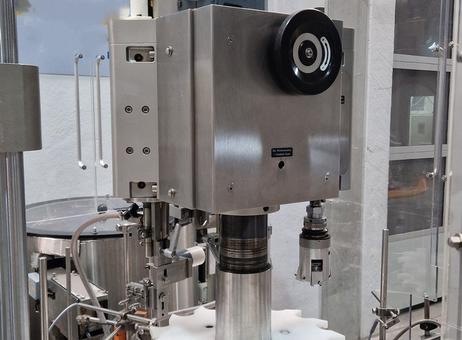

For dropper inserts, the machine has a press-in station suitable for inserts measuring 12.2 x 19 mm, equipped with a sorting pot. The screw-on station handles screw caps sized 20.5 x 32 mm and includes pre-screwing and post-screwing functions alongside a sorting pot. A vacuum pump is part of the system, enhancing sealing quality.

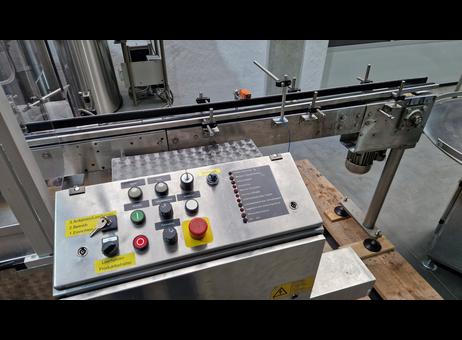

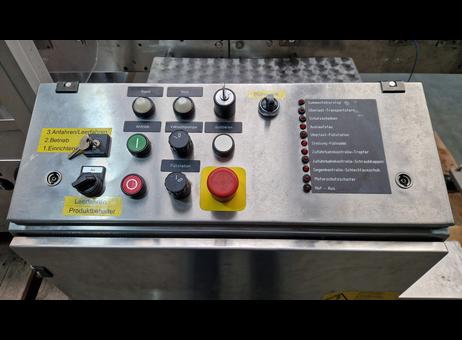

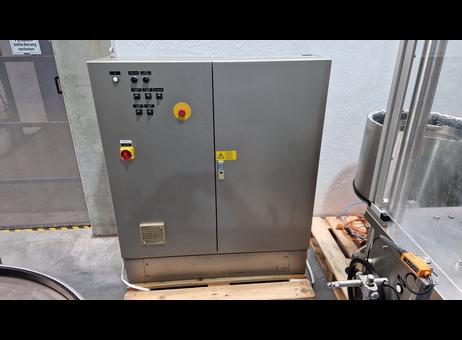

The machine supports various bottle formats, including diameters ranging from 24.2 mm up to 58 mm, accommodating volumes from 10 ml to 100 ml and larger. It operates on a 380V/50Hz drive and is controlled by a Bosch PC 200 PLC. The electrical cabinet is located behind the machine and bears safety warning labels. Control panels with emergency stop buttons and other controls are accessible on the machine's right side.

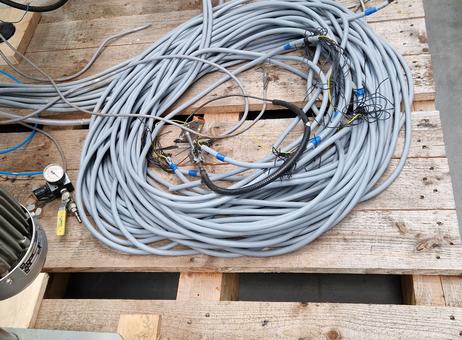

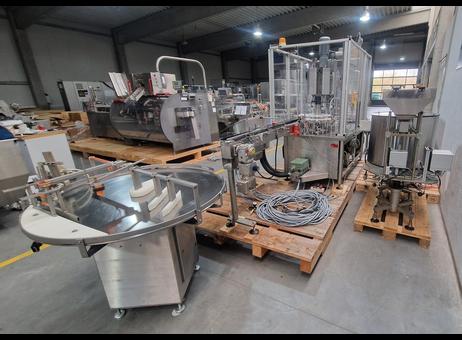

The machine is currently mounted on wooden pallets within a clean industrial environment and was last in operation in September 2025. Several spare parts, including filling needles and pipe components, are available with the machine. Note that cables between the control cabinet and the machine are disconnected and marked for reference.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Machine for filling, inserting dropper inserts and sealing vials and bottles with screw caps (stable, stackable)
• Maximum output 80 objects/min
• 6 filling stations with 6 rotary vane pumps for filling range 20-100 ml, other filling ranges possible by purchasing new pumps
• 1 new replacement pump for filling range 20-100 ml
• Anti-drip protection through suction back
• Bottle feed through infeed turntable
• Bottle discharge through discharge turntable
• Press-in station for dropper insert diam. 12.2 x 19 mm with sorting pot
• Screw-on station with pre-screwing and post-screwing for screw cap diam. 20.5 x 32 mm with sorting pot
• Vacuum pump
• Available bottle formats (all information without guarantee, no guarantee of completeness):
- diam. 24.2 x 63.3 mm (10 ml)
- diam. 29 x 74.2 mm (20 ml)
- diam. 32.2 x 83.8 mm (30 ml)
- diam. 35.4 x 71.7 mm
- diam. 37 x 91 mm (50 ml)
- diam. 40.5 x 108.5 mm
- diam. 45 x 113 mm (100 ml)
- diam. 58 mm
• PLC Bosch PC 200
• Drive 380V/50Hz
• Cables between control cabinet and machine are disconnected and marked
• Various spare parts, filling needles, pipe parts
• Machine was last in operation in September 2025
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the condition of this Bosch VSR F01 filler?
This Bosch VSR F01 Vial / ampoules filler is in good condition.
What spare parts are included with this filler?
This Bosch VSR F01 Vial / ampoules filler includes a lot of spare and change parts.
When was this Bosch VSR F01 filler manufactured?
This Bosch VSR F01 Vial / ampoules filler was manufactured in 1988.
