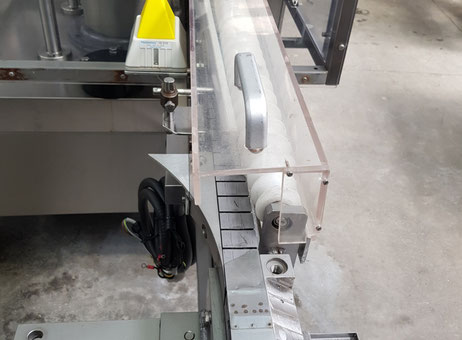

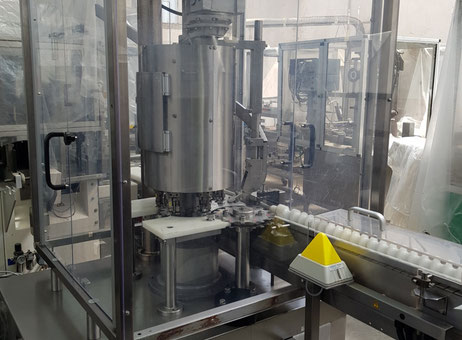

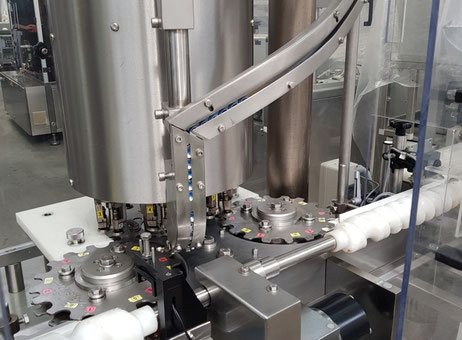

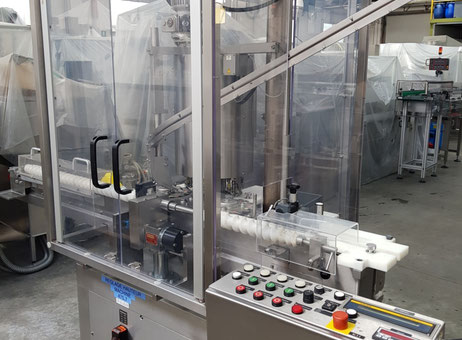

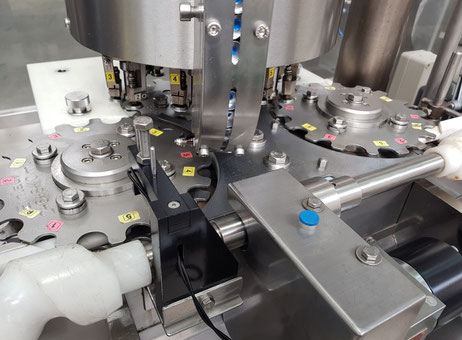

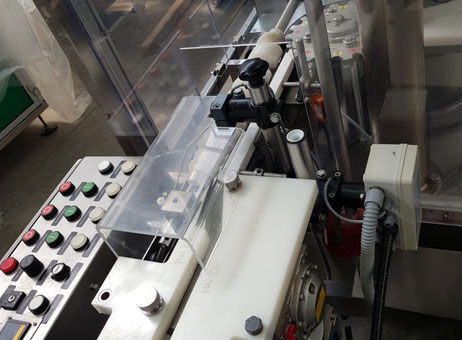

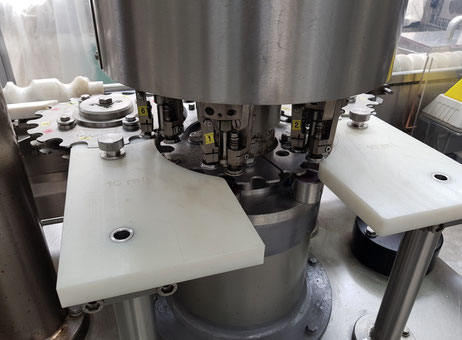

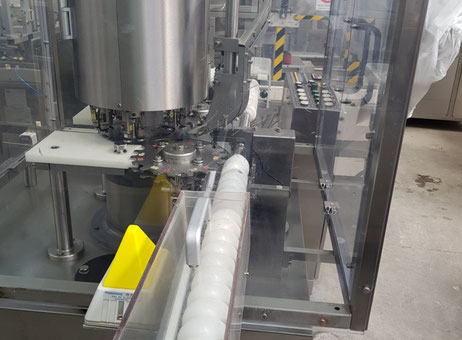

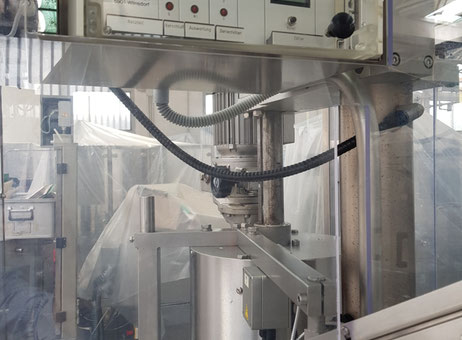

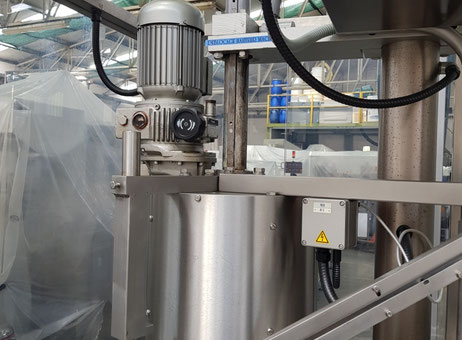

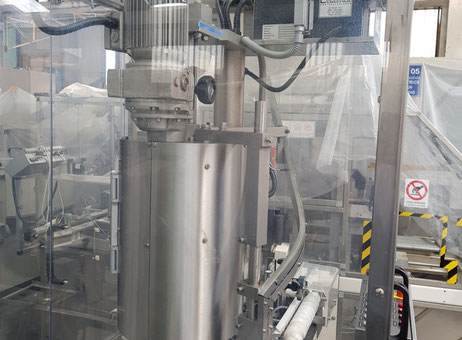

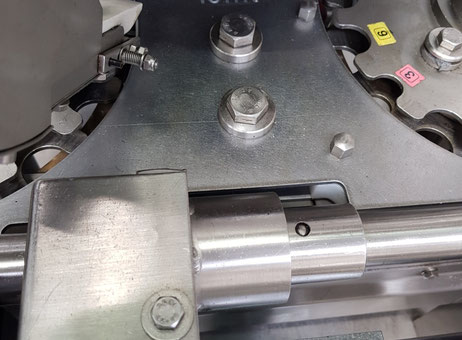

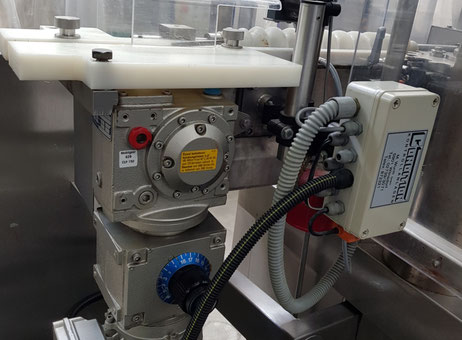

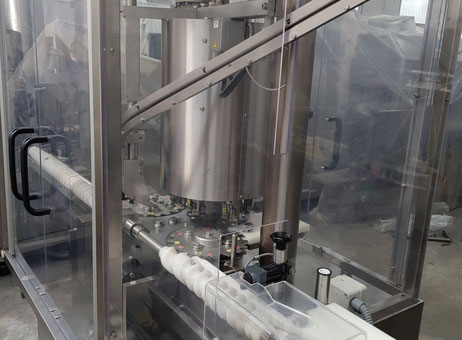

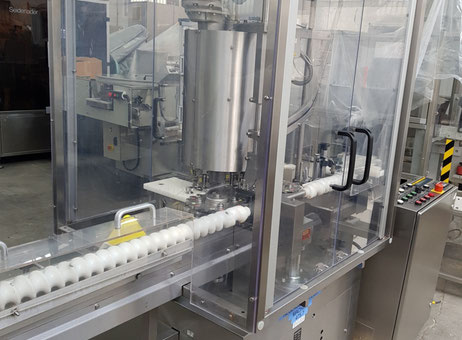

Automatic capping machine with rotary system and rolling heads for metal caps (alluminium, pilferproof etc.) For all capping operations for which efficiency, safety and quality are essential and for containers made of glass or plastics. This continuous motion capping machine with rotating capping section assure gentle transport of containers and closures. Lightweight capping chucks combined with a separate drive ensure safe and secure capping in all conditions. The transport system assures careful handling of all containers irrespective of type and shape including unstable containers and those of light weight. The modular construction of all Bosch capping machines combines flexible and economic solutions for the design of complete lines and a large variety of closures and container formats with high outputs. The feeding of capsules is made by means of a mechanical or electromagnetic sorter and the capsules are controlled on the supply track by a photocell.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
Use of modern capping techniques.
Flexibility for closures, containers and outputs.
Minimal downtime assures production results according to plan.
Sturdy, well-dimensioned, modern construction.
Long-lasting stainless steel panelling.
Easy to operate and to clean, allowing reproducible adjustments and requiring low maintenance.
Efficient and continuously high machine performance over many years.
Even thin-walled containers of various shapes are safely transported.
Ability to handle an extremely wide range of closures.
High efficiency and maximum uptime due to fast and reproducible format changes without the need for tools.
Highest standard of quality and safety certified in accordance with ISO-9001.
Max. dim.round bottle diam x H 95 x 320 mm
Max. rectangular bottle W x L 70 x 110 mm
Max cap diam x H 60 x 60 mm
Production 90-240 bottles/min

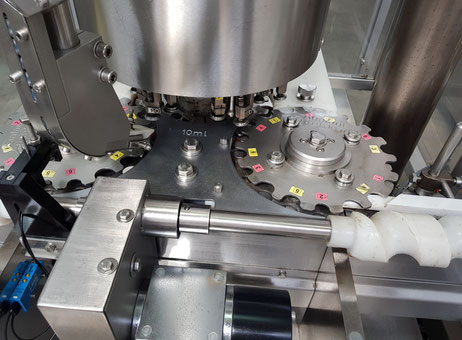

Format capacity last worked 10 ml
Format last worked (diam. base x diam. opening) 24 mm; 13mm
Range diam. of bottles 20-95 mm
Range height of bottles 40-320 mm
Machine Length 2440 mm
Machine Width 1300 mm
Machine Height 2050 mm
Machine Weight 1200 mm
Please note that this description may have been translated automatically. Contact us for further information.
