Contact us to receive an offer.
| Manufacturer | BOMAR |
|---|---|
| Model | STG 320 GM |
| Year | 2002 |
| Location | Hungary
|
This BOMAR STG 320 GM horizontal metal band saw is designed for versatile and precise cutting of various metal profiles. Manufactured in 2002, the machine features a band length of 4335 mm and a saw blade dimension of 4335 x 34 x 1.1 mm, enabling it to handle a wide range of cutting tasks. It offers multiple cutting capacities, including a 90° cutting range for round materials up to 320 mm in diameter, flat materials up to 510 x 320 mm, and square materials up to 320 x 320 mm. The saw also supports angled cuts at 45° and 30° both to the right and left, with corresponding maximum cutting dimensions for round, flat, and square materials as detailed in the specifications. The cutting speed is adjustable, ranging from 20 to 90 meters per minute, allowing for optimized performance based on material and cutting requirements.

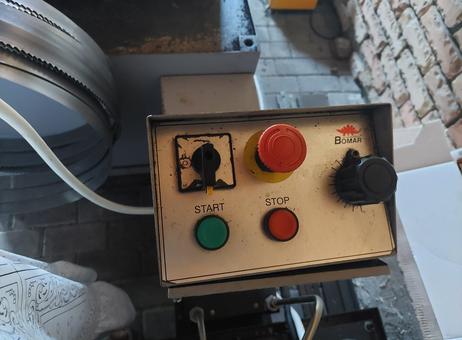

The machine measures approximately 2280 mm in length, 710 mm in width, and 1340 mm in height, with a weight of around 737 kg. It requires a total power supply of 400 V, 50 Hz, and 2.5 kW power consumption. The control panel is equipped with a green START button, a red STOP button, an emergency stop button, a rotary switch, and a black knob for operational adjustments, all clearly labeled with the BOMAR logo.

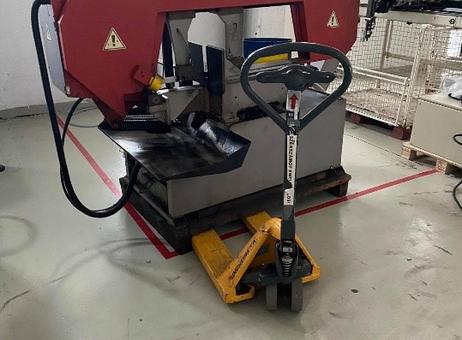

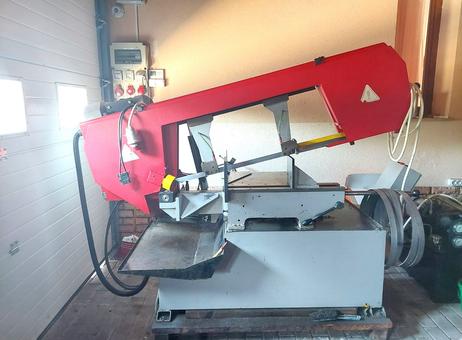

This band saw includes a saw blade installed and tensioned between the red upper arm and gray base, along with a workpiece support table positioned below the blade for stable cutting. The machine is connected with an electrical cable and shows minor signs of wear consistent with regular use but appears clean and well maintained. Warning labels are visible on the machine arm, ensuring operational safety. Overall, this BOMAR STG 320 GM band saw is a robust and reliable tool suitable for metal cutting applications requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
band length: 4335 mm
cutting range 90° round: 320 mm
cutting range 90° flat: 510 x 320 mm
cutting range 90° square: 320 x 320 mm
cutting range 45° round - right + left: 320 mm
cutting range 45° flat - right + left: 320 x 320 mm
cutting range 45° square - right + left: 320 x 320 mm
cutting range 30° round - right + left: 220 mm
cutting range 30° flat - right + left: 180 x 320 mm
cutting range 30° square - right + left: 220 x 220 mm
dimensions of saw-band: 4335 x 34 x 1,1 mm
speeds of the saw-band: 20 - 90 m/min
total power requirement: 400 50 2,5 V Hz kW
weight of the machine ca.: 737 kg
dimensions of the machine ca.: 2280 x 710 x 1340 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 5 |
| Last activity | Oct. 26, 2026 |
band length: 4335 mm
cutting range 90° round: 320 mm
cutting range 90° flat: 510 x 320 mm
cutting range 90° square: 320 x 320 mm
cutting range 45° round - right + left: 320 mm
cutting range 45° flat - right + left: 320 x 320 mm
cutting range 45° square - right + left: 320 x 320 mm
cutting range 30° round - right + left: 220 mm
cutting range 30° flat - right + left: 180 x 320 mm
cutting range 30° square - right + left: 220 x 220 mm
dimensions of saw-band: 4335 x 34 x 1,1 mm
speeds of the saw-band: 20 - 90 m/min
total power requirement: 400 50 2,5 V Hz kW
weight of the machine ca.: 737 kg
dimensions of the machine ca.: 2280 x 710 x 1340 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This BOMAR STG 320 GM horizontal metal band saw is designed for versatile and precise cutting of various metal profiles. Manufactured in 2002, the machine features a band length of 4335 mm and a saw blade dimension of 4335 x 34 x 1.1 mm, enabling it to handle a wide range of cutting tasks. It offers multiple cutting capacities, including a 90° cutting range for round materials up to 320 mm in diameter, flat materials up to 510 x 320 mm, and square materials up to 320 x 320 mm. The saw also supports angled cuts at 45° and 30° both to the right and left, with corresponding maximum cutting dimensions for round, flat, and square materials as detailed in the specifications. The cutting speed is adjustable, ranging from 20 to 90 meters per minute, allowing for optimized performance based on material and cutting requirements.
The machine measures approximately 2280 mm in length, 710 mm in width, and 1340 mm in height, with a weight of around 737 kg. It requires a total power supply of 400 V, 50 Hz, and 2.5 kW power consumption. The control panel is equipped with a green START button, a red STOP button, an emergency stop button, a rotary switch, and a black knob for operational adjustments, all clearly labeled with the BOMAR logo.
This band saw includes a saw blade installed and tensioned between the red upper arm and gray base, along with a workpiece support table positioned below the blade for stable cutting. The machine is connected with an electrical cable and shows minor signs of wear consistent with regular use but appears clean and well maintained. Warning labels are visible on the machine arm, ensuring operational safety. Overall, this BOMAR STG 320 GM band saw is a robust and reliable tool suitable for metal cutting applications requiring precision and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 5 |
| Last activity | Oct. 26, 2026 |
