Contact us to receive an offer.
| Manufacturer | Boettcher & Brueckmann |
|---|---|
| Model | ZRL 250/820 |
| Year | 1970 |
| Location | Germany
|

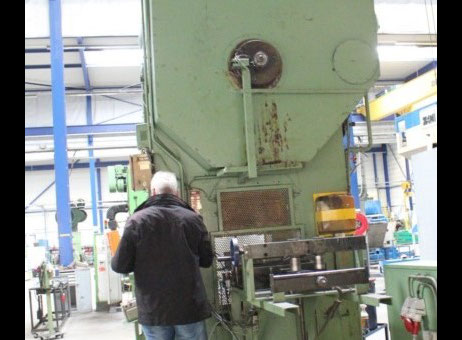

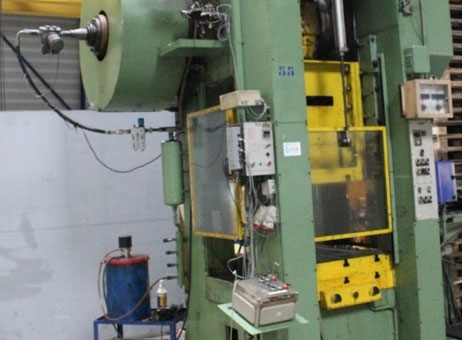

This Boettcher & Brueckmann hydraulic press, model ZRL 250/820, is a substantial industrial machine designed for heavy-duty applications. Manufactured in 1970, it features a powerful 17 kW engine and a pressing capacity of 250 tons. The machine's overall dimensions are 10,000 mm in length, 2,000 mm in width, and 4,000 mm in height, with a total weight of 16,000 kg. The press table measures 1,250 mm by 820 mm, providing a sizable working surface, while the ram stroke is 140 mm, and it operates at up to 60 strokes per minute.

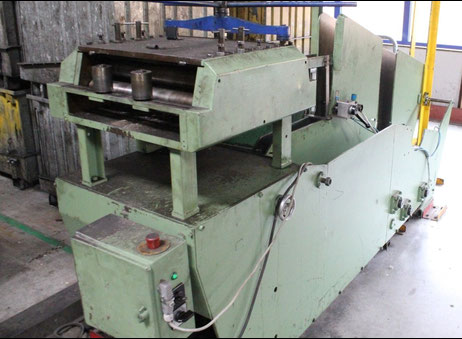

The system includes an unwinding tray, straightener, and gripper feed designed for strip materials measuring up to 600 mm in width and thickness ranging from 1 to 5 mm. The machine is painted green and is equipped with a yellow safety guard on the front to enhance operator safety. A hydraulic cylinder is located at the top center of the press, and a large flywheel or pulley is mounted on the upper back side, indicating the machine's robust mechanical design.

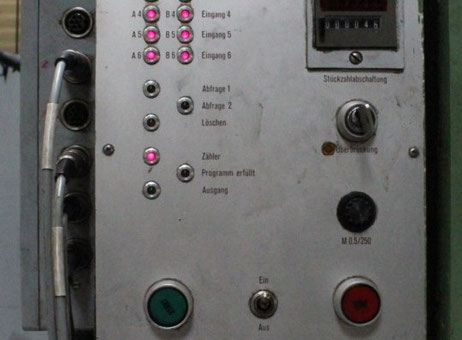

Operational controls include a control panel mounted on the right side and a mobile control box labeled UNIDOR, featuring multiple indicator lights and buttons for tool monitoring. The control box is equipped with electronic tool supervision labeled 'Elektronische Werkzeugüberwachung UN 6' and operates at 12V. Additional safety features include an emergency stop button positioned at the front left corner and a handwheel on the side for manual adjustments.
The machine shows signs of use, including some paint wear, dirt on the base and surfaces, and minor rust or discoloration on rear metal parts. Despite these cosmetic conditions, the control panel and buttons appear intact. A mobile control box on a wheeled stand allows flexible operation. This hydraulic press is suitable for industrial environments requiring reliable, high-capacity pressing with integrated strip feeding and handling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Complete system with unwinding tray, straightener and gripper feed for strip
600 mm x 1-5 mm.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2006 |
| Offers online | 16 |
| Last activity | Oct. 26, 2026 |
Complete system with unwinding tray, straightener and gripper feed for strip
600 mm x 1-5 mm.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Boettcher & Brueckmann hydraulic press, model ZRL 250/820, is a substantial industrial machine designed for heavy-duty applications. Manufactured in 1970, it features a powerful 17 kW engine and a pressing capacity of 250 tons. The machine's overall dimensions are 10,000 mm in length, 2,000 mm in width, and 4,000 mm in height, with a total weight of 16,000 kg. The press table measures 1,250 mm by 820 mm, providing a sizable working surface, while the ram stroke is 140 mm, and it operates at up to 60 strokes per minute.
The system includes an unwinding tray, straightener, and gripper feed designed for strip materials measuring up to 600 mm in width and thickness ranging from 1 to 5 mm. The machine is painted green and is equipped with a yellow safety guard on the front to enhance operator safety. A hydraulic cylinder is located at the top center of the press, and a large flywheel or pulley is mounted on the upper back side, indicating the machine's robust mechanical design.
Operational controls include a control panel mounted on the right side and a mobile control box labeled UNIDOR, featuring multiple indicator lights and buttons for tool monitoring. The control box is equipped with electronic tool supervision labeled 'Elektronische Werkzeugüberwachung UN 6' and operates at 12V. Additional safety features include an emergency stop button positioned at the front left corner and a handwheel on the side for manual adjustments.
The machine shows signs of use, including some paint wear, dirt on the base and surfaces, and minor rust or discoloration on rear metal parts. Despite these cosmetic conditions, the control panel and buttons appear intact. A mobile control box on a wheeled stand allows flexible operation. This hydraulic press is suitable for industrial environments requiring reliable, high-capacity pressing with integrated strip feeding and handling capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
