Contact us to receive an offer.
| Manufacturer | BOEHRINGER / VDF |
|---|---|
| Model | NV 250 T |
| Year | 2005 |
| Location | Switzerland
|

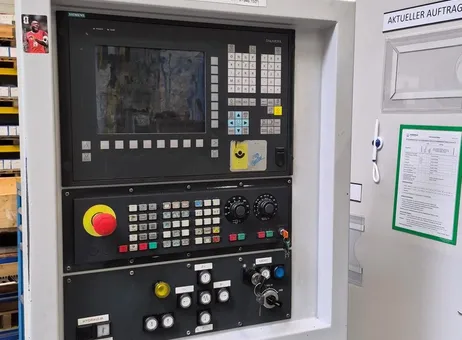

BOEHRINGER / VDF NV 250 T CNC vertical turning machine with SIEMENS control. The machine is listed as a CNC turning lathe in the vertical turning machine subgroup, with a total of 4 axes. Its year is 2005.
The main spindle has a C axis, an A6 spindle head and a 65 mm spindle hole. Spindle speed is variable, with a maximum of 4500 rpm, and the stated spindle power is 31 kW. The machine is specified for 400 V, 50 Hz, three-phase electrical supply.

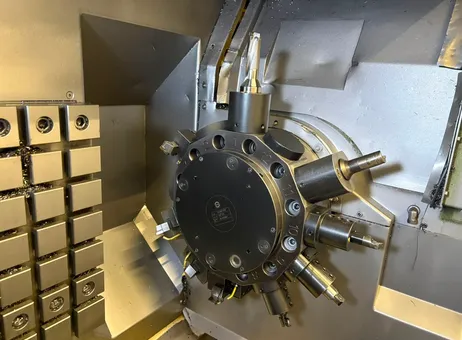

Travel specifications are 260 mm longitudinal travel on the Z axis, 760 mm transversal stroke on the X axis, and ±50 mm transversal travel on the Y axis. Rapid traverse is listed as 120 m/min on X and 40 m/min on Z. The turret slide has 12 positions and a VDI 40 / DIN 69880 spindle nose.

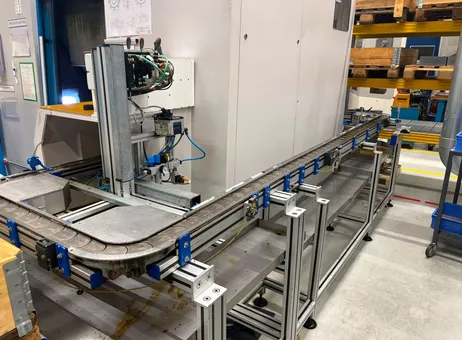

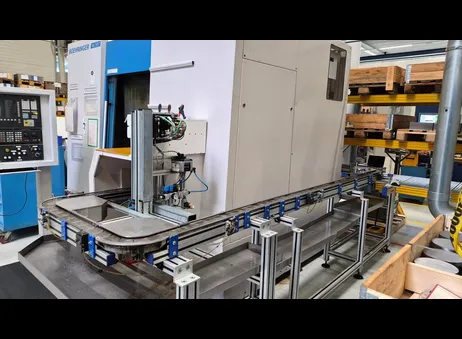

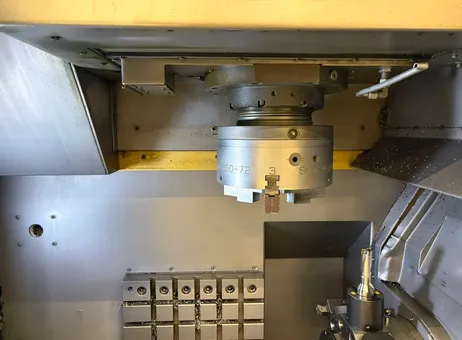

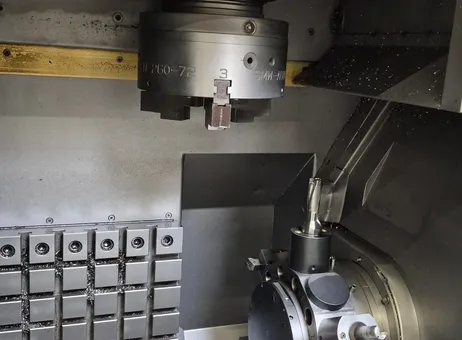

Included accessories are a 250 mm diameter 3-jaw chuck, a lamp, a coolant system, an oil mist extractor, and an automatic loading and unloading unit. The stated machine weight is approximately 8500 kg.
This description includes the machine type, manufacturer, control, axis count, spindle details, travel values, turret information, electrical supply, weight and listed accessories. No spindle count is provided in the supplied specifications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Type: NV 250 T
Manufacturer: BOEHRINGER / VDF
Group: CNC turning lathe
Subgroup: CNC vertical turning machine
Control: SIEMENS
Year: 2005
Number of axes total: 4
Number of spindles:
Spindle head: A6
Spindle hole: 65 mm
Travels:
Longitudinal travel (Z-axis): 260 mm
Transversal stroke (X axis): 760 mm
Transversal travel (Y-axis): ±50 mm
Rapid traverse X: 120 m/min
Rapid traverse Z: 40 m/min
Turret slide:
Number of positions: 12
Spindle nose: VDI 40 / DIN 69880
Main spindle:
C axis
Spindle speeds:
stepless
up to 4500 rpm
Spindle power: 31 kW
Voltage 50 Hz 3-phase: 400 Volts
Machine's weight about: 8500 kg
Various accessories:
3-jaw chuck diameter: 250 mm
Lamp
Coolant system
Oil mist extractor
Automatic loading and unloading unit
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
