Contact us to receive an offer.
| Manufacturer | Bionaz |
|---|---|
| Model | double-enveloppe |
| Year | 2002 |
| Location | France
|
| Category | Tanks - boilers - melting tanks |
| Capacity | 150 L |
| Pressure | 3.5 bar |
| Double jacketed | yes |
| With agitator | yes |
| S/s type | 316 |
| Length x width x height | 1000.0 × 700.0 × 1350.0 |
| Weight | 100 kg |
| worked hours | |
| hours under power | |
| state | excellent |
| At local norms | yes |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P211111031 |
| Language |
Bionaz double-enveloppe
Káď Bionaz double-enveloppe
Bionaz double-enveloppe
Bionaz double-enveloppe Behalter
Bionaz double-enveloppe
Bionaz double-enveloppe Tank
Contenedor - tanque de fusión Bionaz double-enveloppe
Cuve Bionaz double-enveloppe 150 litres
Bionaz double-enveloppe
Bionaz double-enveloppe
Serbatoio Bionaz double-enveloppe
Bionaz double-enveloppe
Bionaz double-enveloppe
Zbiornik Bionaz double-enveloppe
Bionaz double-enveloppe
Bionaz double-enveloppe
Bionaz double-enveloppe Цистерна
Bionaz double-enveloppe
Bionaz double-enveloppe
Tank Bionaz double-enveloppe
|

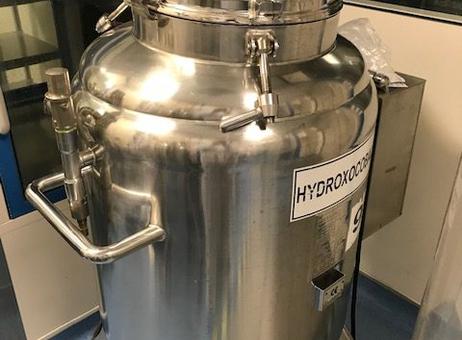

This is a stainless steel double-envelope tank manufactured by Bionaz, model "double-enveloppe," produced in 2002. The tank has a total volume of 168 liters with a useful capacity of 150 liters. It is constructed from 316 stainless steel (INOX 316), ensuring durability and resistance to corrosion. The tank's overall dimensions are 1000 mm in length, 700 mm in width, and 1350 mm in height, and it weighs approximately 100 kg.
The tank is designed to operate under a pressure of 1.5 bar, with the double-envelope (DE) operating pressure rated at 3.5 bar. It has a tank test pressure of 2.4 bar and an outer double-envelope test pressure of 6 bar, confirming its suitability for pressurized applications. It complies with CE standards.

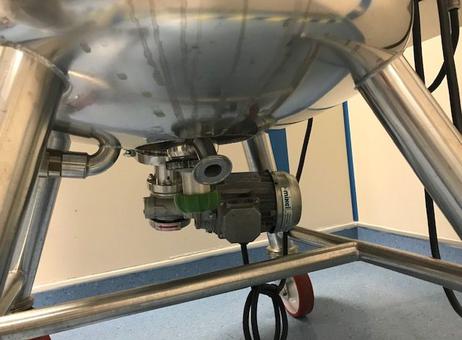

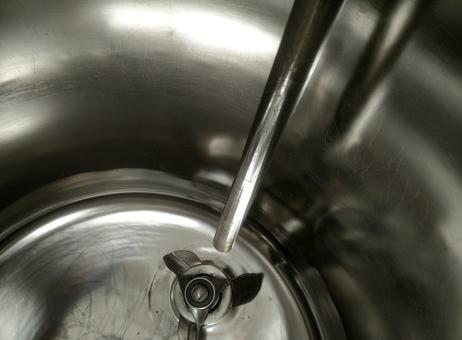

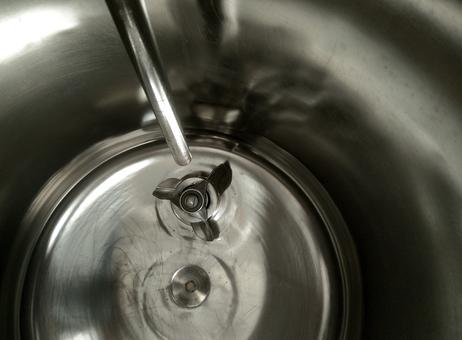

Equipped with a Novaseptic NA25 tank bottom valve, the tank facilitates controlled discharge of contents. It features an integrated motorized agitator mounted on the top lid, which includes multiple fittings. The agitator has a stainless steel mixing blade or impeller located inside the tank at the bottom, connected via a vertical agitator shaft. This setup allows for effective mixing of the tank's contents. The motor is labeled "miki" and is attached to the tank with piping connections visible at the bottom.

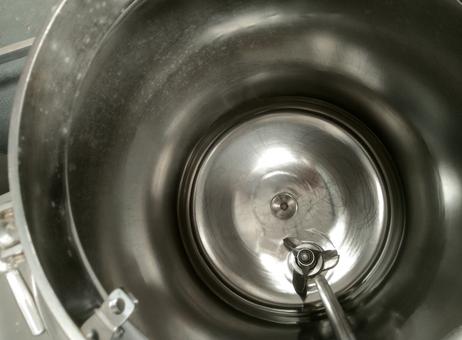

The tank is mounted on sturdy legs with wheels, providing mobility and ease of handling. Handles are also present on the sides for additional maneuverability. The tank surface is reflective and generally in good condition, with minor smudges externally and some discoloration or residue visible on the bottom surface. The interior stainless steel surface is clean but shows some scratches, with no signs of corrosion.

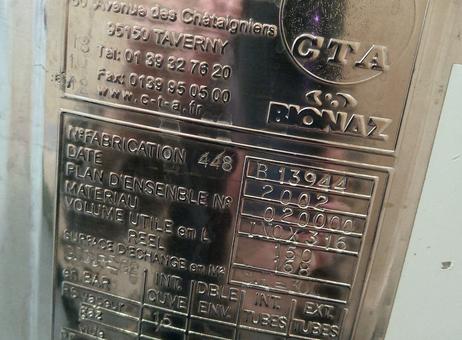

Additional features include the capability for sterilization and available technical plans. The manufacturer plate displays detailed technical specifications, including volume and pressure ratings, and contact information for GTA-BIONAZ. The tank is offered under EXW Incoterms.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
168 litre stainless steel tank
Manufacturer: Bionaz Bionaz
Model: double-envelope
Year : 2002
Serial number : B 13 944
Total volume: 168 litres
Useful volume: 150 litres
Tank operating pressure: 1.5 bar
DE operating pressure: 3.5 bar
Tank test pressure: 2.4 bar
OD test pressure: 6 bar
316 stainless steel
Overall dimensions (W x D x H) : 1000 x 700 x 1350 mm
Weight : 100 kg
Novaseptic NA25 tank bottom valve
With agitation
Can be sterilised
Plan available
Complies with CE standards
Incoterm: EXW
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the capacity of this Bionaz double-walled tank?
This Bionaz double-walled tank has a capacity of 150 liters.
What type of heating system does the machine operate with?
This equipment is designed to operate with an electric heating system.
What is the maximum temperature of this Bionaz double-walled tank?
This Bionaz double-walled tank can reach a maximum temperature of 90°C.
What materials can this equipment process?
This equipment is suitable for processing materials that require heating and agitation.
When was this Bionaz double-walled tank manufactured?
This Bionaz double-walled tank was manufactured in 2002.
Is this equipment available for immediate use?
This equipment is available for immediate use, pending prior sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 214 |
| Last activity | Oct. 27, 2026 |
168 litre stainless steel tank
Manufacturer: Bionaz Bionaz
Model: double-envelope
Year : 2002
Serial number : B 13 944
Total volume: 168 litres
Useful volume: 150 litres
Tank operating pressure: 1.5 bar
DE operating pressure: 3.5 bar
Tank test pressure: 2.4 bar
OD test pressure: 6 bar
316 stainless steel
Overall dimensions (W x D x H) : 1000 x 700 x 1350 mm
Weight : 100 kg
Novaseptic NA25 tank bottom valve
With agitation
Can be sterilised
Plan available
Complies with CE standards
Incoterm: EXW
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the capacity of this Bionaz double-walled tank?
This Bionaz double-walled tank has a capacity of 150 liters.
What type of heating system does the machine operate with?
This equipment is designed to operate with an electric heating system.
What is the maximum temperature of this Bionaz double-walled tank?
This Bionaz double-walled tank can reach a maximum temperature of 90°C.
What materials can this equipment process?
This equipment is suitable for processing materials that require heating and agitation.
When was this Bionaz double-walled tank manufactured?
This Bionaz double-walled tank was manufactured in 2002.
Is this equipment available for immediate use?
This equipment is available for immediate use, pending prior sale.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
