Price on request
View price| Strength | 250 T |
| Folding length | 3100 mm |
| Distance between uprights | 2750 mm |
| CNC | |
| Vertical stroke | 365 mm |
| Working speed | 10 mm/s |
| Engine Power | 18.5 kW |
| Hole | No |
| ------------------- | |
| Length x width x height | 4450.0 × 2500.0 × 3400.0 |
| Weight | 17000 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Beyeler Bystronic PR 8 (2500 kN x 3100 mm) |
| Last availability date | 06/06/2026 |

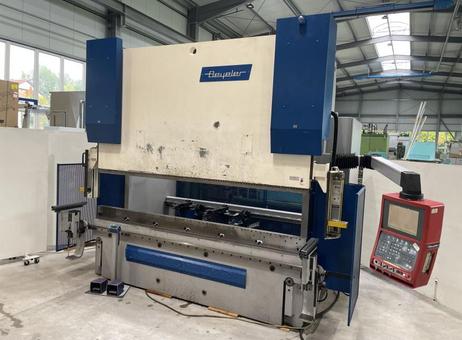

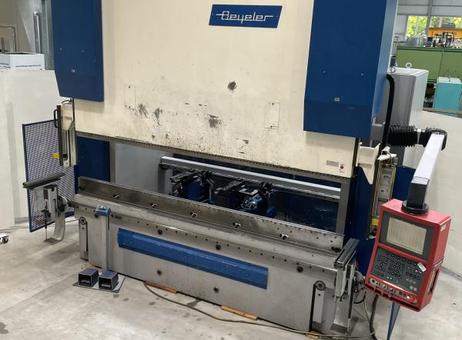

This CNC press brake is a BEYELER - BYSTRONIC model PR 8 (2500 kN x 3100 mm), manufactured in 2001. It offers a pressing capacity of 250 tons with a working length of 3100 mm and a vertical stroke of 365 mm. The machine's dimensions are 4450 mm in length, 2500 mm in width, and 3400 mm in height, with a total weight of 17,000 kg.
The press brake features a distance between uprights of 2750 mm and a folding length of 3100 mm. It is powered by an 18.5 kW engine, supporting a working speed of up to 10 mm/s. The machine is equipped with an 8-axis CNC control system, Cybelec DNC 1200 PS/A, allowing precise control over multiple axes including X1 + X2, R1 + R2, and Z1 + Z2.

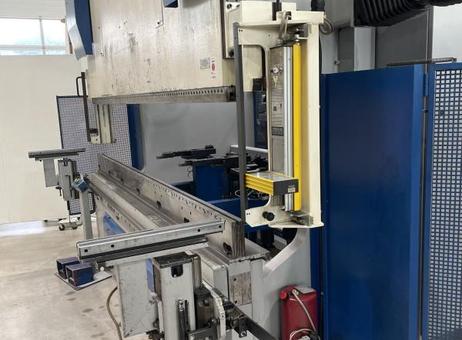

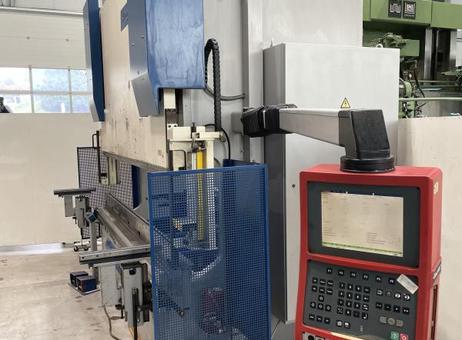

Operational controls include an electric foot switch and a two-hand control panel. Safety is enhanced by a FIESSLER AKAS safety light barrier and a protective mesh guard located on the left side of the machine. The press beam incorporates servo valves and a measuring system for Y1 and Y2 axes.
Tool clamping is hydraulic for the upper tool, utilizing the TRUMPF system with a 20 mm clamping groove. The lower tool holder measures 160 mm in height and 60 mm in width, featuring a mounting groove of 14 x 23 mm. The machine includes metal bending tools and clamps attached to the lower beam, though it is noted that the TRUMPF tool system is supplied without tools.

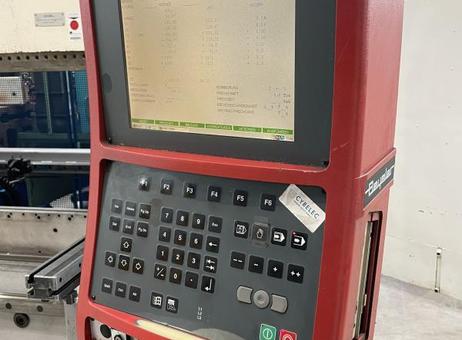

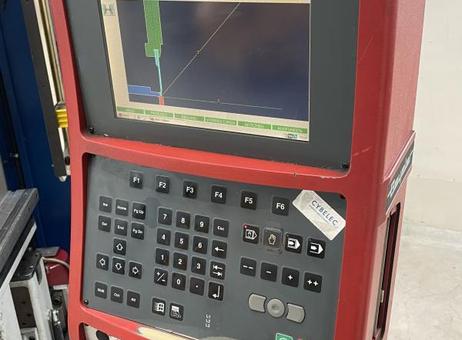

The CNC control panel is mounted on an articulated arm on the right side of the machine, facilitating ease of operation. The machine shows visible signs of use, including dirt and wear marks on the front white panel. Overall, the press brake is described as being in good condition and is suitable for heavy-duty metal bending applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC press brake BEYELER - BYSTRONIC type PR 8 (2500 kN x 3100 mm)
Year of manufacture 2001
Pressure capacity 250 tons.
Working length 3100 mm
Stroke 365 mm
Stand projection 410 mm
Passage between side stands 2750 mm
Table width 100 mm, 200 with table extension
Table height above floor 840 mm
Backgauge X-axis 620 mm (travel)
Backgauge R-axis 240 mm
Feed speed 200 mm/s
Working speed 1-10 mm/s
Y rapid traverse 200 mm/s
Y working speed 1-10 mm/s
Y retraction 135 mm/s
Oil capacity approx. 400 liters
Motor power 18.5 kW
Connected load approx. 25 kW
Power supply 400 volts, 50 Hz, 50 amps.
- 8-axis CNC control Cybelec DNC 1200 PS/A, X1 + X2 / R1 + R2 / Z1 + Z2
- 2 freely programmable stop fingers, laterally movable (Z1+Z2)

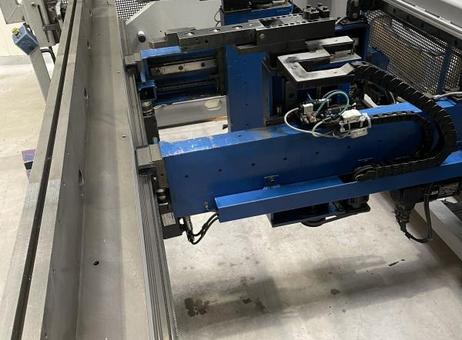

- Backgauge (X-axis 620 mm) with 3 stop points up to max. 1080 mm
- Press beam with servo valves and measuring system Y1 and Y2
- FIESSLER AKAS safety light barrier
- Operation via electric foot switch and/or 2-hand control panel
- Hydraulic tool clamping for the upper tool (TRUMPF system) with 20 mm clamping groove
- Tool holder for the lower tool, height 160 mm x width 60 mm, with mounting groove 14 x 23 mm
- TRUMPF tool system, without tools
Space requirement L x W x H 4450 x 2500 x 3400 mm
Machine transport height 3360 mm
Weight 17000 kg
Good condition
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 96 |
| Last activity | June 6, 2026 |
CNC press brake BEYELER - BYSTRONIC type PR 8 (2500 kN x 3100 mm)
Year of manufacture 2001
Pressure capacity 250 tons.
Working length 3100 mm
Stroke 365 mm
Stand projection 410 mm
Passage between side stands 2750 mm
Table width 100 mm, 200 with table extension
Table height above floor 840 mm
Backgauge X-axis 620 mm (travel)
Backgauge R-axis 240 mm
Feed speed 200 mm/s
Working speed 1-10 mm/s
Y rapid traverse 200 mm/s
Y working speed 1-10 mm/s
Y retraction 135 mm/s
Oil capacity approx. 400 liters
Motor power 18.5 kW
Connected load approx. 25 kW
Power supply 400 volts, 50 Hz, 50 amps.
- 8-axis CNC control Cybelec DNC 1200 PS/A, X1 + X2 / R1 + R2 / Z1 + Z2
- 2 freely programmable stop fingers, laterally movable (Z1+Z2)
- Backgauge (X-axis 620 mm) with 3 stop points up to max. 1080 mm
- Press beam with servo valves and measuring system Y1 and Y2
- FIESSLER AKAS safety light barrier
- Operation via electric foot switch and/or 2-hand control panel
- Hydraulic tool clamping for the upper tool (TRUMPF system) with 20 mm clamping groove
- Tool holder for the lower tool, height 160 mm x width 60 mm, with mounting groove 14 x 23 mm
- TRUMPF tool system, without tools
Space requirement L x W x H 4450 x 2500 x 3400 mm
Machine transport height 3360 mm
Weight 17000 kg
Good condition
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Strength | 250 T |
| Folding length | 3100 mm |
| Distance between uprights | 2750 mm |
| CNC | |
| Vertical stroke | 365 mm |
| Working speed | 10 mm/s |
| Engine Power | 18.5 kW |
| Hole | No |
| ------------------- | |
| Length x width x height | 4450.0 × 2500.0 × 3400.0 |
| Weight | 17000 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Beyeler Bystronic PR 8 (2500 kN x 3100 mm) |
| Last availability date | 06/06/2026 |
This CNC press brake is a BEYELER - BYSTRONIC model PR 8 (2500 kN x 3100 mm), manufactured in 2001. It offers a pressing capacity of 250 tons with a working length of 3100 mm and a vertical stroke of 365 mm. The machine's dimensions are 4450 mm in length, 2500 mm in width, and 3400 mm in height, with a total weight of 17,000 kg.
The press brake features a distance between uprights of 2750 mm and a folding length of 3100 mm. It is powered by an 18.5 kW engine, supporting a working speed of up to 10 mm/s. The machine is equipped with an 8-axis CNC control system, Cybelec DNC 1200 PS/A, allowing precise control over multiple axes including X1 + X2, R1 + R2, and Z1 + Z2.
Operational controls include an electric foot switch and a two-hand control panel. Safety is enhanced by a FIESSLER AKAS safety light barrier and a protective mesh guard located on the left side of the machine. The press beam incorporates servo valves and a measuring system for Y1 and Y2 axes.
Tool clamping is hydraulic for the upper tool, utilizing the TRUMPF system with a 20 mm clamping groove. The lower tool holder measures 160 mm in height and 60 mm in width, featuring a mounting groove of 14 x 23 mm. The machine includes metal bending tools and clamps attached to the lower beam, though it is noted that the TRUMPF tool system is supplied without tools.
The CNC control panel is mounted on an articulated arm on the right side of the machine, facilitating ease of operation. The machine shows visible signs of use, including dirt and wear marks on the front white panel. Overall, the press brake is described as being in good condition and is suitable for heavy-duty metal bending applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 96 |
| Last activity | June 6, 2026 |
