| Manufacturer | BERTHIEZ |
|---|---|
| Model | M 150/100 FMM 8000 |
| Year | |
| Location | Italy
|

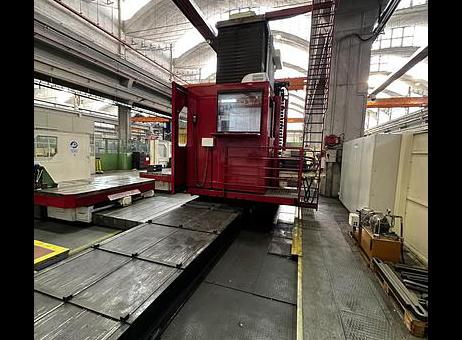

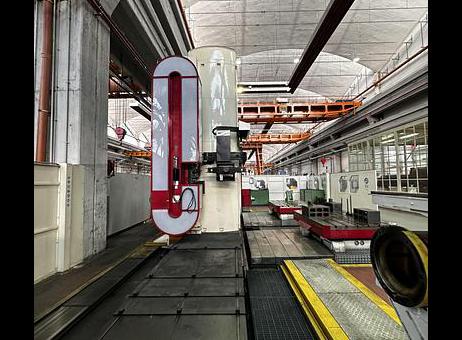

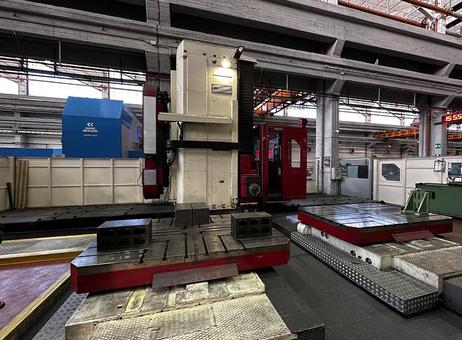

This BERTHIEZ M 150/100 FMM 8000 CNC Traveling Column Boring and Milling Machine is designed for heavy-duty machining tasks requiring precision and flexibility. It features a large working envelope with X, Y, and Z axes measuring 8080 mm, 2900 mm, and 700 mm respectively, accommodating maximum workpiece dimensions of approximately 8000 x 2800 x 1200 mm and supporting a maximum piece weight of up to 60,000 kg. The machine is equipped with a powerful 37 kW spindle motor capable of speeds up to 2000 rpm, with a spindle bore diameter of 130 mm and a milling spindle diameter of 520 mm. The spindle uses an ISO 50 DIN 69871/B interface and delivers a torque of 1800 Nm. The work area includes two rototranslating tables, each measuring 2750 x 1750 mm and capable of carrying loads up to 60,000 kg; these tables can operate independently or combined as a single large surface. The machine is controlled by a Siemens 840 DSL CNC system managing 10 controlled axes plus milling spindle indexing, enabling complex machining operations. Additional features include a universal milling head, head extension, vertical head, and a 60-position tool magazine. The operator's cab is air-conditioned, and the work area is protected for safety. The installed power capacity is 200 kW. Visual inspection shows the machine is clean and well-maintained with no visible rust or damage on main surfaces. The vertical milling column is protected by red and white covers, and the worktable has clamping fixtures with signs of use but no corrosion or damage. The surrounding floor area is clean with safety yellow markings, indicating a well-kept industrial environment. Some yellow machine parts stored nearby show signs of wear and surface scratches. This machine was revised in 2016 and is suitable for demanding industrial milling and boring applications requiring large workpieces and heavy loads.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Cnc Traveling Column Boring Machine BERTHIEZ M 150/100 FMM 8000 CNC
Spindle Boring / Drilling dia 130
Milling spindle dia mm.520
X mm.8080
Y mm.2900
V1 mm.1450
V2 mm.1450
W mm.500
Z mm.700
Spindle speed 0 - 2000 rpm
Spindle power Kw 37
Nm 1800
ISO 50 DIN 69871/B

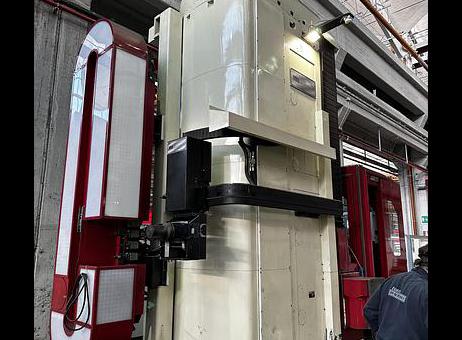

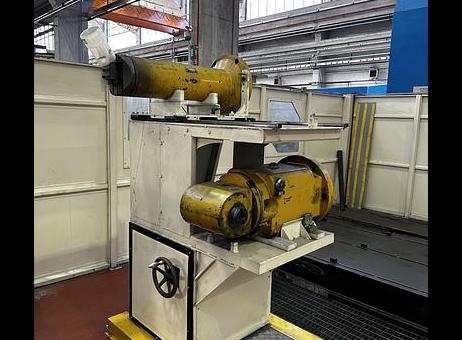

Universal Milling Head
Head Extension
Vertical head

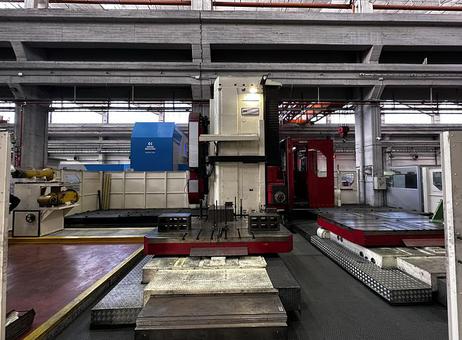

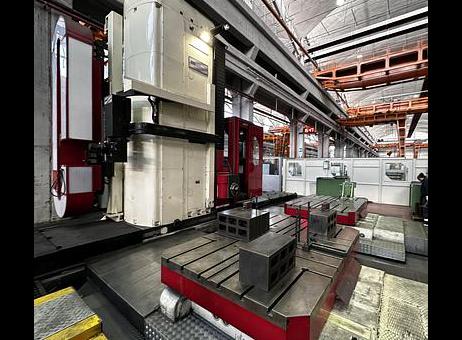

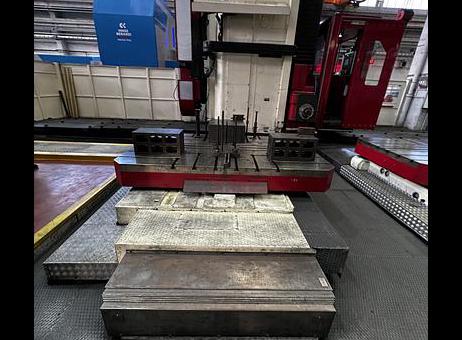

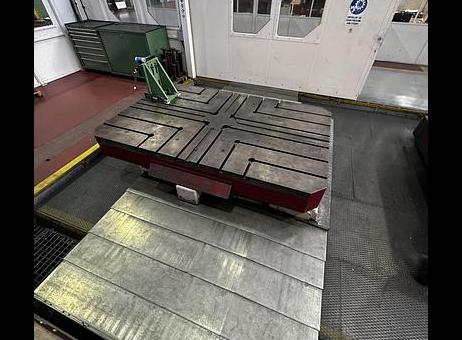

2 x Rototranslating tables mm.2750 x 1750 each
Table load Kg. 60000 each
The 2 tables can work separately or together as a single work surface
Maximum dimensions of the workpiece mm.8000 x 2800 x 1200
Maximum piece weight Kg 60000
Tool magazine 60 positions

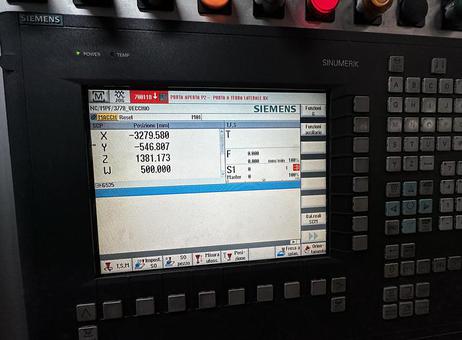

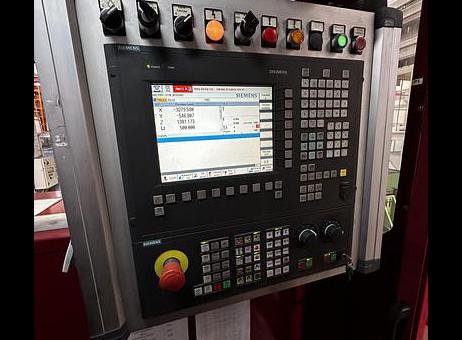

CNC SIEMENS 840 DSL
10 controlled axes + milling spindle indexing

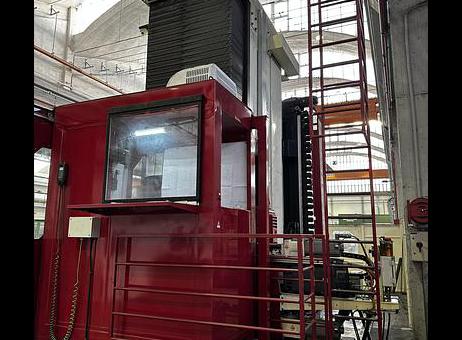

Air-conditioned operator cab

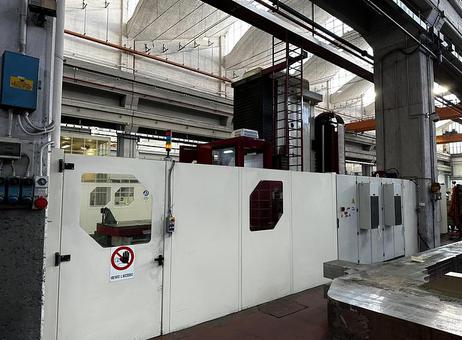

Work area protection
installed power Kw 200
Revised in 2016
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
