Contact us to receive an offer.
| Manufacturer | BEHRINGER |
|---|---|
| Model | HBP 310-523G |
| Year | 2000 |
| Location | Poland
|

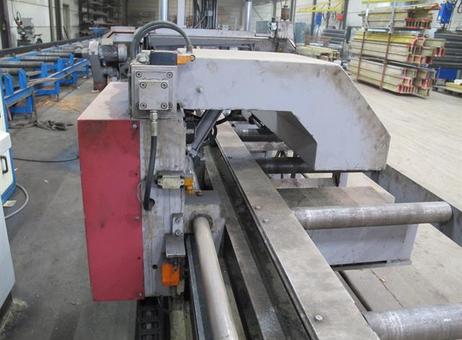

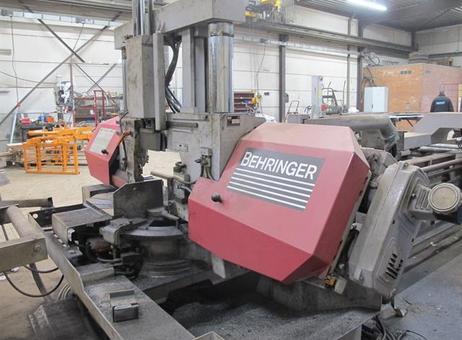

The BEHRINGER HBP 310-523G is a robust band saw machine designed for precise metal cutting applications. Manufactured in 2000, this model features a cutting belt measuring 5000 mm in length and 34 mm in width, with an adjustable cutting speed ranging from 20 to 140 m/min. The machine is powered by a 6.0 kW engine, with a 4.0 kW belt drive power and a 115 W coolant pump. It operates on a 400 V ±10%, 50 Hz power supply and uses a 24 V DC control voltage, complying with VDE electrical standards.

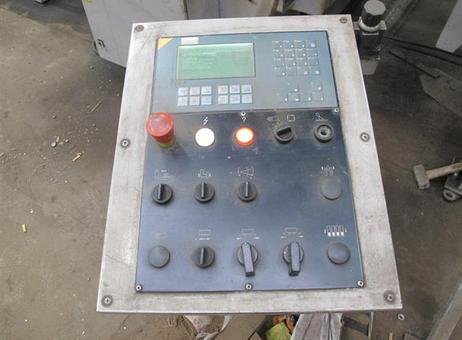

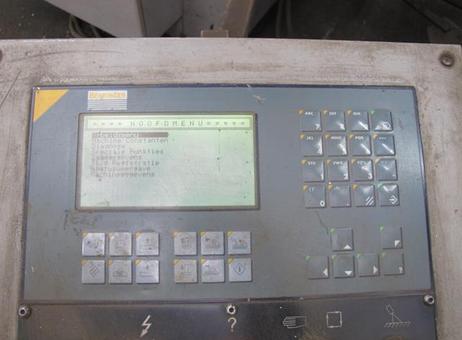

The machine's dimensions are 2800 mm in length (at 90-degree setting), 1600 mm in width, and 2300 mm in height, weighing approximately 2000 kg. It includes a control panel mounted on a movable boom, equipped with multiple buttons, switches, an emergency stop button, illuminated indicator lights, and a display screen with alphanumeric and function keys for easy operation.
Cutting capabilities include round materials up to 310 mm in diameter, rectangular profiles up to 520x300 mm, tubes with diameters up to 50 mm (wall thickness from 3 mm), and pipes up to 100 mm diameter (wall thickness from 4 mm). The machine supports angled cuts ranging from 30 to 75 degrees on both left and right sides, with varying cutting ranges depending on the angle.
Additional features include hydraulic vertical and horizontal vices, automatic material height sensor, and the ability to cut with constant feed or constant belt pressure. The cutting accuracy is 0.1 mm per 100 mm of profile height. The machine also includes a coolant container with approximately 60 liters capacity and a pump flow rate of 40 l/min at 2.5 m lift.

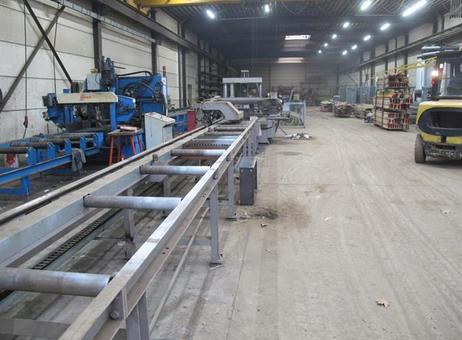

Accessories include a feeding roller conveyor and a receiving roller conveyor, each approximately 15 meters in length, facilitating material handling. The machine shows signs of use with some dirt and wear on surfaces, consistent with an industrial environment. Overall, the BEHRINGER HBP 310-523G offers versatile and precise metal cutting capabilities suitable for various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
- control panel mounted on a movable boom
- cutting belt size : 5000x34x1,1 mm
- adjustable belt speed : 20-140 m/min.
- belt drive power : 4.0 kW
- electrical supply : according to VDE rules
- power supply : 400 V +-10%, 50 Hz
- control voltage : 24 V DC
- coolant container volume : approx 60 l
- coolant pump flow rate : 40 l/min, at 2.5 m lift
- power of coolant pump : 115 W
- height of material table : 800 mm
- residual section : approx. 40 mm
- total power : 6 kW
- length x width x height : 2800 (at 90 degree setting) x1600 (turning space 2700 mm) x2300 mm
- machine weight : ca 1900 kg
- cutting material height sensor : automatic
- cutting with constant feed or constant belt pressure on the material
- cutting accuracy : 0.1 mm, for every 100 mm of profile height
- hydraulic vertical and horizontal vices
- vertical pressure : on both sides of the cutting belt
- right and left angle cutting
Cutting ranges :
- round : 310 mm
- rectangular (BxH) : 520x300 mm
- tubes : diameter up to 50 mm - wall from 3 mm
- pipes : diameter up to 100 mm - wall from 4 mm
- pipes : diameter over 100 mm - wall from 5 mm
- angle left 75 degrees : round 310 mm, rectangle BxH = 520x300 mm
- angle left 60 degrees : round 310 mm, rectangle BxH = 450x300 mm
- angle left 45 degrees : round 310 mm, rectangle BxH = 350x300 mm
- angle left 30 degrees : round 230 mm, rectangle BxH = 230x300 mm
- right angle 75 degrees : round 310 mm, rectangle BxH = 500x300 mm
- right angle 60 degrees : round 310 mm, rectangle BxH = 420x300 mm
- right angle 45 degrees : round 310 mm, rectangle BxH = 270x300 mm
- minimum : round : 10 mm, rectangle (BxH): 10x8 mm
Accessories of BEHRINGER HBP 310-523G cutting machine:
- feeding roller conveyor : 15 mb
- receiving roller conveyor : 15 mb
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this BEHRINGER HBP 310-523G band saw disassembled?
This BEHRINGER HBP 310-523G band saw is currently disassembled and disconnected from power.
Is the equipment prepared for transport?
This equipment has been removed from the facility and is prepared for transport.
Is this BEHRINGER HBP 310-523G band saw weatherproof?
This BEHRINGER HBP 310-523G band saw is secured against weather conditions.
What is the condition of the equipment?
This equipment is in good condition.
What are the dimensions of the roller tables included?
This band saw includes roller tables (infeed + outfeed) measuring 4 x 6 meters.
