Contact us to receive an offer.
| Manufacturer | BAYKAL |
|---|---|
| Model | HNC 4110 |
| Year | |
| Location | Poland
|
| Category | Cutting - CNC guillotine shears |
| Cutting length | 4060 mm |
| Max. cutting thickness | 10 mm |
| CNC | SIEMENS SIMATIC HMI |
| Back gauge type | Other |
| Backgauge adjustment | 1000 mm |
| Length x width x height | 4900.0 × 2970.0 × 2370.0 |
| Weight | 15400 kg |
| worked hours | 560 hours |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P240925201 |
| Language |
CNC ножици BAYKAL HNC 4110
Nůžky CNC BAYKAL HNC 4110
BAYKAL HNC 4110 CNC saks
BAYKAL HNC 4110 CNC Schere
Ψαλίδι CNC BAYKAL HNC 4110
BAYKAL HNC 4110 CNC shears
Cizallas CNC BAYKAL HNC 4110
Cisaille CNC BAYKAL HNC 4110
CNC škare BAYKAL HNC 4110
BAYKAL HNC 4110 CNC olló
Cesoia CNC BAYKAL HNC 4110
CNC žirklės BAYKAL HNC 4110
BAYKAL HNC 4110 CNC-scharen
Nożyce gilotynowe CNC BAYKAL HNC 4110
Tesouras CNC BAYKAL HNC 4110
foarfece CNC BAYKAL HNC 4110
BAYKAL HNC 4110 Ножницы с ЧПУ
CNC makaze BAYKAL HNC 4110
BAYKAL HNC 4110 CNC sax
CNC makasları BAYKAL HNC 4110
|
The BAYKAL HNC 4110 is a robust CNC guillotine shear designed for precise cutting of metal sheets. The machine features a maximum cutting length of 4060 mm and can handle a maximum cutting thickness of 10 mm for materials with a tensile strength below 450 N/mm², and up to 6 mm for materials with tensile strength below 700 N/mm². It is equipped with a back gauge that can adjust up to 1000 mm, allowing for accurate positioning of the material during cutting.
The machine’s construction is made of high-quality steel, ensuring stability and durability during operation. It is powered by a 23.55 kW motor and operates under a working pressure of 260 bar. The power supply requirement is 3-phase 400 V at 50 Hz. The overall dimensions of the machine are 4900 mm in length, 2970 mm in width, and 2370 mm in height, with a total weight of 15,400 kg.
The control system includes a Siemens Simatic HMI touchscreen panel, which features multiple buttons including an emergency stop for safe and efficient operation. The front lower section of the machine has multiple metal supports or arms that assist in material handling. The cutting area has a metal surface with an embedded ruler scale for measurement, and there are large springs visible inside the front guard area, which are part of the machine’s mechanical components.

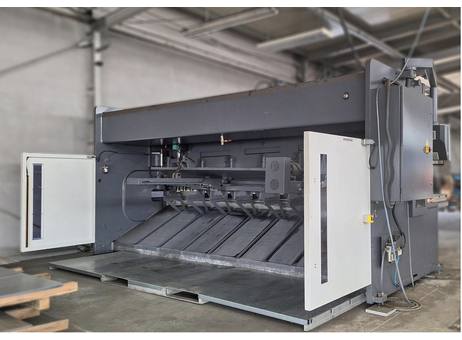

The machine has been maintained well, with minor surface marks and visible scratches on the cutting surface indicating prior use. The rear or side access door can be opened to reveal internal mechanical components and fans, which appear to be in good condition without visible damage. This BAYKAL HNC 4110 guillotine shear is a reliable choice for industrial metal cutting applications requiring precision and efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
BAYKAL HNC 4110 6X4000 guillotine shears were manufactured in 2019 in Turkey. Details with a maximum thickness of 10 mm are cut using extremely precise cutting knives with adjustable gap between blades. High-quality steel construction combined with an efficient hydraulic system additionally provide the highest stability and processing efficiency. So far, the BAYKAL HNC 4110 hydraulic guillotine shears have worked only 560 hours. The total weight of the machine is 15,400 kg.
- HMI panel: SIEMENS SIMATIC HMI
- maximum cutting length: 4060 mm
- maximum cutting thickness (Rm<450N/mm2): 10 mm
- maximum cutting thickness (Rm<700 N/mm2): 6 mm
- number of strokes: 10-16/min
- maximum backgauge distance: 1000 mm
- working hours: 560 h
- working pressure: 260 bar
- power: 23.55 kW
- power supply: 3x 400 V; 50 Hz
- dimensions (length x width x height): 4900 x 2970 x 2370 mm
- machine weight: 15400 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 425 |
| Last activity | Oct. 27, 2026 |
BAYKAL HNC 4110 6X4000 guillotine shears were manufactured in 2019 in Turkey. Details with a maximum thickness of 10 mm are cut using extremely precise cutting knives with adjustable gap between blades. High-quality steel construction combined with an efficient hydraulic system additionally provide the highest stability and processing efficiency. So far, the BAYKAL HNC 4110 hydraulic guillotine shears have worked only 560 hours. The total weight of the machine is 15,400 kg.
- HMI panel: SIEMENS SIMATIC HMI
- maximum cutting length: 4060 mm
- maximum cutting thickness (Rm<450N/mm2): 10 mm
- maximum cutting thickness (Rm<700 N/mm2): 6 mm
- number of strokes: 10-16/min
- maximum backgauge distance: 1000 mm
- working hours: 560 h
- working pressure: 260 bar
- power: 23.55 kW
- power supply: 3x 400 V; 50 Hz
- dimensions (length x width x height): 4900 x 2970 x 2370 mm
- machine weight: 15400 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Category | Cutting - CNC guillotine shears |
| Cutting length | 4060 mm |
| Max. cutting thickness | 10 mm |
| CNC | SIEMENS SIMATIC HMI |
| Back gauge type | Other |
| Backgauge adjustment | 1000 mm |
| Length x width x height | 4900.0 × 2970.0 × 2370.0 |
| Weight | 15400 kg |
| worked hours | 560 hours |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | visible |
| Last availability date | 20/10/2026 |
| Product id | P240925201 |
| Language |
CNC ножици BAYKAL HNC 4110
Nůžky CNC BAYKAL HNC 4110
BAYKAL HNC 4110 CNC saks
BAYKAL HNC 4110 CNC Schere
Ψαλίδι CNC BAYKAL HNC 4110
BAYKAL HNC 4110 CNC shears
Cizallas CNC BAYKAL HNC 4110
Cisaille CNC BAYKAL HNC 4110
CNC škare BAYKAL HNC 4110
BAYKAL HNC 4110 CNC olló
Cesoia CNC BAYKAL HNC 4110
CNC žirklės BAYKAL HNC 4110
BAYKAL HNC 4110 CNC-scharen
Nożyce gilotynowe CNC BAYKAL HNC 4110
Tesouras CNC BAYKAL HNC 4110
foarfece CNC BAYKAL HNC 4110
BAYKAL HNC 4110 Ножницы с ЧПУ
CNC makaze BAYKAL HNC 4110
BAYKAL HNC 4110 CNC sax
CNC makasları BAYKAL HNC 4110
|
The BAYKAL HNC 4110 is a robust CNC guillotine shear designed for precise cutting of metal sheets. The machine features a maximum cutting length of 4060 mm and can handle a maximum cutting thickness of 10 mm for materials with a tensile strength below 450 N/mm², and up to 6 mm for materials with tensile strength below 700 N/mm². It is equipped with a back gauge that can adjust up to 1000 mm, allowing for accurate positioning of the material during cutting.
The machine’s construction is made of high-quality steel, ensuring stability and durability during operation. It is powered by a 23.55 kW motor and operates under a working pressure of 260 bar. The power supply requirement is 3-phase 400 V at 50 Hz. The overall dimensions of the machine are 4900 mm in length, 2970 mm in width, and 2370 mm in height, with a total weight of 15,400 kg.
The control system includes a Siemens Simatic HMI touchscreen panel, which features multiple buttons including an emergency stop for safe and efficient operation. The front lower section of the machine has multiple metal supports or arms that assist in material handling. The cutting area has a metal surface with an embedded ruler scale for measurement, and there are large springs visible inside the front guard area, which are part of the machine’s mechanical components.
The machine has been maintained well, with minor surface marks and visible scratches on the cutting surface indicating prior use. The rear or side access door can be opened to reveal internal mechanical components and fans, which appear to be in good condition without visible damage. This BAYKAL HNC 4110 guillotine shear is a reliable choice for industrial metal cutting applications requiring precision and efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
