Contact us to receive an offer.
| Manufacturer | BAUSCH+STROEBEL |
|---|---|
| Model | FAW1020/DST2247/FFV4010/RBV900 |
| Year | 1995 |
| Location | France
|
LINE
Brand: BAUSCH+STROEBEL
Quantity: 1
Model: FAW1020/DST2247/FFV4010/RBV900
Serial No.:
Year: 1995
Weight: 0 kg
Dimensions:
(L x W x H) 11.0 x 2.00 x 2.00 M
Product Description
Bausch & Strobel sterile line for vial packaging.
Spare parts and maintenance services are still available from the manufacturer.
An Excel list of the relevant parts is available upon request.

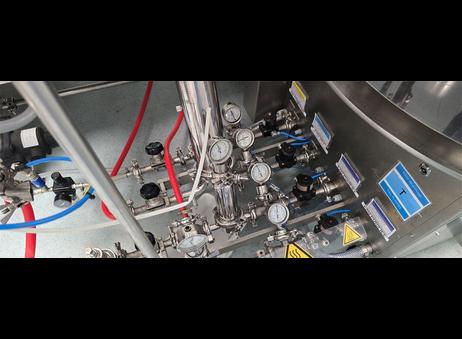

Equipped with:

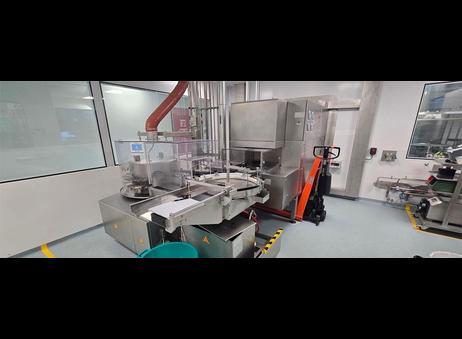

- 1 in-line washer.
Model: FAW 1020 from 1995.

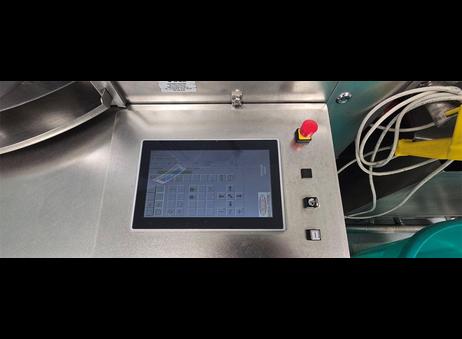

New display and Siemens PLC; overhauled by the manufacturer.

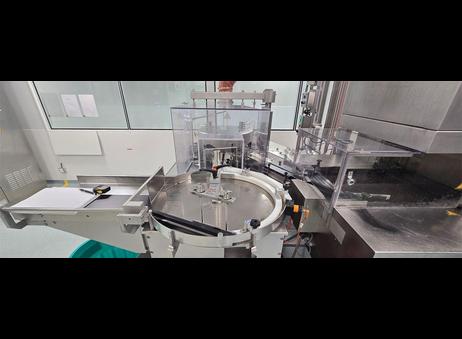

Stainless steel turntable with a bottle unloading tray.
Side guides on the turntable to direct the bottles to the washing station.
6-by-6 bottle loading station for the washer.
Bottle turning station.
External washing of bottles via nozzles.
Internal washing of bottles via needles.
Drying with compressed air.
Station for straightening bottles as they exit the washer.
Side guides to convey bottles from the washer to the sterilization tunnel.
Water recycling station.
Centrifugal pump.
Filtration of various feed water sources.
Filtration of the drying air.
General drive via a variable-speed motor.

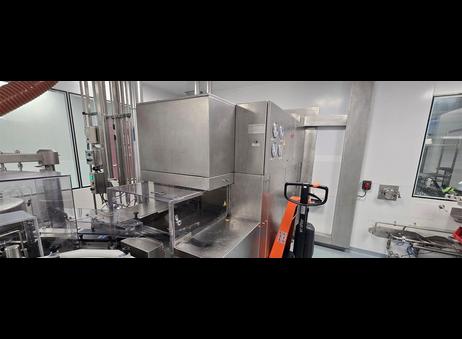

- 1 in-line sterilization tunnel.
Model: DST 2247 from 1995
Entry zone with a guide for connecting to the washer.
The tunnel consists of 3 zones: Heating, sterilization, and cooling.
Laminar flow systems installed in series to ensure absolute sterilization.
Stainless steel mesh conveyor. Length: 2,300 mm.
Electric heating in the hot zone with forced-air circulation and HEPA filtration.
Electrical power: 35.2 kW
Compressed air pressure: 6 to 10 bar
Maximum temperature: 300°
Sterilization time is a minimum of 3 minutes.

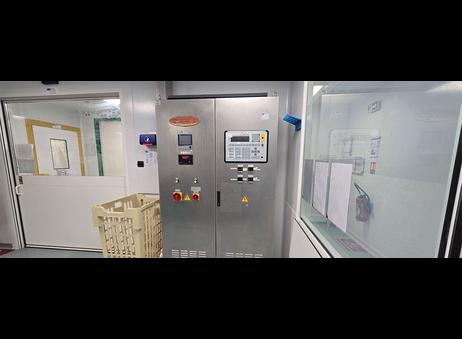

Separate stainless steel power cabinet.
Stainless steel frame.

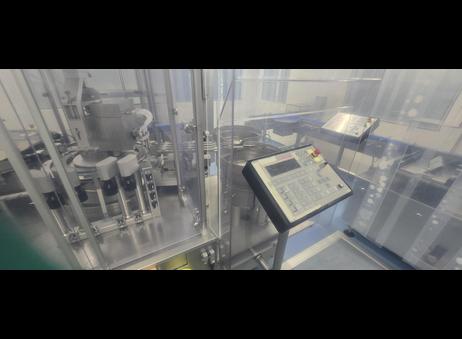

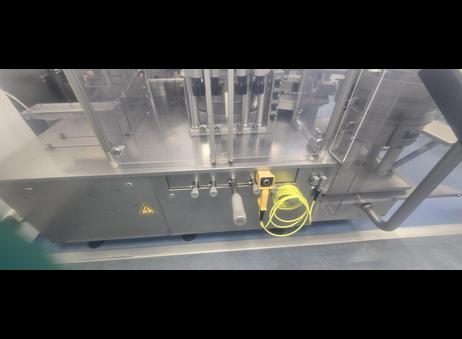

- 1 liquid filler with rubber stopper placement.
Model: FFV 4010 from 1995.
Motorized rotary table for receiving vials from the tunnel and loading them onto the 12-cell rotary tray of the filler-capper.

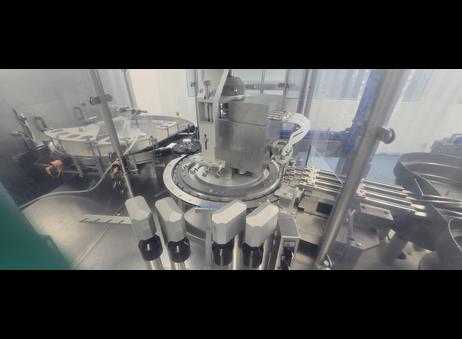

36-station rotary carousel for positioning vials at the filling stations.
Filling of bottles 4 at a time using SPC positive-displacement pumps; current filling volume is 3 ml.
2 vibrating hoppers integrated into the machine, each with a double ramp, depositing 4 rubber stoppers onto 4 bottles per rotation cycle.
Discharge of filled and capped vials onto a conveyor toward the crimping machine.

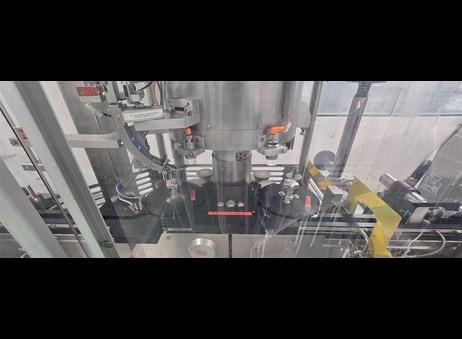

- 1 Rotary crimping machine
Model: RBV 9000 from 1995
New display and Siemens PLC; overhauled by the manufacturer.
Plastic pallet conveyor with side guides to feed the bottles.
8-cell star wheel for loading bottles.
Integrated vibrating bowl to feed the caps.
Chute to feed caps toward the bottles.
"On-the-fly" pickup of the cap to be crimped.
Rotary crimping station.
8-cell exit star wheel for crimped bottles.
Plastic pallet conveyor with side guides to discharge finished products.
Tools currently used on the machine: cap diameter 15 mm, height 7.8 mm.
Current line specifications:
3-ml bottle. Diameter 16 mm – height 38 mm
Cap diameter 15 mm, height 7.8 mm.
Maximum production rate for this line with the current formats listed above:
Approximately 12,000 vials per hour.
Overall dimensions of the sterile line, equipment weight, and power in kW:
Washer: 770 kg, power 3 kW.
Length 2.20 m – width 1.50 m – height 1.60 m.
Water recycling station (model UST 95): 90 kg, power 1.1 kW.
Length 1.30 m – width 0.50 m – height 0.60 m.
Sterilization tunnel with remote power cabinet: 1,335 kg, power 35.2 kW.
Length 2.30 m – width 1.40 m – height 2.10 m.
Tunnel power cabinet:
Length 1.20 m – width 0.50 m – height 2.00 m.
Filler-capper and its remote power cabinet: 2,100 kg, power 4.0 kW.
Length 2.50 m – width 1.80 m – height 1.80 m.
Power cabinet for the filler-capper:
Length 2.00 m – width 0.50 m – height 2.00 m.
Sealing machine: 705 kg, power 2.5 kW.
Length 3.00 m – width 2.00 m – height 1.80 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 103 |
| Last activity | Oct. 27, 2026 |
