| Manufacturer | Battenfeld |
|---|---|
| Model | CM 40 |
| Year | 2016 |
| Location | Germany
|

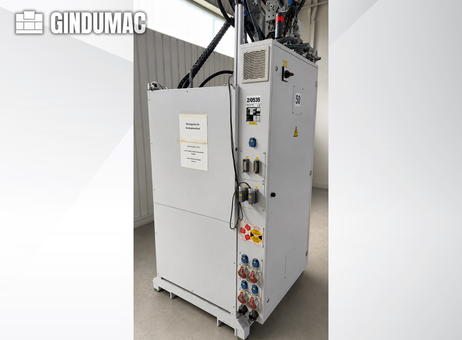

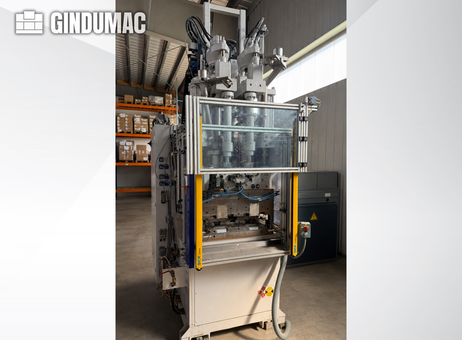

Battenfeld CM 40 vertical injection moulding machine (manufactured 2016). This listing includes the main machine as a vertical clamping unit with a working height of 1000 mm and a clamping force of 350 kN. The machine weight is listed as 5200 kg.
Key technical specifications:

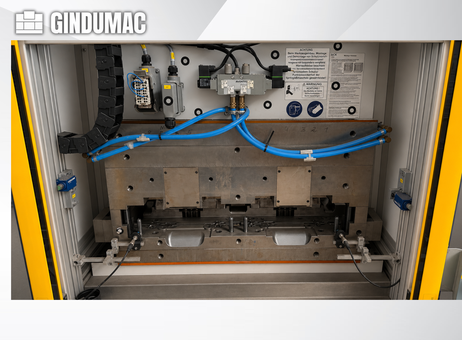

- Clamping system: CM400, EBH-100, Width-100 (mold clamping dimensions)
- Clamping force: 350 kN
- Working height: 1000 mm
- Machine weight: 5200 kg
- Machine height / total height: 3040 mm
- Machine length / machine base footprint (length): 1300 mm (base footprint 1300 mm x 1060 mm)
- Machine width / total width (including safety door swing): 1973 mm

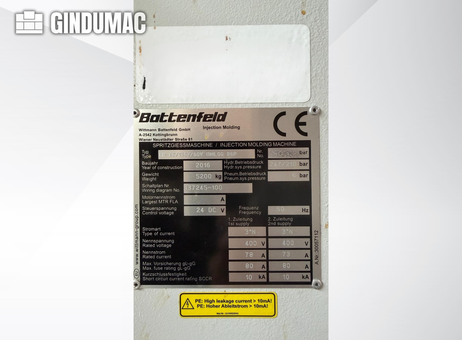

Utilities and electrical data:
- Hydraulic system pressure: 247 / 210 bar
- Pneumatic system pressure: 6 bar
- Rated voltage: 400 V (3~N)
- Control voltage: 24 V DC
- Frequency: 50 Hz
- Rated current (1st supply / 2nd supply): 78 A / 73 A
- Max. fuse rating gl-gG (1st / 2nd supply): 80 A / 80 A
- Short circuit current rating (SCCR): 10 kA
Safety:
- Safety system: SICK C4000 light curtain barrier
Remarks:
- The text above reflects the technical data and description provided in the current product information. No additional accessories, modifications, operating condition, run-hours, testing status, or warranty information is stated in the available description. For further details, documentation, or to request additional measurements and condition reports, please contact the seller.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Vertical injection moulding machine manufactured in 2016. This Battenfeld CM 40 features a machine weight of 5200 kg and a working height of 1000 mm. The machine is equipped with a robust safety system, ensuring operational safety. If you are looking to get high-quality injection moulding capabilities, consider the Battenfeld CM 40 machine we have for sale. Contact us for further details.- Hydraulic System Pressure: 247 / 210 bar
- Pneumatic System Pressure: 6 bar
- Rated Voltage: 400 V (3~N)
- Control Voltage: 24 V DC
- Frequency: 50 Hz
- Rated Current (1st supply / 2nd supply): 78 A / 73 A
- Max. Fuse Rating gl-gG (1st / 2nd supply): 80 A / 80 A
- Short Circuit Current Rating SCCR: 10 kA
- Working Height: 1000 mm
- Total Height: 3040 mm
- Machine Base Footprint: 1300 mm x 1060 mm
- Total Width (including safety door swing): 1973 mm
- Safety System: SICK C4000 light curtain barrier
- Mold Clamping Dimensions: CM400, EBH-100, Width-100
Clamping Force: 350 kN
Machine Height: 3040 mm
Machine Length: 1300 mm
Machine Weight: 5200 kg
Machine Width: 1973 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
