Price on request
View price| Shaft diameter | 600 mm |
| CNC | no |
| CNC type | |
| Bending speed | 60 m/min |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 08/06/2026 |
The Barberan WM-33 is a profile wrapping machine manufactured in 2025, designed for versatile application in wrapping profiles made from various materials including PVC, aluminum, and some composites. This machine supports a wide range of foil types with the use of PUR hot melt adhesives, making it suitable for diverse production needs.
Key specifications include a maximum mechanical speed of 60 m/min, profile dimensions accommodating widths from 25 to 300 mm, heights from 4 to 120 mm, and lengths starting at 600 mm or more. The machine has a total length of 6000 mm, with a shaft diameter of 600 mm and a working height of 900 mm. It operates on 400V, 50Hz power supply and requires compressed air at 6 bar.
The machine is equipped with several functional components to enhance processing efficiency and safety. It features a heavy-duty steel frame entry section, motor-driven transport rollers controlled by a frequency converter, and an integrated control cabinet. The operator interface includes a control panel mounted on a separate stand, allowing for convenient management of adhesive application and machine operation.
Additional equipment includes a set of nozzles for profile cleaning, a protective foil unwinder, hot air turbines, and an infrared screen with lamps and a tool cassette. The adhesive application system consists of a slot nozzle head for precise glue distribution, six self-regulating heaters (expandable to eight), and shaped rubber rollers for foil application. The machine also incorporates air blowers and ionization to reduce static and dust, along with an automatic primer station for accurate primer application.

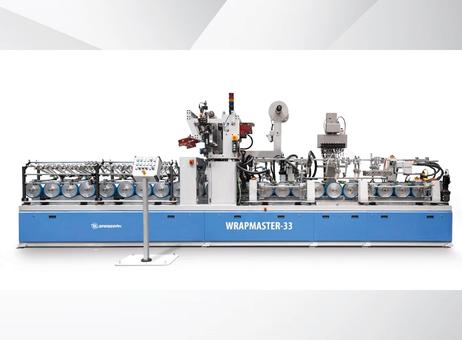

Safety features include emergency safety systems and a glue unit safety mesh. The machine's design allows quick profile shape changes and height adjustment for pressure control. The visible blue base displays the WRAPMASTER-33 label along with Barberan branding. Multiple rollers arranged in rows are present for profile bending or shaping, and pneumatic or hydraulic lines are connected throughout the machine.
Overall, the Barberan WM-33 is a robust and adaptable profile wrapping machine suitable for standalone operation or integration into a complete production line, providing efficient and precise wrapping capabilities for various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This Barberan WM-33 was manufactured in 2025. A profile wrapping machine designed for versatility, it handles various materials including PVC and aluminum. It supports a wide range of foil types and utilizes PUR hot melt adhesives. Key features include a max mechanical speed of 60 m/min, profile dimensions up to 300 mm wide and 120 mm high, and a total machine length of 6000 mm. Contact us for more information about this machine.
Measurements depth: 6000
Machine bed, slot nozzle head, mounts for wrapping tools
Complete tool set for PVC/Aluminum profiles
Operator safety system and control cabinet
Set of nozzles for profile cleaning
Protective foil unwinder and hot air turbines
Infrared screen with lamps and tool cassette
The profile wrapping machine is designed to wrap profiles of various shapes, sizes, and materials using different foils with hot melt adhesives.
Operates as a standalone unit or part of a complete production line.
Capable of working with materials such as pvc, aluminum, and some composites.
Various foil types are compatible, special configurations may be needed for certain materials.
Profile dimensions: width 25–300 mm, length ≥600 mm, height 4–120 mm
Foil dimensions: width 25–330 mm, outer roll diameter ≤600 mm, inner roll diameter 76 mm
Max mechanical speed: 60 m/min
Working height: 900 mm
Voltage: 400v – 50hz
Compressed air: 6 bar
Machine entry section with heavy-duty steel frame
Transport rollers with motor-driven frequency converter
Integrated control cabinet
Emergency safety systems
Glue unit safety mesh
Operator control panel for adhesive management
Two 15 mm wide rollers per shaft, 240 mm diameter
Quick positioning in 5 mm steps
Air blowers & ionization for static and dust removal
Automatic primer station with precise applicationMachine still under power.
6 self-regulating heaters, expandable to 8.
Slot Nozzle Head (330 mm) for adhesive application.
Roll diameter up to 600 mm.
Magnetic powder brake for tension control.
Infrared screen for foil heating.
Foil applied with shaped rubber rollers.
Quick profile shape change system.
For foil rolls up to 600 mm diameter.
Height-adjustable for pressure control.
The system is versatile with components designed to enhance processing efficiency and adaptability for various production needs.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2023 |
| Last activity | June 9, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This Barberan WM-33 was manufactured in 2025. A profile wrapping machine designed for versatility, it handles various materials including PVC and aluminum. It supports a wide range of foil types and utilizes PUR hot melt adhesives. Key features include a max mechanical speed of 60 m/min, profile dimensions up to 300 mm wide and 120 mm high, and a total machine length of 6000 mm. Contact us for more information about this machine.
Measurements depth: 6000
Machine bed, slot nozzle head, mounts for wrapping tools
Complete tool set for PVC/Aluminum profiles
Operator safety system and control cabinet
Set of nozzles for profile cleaning
Protective foil unwinder and hot air turbines
Infrared screen with lamps and tool cassette
The profile wrapping machine is designed to wrap profiles of various shapes, sizes, and materials using different foils with hot melt adhesives.
Operates as a standalone unit or part of a complete production line.
Capable of working with materials such as pvc, aluminum, and some composites.
Various foil types are compatible, special configurations may be needed for certain materials.
Profile dimensions: width 25–300 mm, length ≥600 mm, height 4–120 mm
Foil dimensions: width 25–330 mm, outer roll diameter ≤600 mm, inner roll diameter 76 mm
Max mechanical speed: 60 m/min
Working height: 900 mm
Voltage: 400v – 50hz
Compressed air: 6 bar
Machine entry section with heavy-duty steel frame
Transport rollers with motor-driven frequency converter
Integrated control cabinet
Emergency safety systems
Glue unit safety mesh
Operator control panel for adhesive management
Two 15 mm wide rollers per shaft, 240 mm diameter
Quick positioning in 5 mm steps
Air blowers & ionization for static and dust removal
Automatic primer station with precise applicationMachine still under power.
6 self-regulating heaters, expandable to 8.
Slot Nozzle Head (330 mm) for adhesive application.
Roll diameter up to 600 mm.
Magnetic powder brake for tension control.
Infrared screen for foil heating.
Foil applied with shaped rubber rollers.
Quick profile shape change system.
For foil rolls up to 600 mm diameter.
Height-adjustable for pressure control.
The system is versatile with components designed to enhance processing efficiency and adaptability for various production needs.
